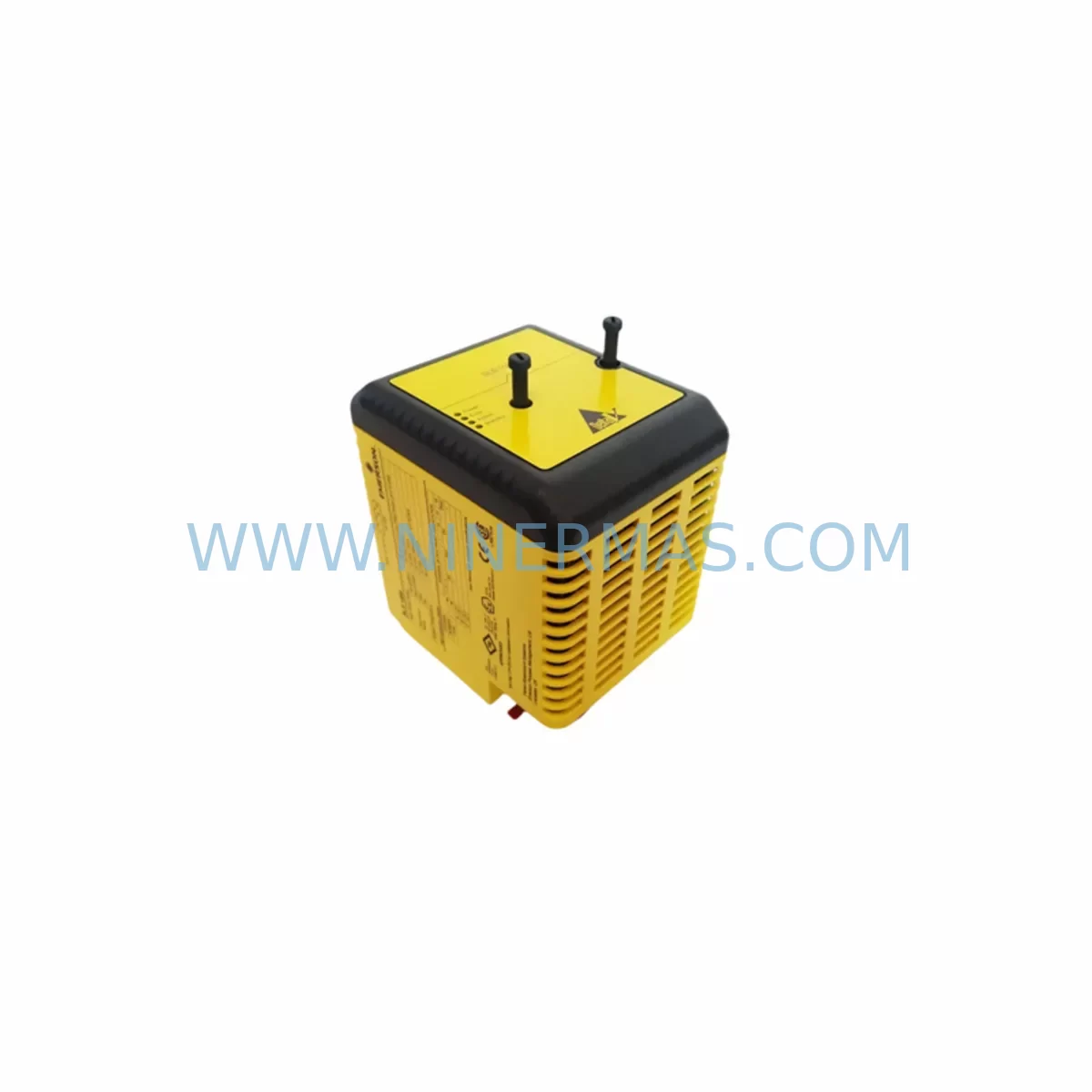

The Emerson KJ2201X1-BA1 12P3162X252 SLS1508 is an original Safety Logic Solver module designed for the Emerson DeltaV SIS (Safety Instrumented System) platform. As a critical safety-rated component in process automation environments, this module serves as the execution core for safety logic in Emergency Shutdown (ESD), Fire & Gas (F&G), and Burner Management System (BMS) applications. Sourced as a genuine Emerson spare part, it is fully compatible with existing DeltaV SIS architectures and supports direct drop-in replacement without system reconfiguration, minimizing unplanned downtime and reducing mean time to repair (MTTR) in safety-critical installations.

For maintenance engineers managing aging DeltaV SIS infrastructure, having a pre-tested, service-ready KJ2201X1-BA1 on the shelf is a fundamental risk mitigation strategy. Safety logic solver failures are among the highest-consequence fault events in process plants — a single undetected failure can trigger a spurious trip, production loss, or worse, a dangerous undetected failure (DU fault). Stocking this module as part of a structured spare parts program ensures that your safety system can be restored to full SIL-rated operation within the shortest possible maintenance window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KJ2201X1-BA1 Safety Logic Solver in a DeltaV SIS installation, a disciplined maintenance engineer will not stop at the module itself. The SLS sits at the heart of a tightly integrated safety loop, and its replacement is the ideal opportunity to inspect and verify the condition of all adjacent components that share the same safety circuit, carrier, or power rail.

Begin with the DeltaV SIS Carrier (KJ2201X1 series carrier) — the backplane that hosts the SLS module. Inspect the carrier for bent pins, oxidation on the connector interface, and any signs of thermal stress. A degraded carrier can cause intermittent communication faults that are difficult to diagnose after the new SLS is installed. Next, verify the DeltaV SIS Power Supply module (typically a redundant 24 VDC supply feeding the SIS cabinet) — confirm output voltage stability and check for any ripple or transient events logged in the DeltaV Event Chronicle.

Inspect the DeltaV SIS I/O modules connected to the same logic solver — particularly the discrete input (DI) and discrete output (DO) cards that interface with field instruments such as pressure transmitters, solenoid valves, and final control elements. Verify that all field wiring terminations at the DeltaV SIS terminal blocks and marshalling panels are tight, correctly labeled, and free from corrosion. Loose terminations are a leading cause of nuisance trips and spurious activations in SIS loops.

For systems with redundant SLS configurations, confirm that the redundant KJ2201X1-BA1 partner module is also within its recommended service interval. Redundancy is only effective when both modules are in a known-good state. If one module has already been replaced, the second should be evaluated for proactive replacement during the same maintenance window to avoid a single-point-of-failure scenario.

Review the DeltaV SIS communication network — the SIS bus connecting the logic solver to the DeltaV controller (typically a KJ2003X1-BA1 or equivalent DeltaV SIS Controller) should be checked for cable integrity, connector seating, and any reported communication errors. In larger installations, also inspect the DeltaV CIOC (Charm I/O Controller) or CSLS (Charm Safety Logic Solver) modules if the plant has migrated to the CHARM-based SIS architecture.

Do not overlook the DeltaV SIS Workstation and Engineering Station software configuration — after installing the replacement KJ2201X1-BA1, a download and proof test cycle must be performed per your site’s Safety Management System (SMS) procedures. Ensure that the DeltaV SIS firmware version on the replacement module is compatible with the installed DeltaV system version to avoid version mismatch alarms. Finally, check the UPS (Uninterruptible Power Supply) feeding the SIS cabinet — battery health and transfer time should be verified as part of any SIS maintenance event to ensure the safety system remains energized during a power disturbance.

Site Replacement Workflow

Replacing the Emerson KJ2201X1-BA1 12P3162X252 SLS1508 in a live DeltaV SIS environment requires adherence to your site’s Management of Change (MOC) and Permit to Work (PTW) procedures. The following workflow is provided as a general maintenance reference and should be adapted to your plant’s specific safety management requirements.

Step 1 — Pre-Replacement Verification: Confirm the replacement module part number (KJ2201X1-BA1), reference numbers (12P3162X252 / SLS1508), and firmware compatibility with your installed DeltaV SIS system version. Retrieve the module from controlled spare parts storage and verify the pre-shipment test certificate.

Step 2 — Safety Bypass & Isolation: Place the affected SIS loop(s) into a defined maintenance bypass state per IEC 61511 requirements. Document the bypass activation time and notify the control room. Ensure that compensating measures (manual monitoring, increased operator rounds) are in place for the duration of the maintenance activity.

Step 3 — Module Removal: Power down the affected SIS carrier slot if hot-swap is not supported for your configuration. Remove the faulty KJ2201X1-BA1 module by releasing the locking mechanism and extracting it from the carrier. Inspect the carrier connector for damage before inserting the replacement.

Step 4 — Module Installation & Download: Insert the replacement KJ2201X1-BA1 into the carrier slot. Power up the slot and allow the DeltaV SIS system to recognize the new module. Perform a full application download from the DeltaV Engineering Workstation and verify that all I/O channels report correctly in the DeltaV Operate interface.

Step 5 — Proof Test & Bypass Removal: Execute the required proof test for the affected SIS loops per your site’s Safety Instrumented Function (SIF) test procedures. Confirm that all safety functions respond correctly. Remove the maintenance bypass and restore the SIS loops to normal protective mode. Document the completed maintenance activity in your CMMS (Computerized Maintenance Management System).

This structured replacement approach ensures system compatibility is maintained, downtime is minimized, and the DeltaV SIS platform continues to deliver its required Safety Integrity Level (SIL) performance for the next proof test interval.
