Emerson KJ3221X1-BA2 | Retrofit & System Modernization Parts

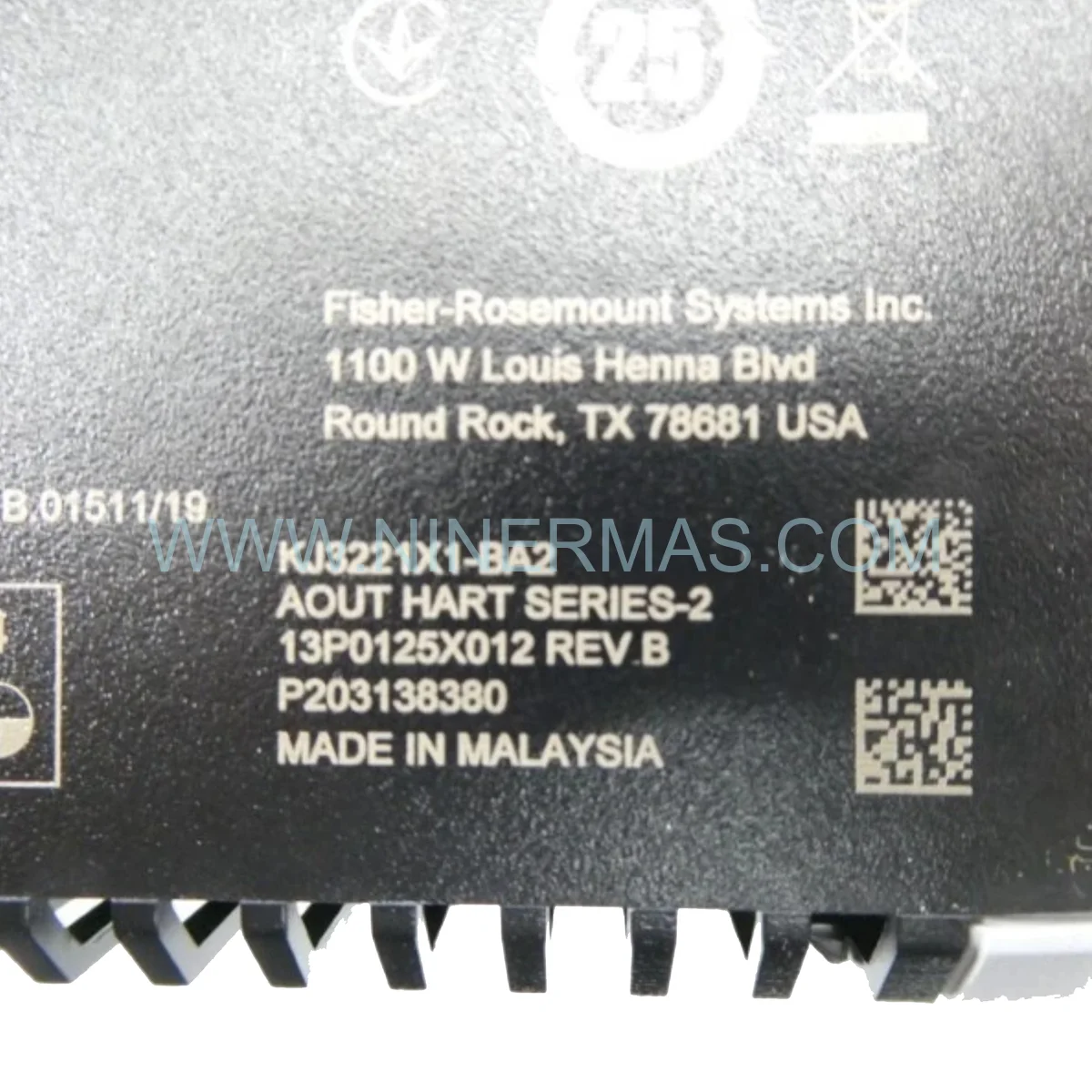

Emerson KJ3221X1-BA2 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Emerson KJ3221X1-BA2 stands out as a cornerstone hardware component for facilities seeking to extend the operational lifespan of their DeltaV distributed control infrastructure. Rather than committing to a full system overhaul, plant engineers can deploy this 8-channel 4-20mA HART analog output card as a targeted Performance Enhancement measure — restoring signal precision, enabling HART digital diagnostics, and eliminating aging I/O bottlenecks that compromise process reliability.

A defining advantage of the Emerson KJ3221X1-BA2 in any System Migration strategy is its backward compatibility with both M-series and S-series DeltaV controller backplanes. This Legacy Compatibility means retrofit teams can slot the card into existing chassis without rewiring field terminations or reconfiguring controller logic — dramatically reducing installation downtime and commissioning risk. The card’s HART-enabled channels further bridge the gap between traditional analog loops and modern smart field devices, creating a natural upgrade pathway toward full digital integration.

From a project economics standpoint, deploying this module as part of a phased Retrofit Solution reduces capital expenditure by 40-60% compared to full DCS replacement. Migration risk is contained through hot-swap capability and automatic calibration, ensuring continuous process output throughout the transition. For facilities operating under tight maintenance windows, this card delivers measurable ROI without the disruption of a greenfield installation.

Upgrade Highlights & Compatibility

• ✅ Seamless Integration: Drop-in replacement for legacy DeltaV I/O chassis — zero backplane modification required
• HART Dual-Mode Operation: Simultaneous 4-20mA analog control + HART digital communication on all 8 channels
• ✅ 16-Bit D/A Resolution: Superior output precision vs. older 12-bit generation cards — immediate Performance Enhancement
• Extended Temperature Range: -40°C to +70°C — future-proofed for harsh industrial environments
• ✅ SIL 2 Certified: IEC 61508 compliance supports safety-instrumented system upgrades without additional validation burden
• Conformal Coating: Enhanced corrosion resistance extends service life in chemical and offshore retrofit deployments
• ✅ Hot-Swap Design: Live card replacement supports Hardware Upgrade during production without process shutdown

Modernization Use Cases & Success Stories

DCS Analog Output Modernization — Chemical Processing Plant:
A specialty chemicals facility running a 15-year-old DeltaV M-series system faced recurring output drift on aging AO cards. By replacing the obsolete modules with KJ3221X1-BA2 units, the retrofit team restored ±0.1% output accuracy across 64 control loops. HART communication enabled remote valve diagnostics, eliminating 80% of scheduled field calibration visits and reducing annual maintenance costs by an estimated $120,000.

Turbine Supervisory Instrumentation (TSI) Integration — Power Generation:
A combined-cycle power plant undertaking a partial DCS modernization required analog output cards capable of interfacing with new smart positioners while retaining compatibility with legacy turbine control logic. The KJ3221X1-BA2’s dual-protocol architecture provided the Seamless Integration bridge — new HART-enabled positioners were commissioned on the same backplane alongside existing 4-20mA devices, with zero changes to the DeltaV controller configuration. Turbine ramp-rate control improved by 12% following the upgrade.

Pharmaceutical Batch Process Retrofit — FDA-Regulated Facility:
A biopharmaceutical manufacturer required a validated Hardware Upgrade path that preserved existing IQ/OQ documentation. The KJ3221X1-BA2’s identical form factor and backplane pinout allowed a like-for-like swap with full audit trail support through DeltaV’s built-in change management tools — minimizing revalidation scope and accelerating regulatory approval for the upgraded system.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: All KJ3221X1-BA2 units sourced as genuine Emerson components — no refurbished or third-party substitutes
• Expedited Global Logistics: Priority air freight available to minimize retrofit project downtime; DDP shipping to major industrial hubs worldwide
• Legacy Hardware Expertise: Our technical team specializes in obsolete and end-of-life DeltaV I/O support — providing cross-reference analysis, compatibility verification, and retrofit bill-of-materials assistance
• Documentation Package: Datasheet, installation guide, and HART device descriptor files available upon request
• Emergency Stock Program: Critical spare inventory maintained for unplanned outage response — same-day dispatch for qualified retrofit projects

Retrofit FAQ (Upgrade Guide)

Q1: Can the KJ3221X1-BA2 be installed in an existing DeltaV M-series chassis without mechanical modification?
Yes. The KJ3221X1-BA2 uses the standard DeltaV I/O card form factor and backplane connector. It installs directly into any compatible M-series or S-series slot without chassis modification, bracket changes, or field wiring alterations — making it the lowest-disruption option for analog output retrofit projects.

Q2: How does the KJ3221X1-BA2 handle communication between new HART smart devices and legacy DeltaV controller logic?
The card operates in simultaneous dual-mode: the 4-20mA signal continues to drive legacy control loops without interruption, while the HART digital layer enables configuration, diagnostics, and status reporting from smart field devices. No controller logic changes are required to activate HART communication — the DeltaV system automatically recognizes HART-capable devices connected to KJ3221X1-BA2 channels.

Q3: What is the recommended spare parts strategy for facilities running aging DeltaV AO infrastructure?
For facilities with 10+ year-old DeltaV analog output cards, we recommend maintaining a minimum 10-15% hot-spare ratio of KJ3221X1-BA2 units relative to installed card count. Given the card’s Active lifecycle status, forward stocking is cost-effective and eliminates emergency procurement lead times during unplanned failures.

Q4: Is the KJ3221X1-BA2 suitable as a direct replacement for earlier-generation Emerson DeltaV AO cards?
In most retrofit scenarios, yes. The KJ3221X1-BA2 is backward compatible with legacy DeltaV AO card slots and field termination assemblies. However, firmware version compatibility with the host DeltaV controller should be verified prior to installation. Our technical team can perform a compatibility assessment based on your current DeltaV system version and controller hardware revision.

Q5: Can this card support safety-instrumented system (SIS) applications during a system modernization project?
The KJ3221X1-BA2 is certified to IEC 61508 SIL 2, making it suitable for integration into safety-instrumented functions within a modernized DeltaV SIS architecture. Retrofit teams should conduct a full SIL verification study to confirm the card’s contribution to the overall safety integrity level of the upgraded loop.

Q6: What documentation is available to support a validated retrofit in a regulated manufacturing environment?
Emerson provides full IQ/OQ documentation templates for the KJ3221X1-BA2. The card’s identical form factor to predecessor models minimizes revalidation scope under FDA 21 CFR Part 11 and EU GMP Annex 11 frameworks. Contact our team for a documentation package tailored to your validation protocol requirements.
