Emerson KJ3221X1-BA1 12P2531X102 Retrofit-Compatible I/O for Legacy Systems

Emerson KJ3221X1-BA1 12P2531X102 Retrofit-Compatible I/O for Legacy Systems

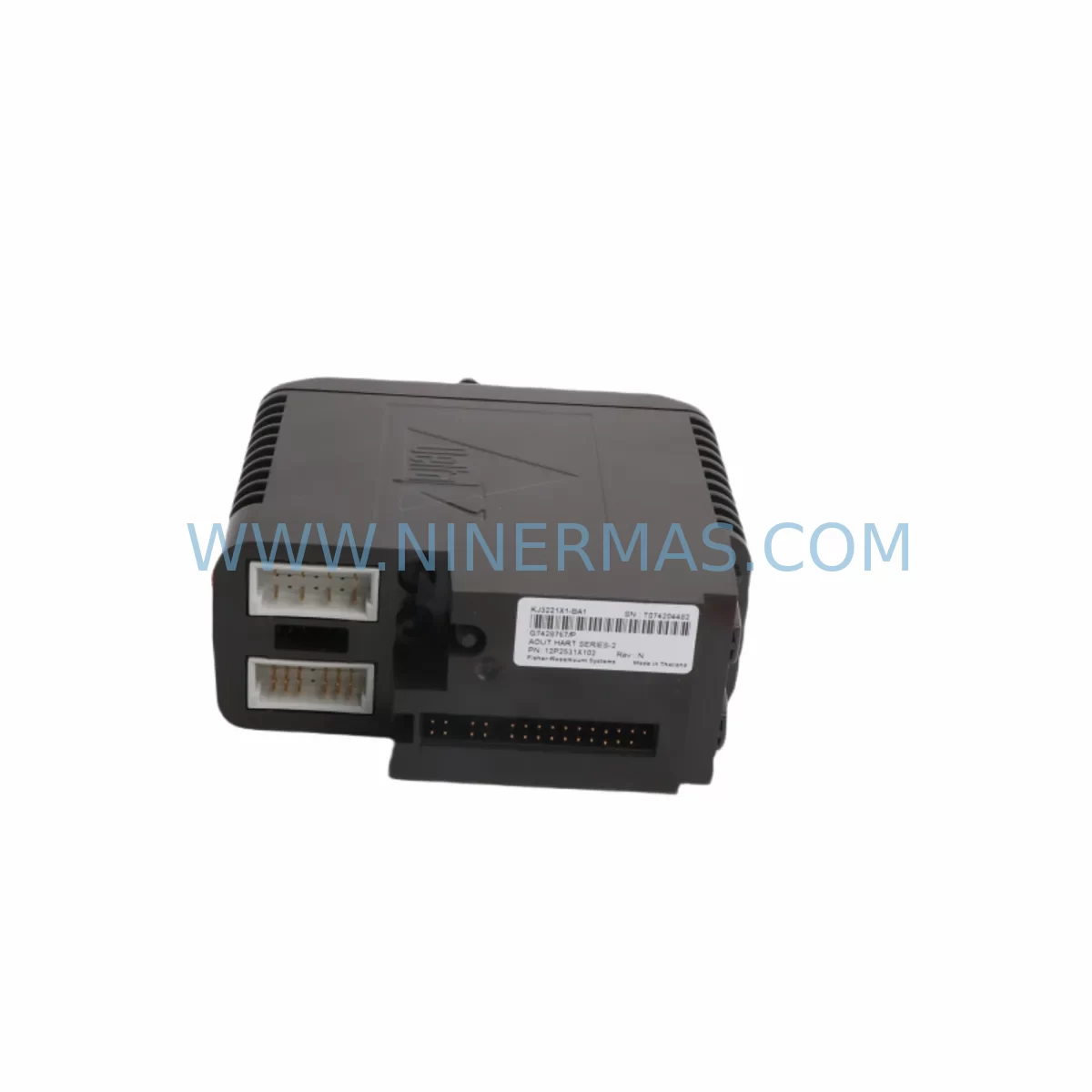

The Emerson KJ3221X1-BA1 (Part No. 12P2531X102) is a DeltaV series I/O module engineered for retrofit-compatible deployment in aging distributed control system (DCS) architectures. As process plants extend the operational life of legacy DeltaV installations beyond original design horizons, sourcing a verified, service-ready replacement for the KJ3221X1-BA1 becomes a critical procurement and engineering priority. NINERMAS supplies this module with full pre-shipment functional testing, confirmed compatibility documentation, and a 12-month warranty — supporting both emergency breakdown recovery and planned annual turnaround programs.

The KJ3221X1-BA1 is a DeltaV analog input module widely deployed in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing environments. Its 12P2531X102 assembly designation confirms the specific hardware revision, which is essential when validating drop-in compatibility against existing carrier wiring, backplane slot assignments, and DeltaV controller firmware versions. Engineers undertaking a retrofit must verify that the replacement module matches the original revision to avoid reconfiguration of I/O channel assignments within DeltaV Explorer or DeltaV Operate HMI screens.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the KJ3221X1-BA1 requires a structured pre-outage engineering review. Maintenance and automation engineers should begin by auditing the DeltaV I/O carrier — typically a KJ3001X1 or KJ3002X1 series carrier — to confirm that the slot position, backplane bus connector, and carrier firmware are compatible with the replacement module revision. Carrier condition should be inspected for oxidized bus contacts or damaged locking tabs that could cause intermittent I/O faults after the new module is seated.

Terminal wiring connected to the marshalling cabinet must be documented before removal. The KJ3221X1-BA1 interfaces with field signal cables through the carrier’s terminal block assembly; in many legacy installations, these are wired to HART-capable 4–20 mA transmitters for process variables such as flow, pressure, and temperature. Confirm that signal cable shielding and grounding practices meet DeltaV installation guidelines to prevent noise-induced measurement errors after the retrofit.

Power distribution within the control cabinet should also be reviewed. The DeltaV power supply module — such as the KJ1501X1 series — feeds the I/O carrier bus, and any degradation in bus voltage regulation can cause newly installed modules to report diagnostic alarms. A power supply health check, including output voltage measurement under load, is recommended as part of the retrofit scope.

Communication continuity is maintained through the DeltaV controller — typically a KJ2201X1 or MD Plus controller — which manages I/O scanning and process variable updates to the DeltaV Operate workstation. No fieldbus reconfiguration is required for a like-for-like KJ3221X1-BA1 replacement, but engineers should confirm that the DeltaV controller firmware version supports the module revision being installed. Mismatched firmware can result in module not recognized errors in DeltaV Diagnostics.

For sites undertaking broader I/O expansion alongside the KJ3221X1-BA1 replacement, additional DeltaV analog output modules, discrete input modules, and HART multiplexer cards may be required to extend the I/O count without adding new controller nodes. Signal isolators installed between field devices and the I/O carrier can protect the new module from voltage transients in electrically noisy plant environments. Surge protection terminal blocks on the marshalling panel are also recommended for long cable runs in outdoor or substation-adjacent installations.

HMI screen validation in DeltaV Operate should be completed after the module swap. Faceplates linked to analog input channels on the KJ3221X1-BA1 must display correct engineering unit values and alarm limits. If the site uses DeltaV Batch or DeltaV Advanced Control, recipe and control module references to the affected I/O channels should be verified in a simulation environment before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime during a KJ3221X1-BA1 replacement requires pre-staging the spare module, preparing a channel-by-channel wiring record, and coordinating with the control room operator to place affected loops in manual mode before the card swap begins. The DeltaV system supports hot-standby I/O configurations on redundant carriers; where redundancy is available, the replacement can be performed without a full process shutdown by switching I/O traffic to the redundant path during the swap window.

For non-redundant I/O installations, the recommended approach is to schedule the replacement during a planned maintenance window, pre-configure the replacement module offline using DeltaV Simulate if available, and execute the physical swap with a commissioning engineer on-site to verify signal restoration immediately after seating the module. Target time from card removal to confirmed signal restoration is typically under 30 minutes for a prepared team with a tested spare module.

NINERMAS ships the KJ3221X1-BA1 12P2531X102 with a pre-shipment functional test report, confirming that all I/O channels are within specification before dispatch. This eliminates the risk of receiving a defective spare during a live maintenance window — a critical assurance for sites with no on-site backup module inventory. Long-term supply agreements are available for customers requiring guaranteed stock allocation across multi-year maintenance programs.

Retrofit Support FAQ

Q1: Is the KJ3221X1-BA1 12P2531X102 a direct drop-in replacement for the original module?
Yes, provided the DeltaV carrier, backplane, and controller firmware are compatible with the 12P2531X102 hardware revision. NINERMAS recommends confirming the revision number against your existing DeltaV system documentation before ordering. Our technical team can assist with compatibility verification.

Q2: What pre-shipment testing is performed on this module?
Each KJ3221X1-BA1 unit is subjected to full functional testing covering I/O channel signal integrity, backplane bus communication, and power consumption verification. A test report is included with shipment. The module is covered by a 12-month warranty against manufacturing defects and functional failure from the date of delivery.

Q3: Can NINERMAS support long-term supply for multi-site maintenance programs?
Yes. NINERMAS offers long-term supply agreements and reserved stock allocation for customers managing DeltaV spare parts programs across multiple facilities. Contact sale@ninermas.com to discuss volume pricing, lead time commitments, and consignment stock options.

Q4: What should be checked if the replacement module shows a fault after installation?
First verify that the module is fully seated in the carrier slot and the locking mechanism is engaged. Check DeltaV Diagnostics for module status and confirm that the carrier power supply output is within specification. Review the DeltaV controller firmware version for compatibility with the 12P2531X102 revision. If the fault persists, contact NINERMAS technical support — warranty replacement is available within the 12-month coverage period.
