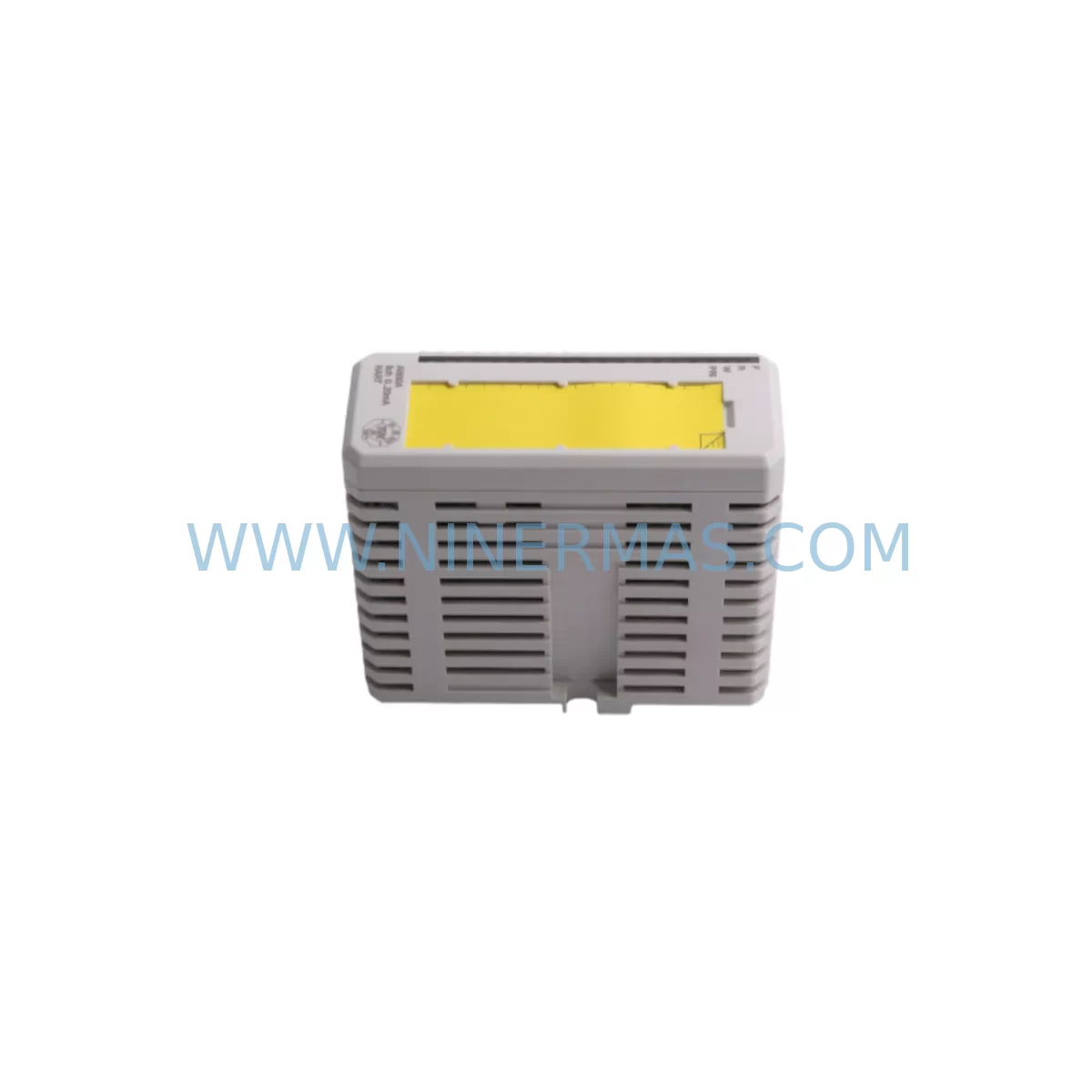

The ABB AI880A (3BSE039293R1) is an 8-channel analog input module engineered for ABB’s AC800M Distributed Control System platform, operating within the S800 I/O family. Designed for continuous process industries including oil & gas, chemical processing, power generation, and pulp & paper, this module delivers reliable 4–20 mA and HART signal acquisition over the Modulebus backplane. When a control system experiences an analog input fault — whether from signal drift, channel failure, or module-level hardware degradation — unplanned downtime can cascade rapidly across the process loop. Sourcing a verified, service-ready AI880A 3BSE039293R1 replacement from a reliable spare parts supplier is the fastest path to loop restoration and production recovery.

At NINERMAS, every AI880A 3BSE039293R1 unit is sourced from original ABB supply channels, inspected prior to dispatch, and covered by a 12-month warranty. We maintain forward stock to support emergency procurement, planned annual shutdowns, and long-term spare parts inventory programs for facilities operating legacy AC800M systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an AI880A 3BSE039293R1 in an AC800M I/O station is rarely an isolated task. Maintenance engineers conducting a thorough loop restoration or annual inspection should simultaneously verify the condition of adjacent modules and system components to prevent repeat failures and reduce future unplanned outages.

Begin with the ABB TB840A Modulebus Cluster Modem — the communication backbone connecting the S800 I/O station to the AC800M controller. A degraded TB840A can cause intermittent signal loss that mimics analog input module faults, leading to misdiagnosis. Alongside this, inspect the ABB SD831 Power Supply Device, which provides regulated 24 VDC to the I/O station; voltage ripple or supply instability is a common root cause of analog channel drift.

For facilities running mixed analog and digital I/O, the ABB AO810V2 Analog Output Module and ABB DI810 Digital Input Module should be included in the inspection cycle. These modules share the same S800 baseplate and Modulebus environment, and their failure modes often correlate with backplane connector wear or environmental contamination. Similarly, the ABB DO810 Digital Output Module should be checked for relay contact wear if the control cabinet handles high-cycle switching loads.

At the controller level, confirm the health of the ABB PM891K01 AC800M Processor Module. Firmware mismatches between a newly installed AI880A and an older PM891 revision can cause configuration errors during module recognition. Ensure the processor firmware is current and that the I/O configuration in Control Builder M reflects the replacement module’s parameters.

For HART-enabled loops, verify that the ABB CI854AK01 PROFIBUS DP Interface Module — if present in the cabinet — is correctly mapped and that HART pass-through is enabled in the system configuration. HART device descriptors may need to be re-imported after a module swap. Additionally, inspect the ABB AI810 Analog Input Module and ABB AI830A Analog Input Module installed in adjacent slots; these share similar hardware architecture and may exhibit early-stage degradation if the cabinet has experienced thermal stress or moisture ingress.

Terminal units such as the ABB TU830V1 Compact MTU should be examined for loose field wiring terminations, corroded screw terminals, and damaged cable shields. Poor termination quality at the MTU level is a leading cause of 4–20 mA signal noise and offset errors that are often incorrectly attributed to the input module itself. Completing this full-cabinet inspection during an AI880A replacement maximizes the value of each maintenance intervention and extends the operational life of the entire I/O station.

Site Replacement Workflow

The AI880A 3BSE039293R1 supports hot-swap replacement, allowing field engineers to perform module substitution without a full system shutdown in most AC800M configurations. Follow this workflow to minimize downtime and ensure system integrity:

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (3BSE039293R1) and firmware revision against the existing system configuration in ABB Control Builder M. Verify that the S800 I/O station baseplate slot assignment matches the failed module’s address.

Step 2 — Signal Isolation: Place the affected analog input channels in manual mode at the DCS operator station. Notify process operators of the impending loop interruption. For HART-enabled channels, disconnect HART communicator sessions before removal.

Step 3 — Module Removal: Disengage the module locking lever on the S800 baseplate and slide the AI880A out of the slot. Inspect the baseplate connector for bent pins, contamination, or corrosion before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new AI880A 3BSE039293R1 into the baseplate slot until the locking lever engages. The AC800M system will automatically detect the new module and load the pre-configured I/O parameters from the controller database.

Step 5 — Loop Verification: Return the affected channels to automatic mode and verify 4–20 mA signal readings against field transmitter values. Perform a HART device scan if applicable. Document the replacement in the site maintenance log with the new module’s serial number and installation date.

This structured replacement approach reduces mean time to repair (MTTR), maintains system compatibility, and provides a clear audit trail for regulatory compliance and warranty validation.

Spare Parts Support FAQ

Q1: Is the AI880A 3BSE039293R1 still available as a new original spare part?
Yes. NINERMAS maintains stock of original ABB AI880A 3BSE039293R1 modules sourced through verified supply channels. Despite the AC800M platform’s maturity, we support long-term spare parts availability for facilities committed to extending the operational life of their existing DCS infrastructure. Contact our team for current stock status and lead time confirmation.

Q2: How is compatibility verified before shipment?
Each AI880A 3BSE039293R1 unit undergoes pre-shipment inspection covering physical condition, connector integrity, and part number verification against the 3BSE039293R1 label. We confirm hardware revision compatibility with common AC800M system configurations. A 12-month warranty is included with every unit, covering defects in materials and workmanship under normal operating conditions.

Q3: Can the AI880A replace older ABB analog input modules in the same S800 I/O station?
The AI880A is designed for direct slot-compatible replacement within S800 I/O baseplates. It is backward-compatible with standard S800 Modulebus configurations. However, if replacing an earlier-generation module such as the AI810, engineers should verify that the Control Builder M I/O configuration is updated to reflect the AI880A’s channel count and HART capability. NINERMAS technical support can assist with compatibility confirmation prior to purchase.

Q4: What is your lead time and shipping policy for emergency spare parts orders?
For in-stock AI880A 3BSE039293R1 units, NINERMAS targets same-day or next-business-day dispatch for emergency orders received before the daily shipping cutoff. We ship globally with full export documentation, commercial invoice, and packing list. For facilities requiring a standing spare parts agreement or consignment stock arrangement, contact our sales team to discuss long-term supply terms aligned with your annual maintenance schedule.
