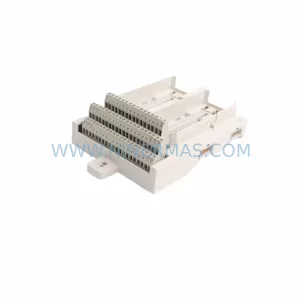

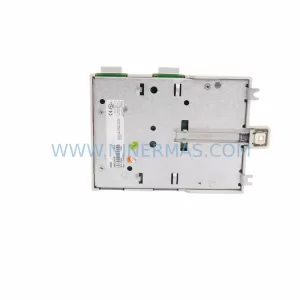

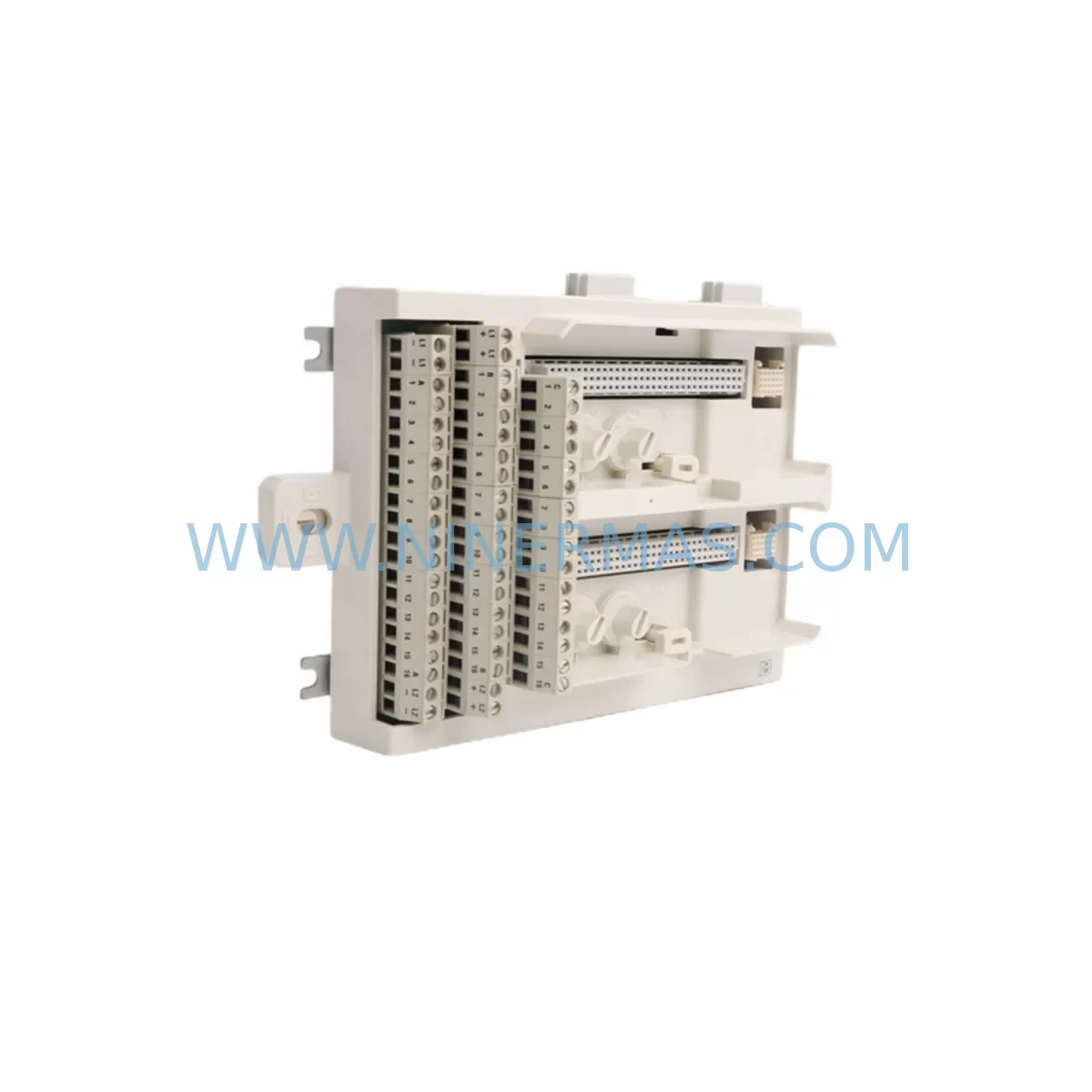

ABB TU842 3BSE020850R1 Retrofit-Compatible Terminal Unit S800 I/O

ABB TU842 3BSE020850R1 Retrofit-Compatible Terminal Unit for S800 I/O Legacy Systems

The ABB TU842 (3BSE020850R1) is a field-proven terminal unit designed for use within the ABB S800 I/O platform — one of the most widely deployed distributed I/O systems in process automation, power generation, and manufacturing environments worldwide. As aging control architectures approach end-of-life and original spare parts become increasingly scarce, the TU842 plays a critical role in sustaining operational continuity for plants that are not yet ready for a full DCS migration.

Whether you are managing a brownfield retrofit, replacing a failed module in an emergency shutdown scenario, or executing a phased control cabinet upgrade, the TU842 3BSE020850R1 provides the mechanical and electrical interface needed to mount and connect compatible S800 I/O modules to existing field wiring — without requiring changes to the underlying terminal block layout or cable routing. This makes it an essential component for maintenance engineers and system integrators working to extend the productive life of legacy ABB Advant, MOD 300, or AC 800M-based control systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TU842 3BSE020850R1 into a legacy control system requires careful pre-installation planning. Before removing the existing terminal unit, maintenance teams should document the current field wiring layout, confirm terminal numbering against the original loop drawings, and photograph the as-installed wiring for reference during reinstallation. This is especially important in older plants where as-built documentation may not reflect field modifications made over years of operation.

The TU842 is designed to retain field wiring on the terminal block side while the I/O module is removed — a key advantage when performing hot-swap or planned maintenance replacements. However, in systems where the AI810 analog input module or DI810 digital input module is mounted on the TU842, engineers should verify that the associated channel configuration in the AC 800M controller program matches the physical wiring before re-enabling the I/O point in the control logic.

For installations using the CI810B PROFIBUS DP communication interface or the CI820 ModuleBus optical interface, confirm that the communication link to the S800 I/O station remains active during the terminal unit replacement. In some configurations, replacing the TU842 while the station is powered may trigger a communication fault alarm at the AC 800M controller — this is normal and will clear automatically once the replacement module is seated and the I/O station re-initializes.

Where the retrofit involves upgrading from an older Advant OCS or MOD 300 platform to an AC 800M-based architecture, the TU842 can often be reused as part of the new I/O subsystem, reducing the total cost of the migration. In these scenarios, the TB820 ModuleBus modem and SA810 power supply module are typically also replaced to ensure compatibility with the new controller platform. Engineers should also account for available installation space in the control cabinet, as the addition of a BC810 ModuleBus cluster controller or additional I/O stations may require rack extension or cabinet expansion.

For plants migrating communication protocols from PROFIBUS DP to PROFINET or Ethernet-based architectures, the TU842 remains compatible with the S800 I/O hardware layer, while the communication interface module — such as replacing a CI830 PROFIBUS interface with a CI871 PROFINET interface — handles the protocol translation. This approach allows the field wiring and terminal unit infrastructure to be preserved while the upper communication layers are modernized, significantly reducing retrofit complexity and downtime exposure.

Signal isolation requirements should also be reviewed during retrofit planning. In applications where the TU842 supports analog I/O modules connected to field instruments with ground loops or high common-mode voltage, the addition of external signal isolators between the field terminals and the TU842 may be necessary to protect the I/O module and ensure measurement accuracy. This is a common requirement in older plants where the original design did not include isolation at the I/O level.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team performing a terminal unit replacement or control system retrofit. The TU842 3BSE020850R1 supports a structured replacement approach that allows field wiring to remain connected to the terminal block while the I/O module is removed, inspected, or replaced — reducing the risk of wiring errors during reinstallation and shortening the overall replacement window.

For planned maintenance shutdowns, the recommended procedure is to export the current I/O configuration from the AC 800M engineering tool (Control Builder M) before beginning any hardware work. This ensures that the module address, channel configuration, and signal scaling parameters are documented and can be restored quickly if the replacement module requires reconfiguration. In systems where the HMI — such as an ABB Panel 800 or third-party SCADA connected via OPC — displays real-time process values from the affected I/O points, operators should be notified in advance and the relevant displays placed in manual or override mode to prevent false alarms during the replacement window.

Where the TU842 is part of a redundant I/O configuration, the switchover to the redundant path should be verified and confirmed before the primary terminal unit is removed. This is particularly important in safety-instrumented or high-availability applications where continuous monitoring of critical process variables is required. After the replacement TU842 is installed and the I/O module is reseated, a functional verification test should be performed on each channel — confirming signal range, alarm setpoints, and control output response — before returning the system to automatic operation.

All units supplied by NINERMAS are tested prior to shipment and covered by a 12-month warranty, providing assurance that the replacement hardware will perform as expected from the moment it arrives on site. This reduces the risk of secondary failures during the commissioning phase and supports a faster return to normal operations.

Retrofit Support FAQ

Q1: Is the TU842 3BSE020850R1 a direct replacement for the original ABB TU842 installed in my S800 I/O system?
Yes. The TU842 3BSE020850R1 is the standard ABB part number for the TU842 terminal unit and is a direct mechanical and electrical replacement for existing TU842 units in S800 I/O installations. No wiring changes or software modifications are required for a like-for-like replacement.

Q2: What commissioning steps are required after installing the replacement TU842?
After seating the I/O module onto the new TU842, verify the module address configuration (if applicable), confirm field wiring connections against loop drawings, and check that the I/O station communication link is active in the AC 800M controller. Perform a channel-by-channel functional test before returning the system to automatic control.

Q3: Can the TU842 be used with both older and newer S800 I/O modules?
Yes. The TU842 is compatible with a wide range of S800 I/O modules, including analog input modules such as the AI810 and AI820, digital input modules such as the DI810 and DI814, and digital output modules such as the DO810 and DO814. Compatibility should be confirmed against the specific module type and firmware version in use at your site.

Q4: What warranty and testing does NINERMAS provide with the TU842 3BSE020850R1?
All TU842 units supplied by NINERMAS are tested prior to shipment and covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch to support emergency replacement and planned maintenance requirements. For availability and lead time confirmation, contact our sales team directly.
