Emerson KL2101X1-BA1 Retrofit-Compatible Safety DO Module

Emerson KL2101X1-BA1 Retrofit-Compatible Safety DO Module for Legacy DeltaV SIS Systems

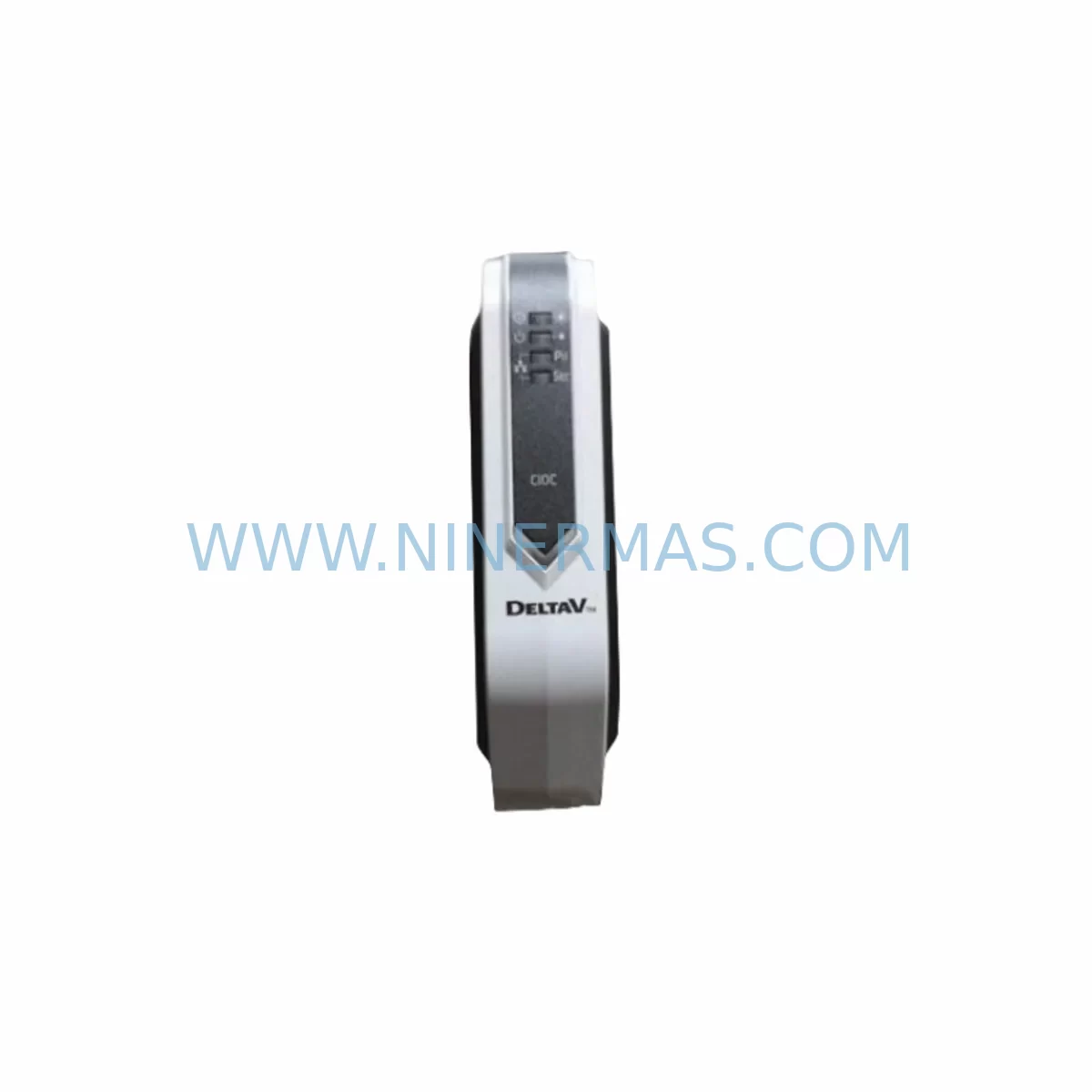

The Emerson 12P4987X062 KL2101X1-BA1 is a Safety-Rated Digital Output (DO) Module designed for use within the Emerson DeltaV SIS (Safety Instrumented System) platform, specifically the KL-series Safety I/O subsystem. As legacy DeltaV SIS installations approach end-of-life and original spare parts become increasingly scarce, this module serves as a critical retrofit-compatible replacement for plants seeking to extend operational continuity without a full system overhaul. It is engineered to meet SIL 2/3 requirements and integrates directly into existing KL-series carrier assemblies, making it an ideal solution for brownfield modernization projects across oil & gas, chemical processing, power generation, and advanced manufacturing facilities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the KL2101X1-BA1 within an active DeltaV SIS installation requires careful pre-engineering to avoid unplanned shutdowns and to preserve the integrity of the safety function. The retrofit process typically begins with a thorough review of the existing KL-series carrier assembly — confirming that the carrier’s backplane slots, termination blocks, and field wiring are compatible with the replacement module’s pinout and channel assignments. In most installations, the KL2101X1-BA1 occupies a defined slot address within the carrier, and this address must be verified against the DeltaV SIS configuration database before the swap is initiated.

Field power capacity is a critical checkpoint. The 24 VDC field power rail supplying the DO channels must be confirmed to support the load current of all connected actuators — including solenoid valves, motor starters, and shutdown relays — without exceeding the carrier’s aggregate power budget. Where the existing KL-series power supply module (such as the KL9001 or equivalent) is already operating near capacity, a power audit should be completed before the new DO module is energized. In some retrofit scenarios, an additional DeltaV SIS power conditioner or redundant power feed may be required to maintain SIL-rated availability.

Terminal wiring is another area requiring close attention. The KL2101X1-BA1 uses a marshalling-style field termination approach through the carrier’s integrated terminal blocks. Before removal of the legacy module, all field wiring should be documented — including wire labels, terminal numbers, and signal polarity — to ensure accurate reconnection. In plants where the original as-built drawings are incomplete or outdated, a field survey using a DeltaV SIS loop drawing or equivalent P&ID cross-reference is strongly recommended.

For facilities also upgrading adjacent I/O infrastructure, the KL2101X1-BA1 retrofit is frequently performed alongside replacement of KL3201 analog input modules, KL2201 digital input modules, and KL4001 analog output modules within the same carrier assembly. This bundled approach minimizes the number of separate maintenance windows and reduces cumulative downtime. Where the DeltaV SIS controller — such as the DeltaV SIS Logic Solver LS or a CSLS controller module — is also being refreshed, module replacement should be sequenced to maintain continuous safety loop coverage throughout the migration.

Communication link integrity must be validated after module replacement. The DeltaV SIS safety bus connecting the KL-series I/O to the logic solver should be tested for signal continuity and error-free communication before the system is returned to service. In installations where a DeltaV SIS Remote I/O (RIO) interface or FOUNDATION Fieldbus H1 segment is present, the communication topology should be reviewed to confirm that the replacement module’s node address does not conflict with existing devices. HMI faceplates and alarm configurations referencing the replaced module’s channel tags should also be verified in the DeltaV Operate or equivalent operator interface to ensure display accuracy post-commissioning.

Where the retrofit scope extends to the control cabinet level, installation space confirmation is essential. The KL2101X1-BA1 module’s physical dimensions conform to the standard KL-series form factor, allowing direct insertion into existing carrier slots without cabinet modification. However, if the cabinet also houses a DeltaV M-series controller, redundant power supply units, or signal isolator modules for intrinsically safe field devices, the overall thermal load and airflow within the enclosure should be reassessed to maintain operating temperature within specification.

Downtime Control During System Migration

Minimizing process interruption during a KL2101X1-BA1 replacement is achievable through disciplined pre-planning and a structured hot-swap or controlled-shutdown procedure. Where the DeltaV SIS architecture supports redundant I/O paths, the safety function can often be maintained on the redundant channel while the primary DO module is replaced — eliminating the need for a full process shutdown. In non-redundant configurations, a planned maintenance window should be scheduled during a low-risk production period, with all affected safety loops placed in bypass mode in accordance with the plant’s Management of Change (MOC) and Safety Instrumented Function (SIF) bypass procedures.

Before the replacement module is inserted, the existing DeltaV SIS configuration — including module parameters, channel assignments, output forcing states, and diagnostic masks — should be exported and archived. This backup ensures that the original program logic can be restored immediately if the replacement module exhibits unexpected behavior during initial commissioning. The DeltaV SIS workstation’s Control Studio and SIS Diagnostics tools provide the necessary utilities for configuration export, module download, and post-replacement verification.

After physical installation, the replacement KL2101X1-BA1 should be commissioned using a structured loop check procedure: energize field power, confirm LED status on the module, download the SIS configuration, and perform an output function test on each channel using a calibrated field test device. Solenoid valve response, relay coil continuity, and actuator feedback signals should all be verified before the safety loop is returned to automatic mode. Final commissioning records — including test results, technician sign-off, and module serial number — should be retained in the plant’s maintenance management system to support future audits and regulatory compliance.

All units supplied by NINERMAS undergo pre-shipment functional testing and are backed by a 12-month warranty from the date of shipment, providing assurance of module integrity before it enters the field.

Retrofit Support FAQ

Q1: Is the 12P4987X062 KL2101X1-BA1 a direct drop-in replacement for the original module in my DeltaV SIS KL-series carrier?
Yes. The KL2101X1-BA1 is designed as a direct form-fit-function replacement within the KL-series carrier assembly. No hardware re-addressing or carrier modification is required. A DeltaV SIS configuration download is needed after physical installation to activate the module and restore channel assignments.

Q2: What commissioning steps are required after installing the replacement module?
After insertion into the carrier slot, connect field power and confirm module LED status. Download the SIS configuration from the DeltaV SIS workstation, then perform a channel-by-channel output function test. Verify actuator response, confirm diagnostic status in DeltaV SIS Diagnostics, and update the plant’s maintenance records before returning the safety loop to service.

Q3: Can this module be used in a system that also includes older DeltaV M-series or S-series controllers?
The KL2101X1-BA1 is specifically designed for the DeltaV SIS KL-series Safety I/O subsystem and communicates via the DeltaV SIS safety bus. It is not directly interchangeable with DeltaV M-series or S-series I/O modules. However, in integrated DeltaV architectures where SIS and DCS subsystems coexist, the KL-series I/O operates independently on the safety bus while the M-series or S-series handles process control I/O. Compatibility at the system level should be confirmed against the plant’s DeltaV SIS architecture drawing.

Q4: What warranty and stock availability does NINERMAS provide for this module?
NINERMAS maintains in-stock inventory of the 12P4987X062 KL2101X1-BA1 with typical lead times of 3–5 business days. All units are covered by a 12-month warranty from the shipment date. Pre-shipment functional testing is performed on all modules. For urgent requirements or bulk orders, contact our team directly for priority fulfillment and expedited shipping options.
