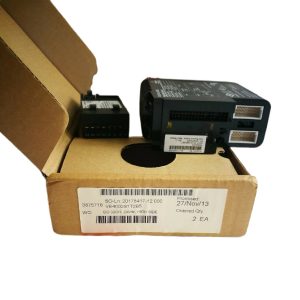

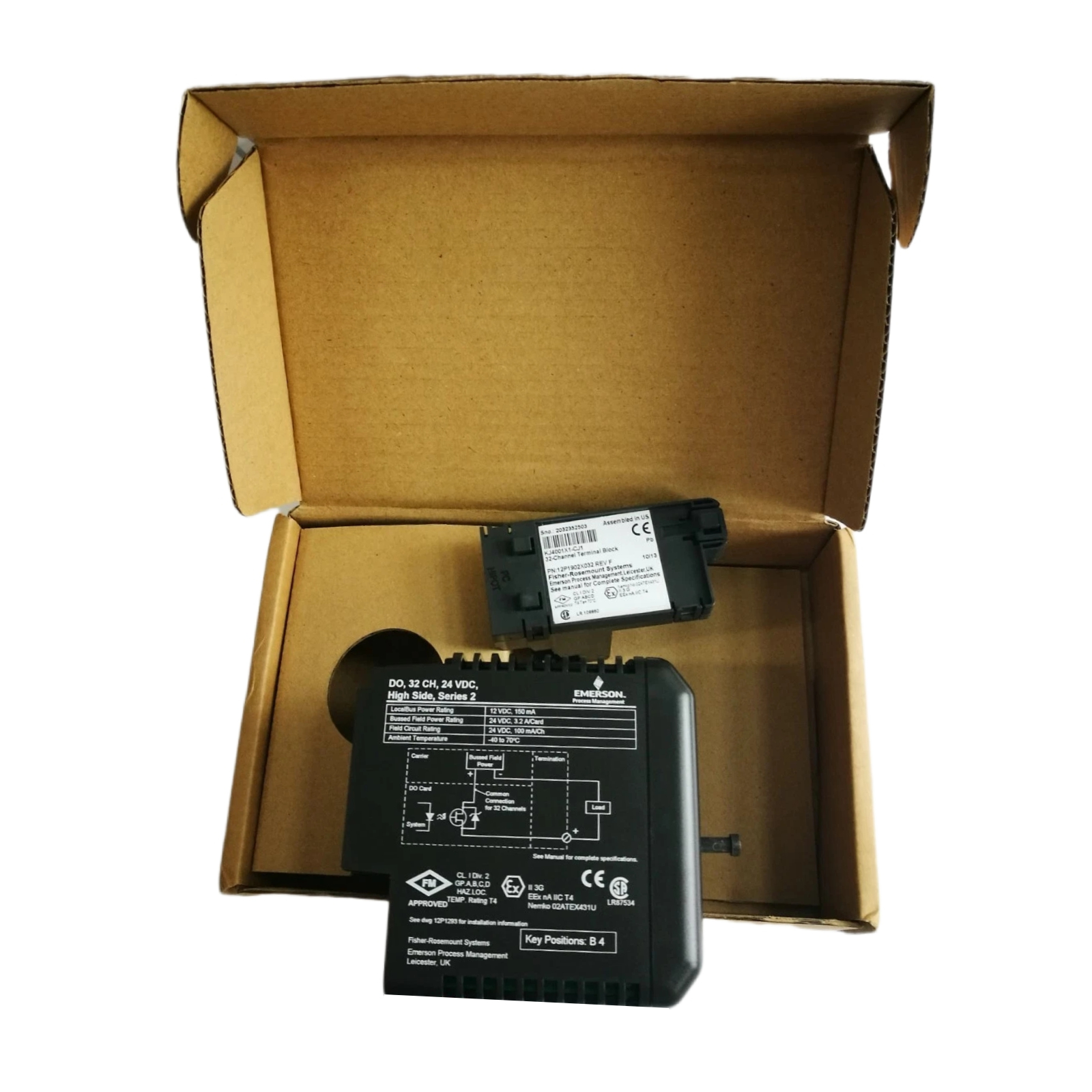

Emerson VE4002S1T2B5 KJ3204X1-BA1 | 24VDC Digital Output Card

Emerson VE4002S1T2B5 KJ3204X1-BA1 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Emerson VE4002S1T2B5 KJ3204X1-BA1 represents a cornerstone component in maintaining the operational integrity of mission-critical distributed control architectures. As a 32-channel high-side sourcing digital output card engineered for DeltaV systems, the VE4002S1T2B5 KJ3204X1-BA1 fulfills a decisive role in ensuring that field device actuation — from solenoid valve manifolds to motor starter interlocks — adheres to the highest standards of Safety Integrity and system reliability. Its certified design eliminates ambiguity in fault propagation pathways, a prerequisite for any facility operating under IEC 61511 or ISA-84 functional safety frameworks.

Within the evolving paradigm of Industry 4.0, long-term asset compatibility is no longer optional — it is a compliance imperative. The VE4002S1T2B5 KJ3204X1-BA1 is engineered to sustain System Performance across extended operational lifecycles, integrating seamlessly with both legacy M-series and contemporary S-series DeltaV controllers. Its embedded diagnostic microprocessor continuously validates output transistor health, load current integrity, and thermal thresholds, providing the Asset Optimization data streams necessary for predictive maintenance scheduling and regulatory audit readiness.

As a factory-sealed, Original Documentation-backed component, this card delivers the assurance that only certified original equipment can provide. Counterfeit or refurbished alternatives introduce unquantifiable risk into safety-instrumented systems; the VE4002S1T2B5 KJ3204X1-BA1, sourced through authorized channels, guarantees full traceability from manufacturing lot to field installation — a non-negotiable requirement under global Compliance Standards such as ATEX, IECEx, and UL/CSA Class I Division 2.

Compliance & Safety Benchmarks

✅ UL/CSA Class I Division 2 Certified — Validated for use in hazardous locations where flammable gases or vapors may be present under abnormal conditions.
? ATEX Zone 2 & IECEx Approved — Meets European and international explosive atmosphere directives, enabling global deployment without re-certification overhead.
IEC 61131-2 Digital I/O Compliance — Full conformance to programmable controller I/O interface standards, ensuring interoperability and long-term vendor neutrality.
? Short-Circuit & Overtemperature Protection — Automatic fault isolation with diagnostic latching prevents cascading failures and supports SIL-rated loop integrity.
Channel-to-Channel Isolation: 250 VAC — Prevents cross-talk and fault propagation between independent output circuits, a critical Standard Adherence requirement in multi-loop safety systems.
? Hot-Swap Capability — Enables online card replacement without process shutdown, directly supporting Operational Excellence and minimizing mean time to repair (MTTR).

Vertical Industry Integration & Optimization

Semiconductor Fabrication: Precision process control in semiconductor fabs demands zero-tolerance output switching with sub-millisecond repeatability. The VE4002S1T2B5 KJ3204X1-BA1’s 10 ms on/off transition and open-load diagnostics enable real-time detection of disconnected actuators in ultra-clean environments, preventing yield-impacting process deviations.

Pharmaceutical Manufacturing: FDA 21 CFR Part 11 and GAMP 5 compliance frameworks require complete audit trails for all control system outputs. This card’s per-channel fault logging with timestamp and event identification, accessible via DeltaV AMS Device Manager, provides the Original Documentation necessary for batch record validation and regulatory inspection readiness.

Chemical Processing: In exothermic reaction management and hazardous material handling, the ATEX Zone 2 certification of the VE4002S1T2B5 KJ3204X1-BA1 ensures that output switching operations do not introduce ignition risk. High-side sourcing architecture further eliminates ground loop interference common in multi-solenoid manifold configurations across large chemical complexes.

Power Generation & Utilities: Turbine control, boiler management, and grid-tie protection systems require output cards with proven Durability under extreme thermal cycling. The card’s -40°C to +70°C operating range and overtemperature shutdown with diagnostic annunciation make it the preferred choice for both indoor substations and outdoor field enclosures.

Oil & Gas Upstream/Midstream: Pipeline isolation valve control and wellhead safety shutdown systems demand SIL-compatible output devices. The VE4002S1T2B5 KJ3204X1-BA1’s fault-tolerant architecture and automatic recovery from transient overcurrent events directly support the Lifecycle Management requirements of safety-instrumented systems under IEC 61511.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every VE4002S1T2B5 KJ3204X1-BA1 unit is dispatched in its original manufacturer packaging with intact tamper-evident seals, ensuring that no component has been subjected to unauthorized handling, re-flashing, or environmental exposure prior to installation. Full lot traceability documentation accompanies each shipment.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, the Middle East, and the Americas, orders are processed with priority dispatch protocols. Expedited air freight options are available for emergency plant maintenance scenarios where extended downtime carries significant operational and financial consequences.

12-Month Quality Guarantee for Legacy Systems: Recognizing that DeltaV infrastructure investments span decades, we provide a 12-month quality guarantee specifically calibrated for legacy system environments. This coverage addresses manufacturing defects, performance deviations from published specifications, and firmware compatibility issues — providing the long-term assurance that Asset Optimization strategies require.

Technical Support: Application engineering assistance is available for load sizing calculations, fusing coordination, carrier compatibility verification, and DeltaV configuration guidance. Pre-configured replacement cards can be arranged to match existing installation parameters, minimizing commissioning time during emergency interventions.

Expert Technical FAQ

Q1: Does the VE4002S1T2B5 KJ3204X1-BA1 meet the installation compliance requirements for IEC 61511 safety-instrumented systems?
A: While the VE4002S1T2B5 KJ3204X1-BA1 is not independently SIL-rated as a standalone device, its ATEX Zone 2, IECEx, and UL/CSA Class I Div 2 certifications, combined with its per-channel diagnostic architecture, make it a compliant subsystem component within a properly architected SIL-rated DeltaV safety loop. System integrators should consult the DeltaV SIS engineering guidelines and perform a full FMEDA assessment for SIL verification.

Q2: What environmental conditions can the VE4002S1T2B5 KJ3204X1-BA1 withstand in outdoor or harsh industrial installations?
A: The card is rated for -40°C to +70°C ambient operating temperature with overtemperature shutdown protection. It is designed for installation within DeltaV enclosures that provide appropriate IP-rated protection against dust and moisture ingress. For direct outdoor exposure, the enclosure must meet at minimum IP54 per IEC 60529 to maintain Compliance Standards.

Q3: How does firmware versioning affect the operational compatibility and certification status of this card?
A: Emerson manages firmware revisions through DeltaV system software releases. The VE4002S1T2B5 KJ3204X1-BA1 firmware is embedded and validated as part of the DeltaV I/O subsystem qualification process. Unauthorized firmware modifications void all certifications and warranty coverage. Always verify firmware compatibility with your DeltaV system version through Emerson’s official compatibility matrix before installation.

Q4: Can this card be installed or replaced online without interrupting the process?
A: Yes. The hot-swap design of the VE4002S1T2B5 KJ3204X1-BA1 allows online card replacement without requiring a controller shutdown or process interruption, provided that appropriate output inhibit strategies are implemented in the DeltaV control strategy prior to card removal. This capability is a key enabler of Operational Excellence in continuous process industries.

Q5: What documentation is provided to support regulatory audits and quality management system requirements?
A: Each unit ships with factory test certification, calibration records, and Original Documentation including wiring diagrams and configuration templates. This documentation package supports ISO 9001, FDA 21 CFR Part 11, and GAMP 5 audit requirements, providing the complete traceability chain from manufacturing to field installation that modern Lifecycle Management frameworks demand.

Q6: How does the high-side sourcing architecture of the VE4002S1T2B5 KJ3204X1-BA1 improve system safety compared to conventional sinking output designs?
A: High-side sourcing switches the positive 24 VDC supply rail to the field device, rather than the ground return path. This architecture ensures that a wiring fault to ground results in a de-energized (safe) output state, aligning with fail-safe design principles. It also simplifies fault detection through positive voltage presence verification at load terminals, reducing diagnostic ambiguity in Safety Integrity assessments.
