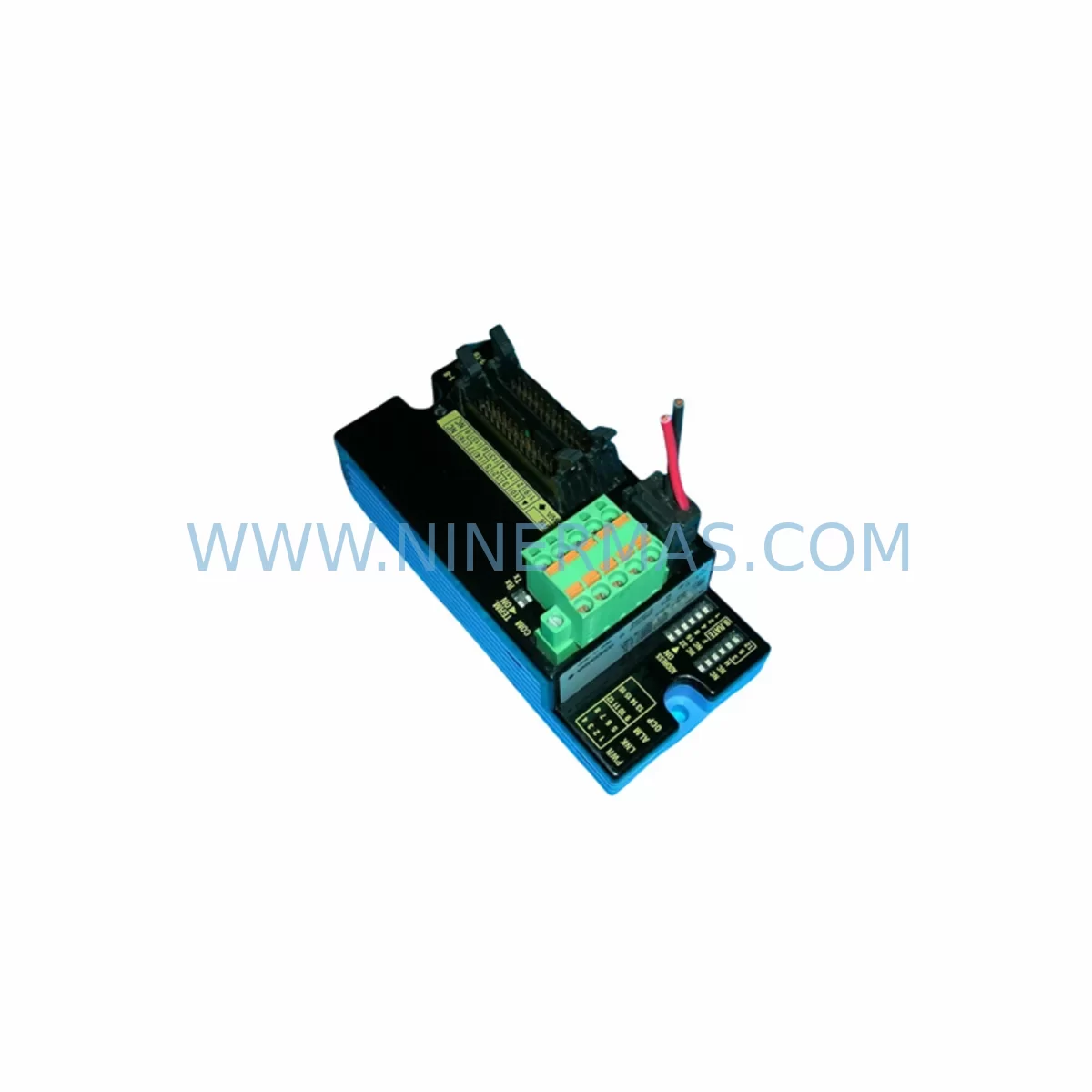

YOKOGAWA TAHXD16-3PEM Service-Ready Spare Part

YOKOGAWA TAHXD16-3PEM Service-Ready Spare Part

The YOKOGAWA TAHXD16-3PEM is a high-density digital I/O master module engineered for YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems (DCS). As a critical node in the field control station (FCS) architecture, this module manages communication between the controller and field I/O sub-modules, making it a high-priority spare part for any plant running YOKOGAWA automation infrastructure. Unplanned failure of the TAHXD16-3PEM can result in complete loss of I/O visibility across an entire I/O nest, triggering emergency shutdowns and extended downtime. Stocking a verified, service-ready replacement is the single most effective measure maintenance teams can take to protect production continuity.

At NINERMAS, every TAHXD16-3PEM unit is sourced from original supply channels, inspected against YOKOGAWA factory specifications, and dispatched with a 12-month warranty. Our inventory is maintained specifically to support legacy DCS lifecycle extension programs, where OEM lead times are no longer viable and plant operators must rely on specialist spare parts partners for rapid response.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TAHXD16-3PEM fails or is flagged during a scheduled inspection, the replacement workflow should extend beyond the module itself. Maintenance engineers and procurement teams should treat this event as a trigger for a broader control cabinet audit to prevent cascading failures and reduce the risk of repeat downtime.

Begin by verifying the 24 VDC backplane power supply feeding the I/O nest — a degraded power module such as the YOKOGAWA PW481 or equivalent nest power unit is a common root cause of intermittent I/O master faults. Inspect the I/O nest backplane (e.g., YOKOGAWA ANB10D or ANB16D) for corrosion, bent connector pins, or thermal stress damage before inserting the replacement TAHXD16-3PEM. A faulty backplane will damage a new module within hours of installation.

Check all field terminal assemblies (FTAs) and marshalling terminal blocks connected to the I/O sub-modules downstream of the master. Loose or oxidized terminations on signal wiring are frequently overlooked during emergency replacements and can cause false diagnostics on the new module. If the system uses YOKOGAWA TDLS or HART multiplexers for field device communication, verify that the communication path is intact and that no HART device is generating excessive bus traffic that could stress the new master module.

For plants running CENTUM VP R6 or later, confirm that the firmware revision of the replacement TAHXD16-3PEM is compatible with the FCS controller card (e.g., YOKOGAWA CP451 or CP461) currently installed. Mismatched firmware between the I/O master and the controller can prevent the module from being recognized during the online replacement procedure. The YOKOGAWA HIS (Human Interface Station) engineering workstation should be used to verify module recognition and I/O tag mapping immediately after hot-swap insertion.

Procurement engineers building annual MRO budgets should also consider stocking the following complementary components alongside the TAHXD16-3PEM: YOKOGAWA AAI141 analog input modules, AAI543 analog output modules, ADV151 digital input modules, and ADV551 digital output modules — all of which interface directly with the TAHXD16-3PEM master in a standard I/O nest configuration. Additionally, signal isolators and surge protection devices on field signal cables should be inspected and replaced on a 3–5 year cycle to protect I/O modules from transient damage.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number (TAHXD16-3PEM) and slot address in the FCS I/O nest. Document all active I/O tags assigned to this master using the CENTUM VP builder or CS 3000 system view. Notify the control room operator to place affected loops in manual mode before proceeding.

Step 2 — Power and backplane check: Measure backplane supply voltage at the nest connector. Confirm 24 VDC ±5% before insertion. Inspect the nest backplane for physical damage. If the nest uses a redundant power feed, verify both feeds are healthy.

Step 3 — Hot-swap insertion: The TAHXD16-3PEM supports online replacement in CENTUM VP systems with redundant FCS configurations. Insert the replacement module into the correct slot. The FCS controller will automatically detect and initialize the new module. Monitor the HIS alarm console for module recognition confirmation — typically within 30–60 seconds.

Step 4 — I/O verification: After module initialization, verify all I/O sub-modules downstream are communicating correctly. Check each digital I/O channel status in the system view. Return affected control loops from manual to automatic mode only after confirming stable I/O readings.

Step 5 — Documentation and spare replenishment: Log the replacement event in the plant CMMS with the new module’s serial number and installation date. Immediately initiate a purchase order to replenish the consumed spare, maintaining a minimum of one TAHXD16-3PEM in the on-site critical spare inventory at all times.

Spare Parts Support FAQ

Q1: Is the TAHXD16-3PEM compatible with both CENTUM CS 3000 and CENTUM VP systems?
Yes. The TAHXD16-3PEM is designed for use across YOKOGAWA CENTUM CS 3000 and CENTUM VP platforms. However, firmware compatibility with the specific FCS controller revision in your system should be confirmed before installation. NINERMAS can provide the module’s firmware version upon request to support pre-installation compatibility verification.

Q2: What does the 12-month warranty cover?
All TAHXD16-3PEM units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit is function-tested prior to dispatch. In the event of a warranty claim, NINERMAS provides rapid replacement to minimize plant downtime.

Q3: Can NINERMAS support long-term supply agreements for critical DCS spare parts?
Yes. NINERMAS specializes in long-term spare parts programs for legacy YOKOGAWA DCS systems, including CENTUM CS 3000 and CENTUM VP. We offer inventory reservation, scheduled delivery, and multi-year supply agreements to support plant lifecycle extension strategies and reduce procurement risk for end-of-life components.

Q4: How is the TAHXD16-3PEM tested before shipment?
Every unit undergoes a pre-shipment functional verification process, including power-on testing, communication bus integrity checks, and visual inspection for physical damage. Units that do not meet YOKOGAWA original performance standards are rejected. A test report is available upon request for quality-critical procurement processes.
