YOKOGAWA TAHYD16-3EAM Service-Ready Spare Part

YOKOGAWA TAHYD16-3EAM Service-Ready Spare Part for Industrial Maintenance

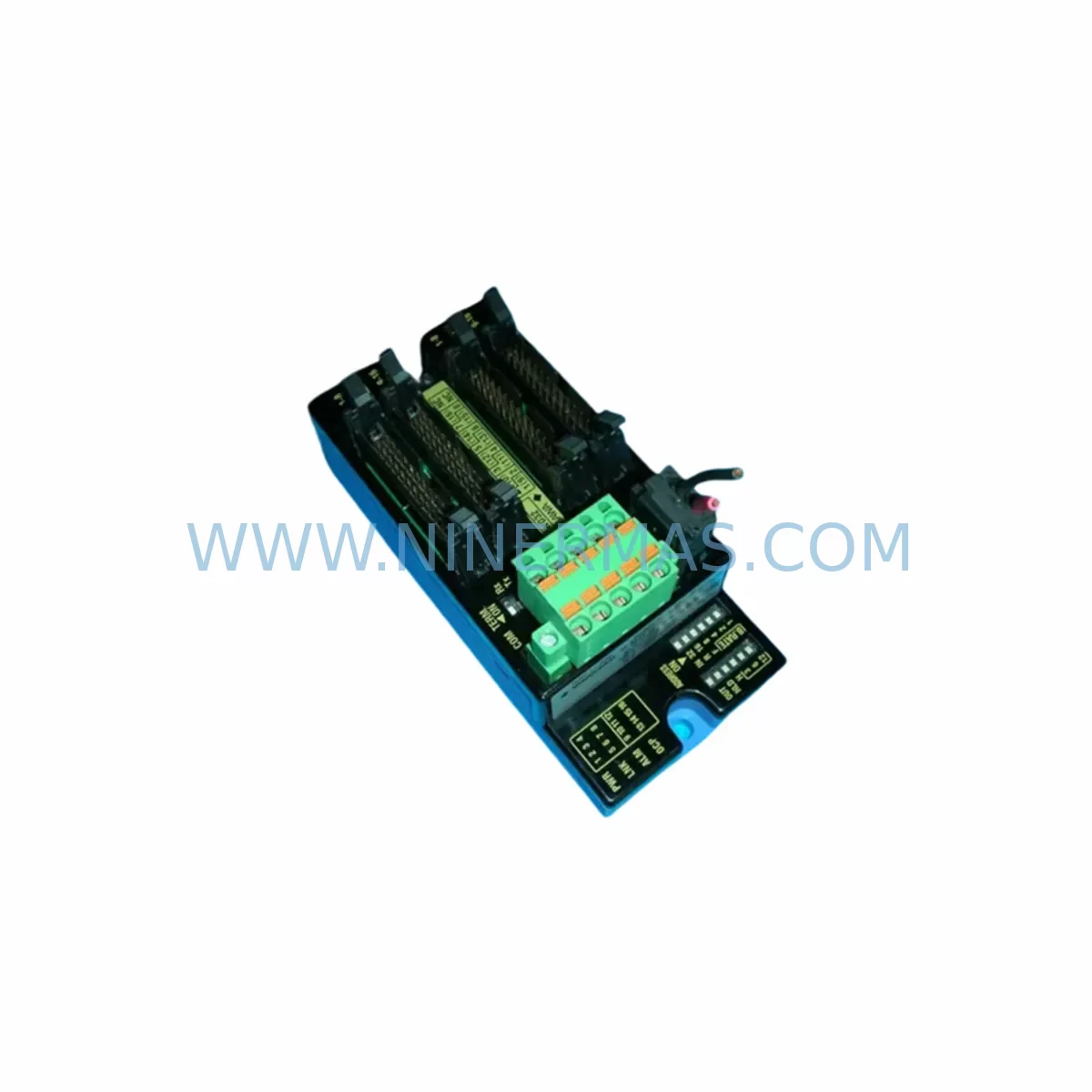

The YOKOGAWA TAHYD16-3EAM is a hybrid digital output I/O module designed for the TAHY series within the YOKOGAWA CENTUM VP and CS 3000 Distributed Control System (DCS) platform. For maintenance engineers managing continuous process operations in petrochemical plants, power generation facilities, water treatment stations, and metallurgical sites, this module represents a critical node in the field I/O architecture. When a TAHYD16-3EAM fails or degrades, the downstream impact can cascade across multiple control loops — making rapid, verified spare part replacement the single most effective strategy for minimizing unplanned downtime.

At NINERMAS, every TAHYD16-3EAM unit is sourced as an original YOKOGAWA component, individually tested prior to shipment, and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, annual overhaul planning, and long-term spare parts programs for DCS-dependent facilities worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a TAHYD16-3EAM in a live DCS environment is rarely an isolated task. Experienced maintenance engineers know that a failing digital output module is often a symptom of broader stress across the I/O nest or field wiring circuit. Before or alongside the TAHYD16-3EAM replacement, a thorough inspection of the surrounding components is strongly recommended to prevent repeat failures and ensure system stability.

Start with the power supply feeding the I/O nest. The YOKOGAWA PW481 or PW482 24 VDC power supply modules are common companions to TAHY series I/O nodes — verify output voltage stability and check for ripple or thermal stress indicators. A degraded power supply can silently damage replacement modules within weeks of installation. Next, inspect the YOKOGAWA ANB10D or ANB10S node unit backplane, which physically hosts the TAHYD16-3EAM. Backplane connector corrosion or mechanical damage from repeated module insertions can cause intermittent contact faults that mimic module failure.

Field wiring termination should also be reviewed. The YOKOGAWA TB series terminal blocks connected to the TAHYD16-3EAM output channels are subject to vibration-induced loosening and oxidation in humid or dusty environments. Tighten all terminal screws and apply contact protection spray where appropriate. If the site uses relay output expansion, check the associated relay modules and fuse holders in the same cabinet section — a blown fuse or welded relay contact can mask the true source of a control fault.

For sites running CENTUM VP with FCS (Field Control Station) architecture, the YOKOGAWA ACF11 or ACF12 communication coupler modules that bridge the V-net to field I/O nodes should be inspected for firmware version compatibility after any I/O module replacement. Communication errors between the FCS and the I/O nest are a known post-replacement issue when firmware versions are mismatched. Additionally, the YOKOGAWA PFCS processor module in the FCS cabinet should be checked for alarm logs that may indicate pre-existing I/O bus errors.

Signal isolation is another critical consideration. If the TAHYD16-3EAM outputs drive solenoid valves, motor starters, or interlock relays in high-inductive load circuits, installing or verifying YOKOGAWA-compatible signal isolators or surge suppressors on the output lines will protect the replacement module from back-EMF damage. Finally, review the HMI alarm history in the YOKOGAWA CENTUM VP HIS (Human Interface Station) to identify any recurring fault patterns that may indicate systemic issues beyond the module itself.

Site Replacement Workflow

The TAHYD16-3EAM supports hot-swap replacement in CENTUM VP systems with redundant I/O configuration, significantly reducing the replacement window compared to older CS 3000 installations that may require a controlled shutdown of the affected I/O node. The following workflow is recommended for field replacement:

Step 1 — Pre-replacement verification: Confirm the replacement TAHYD16-3EAM part number matches the installed unit exactly, including the suffix designation (3EAM). Suffix variants indicate different output specifications and are not interchangeable. Cross-reference the YOKOGAWA hardware manual for the TAHY series to confirm compatibility with your FCS firmware version.

Step 2 — Backup and isolation: Export the current I/O assignment configuration from the CENTUM VP engineering workspace. Place the affected control loops in manual mode at the HIS before proceeding. For non-redundant I/O nodes, coordinate with the operations team to confirm safe manual control of all field devices connected to the 16 output channels.

Step 3 — Physical replacement: Remove the failed TAHYD16-3EAM by releasing the module locking lever and sliding it out of the I/O nest. Insert the replacement unit firmly until the connector seats fully and the locking lever engages. Verify the module status LED sequence on power-up — a steady green indicates successful initialization and communication with the FCS.

Step 4 — Post-replacement validation: Perform a channel-by-channel output test from the HIS engineering console. Confirm all 16 output channels respond correctly to manual commands before returning loops to automatic mode. Log the replacement in the site maintenance management system with the new module serial number and installation date to support future warranty claims and lifecycle tracking.

This structured approach minimizes the risk of secondary failures, reduces total downtime to under two hours in most CENTUM VP installations, and ensures the replacement is fully documented for regulatory compliance and audit purposes.

Spare Parts Support FAQ

Q1: Does the TAHYD16-3EAM come with a warranty, and what does it cover?
Yes. Every TAHYD16-3EAM supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a full functional test before dispatch, and a test report is available upon request. In the event of a warranty claim, NINERMAS provides replacement or repair support with priority handling to minimize your site downtime.

Q2: How do I confirm compatibility between the TAHYD16-3EAM and my existing CENTUM VP or CS 3000 system?
Compatibility depends on your FCS firmware version, I/O nest generation, and node unit type. The TAHYD16-3EAM is designed for TAHY series I/O nests used in CENTUM VP R5 and later, as well as CENTUM CS 3000 R3 systems. Please provide your FCS model number, firmware version, and node unit part number when placing your order, and our technical team will confirm compatibility before shipment.

Q3: Can NINERMAS support long-term supply of the TAHYD16-3EAM for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts programs for legacy YOKOGAWA DCS systems. We maintain buffer stock of high-demand TAHY series modules and can establish a dedicated supply agreement with committed lead times, priority allocation, and annual pricing for facilities with ongoing maintenance requirements. Contact our sales team to discuss a customized spare parts program for your site.

Q4: What should I do if the replacement TAHYD16-3EAM does not initialize correctly after installation?
If the module fails to initialize — indicated by a flashing red LED or a communication fault alarm in the CENTUM VP HIS — first verify that the module is fully seated in the I/O nest connector. Check the node unit power supply voltage and confirm the FCS firmware version is compatible with the TAHYD16-3EAM hardware revision. If the issue persists, contact NINERMAS technical support with your FCS alarm log and module serial number. We will provide remote diagnostic guidance and, if necessary, arrange an expedited replacement under warranty.
