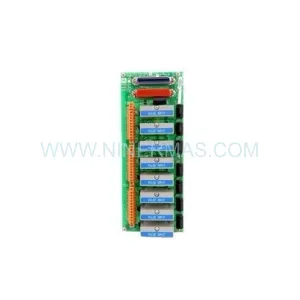

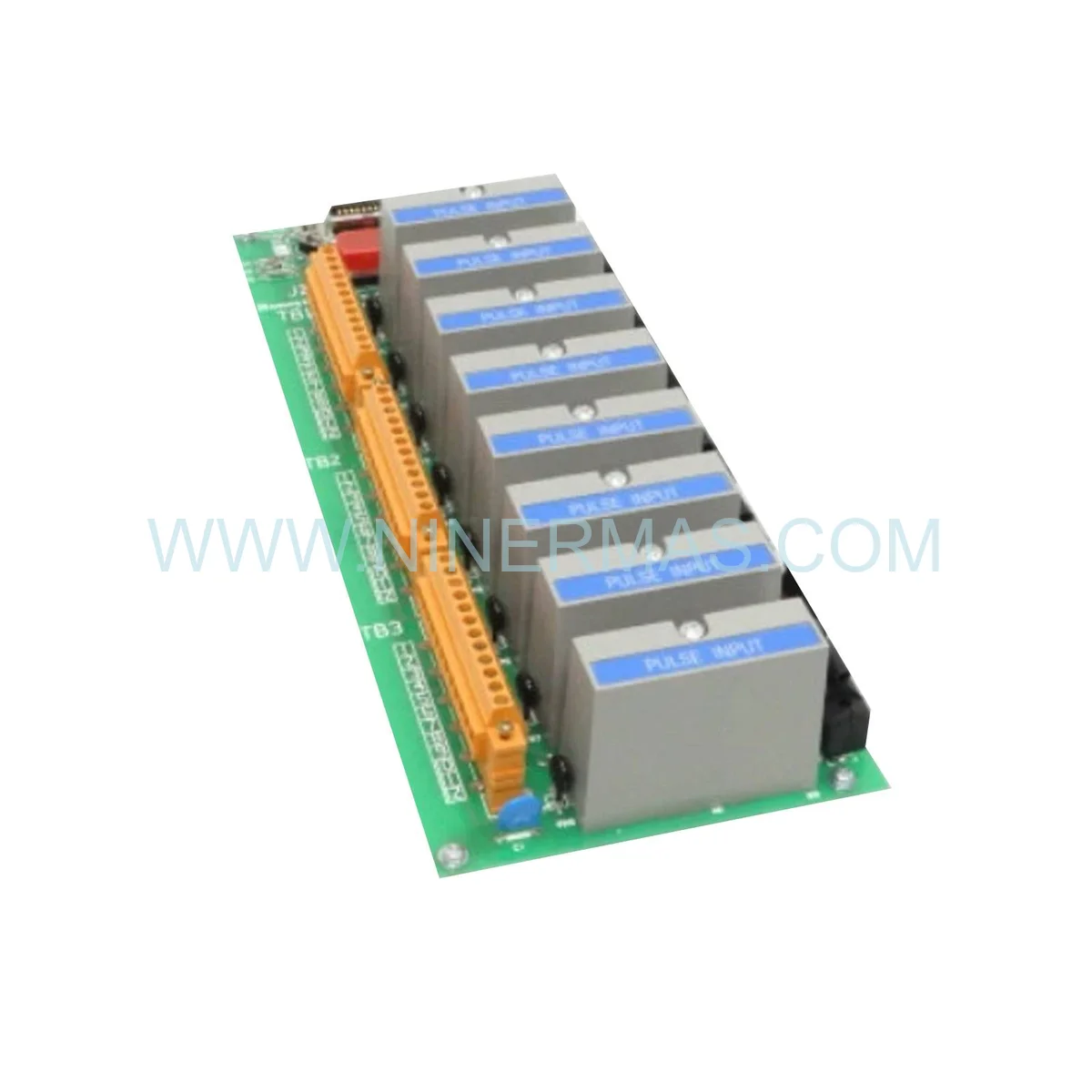

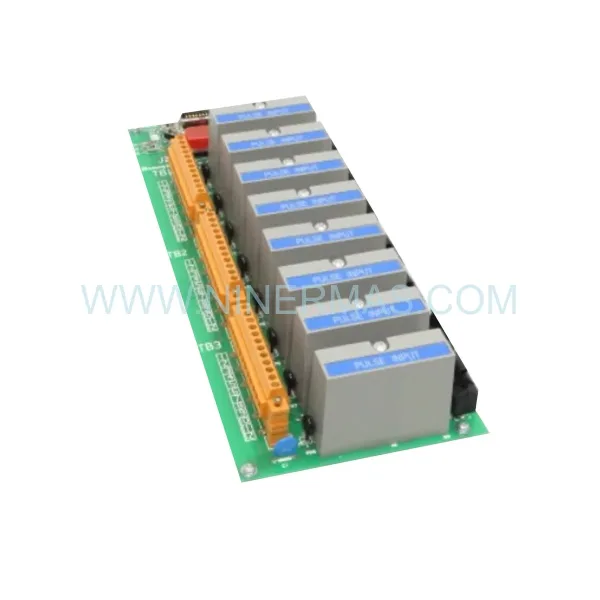

Honeywell 51304084-175 | TDC 3000 Retrofit & System Modernization Part

Honeywell 51304084-175 — Professional Retrofit & System Upgrade Component for TDC 3000

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Honeywell 51304084-175 stands out as a pivotal enabler in extending the operational lifespan of TDC 3000 distributed control architectures. Rather than forcing a costly full-platform migration, this module allows facilities to achieve Performance Enhancement within their existing infrastructure — preserving validated process logic while injecting renewed hardware reliability into aging control loops. The Honeywell 51304084-175 is not merely a spare part; it is a strategic retrofit asset that bridges the gap between legacy investment and modern operational demands.

One of the most compelling advantages of this component lies in its Legacy Compatibility with the TDC 3000 card cage ecosystem. Whether your facility is operating on an early-generation TDC 3000 platform or a later hybrid configuration, this board slots directly into existing backplane infrastructure — eliminating the need for re-engineering communication protocols or revalidating control strategies. It serves as the cornerstone of any Hardware Upgrade roadmap that prioritizes continuity over disruption.

From a migration risk perspective, deploying the Honeywell 51304084-175 as part of a phased System Migration strategy dramatically reduces both capital exposure and operational downtime. Facilities can stabilize critical control nodes first, then plan broader DCS modernization in controlled stages — a methodology proven to lower total migration cost by 30-50% compared to full cutover approaches.

Upgrade Highlights & Compatibility

• ✅ Seamless Integration: Direct drop-in replacement for TDC 3000 card cage slots — zero backplane modification required
• Performance Enhancement: Restores full deterministic control response, eliminating latency caused by degraded legacy boards
• ✅ Legacy Compatibility: Verified interoperability with TDC 3000 system revisions across refining, power, and chemical sectors
• Future-Proofing: Supports phased migration strategies — deploy now, upgrade surrounding architecture on your schedule
• ✅ Retrofit Solution Ready: Pre-tested to original OEM specifications, reducing commissioning time during planned maintenance windows
• Ease of Integration: Inherits existing system configuration parameters — minimal re-engineering of control logic required

Modernization Use Cases & Success Stories

DCS Retrofit in Petrochemical Refining: A mid-sized refinery operating a TDC 3000 platform faced escalating board failure rates across distillation control loops. Rather than committing to a full DCS migration — estimated at $4M+ and 18 months of parallel operation — the facility deployed Honeywell 51304084-175 units as a targeted Retrofit Solution. Result: control loop stability restored within 72 hours, with a 5-year runway to plan a structured System Migration to a modern DCS platform.

Turbine Supervisory Instrumentation (TSI) Modernization: A combined-cycle power plant integrated the Honeywell 51304084-175 into its turbine monitoring architecture to address intermittent control board faults causing nuisance trips. The board’s proven Seamless Integration with existing TSI signal conditioning hardware eliminated the need for I/O rewiring, achieving a Performance Upgrade with zero modification to the turbine protection logic — a critical requirement under NERC CIP compliance frameworks.

Chemical Batch Process Stabilization: A specialty chemicals manufacturer used this module to stabilize reactor temperature control during a multi-year transition from TDC 3000 to a modern distributed safety system. The Honeywell 51304084-175 provided the Legacy Compatibility bridge needed to maintain FDA 21 CFR Part 11 validation status throughout the migration period, avoiding a costly revalidation exercise.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Units are sourced from verified supply chains and inspected against original OEM specifications. Each Honeywell 51304084-175 is tested for functional integrity before dispatch — critical for retrofit deployments where board performance must be guaranteed from day one.

Expedited Global Logistics: In-stock units ship within 1-2 business days via FedEx, DHL, or UPS Express. Emergency retrofit orders placed before 2 PM local time qualify for same-day dispatch. Full export documentation, including commercial invoices and certificates of conformity, is provided for international shipments.

Technical Support for Obsolete & Legacy Hardware: Our applications engineering team specializes in EOL and legacy hardware deployment. We provide pre-installation compatibility verification, slot assignment guidance, and post-installation functional validation support — ensuring your retrofit project proceeds without unexpected integration challenges.

Retrofit FAQ — Upgrade Guide

Q: Will the Honeywell 51304084-175 fit my existing TDC 3000 card cage without physical modification?
A: Yes. The 51304084-175 is designed to occupy standard TDC 3000 card cage slots without requiring backplane modification or mechanical adaptation. Verify your cage revision and slot assignment against your system’s hardware configuration record before installation to confirm dimensional and connector compatibility.

Q: How does this board communicate with newer supervisory systems during a phased migration?
A: The Honeywell 51304084-175 operates within the native TDC 3000 communication architecture. During phased System Migration, it can coexist with modern DCS gateways via Honeywell’s legacy HIway or LCN network interfaces, allowing supervisory data to be bridged to modern SCADA or historian platforms without disrupting existing control loops.

Q: Is there a direct modern replacement for the 51304084-175 if we decide to fully migrate?
A: Honeywell’s Experion PKS platform is the recommended migration target for TDC 3000 systems. However, direct functional equivalence requires a full I/O mapping and control strategy migration exercise. The Honeywell 51304084-175 is best used as a stabilization measure while migration planning is underway, extending asset life by 3-7 years depending on operating conditions.

Q: What configuration steps are required after installing this board as a retrofit replacement?
A: In most retrofit scenarios, the TDC 3000 system controller automatically recognizes the replacement board and restores the previous slot configuration. Some applications may require parameter verification through the TDC 3000 Universal Station operator interface. Our technical team can provide a pre-installation checklist tailored to your system revision.

Q: Can this board be used as a spare part strategy alongside a long-term migration plan?
A: Absolutely. Many facilities maintain a strategic inventory of Honeywell 51304084-175 units as part of a Legacy Compatibility buffer — ensuring uninterrupted operations during the transition period. We offer volume pricing and bonded stock arrangements for customers with multi-year retrofit roadmaps.

Q: What happens if the board fails after the warranty period during a critical retrofit phase?
A: We offer depot repair services with a typical 7-10 business day turnaround. A diagnostic report is issued before repair authorization, and repaired units are re-tested to original functional specifications. For mission-critical applications, we recommend maintaining at least one spare unit on-site to eliminate single-point-of-failure risk during retrofit transitions.
