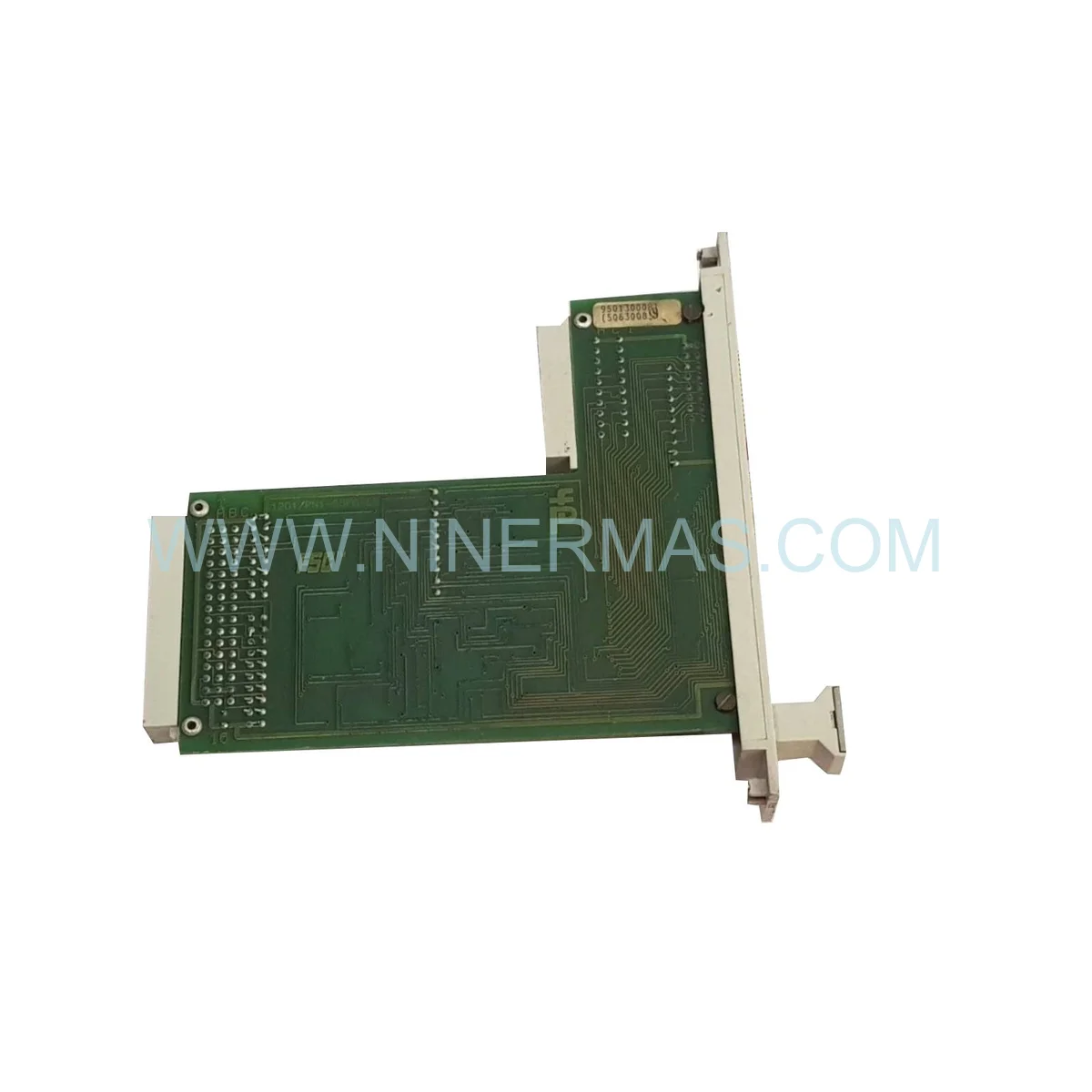

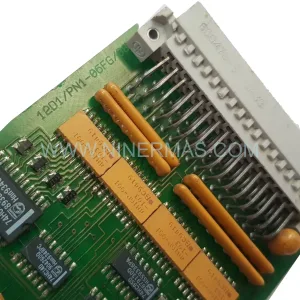

Honeywell 10100/1/1 Digital Input Module | Industrial Safety & Performance Component

Honeywell 10100/1/1 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Honeywell 10100/1/1 represents a cornerstone component in maintaining the operational integrity of mission-critical control architectures. As a certified 16-channel digital input module, the 10100/1/1 fulfills a decisive role in signal acquisition reliability — ensuring that field-level data is captured with precision, consistency, and full adherence to established safety integrity standards. Its deployment within distributed control systems (DCS) directly supports the compliance frameworks demanded by IEC 61511, ISA-84, and ISO 13849, making it an indispensable asset in regulated industrial environments.

Within the evolving paradigm of Industry 4.0, the Honeywell 10100/1/1 demonstrates long-term architectural compatibility with both legacy TDC platforms and modern Experion PKS ecosystems. Its modular design philosophy aligns with asset optimization strategies that prioritize interoperability, extended service life, and reduced total cost of ownership — attributes that are increasingly critical as organizations transition toward digitally integrated plant operations. The module’s deterministic scan performance and configurable input filtering ensure sustained system performance across multi-decade operational lifecycles.

As a factory-sealed, original-documentation-backed component, the Honeywell 10100/1/1 delivers the system safety value that only certified OEM hardware can provide. Counterfeit or refurbished alternatives introduce unquantifiable risk into safety-instrumented systems; by contrast, this module’s traceable provenance and compliance certification chain guarantee that every installation meets the audit requirements of global regulatory bodies — from OSHA Process Safety Management (PSM) to EU Machinery Directive 2006/42/EC.

Compliance & Safety Benchmarks

✅ UL 508 Listed: Certified for industrial control equipment, confirming adherence to North American electrical safety standards for panel-mount and DIN-rail installations.

✅ CE Marked: Fully compliant with EU directives covering electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage equipment safety, enabling unrestricted deployment across European industrial facilities.

✅ RoHS Compliant: Manufactured without restricted hazardous substances, supporting environmental compliance programs and green procurement policies in regulated industries.

1500VDC Channel-to-Backplane Isolation: Exceeds standard isolation benchmarks, providing robust protection against ground faults, common-mode noise, and transient overvoltage events that compromise system integrity in high-interference environments.

SIL 2 Compatible Architecture: Supports deployment in redundant I/O configurations aligned with IEC 61508 Safety Integrity Level 2 requirements, enabling use in safety-instrumented functions (SIF) for emergency shutdown and fire & gas detection systems.

✅ Conformal Coating & IP Protection: PCB-level conformal coating ensures standard adherence to IPC-CC-830 for moisture, fungus, and corrosion resistance — extending certified operational life in chemically aggressive or high-humidity plant environments.

Vertical Industry Integration & Optimization

Semiconductor Fabrication: In cleanroom automation environments, the Honeywell 10100/1/1 acquires digital status signals from robotic transfer systems, vacuum valve actuators, and wafer-handling interlocks. Its sub-5ms response time and optical isolation prevent cross-contamination of control signals between high-precision process zones, directly supporting yield optimization and equipment qualification protocols (SEMI S2/S8).

Pharmaceutical Manufacturing: GMP-regulated batch processing facilities rely on the 10100/1/1 to monitor CIP/SIP cycle completion signals, containment door interlocks, and HVAC differential pressure switches. The module’s traceable OEM documentation satisfies FDA 21 CFR Part 11 audit requirements and supports electronic batch record integrity — a non-negotiable compliance standard in drug manufacturing.

Chemical & Petrochemical Processing: In ATEX-classified hazardous zones, the 10100/1/1 interfaces with intrinsically safe barriers to acquire signals from flame detectors, gas leak sensors, and emergency isolation valve position switches. Its robust isolation architecture prevents ignition-capable energy from propagating into field wiring, directly supporting HAZOP-identified risk reduction measures.

Power Generation & Grid Infrastructure: Substation automation and turbine control systems leverage the module’s high-density digital input capability to monitor circuit breaker auxiliary contacts, transformer Buchholz relay outputs, and generator protection relay trip signals. Conformal coating ensures reliable operation across the full -40°C to +70°C temperature range encountered in outdoor switchgear installations.

Water & Wastewater Treatment: Municipal SCADA systems deploy the 10100/1/1 across geographically distributed lift stations and treatment plants to acquire pump run/fail signals, high-level float switch inputs, and UV disinfection system status. The module’s long-distance wiring tolerance (up to 300m with shielded cable) reduces infrastructure costs in sprawling utility networks.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Honeywell 10100/1/1 unit is dispatched in its original OEM packaging with intact tamper-evident seals, factory test certification records, and complete Original Documentation — including installation manuals, wiring diagrams (DWG/DXF), and firmware release notes. This ensures full traceability from manufacturer to end-user installation, satisfying the documentation requirements of ISO 9001-certified maintenance programs.

Rapid Global Logistics: In-stock units are processed and shipped within 1-2 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — with full export documentation (commercial invoice, packing list, certificate of origin) provided for customs clearance in all major industrial markets. Expedited freight options are available for emergency plant maintenance scenarios.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a comprehensive 12-month quality guarantee encompassing manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs are available for critical infrastructure operators requiring multi-year asset protection aligned with planned maintenance intervals. Our technical support team provides post-installation commissioning assistance, firmware compatibility verification, and replacement logistics coordination throughout the warranty period.

Expert Technical FAQ

Q1: Does the Honeywell 10100/1/1 comply with IEC 61511 requirements for use in Safety Instrumented Systems?
The 10100/1/1 is architecturally compatible with SIL 2 safety instrumented function (SIF) designs when deployed in redundant I/O configurations with appropriate proof-test intervals. Formal SIL certification documentation (PFD calculations, FMEDA reports) should be requested from Honeywell’s functional safety team for specific SIS applications. Our technical consultants can assist with safety lifecycle documentation review per IEC 61511 Phase 2 requirements.

Q2: What environmental certifications apply to installations in ATEX Zone 2 classified areas?
The 10100/1/1 is designed for installation in non-hazardous (safe area) control rooms, interfacing with ATEX-certified Zener barriers or galvanic isolators for field wiring into Zone 1/Zone 2 classified areas. The module itself does not carry ATEX certification; however, its 1500VDC isolation rating ensures that energy levels transmitted to field wiring remain within intrinsic safety limits when paired with appropriately certified associated apparatus.

Q3: How does firmware version compatibility affect system certification status?
Firmware revisions for the 10100/1/1 are managed through Honeywell’s Change Management process, with each revision accompanied by a Software Release Notice (SRN) documenting functional changes, resolved anomalies, and compatibility matrices. Upgrading firmware in a certified safety system requires a Management of Change (MOC) review to assess impact on existing SIL validation documentation. We supply the current factory-installed firmware version with each unit’s Original Documentation package.

Q4: What are the installation compliance requirements for high-EMI industrial environments?
For installations in environments with significant electromagnetic interference (variable frequency drives, arc welding equipment, high-voltage switchgear), IEC 61000-4 series immunity standards apply. The 10100/1/1’s optical isolation and conformal coating provide baseline EMC protection; supplementary measures including shielded cable (grounded at one end), ferrite cores on field wiring, and physical separation from power conductors are recommended per IEC 61439 panel design guidelines.

Q5: Can the module maintain operational compliance during partial rack power loss scenarios?
The 10100/1/1 incorporates internal power conditioning that maintains channel isolation integrity during backplane voltage fluctuations within the specified 18-30VDC operating range. In redundant power supply configurations, the module supports bumpless transfer between primary and backup power sources without generating spurious input state changes — a critical requirement for safety interlock systems where false trip signals carry significant operational and safety consequences.

Q6: What documentation is required for regulatory audit compliance when using this module in pharmaceutical applications?
For FDA-regulated manufacturing environments, the following Original Documentation elements are supplied: Certificate of Conformance (CoC) with batch/lot traceability, Factory Acceptance Test (FAT) records, material declarations for RoHS/REACH compliance, and calibration certificates where applicable. This documentation package supports Installation Qualification (IQ) and Operational Qualification (OQ) protocols required under GAMP 5 guidelines for computerized system validation in GMP facilities.
