ABB SDCS-PIN-H41 3ADT320600R1501 Service-Ready Spare Part

ABB SDCS-PIN-H41 3ADT320600R1501 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

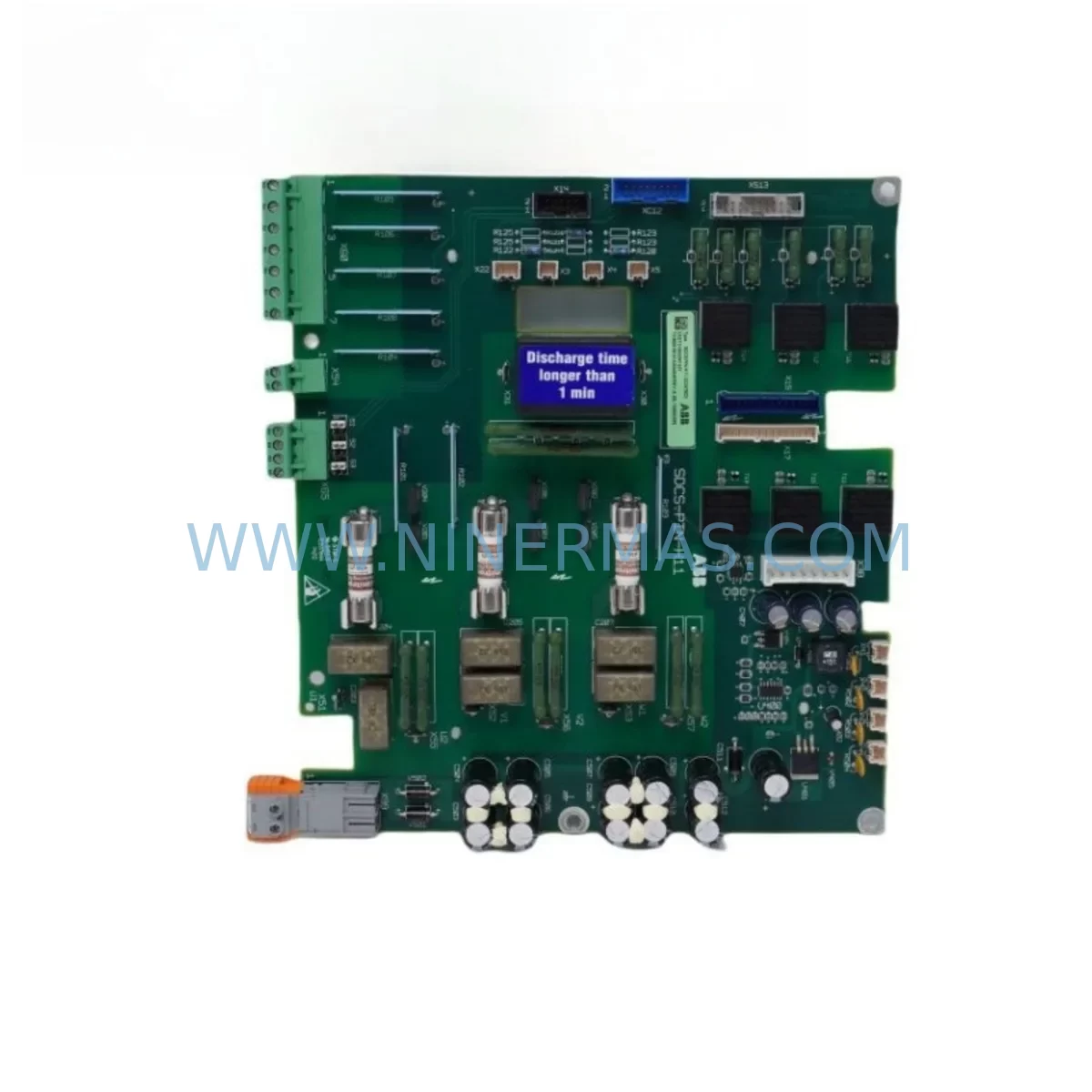

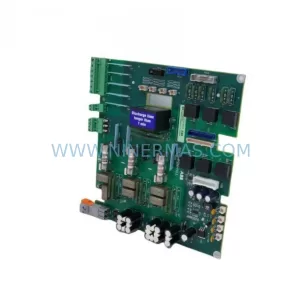

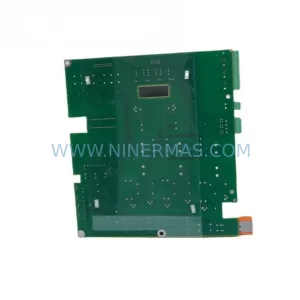

The ABB SDCS-PIN-H41 (3ADT320600R1501) is a ruggedized transformer board module engineered for demanding industrial environments. Designed as an integral component of ABB’s DCS800 series DC drive systems, this board provides isolated signal conditioning and power transformation functions critical to stable drive operation. When this module fails or degrades, the entire DC drive system is at risk of unplanned shutdown — making rapid access to a verified, service-ready spare part essential for any maintenance team managing continuous production lines, paper mills, metal processing plants, or heavy-duty material handling systems.

At NINERMAS, we stock the SDCS-PIN-H41 / 3ADT320600R1501 as a tested, original-specification spare part, ready for immediate dispatch. Each unit undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement engineers and maintenance planners the confidence to build reliable spare parts inventories without compromising on quality or compatibility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing ABB DCS800-based drive systems, the SDCS-PIN-H41 rarely fails in isolation. When this transformer board module shows signs of degradation — such as erratic speed reference signals, drive fault codes related to internal power supply, or intermittent communication errors — a thorough inspection of the surrounding electrical circuit is strongly recommended before and after replacement.

Begin by checking the SDCS-POW-H4 power supply board, which works in close coordination with the PIN-H41 to deliver regulated internal voltages to the drive’s control electronics. A failing power board can stress the transformer module and cause premature failure of a newly installed spare. Similarly, inspect the SDCS-DSL-H4 digital signal link board for communication integrity — corrupted fieldbus signals can mask the true root cause of a drive fault.

The SDCS-IOB-H4 I/O extension board should also be evaluated during any planned maintenance window. Faulty analog input channels or digital output relays on the I/O board can generate misleading fault diagnostics that point to the transformer board when the actual fault lies upstream. Alongside this, verify the condition of the SDCS-FEX-H4 field excitation module — particularly in DC motor applications where field weakening is used — as excitation irregularities place additional load on the signal isolation circuitry of the PIN-H41.

During control cabinet inspections, maintenance teams should also assess the SDCS-COM-H4 communication adapter for PROFIBUS or DeviceNet connectivity, especially in systems where the DCS800 drive is integrated into a broader PLC or DCS network. Loose fiber optic connections or degraded communication boards can trigger false alarms that are incorrectly attributed to the transformer board module.

From a power distribution perspective, check the 24 VDC auxiliary power supply feeding the control board stack, as well as any fuse blocks and terminal strips within the drive cabinet. Corroded terminals or blown control-circuit fuses are a common and often overlooked cause of board-level failures. If the system includes an ABB ACS800 or ACS880 series drive in the same facility, cross-referencing spare part strategies between drive families can improve procurement efficiency and reduce total inventory cost.

For facilities running legacy systems, consider stocking the SDCS-PIN-H41 COATED variant specifically — the conformal coating provides critical protection in environments with condensation, chemical vapors, or conductive dust, significantly extending mean time between failures (MTBF) compared to standard uncoated boards. Pairing this spare with a SDCS-MEM-H4 memory module backup ensures that drive parameters can be restored immediately after a board swap, minimizing commissioning time during emergency replacements.

Site Replacement Workflow

Step 1 — Fault Isolation: Before ordering or installing a replacement SDCS-PIN-H41, confirm the fault using the DCS800 drive’s onboard diagnostics. Document the active fault codes and cross-reference with ABB’s DCS800 firmware fault code list. This step prevents unnecessary board replacements when the root cause is external (e.g., a wiring fault or upstream power issue).

Step 2 — Safe Isolation: De-energize the drive cabinet following your site’s lockout/tagout (LOTO) procedure. Allow sufficient discharge time for DC bus capacitors before opening the drive enclosure. Verify zero voltage with a calibrated multimeter before handling any internal boards.

Step 3 — Board Removal and Inspection: Carefully remove the faulty SDCS-PIN-H41 board, noting the connector orientation and any visible signs of damage (burn marks, cracked components, corrosion). Photograph the installation before removal to assist with reinstallation of the new board.

Step 4 — Compatibility Verification: Confirm that the replacement board’s part number (SDCS-PIN-H41 / 3ADT320600R1501) matches the original. Check the drive firmware version to ensure compatibility — some firmware revisions require specific hardware variants. If upgrading from an older uncoated board to the COATED variant, no firmware changes are typically required, but verify with ABB’s compatibility matrix.

Step 5 — Installation and Recommissioning: Install the new board, reconnect all cables and connectors, and restore power. Run the drive through a controlled test cycle at reduced load before returning to full production. Monitor drive diagnostics for the first 30 minutes of operation to confirm stable performance.

Step 6 — Documentation: Update your maintenance management system (CMMS) with the replacement date, part number, and any observations. This record supports future maintenance planning and warranty claims if required.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-H41 3ADT320600R1501 compatible with all DCS800 drive variants?
The SDCS-PIN-H41 is designed for the ABB DCS800 series DC drive platform and is compatible with the majority of DCS800 drive ratings. However, compatibility can vary depending on the drive’s firmware version and hardware revision. We recommend confirming your drive’s exact model number and firmware version before ordering. Our technical team can assist with compatibility verification prior to purchase.

Q2: What does the 12-month warranty cover, and how is it claimed?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions beyond the module’s rated specifications. To make a warranty claim, contact us at sale@ninermas.com with your order number, a description of the fault, and any available diagnostic data from the drive system.

Q3: How do you verify the board is functional before shipment?
Every SDCS-PIN-H41 unit we dispatch undergoes a pre-shipment functional check to verify electrical integrity and basic operational parameters. Units that do not pass this check are not shipped. We can provide a test report upon request for customers with strict incoming inspection requirements.

Q4: Can NINERMAS support long-term supply of this part for multi-year maintenance contracts?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including legacy and discontinued ABB drive components. We maintain stock of the SDCS-PIN-H41 and can arrange scheduled delivery agreements, blanket purchase orders, and priority allocation for customers with ongoing maintenance contracts. Contact us to discuss your annual consumption requirements and we will provide a tailored supply proposal.
