Honeywell 51401635-150 Service-Ready Spare for C300

Honeywell 51401635-150 Service-Ready Spare Part for Industrial Maintenance

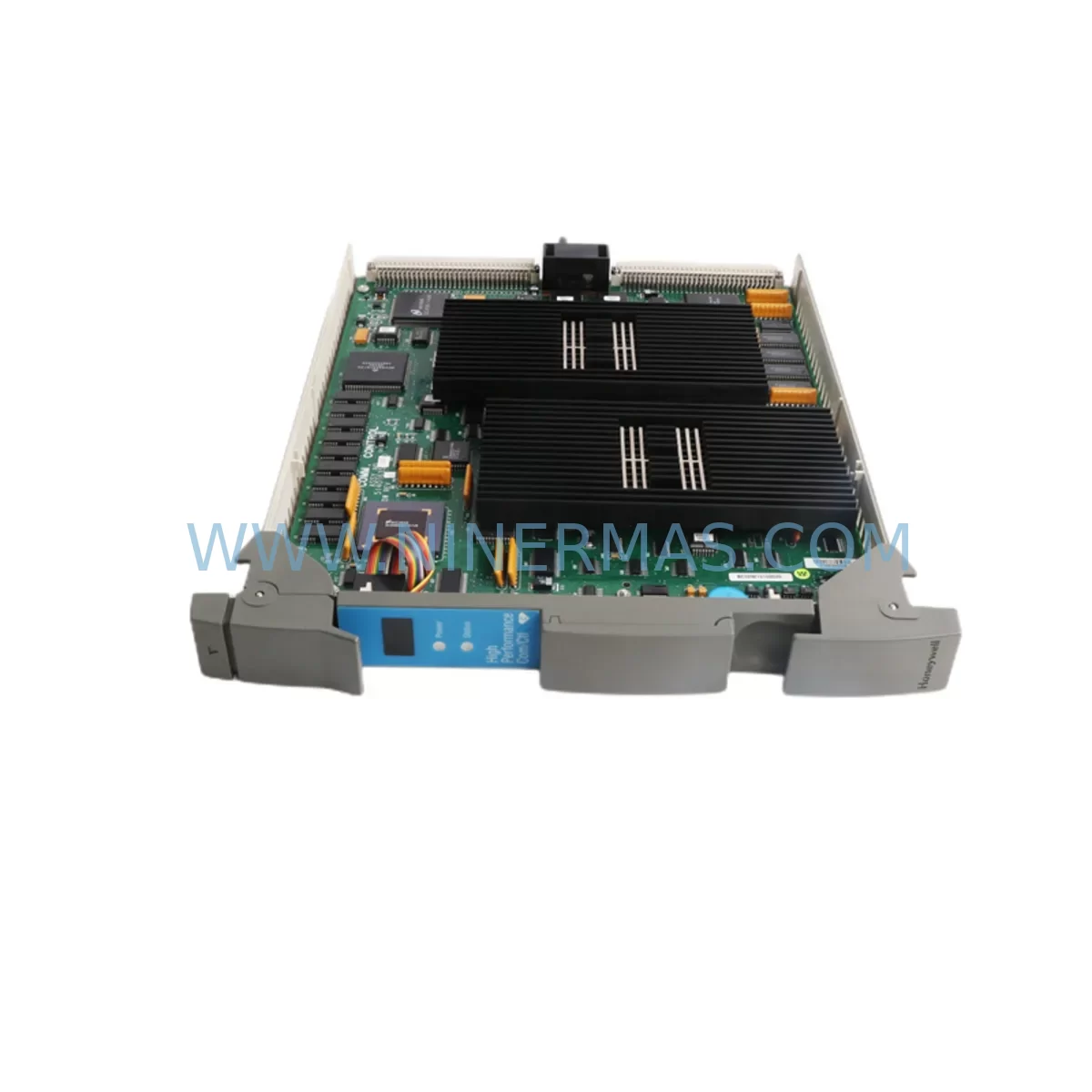

The Honeywell 51401635-150 is a high-performance Communication Controller designed for the Experion PKS C300 series distributed control system. As a critical node in process automation architectures, this module manages real-time data exchange between field devices, I/O subsystems, and the supervisory control layer. For maintenance engineers and procurement teams responsible for keeping legacy DCS platforms operational, securing a verified, service-ready spare of the 51401635-150 is a fundamental step in any proactive maintenance strategy.

Whether you are responding to an unplanned fault, preparing for a scheduled annual shutdown, or building a strategic spare parts inventory to extend the operational life of your Experion PKS installation, the 51401635-150 represents one of the highest-priority line items on your control system bill of materials. Downtime on a C300-based control loop can cascade rapidly across interconnected process units, making fast, reliable access to a tested replacement unit essential for plant continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer evaluates the replacement of the 51401635-150 Communication Controller, the scope of inspection should extend well beyond the module itself. The C300 controller architecture is deeply integrated, and a thorough site assessment will significantly reduce the risk of secondary failures following a module swap.

Begin with the power distribution feeding the controller chassis. The Honeywell CC-PWRR01 redundant power supply module should be inspected for output voltage stability and connector condition before the new 51401635-150 is seated. A marginal power supply that has been operating near its thermal limit can cause intermittent faults in a newly installed communication controller, making root cause analysis unnecessarily complex.

Next, verify the condition of the FTE network infrastructure. The 51401635-150 relies on Fault Tolerant Ethernet for its primary communication path, so the associated FTE switch — typically a Honeywell-qualified managed industrial Ethernet switch — should be checked for port errors, firmware currency, and cable integrity. Cat5e or Cat6 patch cables connecting the controller to the FTE network should be replaced as a matter of course during any controller-level maintenance event.

The C300 chassis backplane itself warrants close attention. Backplane connector wear, particularly on high-cycle installations, can introduce intermittent communication errors that are difficult to distinguish from module-level faults. If the installation has been in service for more than five years, a backplane continuity check is advisable before commissioning the replacement 51401635-150.

I/O subsystem connectivity is another critical checkpoint. The C300 communicates with Series C I/O Link modules — such as the CC-TCNT01 ControlNet Interface module — to reach field I/O. Confirming that these interface modules are operating within specification, and that their firmware is compatible with the replacement controller, prevents communication link failures during the post-replacement startup sequence.

For installations where the C300 interfaces with HART-enabled field instruments, the associated HART multiplexer or signal conditioner modules should be verified for correct addressing and signal integrity. Signal isolators installed between the I/O modules and field wiring should also be inspected, as degraded isolation can introduce ground loops that affect controller diagnostics.

The Honeywell Experion PKS server and associated HMI workstations should be reviewed for controller point database consistency before the replacement module is brought online. If the outgoing 51401635-150 had accumulated any unacknowledged alarms or configuration drift, these should be resolved in the Experion Configuration Studio before the new module is commissioned. This step is particularly important in installations where the C300 manages safety-instrumented function outputs alongside standard process control loops.

Terminal block wiring on associated I/O modules — including the CC-TAIX11 analog input termination assembly and similar field termination assemblies — should be inspected for loose connections, corrosion, and correct labeling. A wiring audit at this stage costs little time but can prevent hours of fault-finding after the replacement controller is energized.

Finally, ensure that a current backup of the C300 controller configuration is available in the Experion PKS Control Builder environment before beginning the physical replacement. Configuration restore procedures should be tested in a staging environment where possible, and the site commissioning engineer should have the module’s firmware upgrade utility available in case the replacement unit requires a firmware update to match the installed system baseline.

Site Replacement Workflow

Replacing the 51401635-150 on a live Experion PKS system requires careful sequencing to minimize process disruption and protect the integrity of the control strategy. The following workflow reflects best practice for a controlled, single-controller replacement in a non-redundant C300 configuration. For redundant controller pairs, the procedure differs and should follow Honeywell’s published bumpless transfer guidelines.

Step 1 — Pre-Replacement Preparation: Confirm that all process loops managed by the target C300 controller are in manual mode or have been handed off to backup control strategies. Notify the control room operator and obtain a formal work permit. Download and verify the current controller configuration backup from Control Builder.

Step 2 — Module Isolation: Navigate to the Experion PKS Station and place the target C300 controller in the offline state using the Controller Maintenance Tool. Confirm that all associated I/O points have transitioned to their defined fallback states and that no safety-critical outputs are affected.

Step 3 — Physical Removal: Power down the controller chassis if the installation does not support hot-swap removal. Disconnect the FTE network cables, labeling each port before removal. Extract the 51401635-150 module from the chassis slot, noting the slot address for re-installation reference.

Step 4 — Replacement Installation: Inspect the replacement 51401635-150 for shipping damage and verify the firmware version label. Seat the module firmly in the correct chassis slot and reconnect the FTE cables to the labeled ports. Restore chassis power.

Step 5 — Commissioning and Verification: Using Control Builder, download the verified configuration to the replacement controller. Confirm that all I/O link modules re-establish communication and that field I/O points return to their expected states. Verify FTE network status in the Experion Network Manager. Return process loops to automatic control in a staged sequence, monitoring for alarm activity.

Step 6 — Documentation: Record the replacement event in the site maintenance management system, including the serial number of the removed module, the replacement unit serial number, firmware version, and commissioning engineer sign-off. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels.

This structured approach consistently reduces total replacement downtime to under four hours for experienced site teams, even on complex multi-loop C300 installations.

Spare Parts Support FAQ

Q1: Is the 51401635-150 still available as a new original spare, or only as a refurbished unit?
We supply the Honeywell 51401635-150 as a verified original spare part. Each unit undergoes functional testing prior to shipment, and all units are covered by a 12-month warranty. Where new original stock is available, it is prioritized; refurbished units, when supplied, are fully tested and documented to the same standard.

Q2: How do I confirm compatibility between the replacement 51401635-150 and my installed C300 system firmware?
Compatibility is determined by the Experion PKS system release version installed on your server and the firmware baseline of your existing C300 controllers. We recommend providing your Experion PKS release number and current controller firmware version at the time of inquiry so that we can confirm the correct firmware variant for your replacement unit before shipment.

Q3: What is the lead time, and do you maintain stock for urgent maintenance requirements?
We maintain buffer stock of high-demand Honeywell Experion PKS spare parts, including the 51401635-150, to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For critical plant emergencies, please contact our team directly to discuss expedited dispatch options.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers functional failure under normal operating conditions, including communication faults, backplane interface failures, and firmware integrity issues attributable to the module itself. Physical damage caused by incorrect installation, overvoltage events, or environmental contamination is excluded. To initiate a warranty claim, contact our support team with the unit serial number, fault description, and site installation details. Replacement or repair will be arranged within the warranty period at no additional cost.
