Emerson KJ3241X1-BA1 Retrofit-Compatible Serial I/O for Legacy DeltaV

Emerson KJ3241X1-BA1 Retrofit-Compatible Serial Interface Module for Legacy DeltaV Systems

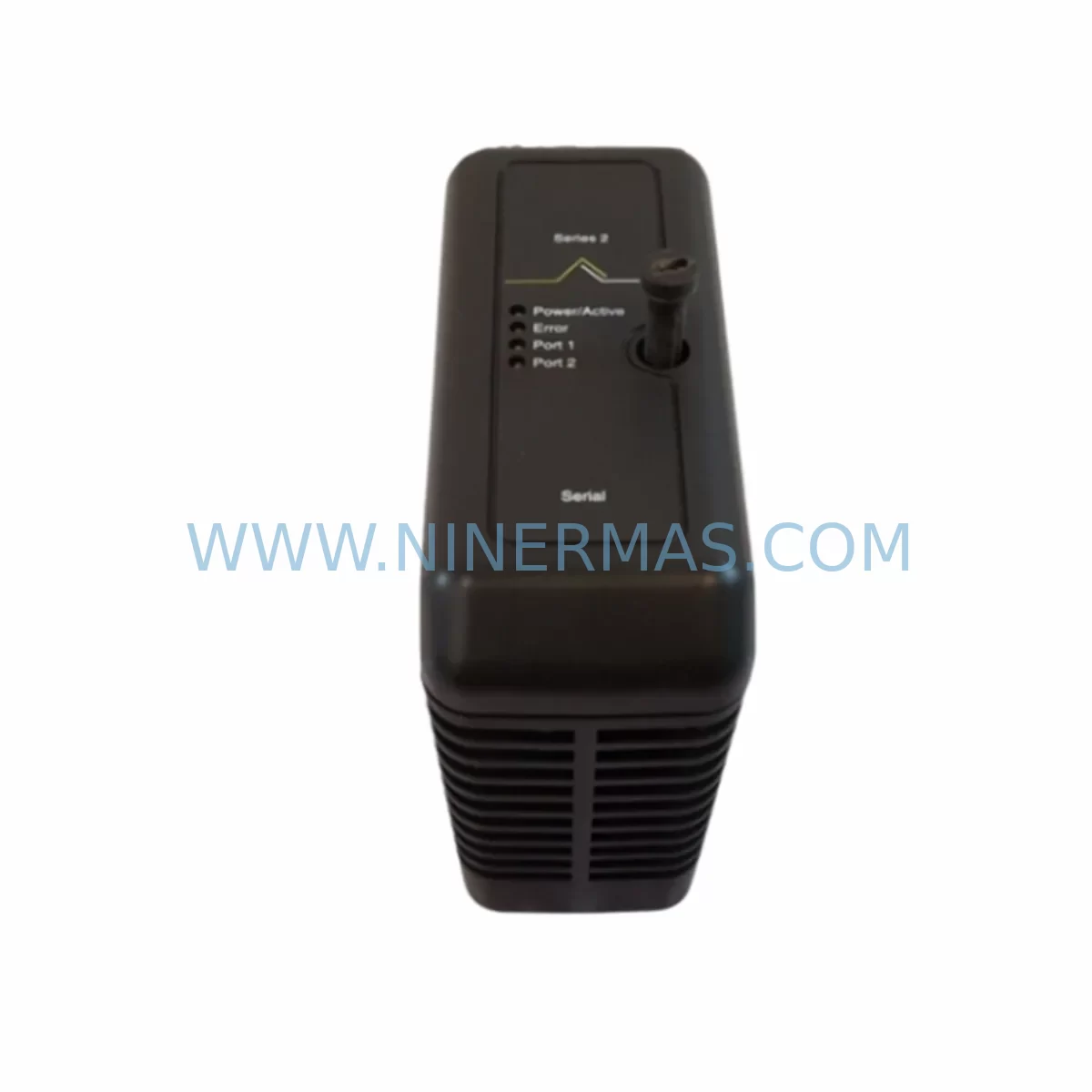

The Emerson KJ3241X1-BA1 (also referenced as SE4006P2 and 12P2506X062) is a serial interface module designed for integration within the Emerson DeltaV distributed control system platform. As aging DeltaV installations approach end-of-support milestones, this module continues to serve as a critical retrofit-compatible component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full platform migration. Whether you are replacing a failed unit in a live process environment, restocking your MRO spare parts inventory, or executing a phased control system modernization, the KJ3241X1-BA1 provides a reliable, drop-in-compatible solution backed by a 12-month warranty and pre-shipment functional testing.

Industrial facilities operating legacy DeltaV architectures — particularly those built around the DeltaV S-series controllers, MD-series controllers, and associated I/O subsystems — frequently encounter obsolescence challenges with serial communication components. The KJ3241X1-BA1 addresses this directly by maintaining backward compatibility with existing DeltaV carrier assemblies, backplane wiring, and module addressing schemes. This means engineering teams can execute a replacement without modifying the control strategy, recompiling the DeltaV application database, or reconfiguring the DeltaV Explorer node assignments — a significant advantage in environments where unplanned downtime carries high operational cost.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3241X1-BA1 into a legacy DeltaV environment requires a structured pre-installation review. Engineering teams should begin by auditing the existing DeltaV controller — typically a DeltaV MD Plus Controller or DeltaV S-series Controller — to confirm available I/O slot capacity and backplane power headroom. In multi-drop serial networks, the module must be configured to match the baud rate, data bits, stop bits, and parity of the connected field instruments, which may include legacy HART multiplexers, third-party analyzers, or older Modbus RTU devices that cannot be easily reconfigured.

Terminal block wiring should be documented photographically and against the original loop drawings before the failed module is removed. The KJ3241X1-BA1 uses the standard DeltaV I/O terminal block format, so field cables can be re-terminated directly without adapter wiring. Where the existing installation uses a DeltaV CHARM I/O carrier or a traditional 8-channel I/O carrier, confirm the carrier type before ordering to ensure slot compatibility.

In control cabinets where space is constrained, verify that adjacent modules — such as a DeltaV AI Module (KJ3002X1-BA1), DeltaV AO Module (KJ3222X1-BA1), or DeltaV DI Module (KJ3001X1-BA1) — are not obstructing airflow or creating thermal hotspots. The DeltaV power supply module (KJ4001X1-BA1 or equivalent) should be checked for available current margin, particularly in cabinets where additional I/O modules have been added since the original system commissioning.

For facilities running DeltaV with a redundant controller pair, the replacement procedure should be coordinated with the control room operator to ensure the redundant controller remains in primary control during the swap. After physical installation, use DeltaV Diagnostics to verify that the module is recognized by the controller, that the serial communication link is active, and that all configured function blocks are executing without fault. In systems where the KJ3241X1-BA1 interfaces with a third-party HMI or SCADA system via OPC, confirm that the OPC server re-establishes its data subscription after the module comes online. A DeltaV programming cable (PCMCIA or USB-to-serial adapter, depending on workstation generation) may be required for on-site parameter verification if remote access to the DeltaV workstation is not available.

Where the retrofit is part of a broader control system modernization — for example, migrating from a legacy DeltaV v8 or v9 installation to a current DeltaV v15 or v16 environment — the KJ3241X1-BA1 can serve as a bridging component, maintaining serial field device connectivity while the broader I/O infrastructure is progressively upgraded to DeltaV CHARM or wireless I/O. This phased approach minimizes the scope of any single outage window and allows the facility to validate each upgraded segment before proceeding to the next.

Downtime Control During System Migration

Minimizing process downtime during a serial interface module replacement requires advance preparation and a clearly defined execution sequence. Before the maintenance window opens, the replacement KJ3241X1-BA1 should be bench-verified against the original module’s configuration parameters — including serial port settings, function block assignments, and any custom scaling or filtering applied within the DeltaV control strategy. This pre-verification step, which is included as part of our pre-shipment testing protocol, significantly reduces the risk of discovering configuration mismatches after the process has been taken offline.

During the replacement window, the DeltaV controller should be placed in manual output mode for all loops served by the affected serial interface, ensuring that field actuators — control valves, variable speed drives, or other serial-commanded devices — hold their last output state rather than defaulting to a fail-safe position that could disrupt the process. The original module should be removed and the replacement installed with the field wiring re-terminated in the same sequence as documented during the pre-shutdown walkdown.

After the KJ3241X1-BA1 is seated and powered, the DeltaV controller will automatically attempt to re-establish communication with the module. Monitor the DeltaV Diagnostics display for module status confirmation before returning any control loops to automatic mode. In facilities with a DeltaV Batch Executive or DeltaV Advanced Control application running on the affected node, confirm that batch phases and advanced control blocks have resumed normal execution before releasing the unit back to production. Total replacement time for a prepared team with pre-verified hardware is typically under 30 minutes, making the KJ3241X1-BA1 a practical choice for facilities with tight maintenance windows.

Retrofit Support FAQ

Q1: Is the KJ3241X1-BA1 a direct drop-in replacement for the original SE4006P2 / 12P2506X062 module?
Yes. The KJ3241X1-BA1, SE4006P2, and 12P2506X062 are cross-reference part numbers for the same Emerson DeltaV serial interface module. The unit installs into the same DeltaV I/O carrier slot, uses the same terminal block wiring, and is recognized by the DeltaV controller without requiring changes to the control strategy or module addressing configuration.

Q2: What commissioning steps are required after installation?
After physical installation, use DeltaV Diagnostics to confirm the module is online and communicating with the controller. Verify that the serial communication link to the connected field device is active by checking the relevant function block status in DeltaV Control Studio. If the module interfaces with a Modbus RTU device, confirm that the baud rate, parity, and device address settings in the DeltaV serial port configuration match the field device parameters. No DeltaV database download is required for a like-for-like replacement.

Q3: Do you provide pre-shipment testing, and what does the 12-month warranty cover?
Yes. Every KJ3241X1-BA1 unit is functionally tested prior to shipment to verify serial port operation, backplane communication, and module self-diagnostics. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Warranty claims are supported with direct technical assistance.

Q4: What is the typical lead time, and do you maintain stock for urgent requirements?
We maintain inventory of the KJ3241X1-BA1 to support urgent MRO and emergency replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For critical plant situations requiring same-day or next-day dispatch, please contact our team directly to confirm current stock availability and expedited shipping options. We support global delivery to manufacturing facilities across Asia, Europe, the Middle East, and the Americas.
