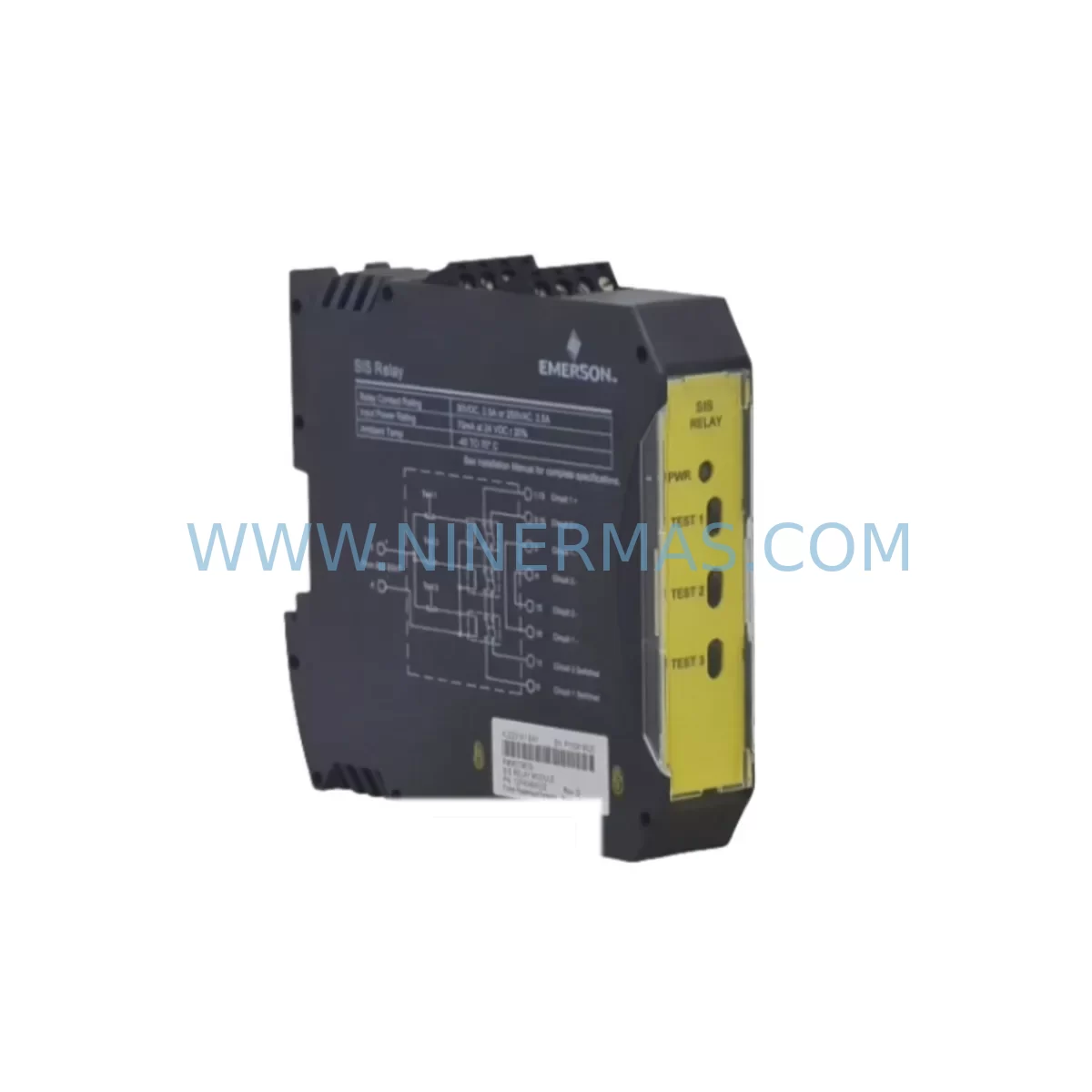

Emerson KJ3143X1-BA1 Safety-Reliable Digital Input Module

Emerson KJ3143X1-BA1 Safety-Reliable Digital Input Module for Critical Control Sites

The Emerson KJ3143X1-BA1 (12P2830X022) is a ruggedized digital input module engineered for the Emerson DeltaV distributed control system (DCS). Designed to deliver uninterrupted signal acquisition in the most demanding industrial environments, this module serves as a foundational safety component in critical control loops across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities. Its hardened architecture ensures reliable discrete signal detection even under conditions of high electromagnetic interference (EMI), voltage transients, mechanical vibration, elevated ambient temperature, and airborne particulate contamination — conditions that routinely compromise lesser I/O hardware.

In safety-critical applications, a single point of digital input failure can cascade into unplanned shutdowns, process upsets, or dangerous misoperations. The KJ3143X1-BA1 addresses this risk through robust input filtering, galvanic isolation between field wiring and the DeltaV backplane, and tight signal integrity tolerances that prevent false triggering or missed state transitions. Whether monitoring emergency shutdown (ESD) pushbuttons, motor run-feedback contacts, valve position limit switches, or interlock relay outputs, this module maintains deterministic response times that safety instrumented systems (SIS) and basic process control systems (BPCS) depend upon.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DeltaV control cabinet, the KJ3143X1-BA1 digital input module does not operate in isolation — it functions as part of a tightly integrated I/O and power architecture designed to eliminate single points of failure. Alongside the KJ3143X1-BA1, a complete and resilient cabinet build typically incorporates the Emerson KJ3221X1-BA1 digital output module to close the discrete control loop, ensuring that field actuators respond correctly to the same interlock logic that the input module monitors. For analog process variables — pressure, temperature, flow — the Emerson KJ3002X1-BA1 analog input module provides the continuous signal acquisition that complements discrete state monitoring.

Power integrity is equally critical. The Emerson KJ4001X1-BA1 DeltaV power supply module provides regulated, filtered DC power to the I/O subsystem, protecting all installed modules — including the KJ3143X1-BA1 — from upstream voltage sags, surges, and harmonic disturbances common in heavy industrial power environments. For installations where power redundancy is mandated by safety standards, a secondary Emerson KJ4002X1-BA1 redundant power supply module can be paired to eliminate power loss as a cause of control interruption.

Communication reliability is maintained through the Emerson KJ2003X1-BA1 DeltaV controller module, which orchestrates scan cycles, executes control strategies, and manages the health of all connected I/O modules. In high-availability architectures, a redundant controller pair ensures that a single controller fault does not interrupt the digital input scanning that safety interlocks depend upon. The Emerson CIOC01 (Charm I/O Card) and associated CHARMS (Characterization Modules) extend this philosophy to field-level signal conditioning, allowing individual channel replacement without disturbing adjacent circuits — a key advantage in live production environments where maintenance windows are constrained.

For surge and transient protection at the field wiring terminals, MTL Surge Technologies or equivalent DIN-rail-mounted surge protection devices (SPDs) are recommended upstream of the KJ3143X1-BA1 input terminals, particularly in outdoor substations, motor control centers (MCCs), and installations near high-voltage switchgear. Combining the KJ3143X1-BA1 with a Pepperl+Fuchs zener barrier or galvanic isolator on intrinsically safe (IS) circuits further extends its applicability into Zone 1 and Zone 2 hazardous areas, where ignition risk from electrical faults must be positively controlled.

Critical Industrial Safety Applications

The Emerson KJ3143X1-BA1 has established a proven service record across the most demanding sectors of industrial automation:

Petrochemical and Refinery Plants: In continuous process units — crude distillation, catalytic cracking, hydrotreatment — the KJ3143X1-BA1 monitors ESD valve position feedback, high-level switch states, and compressor trip relay outputs. Its galvanic isolation prevents ground loop currents from corrupting interlock logic in environments where multiple earthing systems coexist across large plant footprints.

Power Generation (Thermal and Hydro): Turbine protection systems rely on fast, accurate discrete input acquisition to detect overspeed relay contacts, bearing temperature switch trips, and lube oil pressure low-low signals. The KJ3143X1-BA1’s deterministic scan time and hardware input filtering ensure that no valid trip signal is missed and no spurious trip is generated by electrical noise from generator excitation systems.

Mining and Mineral Processing: Conveyor belt interlock chains, crusher overload relays, and ventilation fan run-feedback signals are typical discrete inputs in mining automation. The ruggedized construction of the KJ3143X1-BA1 withstands the vibration, dust ingress, and wide temperature swings characteristic of underground and open-cut mining control rooms.

Water and Wastewater Treatment: Pump run-feedback, high-level float switch inputs, and UV disinfection system status signals are monitored reliably by the KJ3143X1-BA1 in water utility SCADA and DCS architectures. Its low-maintenance design and long service life reduce lifecycle costs in facilities where staffing and maintenance resources are limited.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting environments, the KJ3143X1-BA1 handles discrete inputs from cooling water flow switches, electrode position limit switches, and mold level alarm contacts — all in the presence of intense electromagnetic fields generated by high-current bus systems.

Port Logistics and Marine Applications: Ship-to-shore crane control systems and bulk material handling terminals use the KJ3143X1-BA1 to monitor hoist limit switches, anti-collision relay outputs, and emergency stop circuit states, where reliable discrete input acquisition directly affects personnel safety and cargo integrity.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the KJ3143X1-BA1?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If the module fails to perform its specified digital input acquisition function within this period due to a component or assembly defect, a replacement or repair will be provided at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each KJ3143X1-BA1 unit?
Every KJ3143X1-BA1 unit undergoes full functional verification prior to dispatch. This includes channel-by-channel input state testing, isolation integrity verification, backplane interface communication check, and visual inspection for physical condition. Units that do not pass all test criteria are not shipped. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the KJ3143X1-BA1 compatible with all DeltaV system versions?
The KJ3143X1-BA1 is designed for the Emerson DeltaV KJ Series I/O subsystem and is compatible with DeltaV system versions that support the KJ I/O bus architecture. It is recommended to verify compatibility with your specific DeltaV system version and controller firmware revision before installation. Our technical team can assist with compatibility confirmation based on your system’s hardware and software baseline.

Q4: Can long-term spare parts supply be guaranteed for the KJ3143X1-BA1?
Yes. The KJ3143X1-BA1 is maintained as a stocked spare part to support installed DeltaV base systems with extended operational lifecycles. We maintain inventory specifically to serve facilities that cannot afford extended lead times for critical I/O replacement. Customers with planned maintenance schedules or multi-unit requirements are encouraged to contact us to discuss volume availability and forward stocking arrangements.
