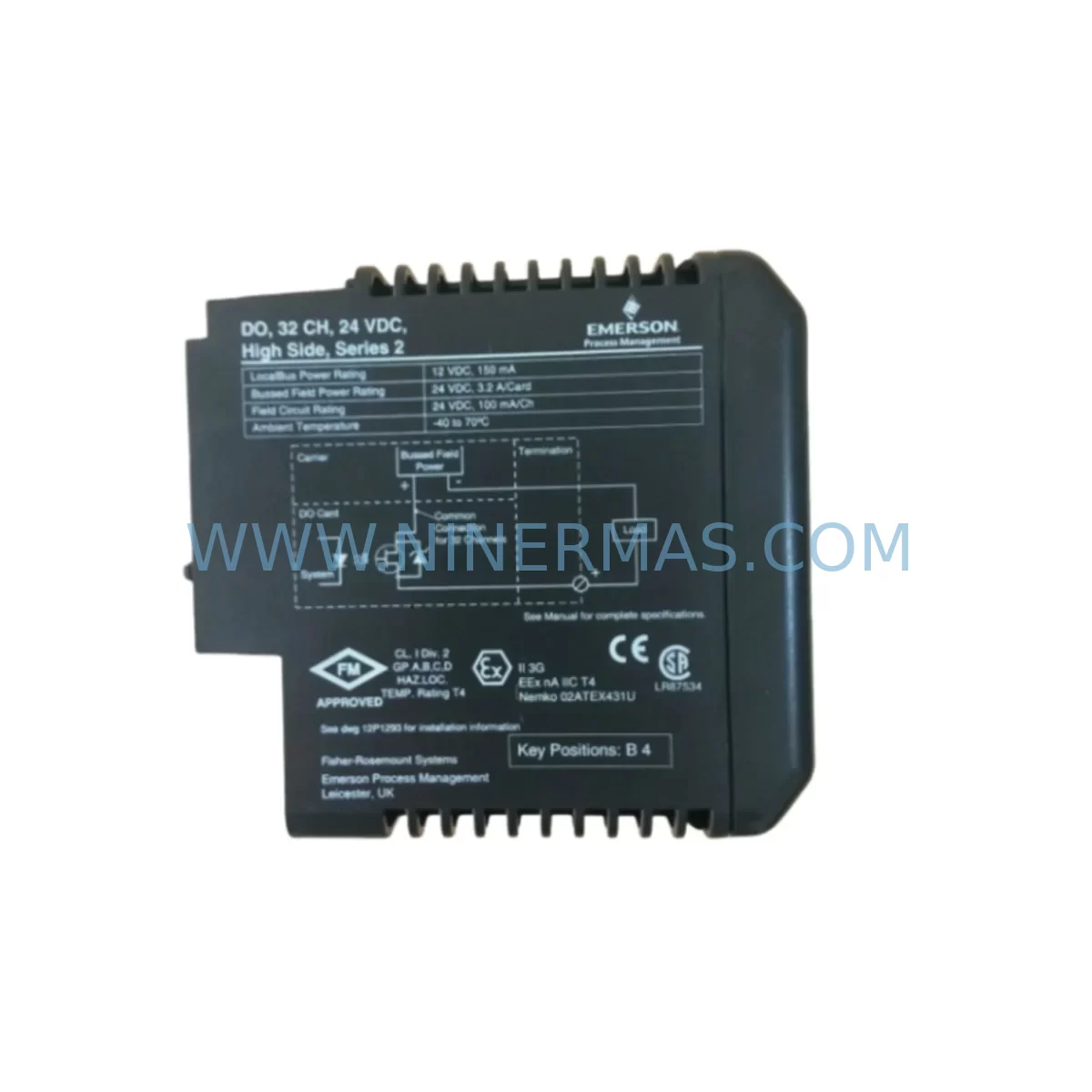

Emerson KJ3223X1-EA1 12P2867X022 Service-Ready Spare Part

Emerson KJ3223X1-EA1 12P2867X022 Service-Ready Spare Part for Industrial Maintenance

The Emerson KJ3223X1-EA1 (12P2867X022) is a critical I/O interface module designed for the Emerson DeltaV S-Series distributed control system platform — one of the most widely deployed DCS architectures in refining, petrochemical, power generation, and specialty chemical processing facilities worldwide. As aging DeltaV S-Series installations approach end-of-life support cycles, maintaining a verified stock of service-ready spare parts such as the KJ3223X1-EA1 is no longer optional — it is a core element of any responsible maintenance and business continuity strategy.

At NINERMAS, every KJ3223X1-EA1 unit is sourced, inspected, and dispatched with full traceability. Our supply chain is structured to support both emergency breakdown replacements and long-term planned maintenance programs. Each unit ships with a 12-month warranty and pre-shipment functional verification, giving maintenance engineers and procurement teams the confidence to act quickly when system availability is at risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ3223X1-EA1 module requires replacement, experienced maintenance engineers understand that the module itself is rarely the only component under stress. A systematic inspection of the surrounding control architecture is essential to prevent repeat failures and ensure a stable return to full production capacity.

Begin by verifying the integrity of the DeltaV S-Series carrier or backplane into which the KJ3223X1-EA1 is installed. Backplane connector wear, oxidation, or mechanical damage can cause intermittent I/O faults that are incorrectly attributed to the module itself. Alongside the backplane, inspect the DeltaV S-Series power supply module — typically a KJ1501X1-BA2 or equivalent — for output voltage stability, as undervoltage conditions accelerate module degradation across the entire I/O subsystem.

The DeltaV controller module (such as the MD Plus or MD Controller) communicating with this I/O node should be checked for firmware currency and diagnostic alarm history. Unresolved controller-level faults can mask I/O module failures or generate false positives during troubleshooting. Similarly, review the DeltaV CIOC (Charms I/O Card) or associated marshalling components if the installation uses a hybrid S-Series and CHARM architecture.

Field wiring terminations connected to the KJ3223X1-EA1 should be inspected at the terminal block assemblies — check for loose connections, insulation breakdown, and moisture ingress, particularly in installations near heat exchangers or outdoor junction boxes. If the I/O channel handles analog signals, verify the calibration and condition of any signal isolators or signal conditioners in the loop, as these components are frequently overlooked during module-focused maintenance events.

For installations where the KJ3223X1-EA1 interfaces with HART-enabled field instruments, confirm that the HART multiplexer or HART interface module is functioning correctly. A failed HART interface can generate spurious I/O errors that appear to originate from the module under inspection. Additionally, review the status of fuse assemblies and circuit protection devices within the control cabinet — blown fuses on I/O power rails are a common secondary failure mode following module replacement if the root cause (e.g., field wiring short) has not been resolved.

Finally, if the DeltaV system includes an OPC server, historian, or HMI workstation connected to the affected I/O node, verify that communication paths are restored and that process variable readings are within expected ranges following module swap-out. A structured post-replacement verification checklist — covering I/O channel scan, alarm acknowledgment, and loop test — is strongly recommended before returning the process unit to automatic control.

Site Replacement Workflow

Replacing the KJ3223X1-EA1 in a live DeltaV S-Series environment requires a structured approach to minimize process disruption and ensure system integrity. The following workflow reflects best practices for field replacement in operating industrial facilities:

Step 1 — Pre-Replacement Preparation: Obtain the replacement KJ3223X1-EA1 (12P2867X022) from verified stock. Confirm the reference number matches the installed unit. Download or print the current I/O assignment list for the affected carrier slot from the DeltaV Explorer or Asset Management Suite. Notify the control room operator and obtain the appropriate work permit.

Step 2 — Safe Isolation: Where process conditions permit, place affected control loops in manual mode from the DeltaV operator workstation. For critical loops, coordinate with the process engineer to confirm safe manual setpoints. Do not remove the module while loops remain in automatic if field devices are actively controlling safety-critical parameters.

Step 3 — Module Removal: The DeltaV S-Series I/O architecture supports hot-swap removal on most module types. Confirm hot-swap capability for the KJ3223X1-EA1 in your specific system configuration before proceeding. If hot-swap is supported, remove the module by releasing the locking tab and sliding it clear of the carrier. If not, follow the appropriate shutdown sequence for the affected I/O subsystem.

Step 4 — Module Installation: Insert the replacement KJ3223X1-EA1 firmly into the carrier slot until the locking tab engages. The DeltaV system will automatically recognize the module and begin the commissioning sequence. Monitor the DeltaV diagnostic display for module status confirmation — a solid green LED indicates successful initialization.

Step 5 — Post-Replacement Verification: Perform a full I/O channel scan from the DeltaV workstation. Verify that all field device readings are within expected ranges. Return control loops to automatic mode sequentially, confirming stable process response at each step. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This workflow supports rapid recovery from unplanned outages while maintaining the system compatibility and audit trail required by process safety management (PSM) programs.

Spare Parts Support FAQ

Q1: Is the KJ3223X1-EA1 (12P2867X022) compatible with all DeltaV S-Series configurations?
The KJ3223X1-EA1 is designed for the Emerson DeltaV S-Series platform and is compatible with standard S-Series 8-slot and 12-slot carriers. Compatibility with specific system revisions or firmware versions should be confirmed against your site’s DeltaV system documentation or by contacting NINERMAS with your system configuration details prior to ordering. We provide pre-order compatibility verification as a standard service.

Q2: What pre-shipment testing does NINERMAS perform on the KJ3223X1-EA1?
Every KJ3223X1-EA1 unit dispatched by NINERMAS undergoes functional verification testing prior to shipment. This includes power-on self-test confirmation, I/O channel integrity checks, and visual inspection for physical damage or connector wear. Units that do not pass testing are not dispatched. A test report is available upon request for critical spare applications.

Q3: Can NINERMAS support long-term spare parts programs for DeltaV S-Series components?
Yes. NINERMAS specializes in long-term supply arrangements for obsolete and end-of-life industrial control system components, including the full DeltaV S-Series I/O module range. We can structure annual supply agreements, consignment stock programs, and priority reservation arrangements to ensure your facility maintains adequate spare coverage without excessive capital tied up in on-site inventory. Contact our team to discuss your specific requirements.

Q4: What does the 12-month warranty cover, and what is the claims process?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, contact NINERMAS with the original order reference and a description of the fault. We will arrange return logistics and dispatch a replacement unit with priority handling to minimize your downtime exposure.
