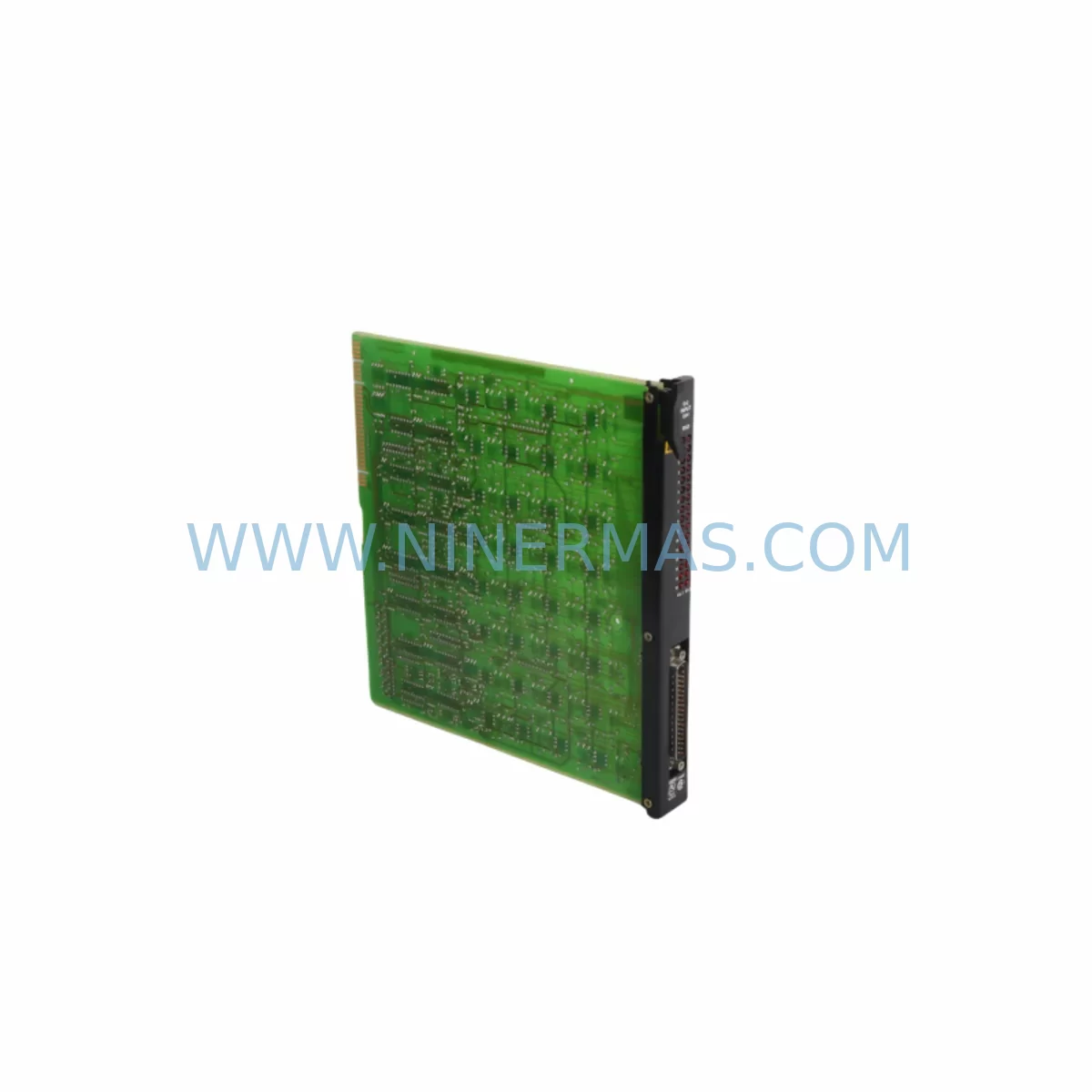

The ALSTOM 8163-4002 is an original input module designed for the ALSPA 8163 series distributed control system (DCS), widely deployed in power generation plants, process industries, and heavy industrial facilities. As a service-ready spare part, the 8163-4002 is engineered to deliver direct drop-in replacement capability for aging or failed input modules within ALSPA control cabinets, enabling maintenance teams to restore system operation with minimal downtime and without requiring hardware reconfiguration or software re-engineering.

For maintenance engineers managing legacy ALSPA installations, sourcing a verified original 8163-4002 input module is critical. Counterfeit or incompatible substitutes risk introducing signal errors, I/O mapping conflicts, or communication faults that can cascade into broader system failures. NINERMAS supplies only original-grade 8163-4002 modules, each subject to pre-shipment functional testing, ensuring the unit you receive is ready for immediate installation and commissioning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for ALSPA 8163-based control systems requires a holistic view of the entire control cabinet and electrical circuit. When replacing the 8163-4002 input module, experienced maintenance engineers know that the module does not operate in isolation — its performance depends on the integrity of surrounding components across the same I/O rack and control loop.

During scheduled annual overhauls or emergency fault isolation, it is standard practice to simultaneously inspect the ALSPA 8163-4001 output module installed in the adjacent slot, as shared backplane power distribution means a fault in one module can stress neighboring units. The ALSPA 8163 series backplane itself should be visually inspected for oxidized connector pins, cracked PCB traces, or loose rack retention hardware — a degraded backplane is a common root cause of intermittent input signal faults that are incorrectly attributed to the module itself.

Power supply integrity is equally critical. The ALSPA P320 CPU module and associated rack power supply units must deliver stable, within-tolerance DC voltage to the I/O bus. Voltage sag or ripple on the internal bus can cause the 8163-4002 to report spurious input states, leading to false alarms or missed process signals. Maintenance teams should verify the rack power supply output under load before concluding that the input module is the sole fault source.

Field wiring connected to the 8163-4002 passes through terminal blocks and, in many installations, through signal isolators or signal conditioners before reaching the module’s input terminals. Degraded terminal block connections — particularly in high-vibration environments — introduce resistance that distorts analog input readings. Replacing the 8163-4002 without inspecting and re-torquing the associated terminal block connections is a common cause of repeat failures within weeks of a module swap.

In systems where the ALSPA 8163 communicates with an HMI panel or SCADA workstation, the communication module responsible for data exchange should be verified for correct firmware version and communication health after any I/O module replacement. An 8163-4002 swap that changes the I/O map — even slightly — can trigger communication timeouts or data integrity alarms at the HMI level if the communication module is not re-synchronized.

Fuse protection for the input circuit should also be checked. Many ALSPA 8163 installations use dedicated fuse terminals or miniature circuit breakers on the field side of each input channel group. A blown fuse on the field circuit is frequently misdiagnosed as a failed input module. Confirming fuse continuity before ordering a replacement 8163-4002 can save significant procurement lead time and cost.

For facilities maintaining a structured spare parts inventory, it is advisable to stock the 8163-4002 alongside complementary modules from the same control cabinet: the 8163-4003 analog input module variant, the 8165-series relay output modules, and the 8171-series communication interface modules. This ensures that a single cabinet fault event does not result in extended downtime while waiting for multiple part deliveries. A well-structured spare parts kit for an ALSPA 8163 cabinet typically covers input modules, output modules, the CPU module, at least one power supply unit, and a set of terminal block connectors — providing full coverage for the most statistically likely failure modes in a 10-year operational horizon.

Site Replacement Workflow

Replacing the ALSTOM 8163-4002 on-site follows a structured sequence designed to minimize system downtime and ensure compatibility is maintained throughout the process. Before beginning, confirm that the replacement module’s hardware revision matches or is backward-compatible with the installed system’s firmware version. ALSPA 8163 systems may have revision-specific I/O addressing that requires attention during module swap.

Step 1 — Isolation and Safety: Place the affected control loop in manual mode at the DCS operator station. Notify the operations team of the planned maintenance window. Isolate field power to the input circuit using the dedicated field-side isolator or fuse terminal. Verify isolation with a calibrated multimeter before touching any wiring.

Step 2 — Module Removal: Disconnect the field wiring terminal block from the 8163-4002 module face. Note the terminal block orientation and label positions before removal. Release the module retention latch and slide the 8163-4002 out of the backplane slot. Inspect the backplane connector for damage or contamination.

Step 3 — Replacement Installation: Insert the new 8163-4002 module into the same backplane slot, ensuring full connector engagement. Reconnect the field wiring terminal block in the correct orientation. Restore field-side power and verify that the module’s status LED indicates normal operation.

Step 4 — System Verification: From the DCS engineering workstation, confirm that the 8163-4002 is recognized by the system and that all configured input channels are reporting correctly. Compare live input readings against known field values using a process calibrator or reference instrument. Return the control loop to automatic mode only after all input channels are verified.

Step 5 — Documentation: Record the replacement in the plant maintenance management system (CMMS), including the old module’s serial number, the new module’s serial number, the date of replacement, and the technician’s name. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels.

This workflow applies equally to planned preventive replacements during annual shutdowns and to emergency corrective replacements during unplanned outages. The key difference in emergency scenarios is the need to pre-stage the replacement module and tools at the cabinet location before isolation, reducing the hands-on replacement time to under 30 minutes for a trained technician.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ALSTOM 8163-4002 supplied by NINERMAS?
All 8163-4002 input modules supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify correct operation before dispatch. In the event of a warranty claim, NINERMAS provides replacement or repair support with priority handling to minimize customer downtime.

Q2: How do I confirm compatibility between the 8163-4002 and my installed ALSPA system version?
Compatibility verification requires matching the hardware revision of the 8163-4002 module to the firmware version running on your ALSPA P320 CPU or equivalent controller. The hardware revision is printed on the module label. NINERMAS technical support can assist with compatibility cross-referencing based on your system’s installed firmware version and cabinet configuration. Providing your system’s engineering documentation or cabinet layout drawing significantly accelerates the compatibility confirmation process.

Q3: Can NINERMAS support long-term supply of the 8163-4002 for multi-year maintenance contracts?
Yes. NINERMAS maintains a dedicated inventory of ALSTOM ALSPA series spare parts to support long-term maintenance contracts and annual overhaul programs. For facilities operating multiple ALSPA 8163 cabinets, NINERMAS can provide framework supply agreements that guarantee stock availability and fixed pricing over a defined contract period, reducing procurement risk associated with end-of-life component scarcity. Contact our sales team to discuss your annual consumption requirements and preferred delivery schedule.

Q4: What documentation is provided with each 8163-4002 shipment?
Each shipment includes a packing list with the module’s part number, serial number, and hardware revision. A test report confirming pre-shipment functional verification is available upon request. For customers requiring material traceability documentation for quality management systems (ISO 9001 or equivalent), NINERMAS can provide a certificate of conformance. Export documentation, including commercial invoice and packing declaration, is provided for all international shipments to support customs clearance.
