ABB 3BSE003127R1 DSAI 130D Retrofit-Compatible Analog Input Module: Legacy System Compatibility & Smooth Upgrade

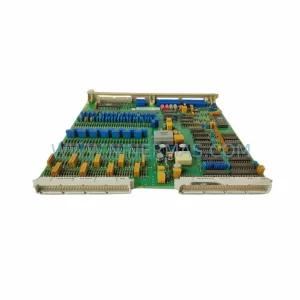

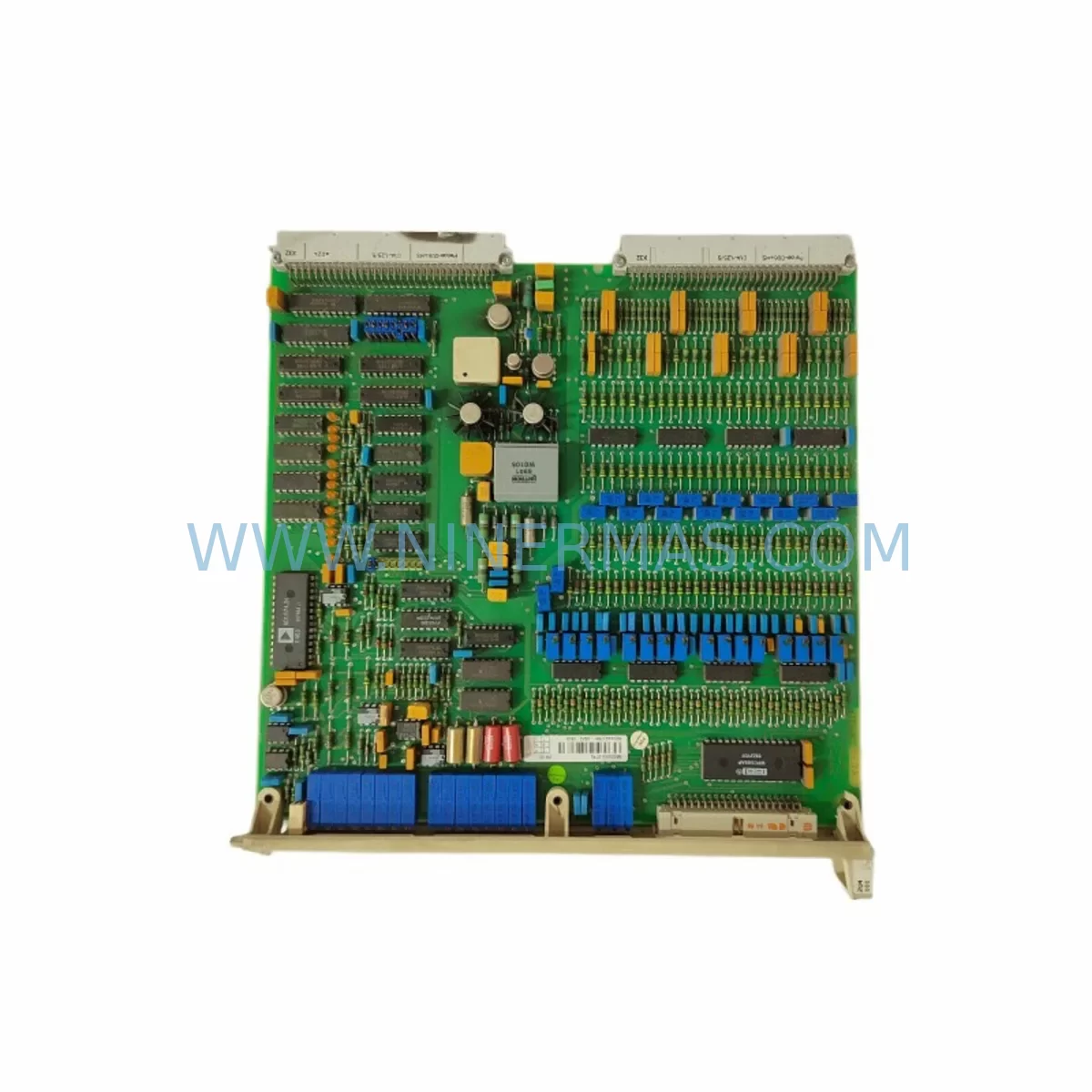

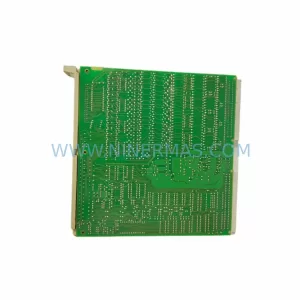

The ABB 3BSE003127R1 DSAI 130D is a ruggedized analog input module engineered for demanding industrial environments. Designed for integration within ABB’s Advant OCS and Master series control platforms, this module continues to serve as a critical retrofit and replacement component for facilities operating legacy distributed control systems (DCS) that cannot be immediately migrated to newer architectures. Whether you are managing a brownfield plant upgrade, extending the service life of an existing control cabinet, or sourcing a verified replacement for a discontinued spare part, the DSAI 130D provides a reliable, drop-in-compatible solution backed by a 12-month warranty and pre-shipment functional testing.

As industrial facilities face increasing pressure to modernize aging automation infrastructure while minimizing production downtime, the 3BSE003127R1 has become a cornerstone component in retrofit planning. Its compatibility with the ABB Advant Controller 450 (AC450) and related Advant OCS backplane architectures means that engineers can replace failed or end-of-life analog input cards without redesigning the entire control loop. The module accepts standard 4–20 mA and voltage signal inputs, making it directly interchangeable with earlier DSAI-series variants in most wiring configurations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3BSE003127R1 DSAI 130D into an existing control system begins well before the module arrives on site. Retrofit engineers should start by auditing the target subrack to confirm available slot positions and verify that the S100 I/O bus backplane is free of corrosion or damaged connectors. In many Advant OCS installations, the DSAI 130D shares a rack with companion modules such as the DSDO 115A digital output module, the DSDP 140 pulse input module, and the DSPC 155 processor module — all of which must remain operational during the swap to avoid cascading process interruptions.

Terminal wiring is a frequent source of commissioning delays. Before removing the legacy card, photograph or document all field wiring terminations on the DSAI 130D’s front connector. The 130D uses a 40-pin front connector that mates with the subrack’s backplane; field cables connect via a separate terminal unit (TU) such as the DSTC 190 or DSTC 454, which typically remains in place during a module swap. Confirming that the terminal unit is compatible with the replacement module eliminates the need to re-terminate field cables, significantly reducing installation time and the risk of wiring errors.

Power capacity within the control cabinet must also be verified. The DSAI 130D draws its operating power from the subrack’s internal 24 VDC bus, supplied by the rack power supply unit — commonly a DSQC 604 or equivalent ABB power supply module. If the existing PSU is already operating near its rated output, adding or replacing I/O modules may push it beyond its capacity. A load calculation covering all installed modules, including any DSDI 110A digital input modules or DSAO 120A analog output modules sharing the same rack, should be completed before the retrofit proceeds.

For facilities migrating from Advant OCS toward the ABB System 800xA or AC800M platform, the DSAI 130D can serve as a bridging component during a phased migration. In this scenario, the legacy Advant controller continues to manage field I/O through the DSAI 130D while the new AC800M controller is commissioned in parallel. Communication between the two platforms is typically handled via a CI854 PROFIBUS DP communication interface module or a CI840A AF100 fieldbus interface, allowing engineers to validate the new control logic against live process data before cutting over. This approach keeps the process running continuously and limits the migration window to a planned, short-duration switchover rather than an extended shutdown.

Module address configuration is another critical step. The DSAI 130D uses hardware DIP switches to set its S100 bus node address. These must match the address defined in the Advant Builder or Control Builder engineering tool. A mismatch will prevent the controller from recognizing the module, resulting in I/O fault alarms. After physical installation, engineers should use the ABB engineering workstation to perform a hardware scan, confirm module recognition, and download the updated I/O configuration. If the replacement module is being installed into a system where the original configuration files are unavailable, the address can often be recovered from the controller’s online hardware list or from backup configuration archives stored on the DSDP 170 data storage module.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer undertaking a control system retrofit. When replacing the 3BSE003127R1 DSAI 130D in a live production environment, the recommended approach is to pre-configure and bench-test the replacement module before the scheduled maintenance window. This includes setting the correct DIP switch addresses, verifying signal range configuration, and confirming that the module passes a standalone power-on self-test.

During the actual swap, the original control program logic stored in the AC450 or AC800M controller does not need to be modified — the DSAI 130D replacement is transparent to the application layer as long as the module address and signal configuration are preserved. Engineers should place the controller in a safe operating mode or switch affected loops to manual control at the HMI station before removing the faulty module. HMI graphics linked to the analog input channels will continue to display the last known values during the brief interruption; operators should be briefed to monitor these channels manually until the new module is confirmed online.

After installation, the controller’s I/O diagnostic page should be checked to confirm that all channels on the DSAI 130D are reporting valid signal values within expected engineering unit ranges. Any channel showing an out-of-range or fault status should be investigated at the field terminal unit before returning the loop to automatic control. The entire hot-swap procedure, from module removal to loop restoration, can typically be completed within 15 to 30 minutes when the replacement module has been pre-tested and all documentation is prepared in advance.

For systems where a cold restart is unavoidable, the controller’s program memory is retained in battery-backed RAM or flash storage, so the application logic, setpoints, and tuning parameters are preserved across power cycles. Engineers should confirm battery health on the processor module before initiating any planned shutdown to avoid program loss during restart.

Retrofit Support FAQ

Q1: Is the 3BSE003127R1 DSAI 130D a direct replacement for the DSAI 130 or DSAI 110D?
In most Advant OCS rack configurations, the DSAI 130D is mechanically and electrically compatible with the DSAI 130 and can substitute for the DSAI 110D where signal range requirements overlap. Engineers should verify the terminal unit type (DSTC 190 or DSTC 454) and confirm that the channel count and signal type match the original module’s configuration before finalizing the replacement.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, set the DIP switch node address to match the original module’s address, power up the subrack, and use the ABB engineering workstation (Advant Builder or Control Builder) to perform a hardware scan. Download the I/O configuration to the controller, verify that all analog input channels report valid values, and return affected control loops from manual to automatic mode at the HMI station.

Q3: Does NINERMAS perform pre-shipment testing on the 3BSE003127R1?
Yes. Every 3BSE003127R1 DSAI 130D unit is subjected to a full functional test before dispatch. Testing covers power-on self-test, channel signal verification, and backplane communication integrity. Units that do not pass testing are not shipped. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of the 3BSE003127R1 DSAI 130D to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact our sales team to discuss availability and scheduling.
