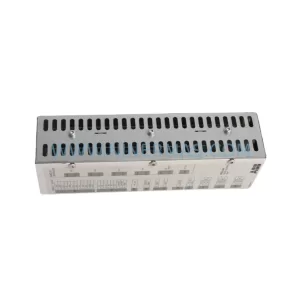

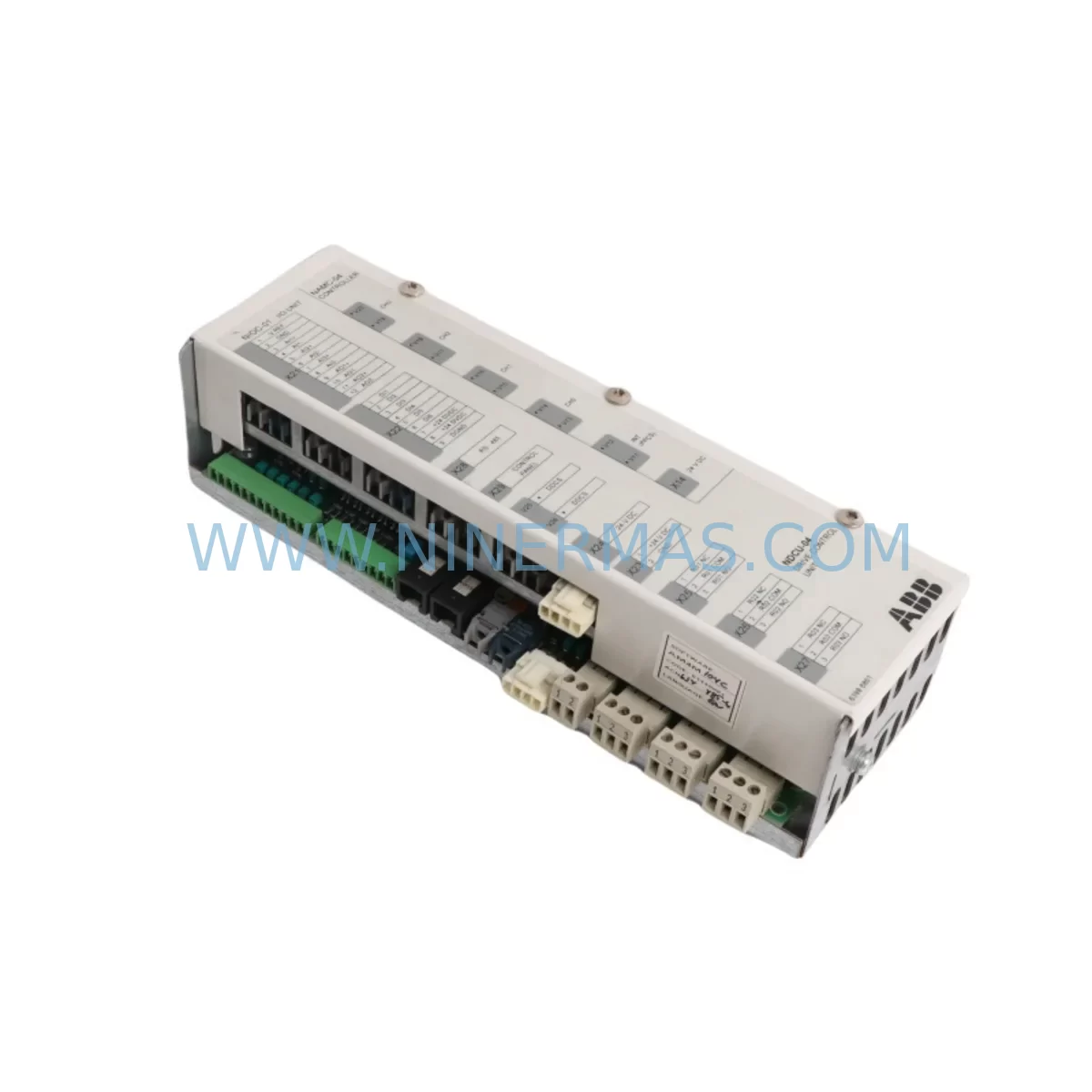

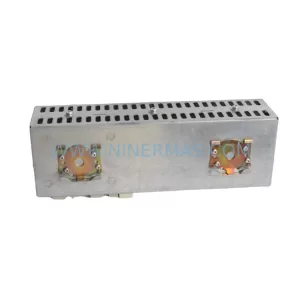

ABB NDCU-52CK Retrofit-Compatible Control Unit for ACS800

ABB NDCU-52CK Retrofit-Compatible Control Unit for ACS800 Legacy Systems

The ABB NDCU-52CK is a drive control unit designed for the ACS800 series variable speed drive platform — one of ABB’s most widely deployed industrial drive families across power generation, mining, water treatment, pulp and paper, and heavy manufacturing. As the ACS800 series enters its extended lifecycle phase, many facilities are facing the challenge of sourcing reliable replacement control units to sustain production continuity without committing to a full drive replacement. The NDCU-52CK addresses this challenge directly, offering a retrofit-compatible solution that preserves existing wiring infrastructure, control logic, and communication architecture while restoring full drive functionality.

At NINERMAS, we maintain verified inventory of the NDCU-52CK with full pre-shipment functional testing, ensuring that every unit dispatched is ready for immediate installation. Our 12-month warranty covers the unit against manufacturing defects and operational failure under normal industrial conditions, giving procurement and maintenance teams the confidence to plan replacements without extended lead-time risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the NDCU-52CK in an operational ACS800 drive requires careful pre-retrofit planning to minimize downtime and avoid commissioning errors. Before the replacement unit arrives on site, maintenance engineers should document the existing parameter set using ABB DriveWindow or DriveStudio software connected via the RUSB-02 USB-to-DDCS adapter or the RDCO-02 DDCS communication module. This ensures that all motor control parameters, speed references, torque limits, and protection thresholds can be restored immediately after the new NDCU-52CK is installed.

For drives operating within a multi-drive cabinet using the ACS800-07 or ACS800-17 inverter module architecture, engineers must confirm the backplane slot address and DDCS node number assigned to the outgoing unit. Incorrect node addressing after replacement is one of the most common causes of post-retrofit communication faults between the control unit and the APBU-44C branching unit or the master drive controller.

If the existing installation includes RAIO-01 analog I/O extension modules or RDIO-01 digital I/O extension modules connected to the NDCU-52CK, verify that all terminal wiring labels are documented before disconnection. These modules connect via the drive’s internal I/O bus and must be re-addressed if the control unit slot position changes during the retrofit. Similarly, if the drive communicates upstream via a RPBA-01 PROFIBUS adapter or RDNA-01 DeviceNet adapter, the fieldbus node address and baud rate settings stored in the adapter must be confirmed against the site’s PLC or DCS configuration before the drive is returned to service.

For facilities running ABB AC500 PLCs or third-party DCS platforms as the supervisory controller, the drive’s fieldbus communication link should be tested in simulation mode before live restart. HMI screens referencing ACS800 drive status words, fault codes, and speed feedback signals should be validated against the restored parameter set to confirm that all display values and alarm triggers remain correctly mapped after the control unit swap.

Where the drive cabinet also houses ABB SACE Tmax or SACE Emax series circuit breakers for motor protection, or ABB UNO-PS series 24VDC power supplies feeding the control circuit, these components should be inspected during the retrofit window to confirm that auxiliary power quality is within specification. Control unit failures in ACS800 drives are sometimes preceded by auxiliary power instability, and replacing the NDCU-52CK without addressing upstream power quality can lead to premature failure of the new unit.

Downtime Control During System Migration

Controlled replacement of the NDCU-52CK can typically be completed within a planned maintenance window of two to four hours, provided that all pre-retrofit documentation steps have been completed in advance. The critical path for downtime control is parameter backup, physical replacement, parameter restore, and communication link verification — in that sequence.

To protect the original program logic, always perform a full parameter backup to a laptop running DriveWindow before the drive is de-energized. Store the backup file in at least two locations — on the engineering laptop and on a network share — before proceeding with the physical swap. This eliminates the risk of parameter loss if the backup process is interrupted.

After installing the replacement NDCU-52CK, restore the parameter set before reconnecting the fieldbus adapter or I/O extension modules. This sequence prevents the drive from broadcasting incorrect status data to the PLC or DCS during the commissioning phase. Once parameters are restored, reconnect the DDCS link to the branching unit or master controller, verify the node address, and perform a no-load test run before returning the drive to production service.

For continuous process industries — including petrochemical, power generation, and water treatment — where even brief unplanned stops carry significant cost, NINERMAS recommends maintaining one NDCU-52CK as a cold standby spare in the site’s critical spare inventory. Our stock availability and 12-month warranty make this a practical and cost-effective risk mitigation strategy compared to the cost of an unplanned production interruption.

Retrofit Support FAQ

Q1: Is the NDCU-52CK a direct drop-in replacement for the original unit in my ACS800 drive?
Yes. The NDCU-52CK is the original ABB part number for the ACS800 series control unit. It installs in the same backplane slot as the outgoing unit with no mechanical modification required. Parameter restore via DriveWindow or DriveStudio is required after installation to recover your site-specific configuration.

Q2: What pre-shipment testing does NINERMAS perform on the NDCU-52CK?
Every NDCU-52CK dispatched by NINERMAS undergoes full functional testing prior to shipment, including power-on verification, communication interface check, and I/O response validation. Units that do not pass testing are not dispatched. A test record is available upon request.

Q3: What does the 12-month warranty cover?
The NINERMAS 12-month warranty covers the NDCU-52CK against manufacturing defects and operational failure under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the unit’s rated environmental specifications. Our technical team is available to support installation and commissioning queries throughout the warranty period.

Q4: Can NINERMAS confirm compatibility with my specific ACS800 drive frame size and software version before I order?
Yes. Please provide your drive’s type code (found on the drive nameplate), existing NDCU firmware version if known, and your control system’s fieldbus protocol. Our technical team will confirm compatibility and advise on any parameter migration considerations specific to your installation before the order is confirmed.
