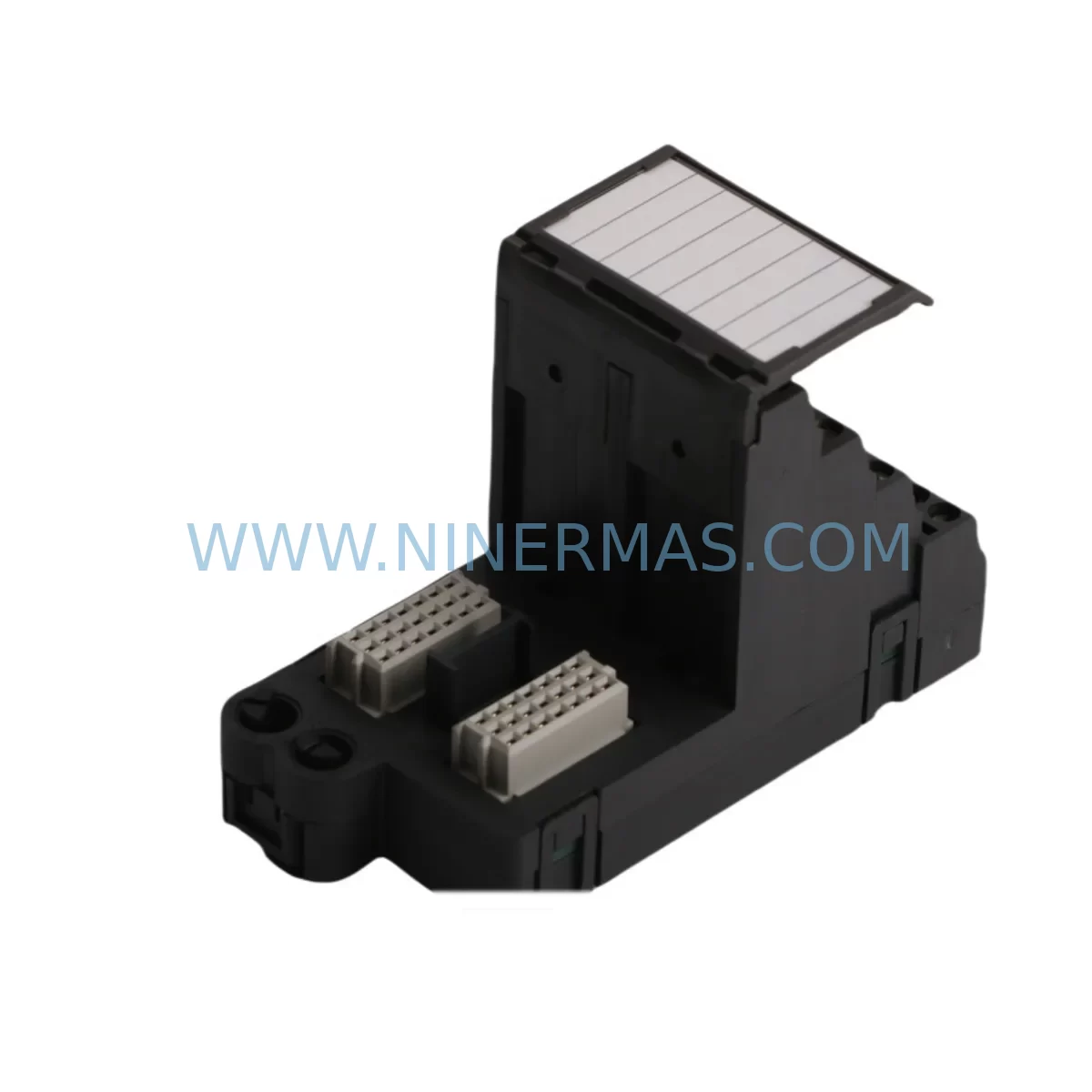

The Emerson VE4003S2B6 / KJ3223X1-BA1 / 12P2871X042 is a DeltaV Series I/O module widely deployed in process automation environments across oil & gas, chemical, power generation, and pharmaceutical industries. As Emerson continues to evolve its DeltaV platform, many facilities running legacy S-series and M-series controllers are now facing end-of-life hardware challenges — discontinued spare parts, extended lead times, and rising maintenance costs. This module serves as a proven retrofit-compatible replacement that enables a smooth, low-risk migration path without requiring a full control system overhaul.

Whether you are replacing a failed card in an existing DeltaV cabinet, expanding I/O capacity on an aging rack, or planning a phased upgrade from an older distributed control system, the VE4003S2B6 / KJ3223X1-BA1 is engineered to integrate directly into your existing infrastructure with minimal engineering rework. NINERMAS maintains ready stock of this module with full functional testing, 12-month warranty coverage, and same-week dispatch capability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the VE4003S2B6 into a legacy DeltaV system begins well before the module arrives on site. Engineers should start by auditing the existing carrier assembly and confirming that the target rack slot is compatible with the module’s 2-wide footprint. In many aging installations, the KJ3221X1-BA1 or KJ3222X1-BA1 I/O cards occupy adjacent slots — understanding the full I/O map prevents address conflicts during hot-swap or planned shutdown replacement.

Power budget verification is a critical pre-installation step. The existing PS2 or PS6 DeltaV power supply modules must have sufficient headroom to support the additional load introduced by the new card. In cabinets where multiple I/O modules are being replaced simultaneously — for example, swapping out both an analog input card and a digital output card in the same upgrade window — total power draw must be recalculated against the supply’s rated output.

Terminal wiring compatibility should be confirmed against the existing marshalling panel layout. The KJ3223X1-BA1 uses a standard DeltaV terminal block interface; however, field wiring from legacy junction boxes may require re-termination if the original installation used non-standard cable gauges or shield grounding schemes. Signal isolators may be required where field devices operate at voltage levels outside the module’s native input range.

For facilities migrating from older Emerson PROVOX or RS3 platforms to DeltaV, the VE4003S2B6 plays a role in the broader I/O migration strategy. In these projects, the DeltaV MD Plus controller or DeltaV M5 controller typically serves as the new host, with the KJ3223X1-BA1 I/O cards populating the new carrier assemblies. Communication links to existing HART field devices are preserved through the module’s HART pass-through capability, eliminating the need to replace transmitters and control valves during the initial migration phase.

HMI screen updates are another consideration. When replacing a legacy I/O card, the corresponding DeltaV Operate graphics must be verified to ensure that tag references, alarm limits, and engineering unit displays remain accurate. In some cases, the DeltaV Diagnostics tool will flag module health warnings during the first scan cycle after replacement — these are typically resolved by downloading the updated module configuration from DeltaV Explorer and performing a cold restart of the affected node.

For I/O expansion projects, the VE4003S2B6 can be added to an existing DeltaV 8-slot or 13-slot carrier alongside other active modules such as the KJ3002X1-BA1 analog input card, the KJ3221X1-BA1 digital input card, or the KJ3231X1-BA1 digital output card. Ensuring that the DeltaV controller’s I/O count license is not exceeded is essential before commissioning additional modules. The DeltaV License Manager utility provides a real-time view of allocated versus available I/O points.

Programming compatibility is maintained through DeltaV’s module class architecture. Existing control modules referencing the replaced card’s parameter set will continue to function without modification, provided the new module is assigned the same node address and slot position. Where address reassignment is unavoidable, a full control module download and loop check sequence should be scheduled as part of the commissioning plan.

Downtime Control During System Migration

Minimizing production downtime during a DeltaV I/O module replacement requires a structured approach that begins with pre-staging the replacement hardware and pre-loading the module configuration offline. Using DeltaV’s offline configuration tools, engineers can prepare the new VE4003S2B6 module’s parameter set, tag assignments, and alarm configurations before the planned maintenance window begins — reducing live system exposure to under 30 minutes in most single-card replacement scenarios.

Where the process cannot tolerate a full shutdown, a phased replacement strategy is recommended. Non-critical I/O points are migrated first, allowing the control system to remain operational on the remaining active channels. Critical loops — particularly those tied to safety instrumented functions or regulatory control — should be placed in manual mode at the DeltaV Operate workstation before the physical card swap is initiated. The existing program logic stored in the DeltaV controller is preserved throughout this process; only the I/O module’s hardware configuration is updated.

After physical installation, the commissioning sequence should include a channel-by-channel loop check using the DeltaV Diagnostics interface, verification of HART device communication on all configured channels, and confirmation that all alarm setpoints have been correctly transferred from the legacy configuration. A final comparison between the pre-replacement DeltaV Audit Trail log and the post-commissioning system status provides documented evidence that the migration was completed without unintended changes to the control strategy.

NINERMAS ships all modules with a pre-dispatch functional test report, reducing the risk of receiving a non-functional unit and eliminating the need for incoming inspection delays. Standard lead time from confirmed order to dispatch is 3–5 business days for in-stock units, with express options available for emergency breakdown situations.

Retrofit Support FAQ

Q: Is the VE4003S2B6 a direct replacement for the KJ3223X1-BA1?
A: Yes. The VE4003S2B6 and KJ3223X1-BA1 are cross-reference part numbers for the same Emerson DeltaV I/O module. The 12P2871X042 is the Emerson manufacturing part number associated with this assembly. All three references identify the same hardware and are interchangeable for ordering and replacement purposes.

Q: What commissioning steps are required after installation?
A: After physical installation into the DeltaV carrier, the module must be recognized by the DeltaV controller via an auto-sense scan or manual assignment in DeltaV Explorer. The module tag, node address, and channel configuration must be downloaded from the DeltaV database. A loop check on all active I/O channels is recommended before returning the system to automatic control.

Q: Does NINERMAS provide warranty coverage for this module?
A: Yes. All modules supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering functional defects under normal operating conditions. A pre-dispatch test report is included with each unit. Warranty claims are processed directly through NINERMAS with a target replacement dispatch of 5 business days.

Q: What is the typical stock availability and lead time?
A: NINERMAS maintains warehouse stock of the VE4003S2B6 / KJ3223X1-BA1 / 12P2871X042. In-stock units are dispatched within 3–5 business days of order confirmation. For urgent breakdown requirements, please contact our team directly to confirm same-day or next-day dispatch availability.

—
