Emerson KJ3223X1-BA1 Service-Ready Spare Industrial Maintenance

Emerson KJ3223X1-BA1 Service-Ready Spare Industrial Maintenance: Spare Replacement and Downtime Risk Control

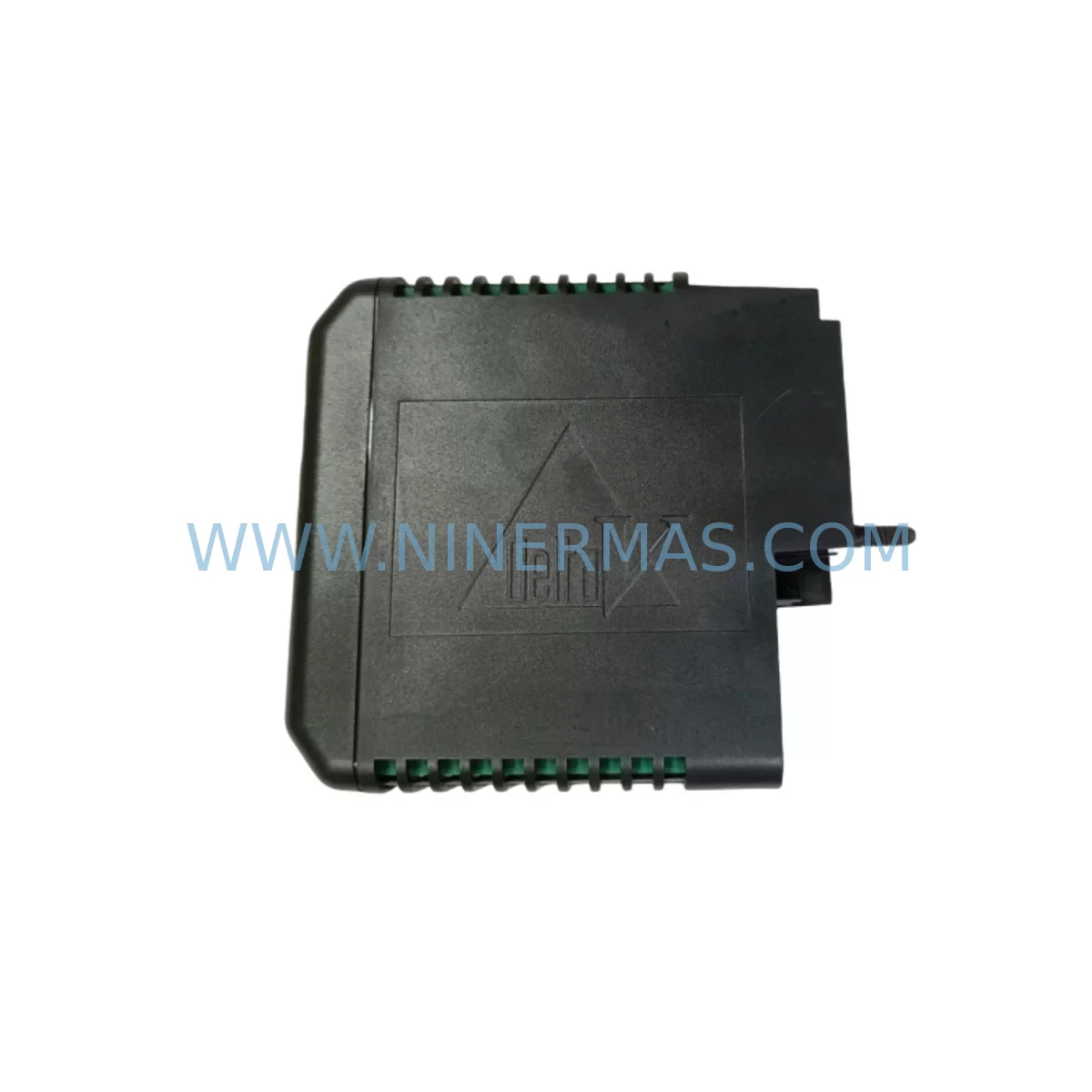

The Emerson KJ3223X1-BA1 (alternate part number 12P2871X032) is an original DeltaV series terminal block designed for use in Emerson DeltaV distributed control system (DCS) I/O subsystems. This component serves as a critical interface between field wiring and DeltaV I/O cards, enabling reliable signal routing in process control environments across petrochemical, oil and gas, power generation, pharmaceutical, and advanced manufacturing facilities. Maintaining a service-ready spare of the KJ3223X1-BA1 is a fundamental element of any proactive maintenance strategy for DeltaV-based control systems.

Unplanned downtime caused by terminal block failure or degraded field wiring connections can cascade into broader control loop instability, safety interlock failures, and extended production outages. Procurement engineers and maintenance planners who stock the KJ3223X1-BA1 as a reserved spare reduce mean time to repair (MTTR) and protect against the extended lead times that are common for legacy DeltaV I/O infrastructure components. Each unit supplied by NINERMAS undergoes pre-shipment electrical testing and is backed by a 12-month warranty, ensuring that the spare you receive is field-ready from day one.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault or degraded performance in the KJ3223X1-BA1 terminal block, the replacement workflow should extend beyond the terminal block itself. A thorough inspection of the surrounding I/O subsystem is essential to prevent repeat failures and ensure the integrity of the entire control loop.

Begin by verifying the condition of the paired DeltaV I/O card. Cards such as the KJ3001X1-BA1 analog input module or the KJ3002X1-BG1 discrete output module share the same I/O carrier and field wiring path as the KJ3223X1-BA1. If the terminal block has experienced moisture ingress, vibration fatigue, or thermal cycling damage, the I/O card itself may have sustained secondary stress. Inspect the card’s connector pins and housing for corrosion or mechanical deformation before reinstalling.

The KJ3221X1-BA1 I/O carrier or subsystem backplane that physically seats the terminal block and I/O card should also be examined. Backplane connector wear is a common but overlooked failure mode in aging DeltaV cabinets. If the carrier shows signs of contact fretting or discoloration, it should be replaced concurrently to avoid a repeat outage within the same maintenance cycle.

Power integrity is another critical checkpoint. The DeltaV subsystem power supply — such as the KJ4001X1-BA1 or equivalent I/O bus power module — should be load-tested to confirm it is delivering stable voltage within specification. A marginal power supply can cause intermittent I/O faults that are misdiagnosed as terminal block or I/O card failures. Checking the system power supply, including the SE4002S1T2 or equivalent redundant power module in larger DeltaV cabinets, ensures that the root cause is correctly identified.

Field wiring connected to the KJ3223X1-BA1 should be inspected for insulation integrity, correct shielding termination, and proper torque on all screw terminals. Cable assemblies such as the 12P3270X012 field cable harness, commonly used in DeltaV I/O marshalling, should be checked for continuity and shield grounding. Loose or corroded terminals are a leading cause of signal drift and nuisance alarms in process control systems.

For facilities operating CHARM-based DeltaV architectures, the KJ2003X1-BA1 CHARM I/O card and KJ2005X1-MQ1 CHARM baseplate should be included in the inspection scope if the control loop extends into a CHARM I/O node. Signal isolators and intrinsic safety barriers installed between the field device and the DeltaV I/O subsystem should also be tested for correct output range and isolation resistance.

Communication modules such as the KJ1501X1-BC1 redundancy module or DeltaV controller cards (VE4003S2B1 or equivalent) that manage the I/O subsystem should be checked for firmware version compatibility and communication health after any I/O subsystem maintenance. A controller that has lost synchronization with its I/O subsystem during a terminal block replacement may require a manual rescan or configuration download to restore normal operation.

Fuse holders, terminal strips, and DIN rail grounding bars within the same control cabinet section should be visually inspected and tested for continuity. A blown fuse or a failed ground connection in the same cabinet zone can produce symptoms that mimic terminal block failure, leading to unnecessary component replacement and extended downtime.

Site Replacement Workflow

Replacing the KJ3223X1-BA1 in a live DeltaV system requires careful coordination between the maintenance engineer, the control room operator, and the safety officer. The following workflow is recommended to minimize downtime and maintain system integrity:

Step 1 — Pre-Replacement Verification: Confirm the replacement KJ3223X1-BA1 part number and alternate number 12P2871X032 match the installed unit. Verify that the spare has passed pre-shipment testing and that the 12-month warranty documentation is on file. Cross-reference the DeltaV hardware catalog to confirm compatibility with the installed I/O card and carrier revision.

Step 2 — Control Loop Isolation: Place the affected control loop in manual mode from the DeltaV operator workstation. Notify the process operator and safety team. If the loop is part of a safety instrumented function (SIF), follow the site’s management of change (MOC) and safety bypass procedures before proceeding.

Step 3 — Field Wiring Documentation: Photograph or document all field wiring terminations on the existing KJ3223X1-BA1 before disconnecting any conductors. Record terminal numbers, wire labels, and shield grounding points. This documentation is essential for accurate rewiring of the replacement unit and for post-replacement loop testing.

Step 4 — Component Removal and Installation: Disconnect field wiring in sequence, cap or label each conductor, and remove the terminal block from the I/O carrier. Install the replacement KJ3223X1-BA1, ensuring correct seating on the carrier connector. Reconnect field wiring according to the documented termination schedule, applying correct torque to all screw terminals.

Step 5 — Loop Test and Return to Service: Perform a point-to-point loop test from the field device to the DeltaV operator workstation. Verify signal range, engineering units, and alarm setpoints. Return the control loop to automatic mode only after confirming stable signal quality. Document the replacement in the site’s maintenance management system (CMMS) and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the KJ3223X1-BA1 supplied by NINERMAS an original Emerson component?
Yes. NINERMAS supplies original Emerson KJ3223X1-BA1 terminal blocks sourced from verified industrial channels. Each unit is inspected and electrically tested before shipment. The alternate part number 12P2871X032 refers to the same component and is cross-referenced in Emerson’s DeltaV hardware documentation.

Q2: What is the warranty coverage and what does pre-shipment testing include?
All KJ3223X1-BA1 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes electrical continuity verification across all terminal positions and insulation resistance testing to confirm that the component meets original Emerson specifications before it leaves our facility.

Q3: Can NINERMAS support long-term or volume spare parts commitments for the KJ3223X1-BA1?
Yes. NINERMAS maintains reserved inventory programs for critical DeltaV spare parts including the KJ3223X1-BA1. Procurement engineers managing multi-year maintenance contracts or annual shutdown spares lists are encouraged to contact our team to discuss volume pricing, reserved stock agreements, and scheduled delivery programs that align with planned outage windows.

Q4: How do I confirm compatibility between the KJ3223X1-BA1 and my installed DeltaV I/O card and carrier revision?
Compatibility should be verified against the Emerson DeltaV hardware reference manual for your specific system revision. The KJ3223X1-BA1 is designed for use with DeltaV M-series and S-series I/O subsystems. If you are unsure about compatibility with a specific I/O card model or carrier revision installed at your site, contact NINERMAS with your system configuration details and our technical team will assist with compatibility confirmation before order placement.
