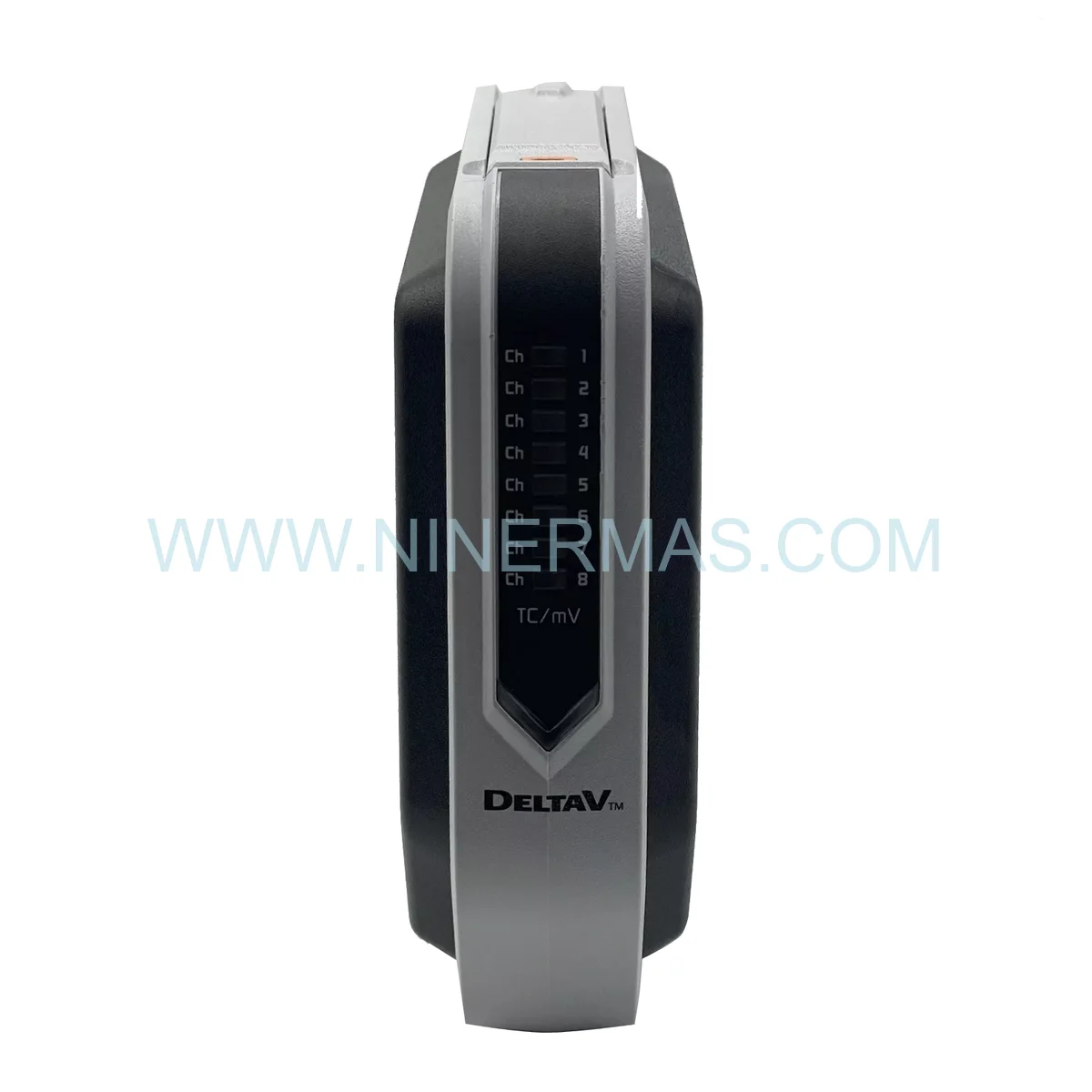

Emerson KJ3224X1-BK1 | 8-Ch Thermocouple & mV Input Module

Emerson KJ3224X1-BK1 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Emerson KJ3224X1-BK1 stands as a cornerstone component in maintaining the operational integrity of distributed control architectures. Engineered to deliver precision thermocouple and millivolt signal conditioning across 8 differential input channels, the KJ3224X1-BK1 fulfills a critical role in safeguarding process continuity, measurement traceability, and system-level safety within high-stakes industrial environments. Its certified original design ensures that every measurement cycle adheres to the stringent tolerances demanded by process-critical applications — from reactor temperature profiling to turbine condition monitoring.

Within the framework of Industry 4.0 and evolving digital plant architectures, the KJ3224X1-BK1 demonstrates long-term compatibility with Emerson’s DeltaV S-Series ecosystem. Its HART-enabled diagnostic layer facilitates seamless integration with asset management platforms, enabling real-time condition monitoring, predictive maintenance scheduling, and remote configuration — all without interrupting live process measurements. This forward-compatible design philosophy ensures that legacy investments remain productive as control infrastructure evolves.

As a factory-sealed, certified original equipment component, the KJ3224X1-BK1 delivers an uncompromised foundation for system safety. Counterfeit or non-OEM substitutes introduce unquantifiable risk into safety-critical loops; only Original Documentation-backed genuine modules guarantee the calibration traceability, firmware integrity, and material compliance required for SIL 2 functional safety applications per IEC 61508.

Compliance & Safety Benchmarks

✅ CE Mark Certified — Conforms to EU electromagnetic compatibility and low-voltage safety directives, ensuring legal market access and operational safety across European installations.

✅ UL/cUL Listed — Independently verified to North American electrical safety standards, supporting insurance compliance and facility audit requirements.

✅ ATEX / IECEx Rated — Approved for intrinsically safe installations in Zone 1/2 hazardous areas when paired with certified barriers, meeting global explosive atmosphere directives.

SIL 2 Functional Safety Capable — Validated per IEC 61508 for deployment in safety instrumented systems, supporting Safety Integrity Level 2 loop architectures with documented failure mode data.

✅ NAMUR NE 107 Compliant — Standardized HART diagnostic status reporting enables transparent device health communication across multi-vendor DCS environments.

✅ NIST-Traceable Factory Calibration — Each module ships with calibration documentation providing full measurement traceability to national metrology standards, supporting ISO 9001 and ISA-67.06 calibration management programs.

Vertical Industry Integration & Optimization

Semiconductor & Electronics Manufacturing: Precise thermal profiling of diffusion furnaces, CVD reactors, and reflow ovens demands sub-degree measurement accuracy. The KJ3224X1-BK1’s 16-bit A/D resolution and ±0.1% span accuracy support tight process windows, reducing yield loss attributable to temperature excursions and enabling compliance with SEMI equipment standards.

Pharmaceutical & Biotech: Autoclave sterilization cycles, lyophilization chamber control, and clean room HVAC regulation require validated, audit-ready temperature data. The module’s integration with DeltaV batch management supports 21 CFR Part 11 electronic records compliance, streamlining FDA inspection readiness and reducing validation lifecycle costs.

Chemical & Petrochemical Processing: Reactor vessel temperature profiling, distillation column gradient monitoring, and heat exchanger performance tracking benefit from the module’s high channel density and multi-thermocouple-type support. Asset Optimization is achieved by consolidating measurement points without expanding cabinet footprint, directly reducing capital expenditure on I/O infrastructure.

Power Generation & Utilities: Boiler tube integrity monitoring, superheater outlet tracking, and turbine bearing temperature surveillance leverage the module’s Type K and Type N thermocouple support. HART-enabled predictive diagnostics identify sensor drift trends before measurement errors propagate into control decisions, extending mean time between failures for critical rotating equipment.

Food & Beverage Processing: Pasteurization temperature validation, cold chain monitoring, and CIP cycle verification align with HACCP and FDA food safety frameworks. The module’s burnout detection capability ensures that open-circuit sensor failures trigger immediate operator alarms, preventing unsafe product release.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every KJ3224X1-BK1 unit is dispatched in its original manufacturer packaging with intact tamper-evident seals, ensuring that firmware, calibration state, and hardware integrity are preserved from production line to installation point. No repackaging, refurbishment, or third-party handling compromises the module’s certified condition.

Rapid Global Logistics: Our fulfillment infrastructure supports same-day dispatch to destinations across the Americas, EMEA, and APAC regions. Priority freight options accommodate emergency plant shutdowns and unplanned maintenance events, minimizing production downtime exposure for time-critical asset recovery scenarios.

12-Month Quality Guarantee for Legacy Systems: We extend a 12-month quality assurance commitment covering manufacturing defects and performance deviations from published specifications. This guarantee is specifically structured to support legacy DeltaV system operators who require long-term spare parts availability beyond standard OEM support windows — a direct response to the Lifecycle Management challenges faced by aging control infrastructure.

Pre-Sales Application Engineering: Our technical team provides system compatibility verification, carrier and terminal block selection guidance, and firmware version advisory services prior to purchase commitment — ensuring that every procurement decision is grounded in validated engineering judgment rather than catalog assumptions.

Expert Technical FAQ

Q1: Does the KJ3224X1-BK1 maintain SIL 2 certification when installed in mixed I/O carrier configurations?
A: SIL 2 functional safety capability is an intrinsic property of the KJ3224X1-BK1 module itself, validated per IEC 61508. However, achieving a SIL 2 safety instrumented function requires that the complete loop — including field devices, wiring, barriers, and logic solver — be assessed as a system. Consult the Emerson DeltaV SIS documentation and engage a certified functional safety engineer to validate the full SIL loop architecture before commissioning.

Q2: What firmware version is required for full HART diagnostic functionality on the KJ3224X1-BK1?
A: Full HART pass-through and AMS Device Manager integration require DeltaV system software version 11.3 or later. Earlier firmware revisions support basic HART variable reading but may not expose advanced diagnostic parameters. Verify your DeltaV controller firmware revision against the Emerson compatibility matrix in the KJ3224X1-BK1 Installation Manual (document D800001X012) before deployment.

Q3: How does the module handle open thermocouple detection in safety-critical measurement loops?
A: The KJ3224X1-BK1 incorporates integrated burnout current sources on each input channel. Upon detection of an open-circuit condition, the process variable is driven to a configurable upscale or downscale failsafe state, triggering DeltaV alarm generation and enabling automated safety response through the control strategy. This behavior is configurable per channel via DeltaV Control Studio and should be validated during Factory Acceptance Testing.

Q4: Is the KJ3224X1-BK1 compatible with ATEX Zone 1 installations without additional barriers?
A: The module itself is not intrinsically safe for direct Zone 1 installation. ATEX/IECEx compliance is achieved when the KJ3224X1-BK1 is installed in a safe area and connected to Zone 1 field devices through certified Zener barriers or galvanic isolators. The specific barrier model must be selected based on the thermocouple type, cable parameters, and entity concept calculations per IEC 60079-14 installation standards.

Q5: What calibration interval is recommended for the KJ3224X1-BK1 in a pharmaceutical GMP environment?
A: Emerson’s published calibration data supports ISA-67.06 risk-based calibration interval optimization. For GMP environments subject to 21 CFR Part 11 and EU Annex 11 requirements, initial calibration intervals of 12 months are typical, with interval extension justified through statistical analysis of historical calibration records. The module’s continuous self-diagnostic capability provides interim assurance of measurement integrity between scheduled calibration events.

Q6: Can the KJ3224X1-BK1 accept millivolt signals from non-thermocouple sources such as pH or conductivity transmitters?
A: Yes. The module’s configurable mV input mode (-100 mV to +100 mV range) supports any low-level voltage signal source within this range. Custom linearization tables in DeltaV Control Studio enable engineering unit conversion for non-standard sensor outputs. Ensure that source impedance is within the module’s specified input impedance range and that appropriate signal conditioning is applied for transmitters with output voltages outside the ±100 mV window.
