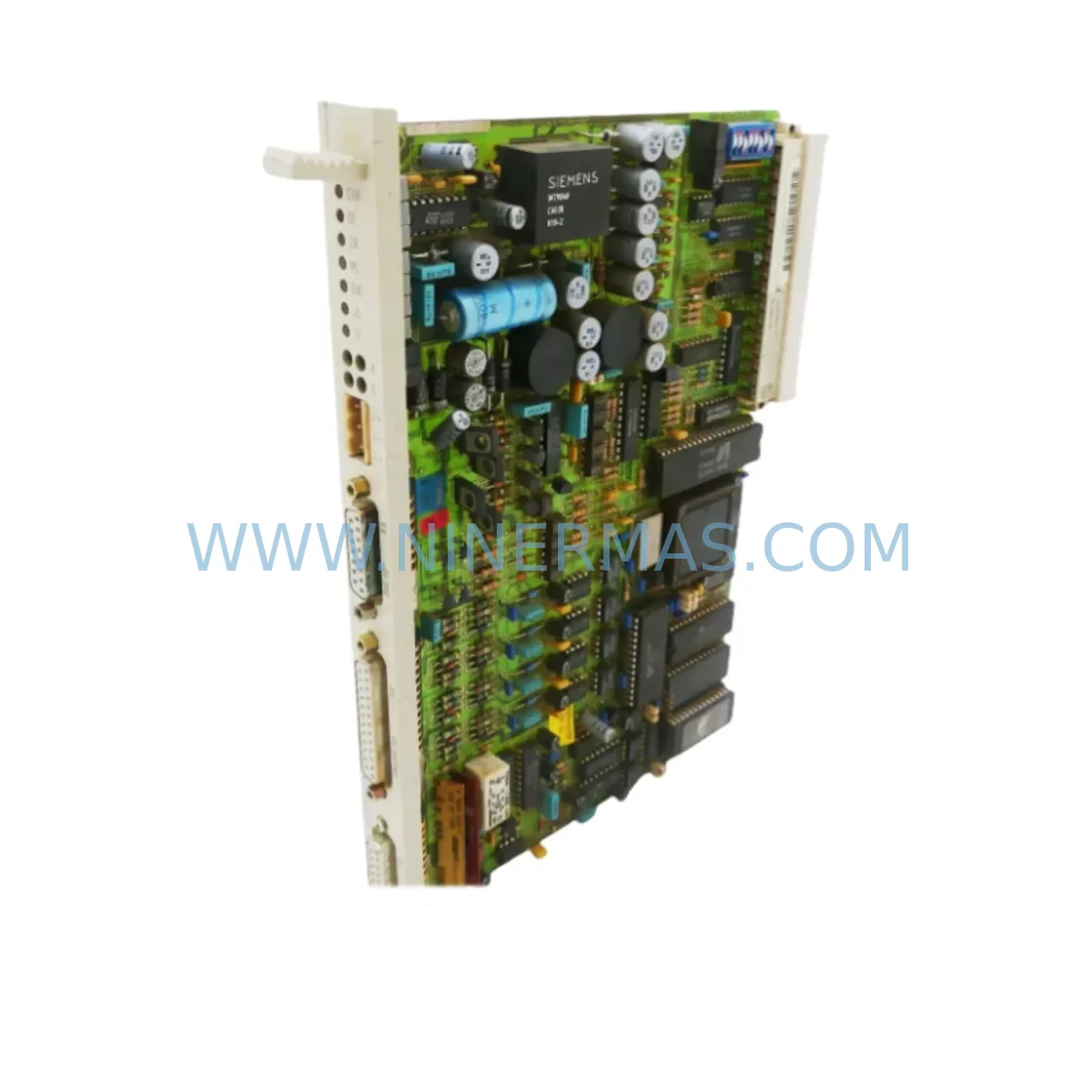

The Siemens 6ES5260-4UA11 is a positioning module designed for the SIMATIC S5 programmable logic controller family, widely deployed across manufacturing, process control, and heavy industrial environments. As production lines age and OEM support windows close, maintaining a reliable inventory of service-ready spare parts like the 6ES5260-4UA11 becomes a critical pillar of any industrial maintenance strategy. Whether you are managing a planned annual overhaul, responding to an unscheduled shutdown, or building a long-term spare parts buffer for legacy S5 systems, this module delivers the original electrical performance and mechanical compatibility your engineers depend on.

The 6ES5260-4UA11 positioning module interfaces directly with the SIMATIC S5 backplane, providing closed-loop or open-loop positioning control for stepper motor and servo drive applications. Its role in motion-critical processes means that a failed or degraded unit can halt an entire production cell. Sourcing a verified, test-shipped replacement from a specialist supplier eliminates the procurement risk associated with grey-market or counterfeit components — a concern that is especially acute for discontinued Siemens S5 hardware.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES5260-4UA11 in a live production environment is rarely an isolated task. Experienced maintenance engineers understand that a positioning module failure is often symptomatic of broader stress across the control cabinet. Before returning the system to service, a structured inspection of adjacent components significantly reduces the risk of repeat downtime.

Begin with the power supply module — typically a Siemens 6ES5955-series PS unit — to confirm that the 24 V DC and 5 V DC rails are within tolerance. A sagging or noisy power rail is a common root cause of positioning module faults and will damage a replacement unit if left unaddressed. Next, inspect the S5 backplane / rack (6ES5700 or 6ES5710 series) for bent connector pins, oxidation, or heat discolouration around the slot previously occupied by the 6ES5260-4UA11.

Check all I/O modules in the same rack — digital output modules such as the 6ES5440 or 6ES5450 series that drive enable signals to the drive amplifier should be verified for correct output voltage under load. Analogue output modules feeding speed or torque references to the servo drive should also be tested with a calibrated meter before reconnecting the drive.

Inspect the encoder feedback cable and its terminal connections. Shielding continuity and correct grounding at a single point are essential for noise-free position feedback. If the system uses a Siemens SIMODRIVE or third-party servo amplifier, confirm that the drive’s enable, ready, and fault relay outputs are functioning correctly — a faulty drive relay can prevent the new positioning module from initialising.

For cabinets that include CP (communication processor) modules such as the 6ES5734 or 6ES5524 series, verify that the S5 bus communication is stable after module replacement. A corrupted bus can cause the CPU — whether a 6ES5948, 6ES5928, or 6ES5944 — to flag the new module as faulty during initialisation. Running a short diagnostic cycle before full production restart is strongly recommended.

Finally, review the terminal blocks and wiring harness connected to the positioning module’s front connector. Loose or corroded terminals on limit switch inputs, reference point switch signals, and drive enable outputs are a frequent source of intermittent faults that are misdiagnosed as module failures. Replacing terminal blocks and re-torquing all connections as part of the maintenance window adds minimal time but substantially improves long-term reliability.

Site Replacement Workflow

Step 1 — Isolation & Documentation: De-energise the control cabinet following your site LOTO procedure. Photograph the existing module position, front connector wiring, and any DIP switch or jumper settings on the 6ES5260-4UA11 before removal. These settings govern axis parameters and must be replicated exactly on the replacement unit.

Step 2 — Module Removal: Release the front connector, unlock the module retaining clips, and slide the 6ES5260-4UA11 out of the S5 rack slot. Inspect the backplane connector on the rack for damage before inserting the replacement.

Step 3 — Replacement Configuration: Set DIP switches and jumpers on the new 6ES5260-4UA11 to match the documented configuration of the removed unit. Insert the module firmly into the rack slot until the retaining clips engage. Reconnect the front connector and verify cable routing and strain relief.

Step 4 — Power-Up & Diagnostics: Re-energise the cabinet and observe the module’s LED status indicators. A steady RUN LED with no FAULT indication confirms successful initialisation. Use the S5 programming device (PG 740, PG 760, or STEP 5 software on a compatible PC) to read the module’s diagnostic data and confirm axis parameters are loaded correctly from the CPU program.

Step 5 — Functional Test: Execute a controlled jog or reference-point run to verify encoder feedback, limit switch response, and drive enable behaviour before returning the axis to automatic mode. Document the replacement in your maintenance log, including the new module’s serial number and the date of installation.

This workflow minimises total downtime to typically under two hours for a prepared maintenance team, compared to multi-day delays when sourcing unverified parts through standard distribution channels.
