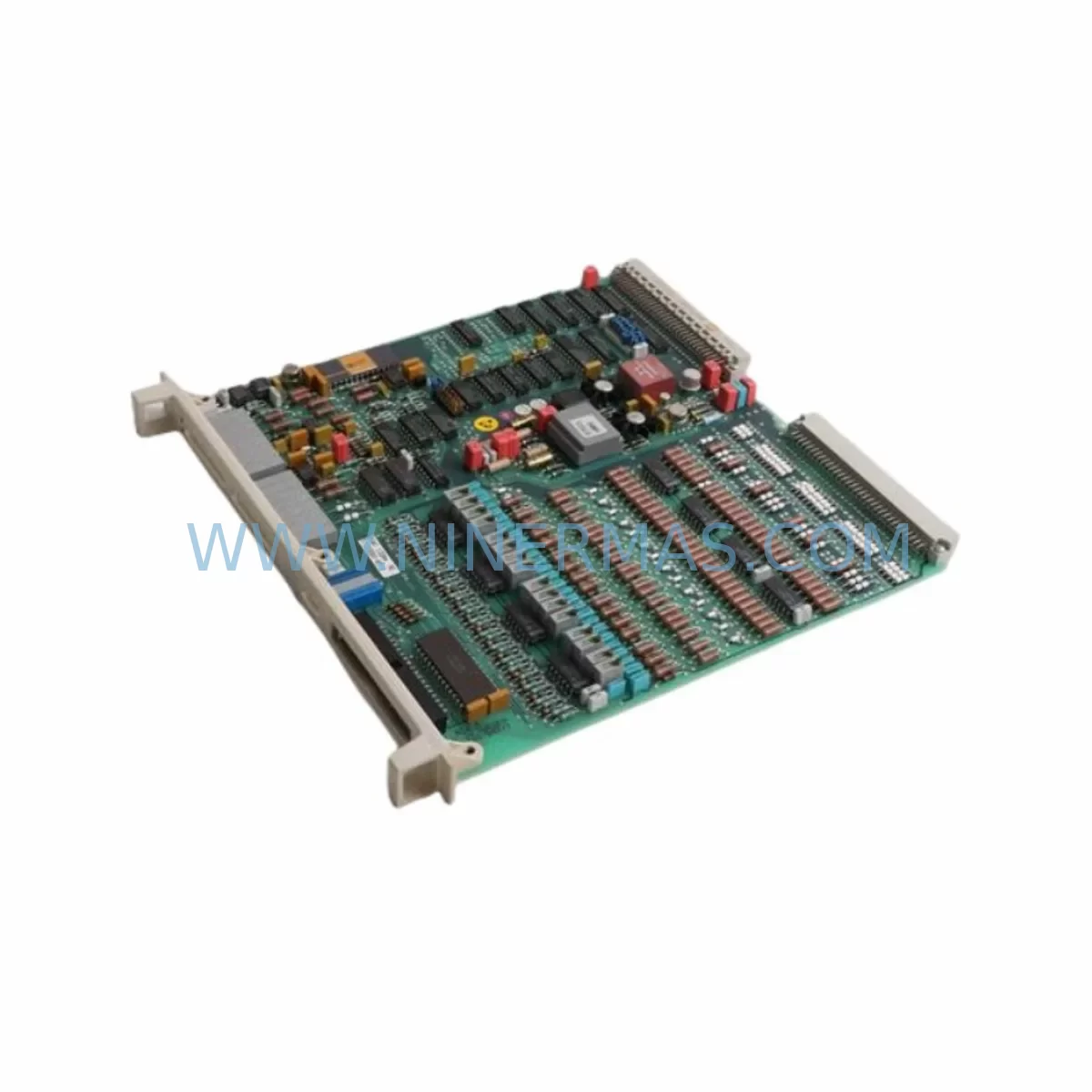

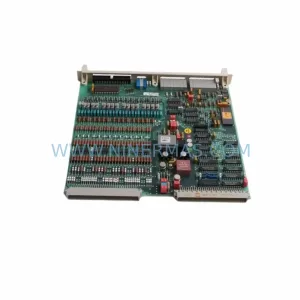

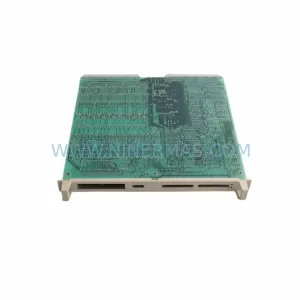

The ABB DSAI130H 57120001-NT is an original analog input module designed for ABB’s DSAI series distributed control systems, widely deployed in process industries including oil & gas, power generation, chemical processing, and pulp & paper plants. As a critical signal acquisition component within the ABB Advant controller family — including AC410 and AC450 platforms — this module handles multi-channel analog signal conditioning and conversion, forming the backbone of real-time process monitoring and closed-loop control.

For maintenance engineers managing aging DCS infrastructure, sourcing a verified, service-ready DSAI130H 57120001-NT replacement is essential to minimizing unplanned downtime. A failed analog input module can blind the control system to critical process variables — flow rates, temperatures, pressures — triggering safety shutdowns or forcing manual override operations. Having this module available in your on-site spare parts inventory is a fundamental risk mitigation strategy for any facility running ABB Advant-based control architecture.

At NINERMAS, every ABB DSAI130H 57120001-NT unit is inspected, function-tested, and shipped with a 12-month warranty, ensuring you receive a module that is ready for immediate installation without additional bench testing delays on-site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DSAI130H 57120001-NT analog input module during a scheduled or emergency maintenance event, a thorough inspection of the surrounding control cabinet components is strongly recommended. Analog input modules do not operate in isolation — their performance depends on the integrity of the entire signal chain and power distribution network.

Begin by verifying the 24VDC power supply module feeding the DSAI rack. Voltage fluctuations or ripple from an aging power supply are a common root cause of analog signal instability and premature module failure. If the power supply shows signs of wear — output voltage deviation, excessive heat, or audible noise — it should be replaced concurrently with the DSAI130H.

Next, inspect the field terminal blocks and signal wiring connected to the module’s input channels. Corroded terminals, loose ferrules, or degraded cable shielding can introduce noise into analog signals, causing erratic readings that may be misdiagnosed as module failure. Replacing terminal blocks and re-terminating field cables with properly shielded twisted-pair wiring is a best practice during any analog I/O module swap.

The DSAI series backplane and its connector pins should also be examined. Oxidized or bent backplane contacts are a known failure point in long-running Advant installations. If the backplane shows physical damage or intermittent connectivity, a backplane replacement should be planned before reinserting the new DSAI130H module.

For facilities running multi-loop control strategies, also review the status of associated DSAO (analog output) modules such as the DSAO120 or DSAO130 series, which work in tandem with analog input modules to complete control loops. A degraded output module can mask the true performance of a newly installed input module during post-replacement verification.

Communication integrity between the DSAI rack and the AC450 or AC410 controller should be confirmed via the DSMB (Master Bus) communication module. Any communication errors logged before the module failure event may indicate a broader bus issue rather than an isolated module fault — a distinction that prevents repeat failures after replacement.

Additionally, inspect signal isolators and barriers installed between field instruments and the DSAI input channels, particularly in hazardous area applications. Zener barriers or galvanic isolators that have exceeded their service life can degrade signal quality and damage replacement modules if not addressed. Brands such as MTL, Pepperl+Fuchs, and R. STAHL are commonly paired with ABB Advant systems in these configurations.

For facilities with Operator Interface Terminals (HMI) connected to the Advant system, verify that analog tag values are updating correctly after module replacement. Stale or frozen HMI values may indicate a configuration or communication issue that requires attention beyond the physical module swap.

Finally, review the fuse protection on the analog input circuit. Blown or weakened fuses on the field side of the DSAI module are often overlooked during emergency replacements and can cause the new module to fail prematurely if the original fault condition — such as a field wiring short — has not been fully resolved.

Site Replacement Workflow

Replacing the ABB DSAI130H 57120001-NT in a live industrial environment requires a structured approach to minimize control system disruption and ensure a clean return to automatic operation.

Step 1 — Pre-Replacement Verification: Confirm the exact part number and hardware revision of the installed module before ordering. The DSAI130H designation covers specific hardware variants; mismatching revisions can cause compatibility issues with the existing backplane and firmware. Cross-reference the module label with the system’s spare parts list and engineering documentation.

Step 2 — Process Isolation: Place all control loops associated with the affected analog input channels into manual mode at the DCS workstation. Notify the operations team and obtain a work permit before opening the control cabinet. Verify that the process is in a safe, stable state before proceeding.

Step 3 — Module Removal: Power down the affected DSAI rack slot if hot-swap is not supported by the installed firmware version. Carefully disconnect field wiring from the module’s terminal block, labeling each wire to ensure correct re-termination. Remove the module from the backplane slot using the extraction handles — avoid forcing the module to prevent backplane connector damage.

Step 4 — New Module Installation: Insert the replacement DSAI130H 57120001-NT into the correct backplane slot. Reconnect field wiring according to the labeled sequence. Restore power to the rack and confirm that the module initializes correctly — check the module’s status LEDs and the DCS diagnostic display for any fault codes.

Step 5 — Signal Verification: With the process still in manual mode, verify that all analog input channels are reading correctly against known reference values or field instrument local indicators. Confirm signal scaling, engineering units, and alarm limits are intact in the DCS configuration.

Step 6 — Return to Automatic: Once all channels are verified, transfer control loops back to automatic mode one at a time, monitoring process response for stability. Document the replacement in the maintenance management system, including the date, module serial number, and post-replacement test results.

This structured workflow reduces the risk of repeat failures, ensures system compatibility, and provides a clear audit trail for regulatory and reliability reporting.
