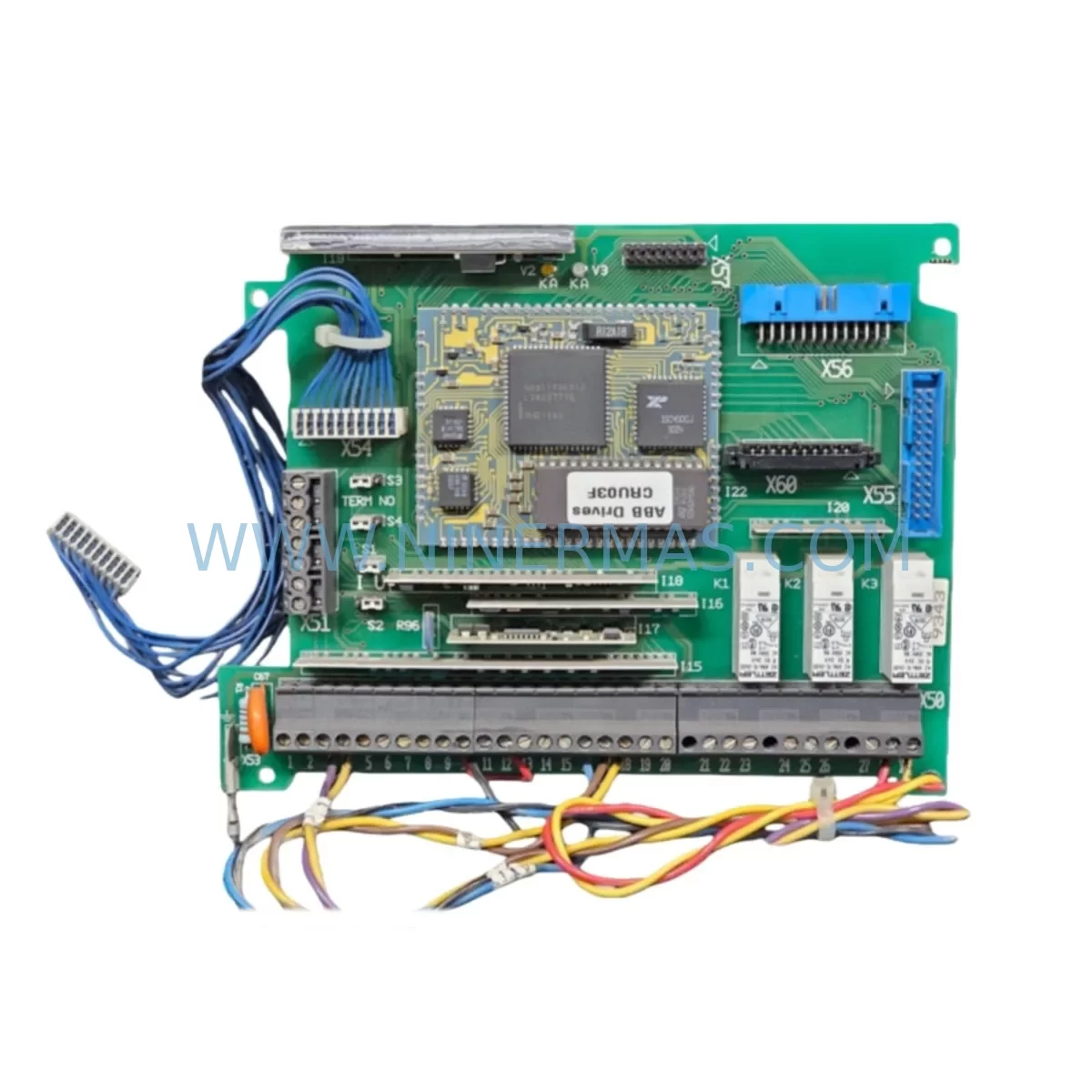

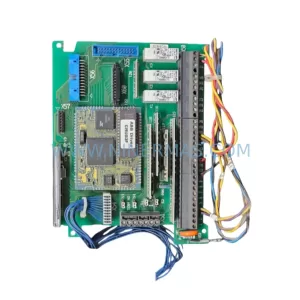

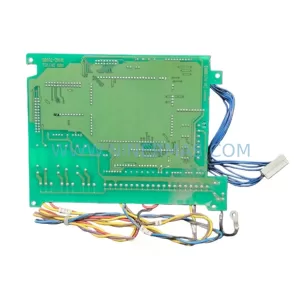

The ABB SNAT7600 is a ruggedized control board module engineered for demanding industrial environments, serving as a critical spare part within ABB’s ACS800 series variable frequency drive (VFD) ecosystem. For maintenance engineers managing continuous production lines, conveyor systems, pump stations, or compressor banks, unplanned downtime caused by a failed control board can cascade into significant operational and financial losses. Stocking the SNAT7600 as a verified, service-ready spare is a proven strategy to minimize mean time to repair (MTTR) and restore system availability within hours rather than days.

The SNAT7600 board handles core drive control functions including pulse-width modulation (PWM) signal generation, motor speed feedback processing, fault detection logic, and communication interfacing. Its ruggedized design addresses thermal cycling, vibration, and EMI exposure — conditions common in steel mills, water treatment facilities, chemical plants, and heavy manufacturing environments. When this board fails, symptoms typically include drive fault codes, erratic motor behavior, loss of speed reference, or complete drive shutdown. Prompt replacement with a pre-tested SNAT7600 unit eliminates extended diagnostic delays.

From a procurement engineering perspective, the SNAT7600 represents a high-priority line item in any ACS800-based facility’s critical spare parts register. Its lead time from OEM channels can extend to 8–16 weeks during supply chain disruptions, making third-party stocking sources with verified inventory and rapid dispatch capability essential for operational continuity. Each unit shipped by NINERMAS undergoes functional inspection and is backed by a 12-month warranty, providing procurement teams with the confidence needed for long-term spare parts planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the SNAT7600 control board, a thorough site inspection of the surrounding drive cabinet is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity for a comprehensive ACS800 drive health audit.

Begin by inspecting the AINT board (SNAT7200) — the auxiliary interface board that works in tandem with the SNAT7600 — for signs of capacitor bulging, corrosion on connector pins, or heat discoloration. A degraded AINT board can cause communication faults that mimic SNAT7600 failures, so verifying its integrity before and after replacement is critical. Similarly, the APOW power supply board should be load-tested; an under-voltage or ripple condition on the internal 24VDC rail is a common root cause of control board damage and must be resolved before installing the new SNAT7600.

Check all fiber optic DDCS communication cables connecting the control board to the inverter module and any external RDCO communication adapter. Bent, cracked, or contaminated fiber connectors introduce intermittent faults that can be misdiagnosed as board failures. Replace any suspect cables during the same maintenance window. If the drive communicates via PROFIBUS, MODBUS RTU, or DeviceNet through an RDCO or RAIO adapter module, verify adapter firmware compatibility with the replacement board revision.

Inspect the I/O terminal blocks and wiring harnesses for loose terminations, insulation breakdown, or moisture ingress — particularly in drives installed near cooling towers or wash-down areas. Faulty I/O wiring can generate spurious fault signals that stress the new control board immediately after installation. Review the drive’s fault history log via the ACS800 control panel (CDP312R or similar) before powering down, as recurring overcurrent, earth fault, or communication loss codes may indicate upstream issues in the motor circuit, encoder feedback wiring, or the AITC current measurement board.

For drives in multi-drive configurations using an NDBU branching unit or master-follower topology, confirm that the replacement SNAT7600 is correctly parameterized for its node address and drive role before returning the system to automatic control. Finally, verify that all DC bus capacitors in the inverter section have been reformed if the drive has been in storage or idle for more than 12 months, as capacitor degradation can cause immediate overcurrent faults upon restart that may be incorrectly attributed to the new control board.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the ACS800 drive, apply LOTO procedures, and wait a minimum of 5 minutes for DC bus capacitors to discharge below 50VDC. Verify with a calibrated multimeter before opening the drive cabinet.

Step 2 — Parameter Backup: If the drive’s CDP312R control panel or DriveWindow software is accessible, upload and save the full parameter set. The SNAT7600 replacement will require parameter restoration, and having a verified backup eliminates re-commissioning time.

Step 3 — Board Removal: Photograph the existing wiring and connector positions before disconnecting. Remove the SNAT7600 by releasing the board retention clips and carefully disconnecting all ribbon cables, fiber optic connectors, and I/O harnesses. Handle the replacement board using ESD-safe procedures.

Step 4 — Installation & Inspection: Seat the new SNAT7600 firmly into the backplane connector. Reconnect all cables in reverse order, verifying each connector is fully engaged. Inspect for any foreign objects in the drive cabinet before closing.

Step 5 — Parameter Restore & Commissioning: Power up the drive and restore the saved parameter set. Verify motor control mode, speed reference source, and all I/O assignments. Run the drive at low speed in local control mode before returning to process control. Confirm no active fault codes and log the replacement in the site maintenance record.

This structured workflow reduces average replacement time to under 2 hours for experienced technicians, minimizing production downtime and ensuring the system returns to full operational specification.

Spare Parts Support FAQ

Q1: Is the SNAT7600 compatible with all ACS800 drive frame sizes?
The SNAT7600 is designed for use within the ACS800 series, but compatibility can vary by drive frame size and firmware revision. Before ordering, confirm your drive’s full type code (found on the drive nameplate) and the existing board revision number. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q2: What testing is performed before shipment?
Each SNAT7600 unit undergoes a pre-shipment functional inspection covering visual examination for physical damage, connector integrity checks, and board-level continuity testing. Units are packed in anti-static ESD bags with foam cushioning to prevent transit damage. A test report is available upon request for critical infrastructure procurement.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside specified environmental parameters. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q4: Can NINERMAS support long-term or blanket purchase orders for the SNAT7600?
Yes. For facilities operating multiple ACS800 drives or managing multi-site maintenance programs, NINERMAS offers long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing. Contact our sales team to discuss volume requirements and establish a dedicated spare parts supply arrangement.
