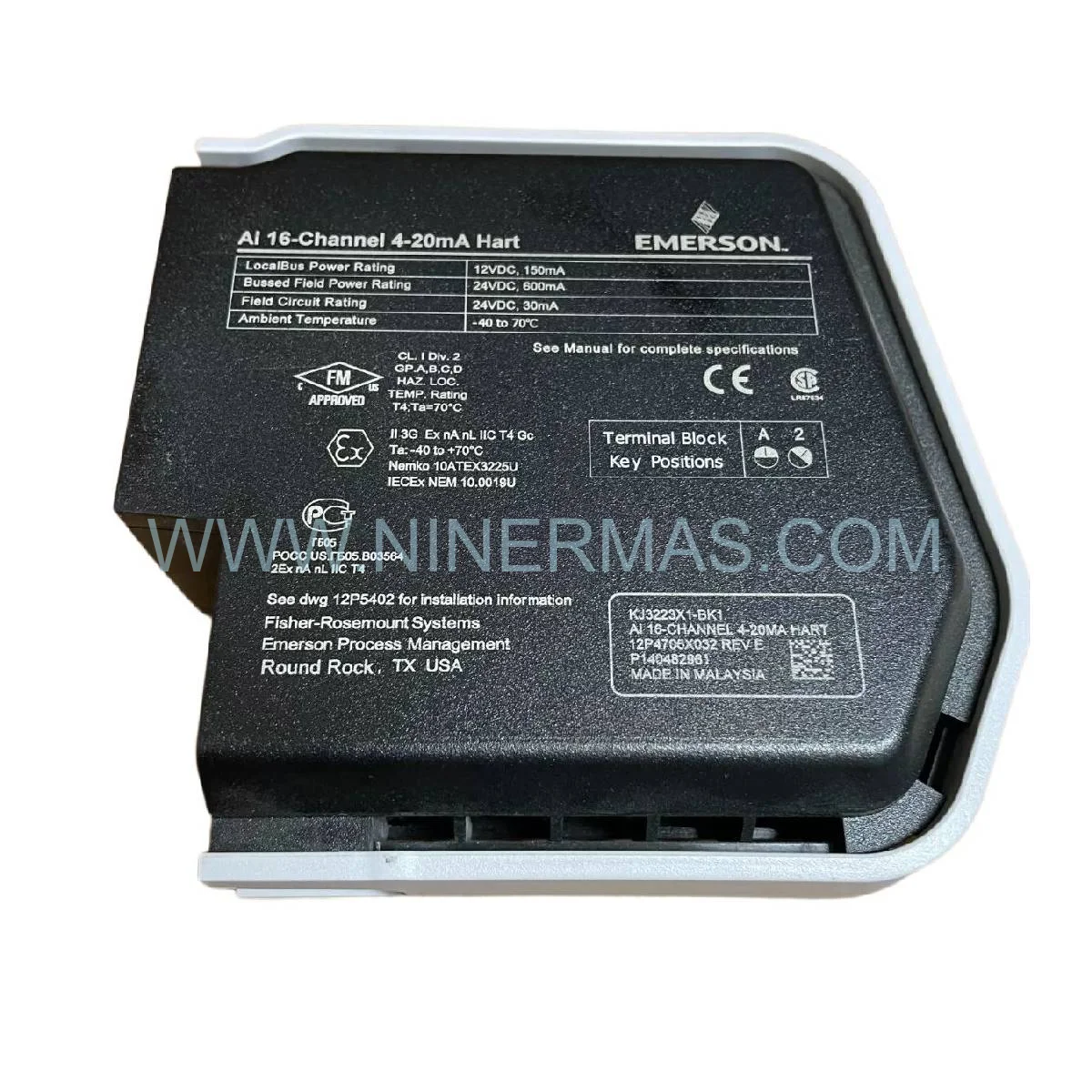

Emerson KJ3223X1-BK1 | DeltaV S-Series Retrofit & Modernization Module

Emerson KJ3223X1-BK1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Emerson KJ3223X1-BK1 stands out as a cornerstone hardware asset in any DeltaV S-Series modernization initiative. Its 16-channel analog input architecture with full HART protocol support allows facilities to dramatically extend the operational lifespan of aging process control infrastructure — without the prohibitive cost of a full platform replacement. The Emerson KJ3223X1-BK1 bridges the gap between legacy field instrumentation and modern digital control layers, enabling a phased, low-risk migration path that keeps production running throughout the transition.

One of the most compelling advantages of this module lies in its backward compatibility with existing DeltaV S-Series carriers and controller backplanes. Facilities operating first-generation DeltaV hardware can slot in the KJ3223X1-BK1 as a direct upgrade component, preserving existing wiring infrastructure while gaining 16-bit A/D resolution and configurable scan rates — a critical performance enhancement over older 12-bit predecessors. This seamless integration capability makes it the preferred choice for retrofit engineers who must minimize process disruption during hardware upgrades.

From a migration risk and cost perspective, deploying the KJ3223X1-BK1 as part of a structured retrofit strategy reduces total project expenditure by eliminating the need for new marshalling cabinets, rewiring campaigns, or controller platform changes. Its hot-swap capability further de-risks the cutover phase, allowing module replacement during live operations — a decisive advantage in continuous-process industries where downtime translates directly to revenue loss.

Upgrade Highlights & Compatibility

✅ Direct Drop-In Compatibility: Mounts to existing DeltaV S-Series carriers — zero structural modifications required
16-Bit Resolution Upgrade: Superior measurement accuracy vs. legacy 12-bit analog input modules
? HART Protocol Ready: Enables smart device diagnostics and predictive maintenance without additional gateways
Hot-Swappable Design: Replace modules during live operations — no process shutdown needed
? Future-Proof Architecture: AMS Device Manager integration supports long-term asset lifecycle management
Multi-Certification Compliance: CE, UL, CSA, ATEX, IECEx — ready for hazardous area deployments
? High-Density I/O: 16 differential channels per module reduce cabinet footprint and wiring complexity

Modernization Use Cases & Success Stories

DCS Platform Refresh — Petrochemical Refinery: A Gulf Coast refinery operating a first-generation DeltaV system faced escalating maintenance costs due to aging analog input modules with degraded signal accuracy. By deploying the KJ3223X1-BK1 as a performance upgrade across 24 I/O nodes, the facility achieved a 40% reduction in measurement drift incidents and eliminated unplanned shutdowns attributed to I/O failures — all without modifying the existing controller or network topology.

Turbine Supervisory Instrumentation (TSI) Modernization — Power Generation: A combined-cycle power plant integrated the KJ3223X1-BK1 into its turbine monitoring architecture to replace obsolete single-channel analog input cards. The module’s 16-channel density and HART communication capability enabled real-time vibration and temperature trending across all turbine stages, delivering a seamless integration outcome that reduced the TSI panel count by 60% while improving data resolution for predictive maintenance algorithms.

Pharmaceutical Batch Control Upgrade: A cGMP-compliant manufacturing facility leveraged the KJ3223X1-BK1 to modernize its reactor monitoring loops. The module’s channel-to-channel isolation and 16-bit accuracy met FDA process analytical technology (PAT) requirements, enabling the facility to retire legacy single-loop controllers and consolidate measurement into a unified DeltaV DCS environment — a textbook hardware upgrade with zero batch record impact.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every KJ3223X1-BK1 unit is sourced as genuine Emerson OEM hardware — factory sealed, serialized, and traceable to original manufacturing documentation. No refurbished or third-party remanufactured units.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate on compressed timelines, we maintain ready stock with expedited international shipping to support facilities across North America, Europe, the Middle East, and Asia-Pacific. DDP and DAP Incoterms available upon request.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy DeltaV system configurations. Whether you need assistance with carrier compatibility verification, firmware revision matching, or migration sequencing, our retrofit specialists provide pre-deployment consultation to ensure a zero-defect installation outcome.

Retrofit FAQ (Upgrade Guide)

Q1: Is the KJ3223X1-BK1 physically compatible with older DeltaV S-Series carriers installed in the early 2000s?
Yes. The KJ3223X1-BK1 is designed for direct mechanical and electrical compatibility with all DeltaV S-Series I/O carriers produced since the platform’s introduction. No carrier replacement or backplane modification is required — making it an ideal retrofit solution for aging infrastructure.

Q2: Can the KJ3223X1-BK1 communicate with legacy HART field devices that are not DeltaV-native?
Absolutely. The module’s HART protocol implementation is device-agnostic and supports any HART-compliant field instrument regardless of manufacturer. This legacy compatibility ensures that existing transmitters, valves, and analyzers can be retained during the DCS modernization process, protecting prior capital investment.

Q3: What is the recommended spare parts strategy for facilities running end-of-life (EOL) DeltaV hardware alongside the KJ3223X1-BK1?
For mixed-generation DeltaV environments, we recommend maintaining a minimum 10% buffer stock of KJ3223X1-BK1 modules relative to installed base. Given its Active lifecycle status, the module provides a stable, long-term supply chain anchor while adjacent EOL components are phased out — a critical element of any hardware upgrade roadmap.

Q4: How does the KJ3223X1-BK1 handle communication between new DeltaV controllers and legacy field junction boxes?
The module interfaces directly with existing marshalled wiring via its removable terminal blocks, eliminating the need for intermediate signal converters or junction box rewiring. This seamless integration approach preserves existing cable infrastructure while delivering modern 16-bit signal processing at the controller level.

Q5: Are there alternative Emerson modules that can substitute for the KJ3223X1-BK1 in a retrofit scenario?
While Emerson offers other S-Series analog input variants, the KJ3223X1-BK1 is specifically optimized for 4-20mA HART applications with 16-channel density. Substitution with lower-channel-count modules would require additional carrier slots and increase cabinet space requirements. We recommend consulting our retrofit specialists before selecting alternative configurations to ensure performance equivalence.

Q6: What documentation is provided to support installation qualification (IQ) and operational qualification (OQ) in regulated industries?
Each KJ3223X1-BK1 unit ships with Emerson’s official installation guide, technical datasheet, and certificate of conformance. For pharmaceutical and life sciences customers, we can provide additional traceability documentation including lot numbers, manufacturing date codes, and calibration records to support IQ/OQ validation protocols.
