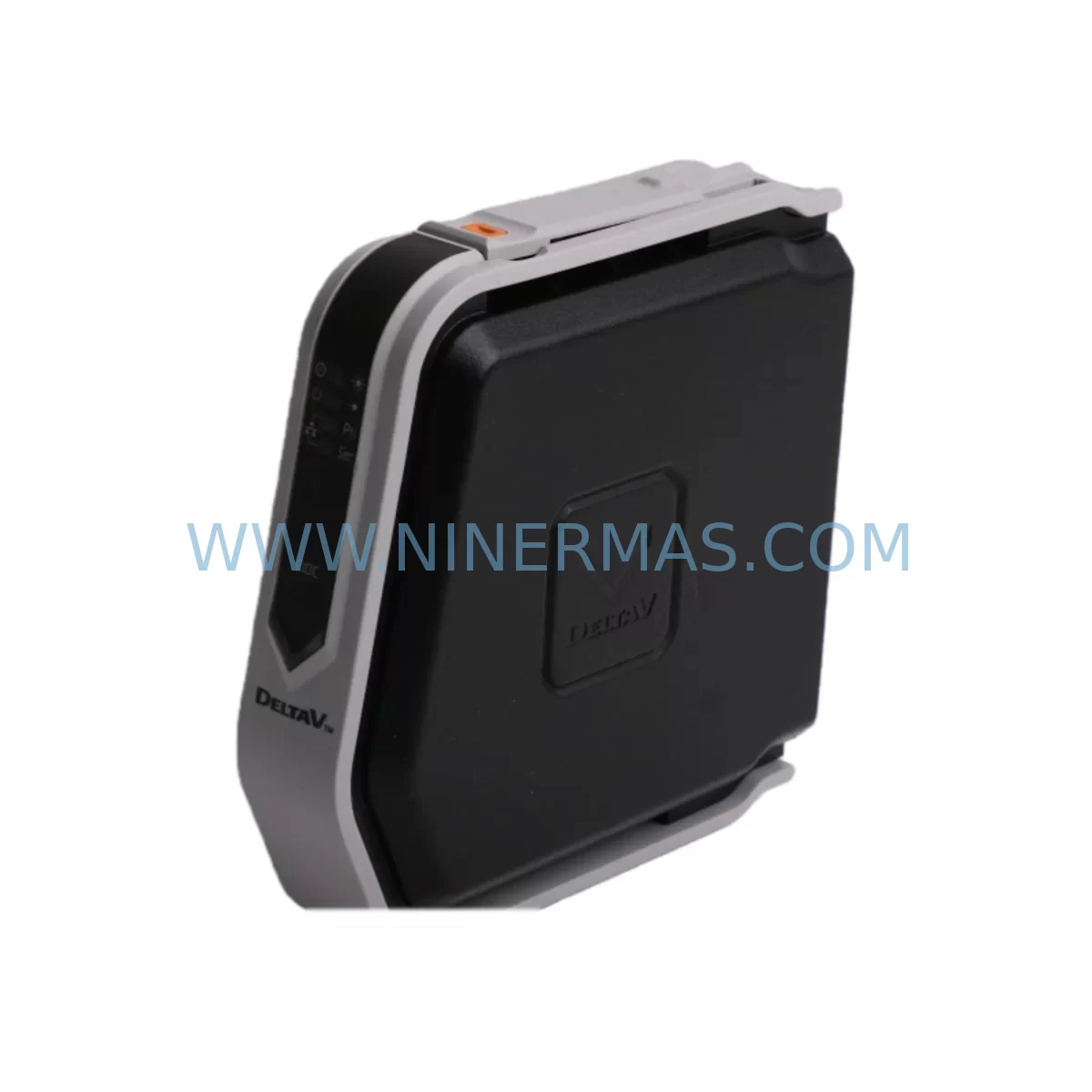

The Emerson KL2101X1-BB1 SE6504 is a high-integrity DeltaV CHARM (Characterization Module) I/O module engineered for mission-critical process automation environments. Designed to operate within Emerson’s DeltaV distributed control system architecture, this module delivers deterministic signal processing, robust field-level isolation, and continuous self-diagnostics — making it an essential component for facilities where control interruption is not an option.

In continuous production environments such as petrochemical refineries, power generation plants, and metallurgical processing facilities, even a momentary I/O failure can cascade into unplanned shutdowns, safety interlock activations, or regulatory non-compliance events. The KL2101X1-BB1 SE6504 addresses these risks through its inherent CHARM architecture, which enables hot-swap replacement without process interruption, channel-level isolation to prevent fault propagation, and real-time diagnostics that surface field wiring faults before they escalate into control loop failures.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DeltaV control cabinet, the KL2101X1-BB1 SE6504 CHARM module does not operate in isolation — it functions as part of a tightly integrated safety and control architecture. Its channel-level isolation directly reduces the risk of signal cross-contamination that can cause spurious trips or missed alarms in safety instrumented functions (SIFs).

When paired with the Emerson KJ3221X1-BA1 DeltaV CHARM I/O carrier and the Emerson KJ4001X1-BA1 CIOC (Cabinet I/O Controller), the KL2101X1-BB1 SE6504 forms a redundant, fault-tolerant I/O subsystem capable of sustaining control loop integrity even under single-point hardware failures. The CIOC’s built-in redundancy management ensures that a failed CHARM module triggers an automatic failover without operator intervention, dramatically reducing mean time to recovery (MTTR).

Power quality is a critical but often overlooked risk factor in control cabinets operating near heavy motor drives, arc furnaces, or variable frequency drives (VFDs). The Emerson KJ4002X1-BA1 DeltaV power supply module, when used alongside the KL2101X1-BB1 SE6504, provides regulated, filtered DC power that suppresses voltage transients and surge events that could otherwise corrupt CHARM module firmware or cause nuisance resets. For additional surge protection at the field terminal level, integrating Phoenix Contact TRABTECH surge protection devices on analog input loops is a recognized best practice in high-EMI environments such as mining substations and offshore platforms.

Communication integrity is equally vital. The DeltaV CHARM architecture communicates over a deterministic, time-synchronized internal bus. When the Emerson KJ2003X1-BA1 DeltaV controller is configured with redundant communication paths, the KL2101X1-BB1 SE6504 benefits from seamless failover at the network layer, ensuring that field signal data reaches the control strategy without interruption — even during planned maintenance windows or unplanned network segment faults.

For safety loop applications requiring SIL 2 or SIL 3 certification, the KL2101X1-BB1 SE6504 is commonly deployed alongside Emerson DeltaV SIS (Safety Instrumented System) logic solvers, such as the Emerson KS4001X1-BA1 SIS controller, to form a complete, IEC 61511-compliant safety instrumented function. In these architectures, the CHARM module’s continuous diagnostics feed directly into the SIS diagnostic coverage calculations, supporting the required PFD (Probability of Failure on Demand) targets for critical process shutdowns.

Relay output modules such as the Emerson KL2201X1-BB1 CHARM relay output, when installed in the same CHARM carrier as the KL2101X1-BB1 SE6504, enable direct field device actuation — including solenoid valves, motor starters, and emergency shutdown (ESD) actuators — with the same hot-swap and diagnostic benefits. This eliminates the need for external relay panels in many applications, reducing cabinet footprint and potential failure points.

For facilities managing large-scale I/O counts across multiple control rooms, the Emerson DeltaV Remote CIOC architecture allows KL2101X1-BB1 SE6504 modules to be distributed across field junction boxes while maintaining centralized control and diagnostics — a configuration widely adopted in large petrochemical complexes and LNG terminals where cable runs would otherwise introduce unacceptable signal degradation risks.

Critical Industrial Safety Applications

Petrochemical & Refinery Operations: In crude distillation units, hydrocracker reactors, and compressor control systems, the KL2101X1-BB1 SE6504 provides the signal integrity required for pressure, temperature, and flow control loops that operate continuously at elevated risk levels. Its hot-swap capability allows maintenance teams to replace degraded modules during operation, avoiding the costly planned shutdowns that fixed-wiring I/O systems require.

Power Generation & Utilities: Boiler management systems, turbine control panels, and grid-connected generator protection circuits demand I/O modules that maintain signal accuracy under high-frequency electrical noise generated by large rotating machinery. The KL2101X1-BB1 SE6504’s EMI-hardened design and galvanic isolation make it a preferred choice for power plant DCS upgrades and life-extension projects.

Mining & Mineral Processing: Conveyor interlocks, crusher control systems, and flotation cell automation in underground and open-pit mining environments expose control hardware to extreme vibration, dust ingress, and wide temperature swings. The KL2101X1-BB1 SE6504’s robust mechanical design and extended operating temperature range support reliable operation in these demanding conditions, reducing the frequency of unplanned stoppages caused by I/O hardware failures.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent management systems rely on continuous, uninterrupted control of dosing pumps, aeration blowers, and clarifier drives. The KL2101X1-BB1 SE6504 supports the high-availability control architectures required by environmental compliance mandates, where control system failures can result in regulatory violations and public safety incidents.

Metallurgy & Steel Production: Electric arc furnace (EAF) control, continuous casting machine automation, and rolling mill drive coordination generate some of the most severe electromagnetic interference conditions in industrial automation. The KL2101X1-BB1 SE6504’s IEC 61000-compliant EMC design ensures signal fidelity in these environments, supporting the precise temperature and speed control required for product quality and process safety.

Port & Marine Automation: Ship-to-shore crane control systems, bulk material handling terminals, and vessel automation platforms require I/O hardware that performs reliably in salt-air, high-humidity environments with frequent vibration from heavy machinery. The KL2101X1-BB1 SE6504’s sealed module design and corrosion-resistant construction support long service life in coastal and marine installations.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Emerson KL2101X1-BB1 SE6504?
All Emerson KL2101X1-BB1 SE6504 modules supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through our technical support team at sale@ninermas.com, with replacement or repair turnaround prioritized for critical production sites.

Q2: What pre-shipment testing is performed on each module?
Every KL2101X1-BB1 SE6504 unit undergoes functional verification testing prior to shipment, including power-on self-test (POST) confirmation, I/O channel continuity checks, and firmware version verification. Modules are shipped in anti-static packaging with individual test records available upon request for quality-critical applications.

Q3: Is the KL2101X1-BB1 SE6504 compatible with existing DeltaV CHARM carrier hardware?
Yes. The KL2101X1-BB1 SE6504 is designed for direct installation into standard Emerson DeltaV CHARM carrier assemblies, including CIOC and WIOC-based configurations. It is backward-compatible with existing DeltaV system versions that support the CHARM I/O architecture. Our technical team can confirm compatibility with your specific DeltaV system version and carrier hardware before purchase.

Q4: Can NINERMAS support long-term supply and emergency replacement needs?
NINERMAS maintains dedicated inventory of the KL2101X1-BB1 SE6504 and related DeltaV CHARM components to support both planned maintenance programs and emergency replacement requirements. We offer expedited shipping for critical production sites and can provide multi-unit supply agreements for facilities managing large DeltaV I/O populations. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
