Emerson KJ4001X1-CB1 12P0625X072 DeltaV I/O Terminal Block

Emerson KJ4001X1-CB1 12P0625X072 DeltaV I/O Terminal Block: Spare Part Replacement & Downtime Risk Control

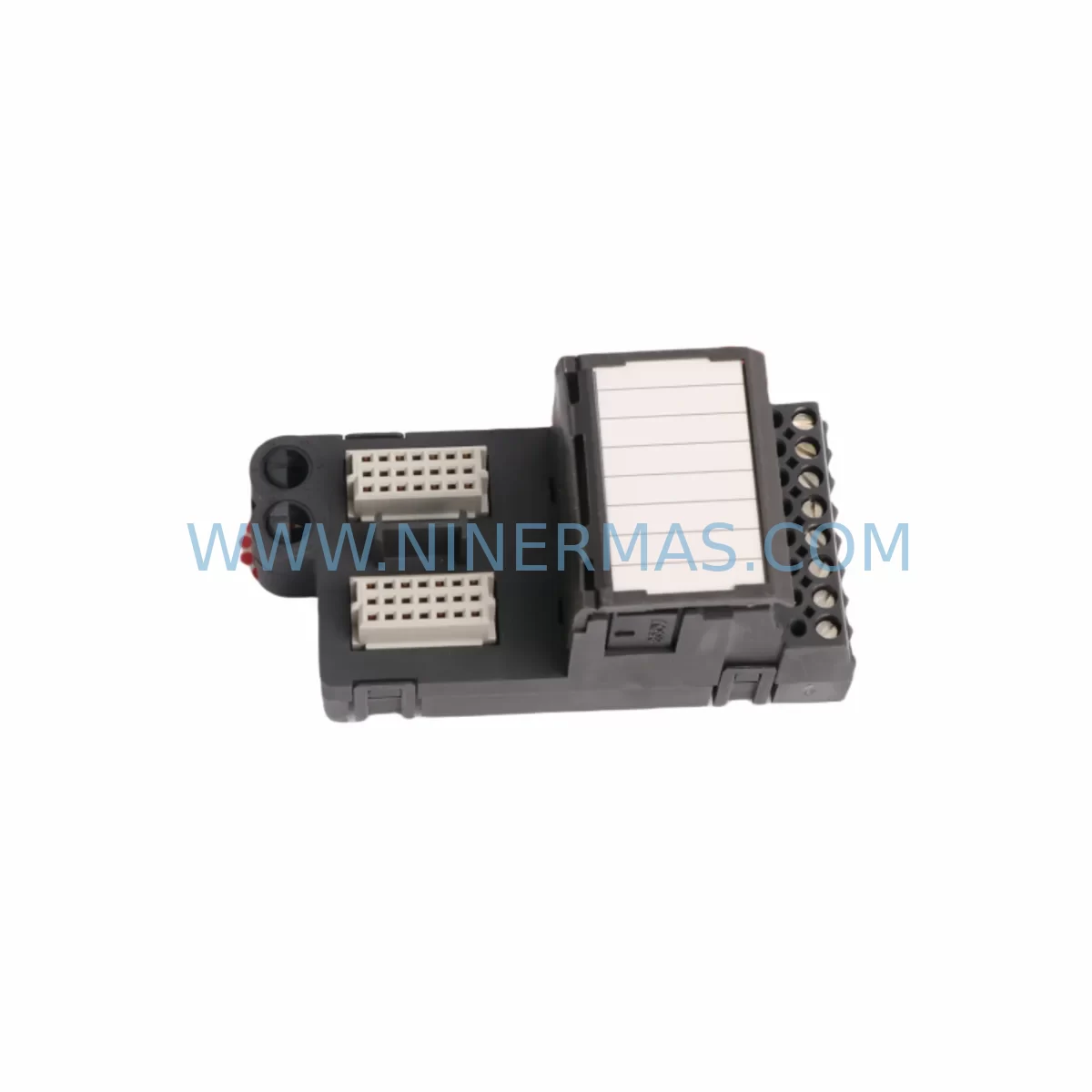

The Emerson KJ4001X1-CB1 12P0625X072 is a field-proven I/O terminal block designed for use within the Emerson DeltaV distributed control system (DCS) platform. As a critical interface component between field wiring and DeltaV I/O cards, this terminal block plays a central role in signal integrity, loop continuity, and safe process control across continuous and batch manufacturing environments. Maintaining a verified spare of the KJ4001X1-CB1 12P0625X072 in your site inventory is a fundamental step in any proactive maintenance strategy — particularly for facilities operating aging DeltaV systems where original components may no longer be available through standard distribution channels.

For maintenance engineers managing DeltaV cabinets, the terminal block is often the first point of failure investigation during signal loss, loop deviation, or I/O card fault events. A corroded terminal, a loose field wire connection, or a damaged block body can cause intermittent faults that are difficult to trace without a direct swap. Having the KJ4001X1-CB1 12P0625X072 on hand allows technicians to perform a rapid like-for-like replacement during a planned or emergency shutdown window, restoring loop function without waiting for procurement lead times that can stretch from days to weeks.

NINERMAS supplies the KJ4001X1-CB1 12P0625X072 as a service-ready spare part, pre-inspected and tested prior to shipment. Each unit is verified for mechanical integrity, terminal contact quality, and dimensional conformance to Emerson DeltaV I/O subsystem specifications. All stock is covered by a 12-month warranty from the date of shipment, supporting your site’s spare parts lifecycle management and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KJ4001X1-CB1 12P0625X072 in a DeltaV I/O cabinet, a thorough maintenance inspection of the surrounding subsystem is essential to prevent repeat failures and ensure full loop restoration. Maintenance engineers should treat a terminal block replacement as an opportunity to audit the entire I/O node.

Begin by inspecting the associated DeltaV I/O card — such as the KJ3002X1-BA1 analog input card or KJ3221X1-BA1 discrete output card — seated in the same carrier. Terminal block faults are frequently accompanied by degraded card connectors or intermittent card seating issues. Verify that the DeltaV I/O carrier or backplane (e.g., KJ4001X1-CA1 series) shows no signs of corrosion, bent pins, or mechanical damage at the card interface.

Check the DeltaV controller module (such as the MD Plus or MD Controller) for any active diagnostics or I/O fault alarms that may indicate upstream communication issues beyond the terminal block itself. Inspect the CHARM I/O module or traditional I/O subsystem power supply — for example, the KJ4001X1-PA1 power supply — to confirm stable voltage delivery to the I/O node. A failing power supply can cause symptoms that mimic terminal block or I/O card faults.

Field wiring connected to the terminal block should be inspected for insulation integrity, correct wire gauge, and proper torque on terminal screws. Loose or corroded field connections are a leading cause of premature terminal block wear. If the installation includes signal isolators or signal conditioners in the loop — common in hazardous area installations — verify that isolator output levels remain within the I/O card’s input range.

For DeltaV systems with FOUNDATION Fieldbus or HART communication loops, also inspect the fieldbus segment coupler or HART multiplexer associated with the affected I/O node. Communication faults on these segments can be misdiagnosed as terminal block failures. Additionally, review the condition of marshalling cabinet terminal strips, fuse holders, and cable duct covers in the same panel section — these components share the same maintenance cycle and are often overlooked during targeted replacements.

For facilities running extended DeltaV system lifecycles, NINERMAS recommends maintaining a minimum of two KJ4001X1-CB1 12P0625X072 units per control room cabinet as part of a structured spare parts inventory. Pairing this with stocked I/O cards, power supply modules, and carrier assemblies ensures that any single-point failure in the I/O subsystem can be resolved within a single maintenance shift.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed terminal block part number against the DeltaV hardware configuration in DeltaV Explorer. Verify that the KJ4001X1-CB1 12P0625X072 is the correct replacement for the installed carrier and I/O card combination. Cross-reference the wiring diagram for the affected loop before disconnecting any field wires.

Step 2 — Safe Isolation: Place the affected I/O channel in manual mode at the DeltaV workstation. If the loop controls a critical process variable, coordinate with the control room operator before proceeding. Follow site lock-out/tag-out (LOTO) procedures for the field device associated with the loop.

Step 3 — Field Wire Documentation: Photograph or document the existing field wire termination positions before removal. Label each wire with its terminal number to ensure accurate re-termination. This step is critical for multi-wire terminal blocks where incorrect re-termination can cause cross-loop faults.

Step 4 — Terminal Block Removal and Installation: Disconnect field wires in sequence. Remove the defective KJ4001X1-CB1 12P0625X072 from the carrier. Inspect the carrier connector for damage before installing the replacement unit. Seat the new terminal block firmly and verify mechanical lock engagement.

Step 5 — Re-termination and Loop Test: Re-terminate field wires per the documented positions. Apply correct torque to terminal screws per Emerson specifications. Restore the I/O channel to automatic mode and verify loop signal at the DeltaV workstation. Confirm that no I/O fault alarms remain active before closing the cabinet.

Step 6 — Documentation Update: Record the replacement in the site maintenance management system (CMMS) with the new part serial number, installation date, and technician ID. Update the spare parts inventory to trigger replenishment of the consumed KJ4001X1-CB1 12P0625X072 unit.

Spare Parts Support FAQ

Q1: Is the KJ4001X1-CB1 12P0625X072 compatible with both legacy and current DeltaV I/O subsystem carriers?
The KJ4001X1-CB1 12P0625X072 is designed for use with Emerson DeltaV I/O subsystem carriers. Compatibility should be verified against your specific carrier model and DeltaV hardware revision. NINERMAS recommends confirming the carrier part number from your DeltaV hardware configuration before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the KJ4001X1-CB1 12P0625X072?
Each unit undergoes a pre-shipment inspection covering mechanical integrity, terminal contact condition, connector pin alignment, and dimensional conformance. Units that do not meet inspection criteria are quarantined and not shipped. All shipped units are covered by a 12-month warranty from the shipment date, providing assurance for both planned maintenance stock and emergency replacement orders.

Q3: Can NINERMAS support long-term or blanket order supply of the KJ4001X1-CB1 12P0625X072?
Yes. NINERMAS offers stock commitment and blanket order programs for facilities requiring guaranteed long-term supply of DeltaV spare parts. This is particularly relevant for sites operating DeltaV systems beyond the standard product lifecycle, where original manufacturer availability may be limited. Contact our procurement team to discuss volume pricing, lead time commitments, and multi-year supply agreements.

Q4: What is the recommended spare parts inventory strategy for DeltaV I/O terminal blocks?
For continuous process facilities, a minimum of two KJ4001X1-CB1 12P0625X072 units per active DeltaV I/O cabinet is recommended. For batch or discrete manufacturing with lower criticality, one unit per cabinet may be sufficient. Spare parts should be stored in a clean, dry environment within the original packaging and inspected annually as part of the site’s spare parts audit cycle. Consumed spares should be replenished within 30 days to maintain minimum stock levels.
