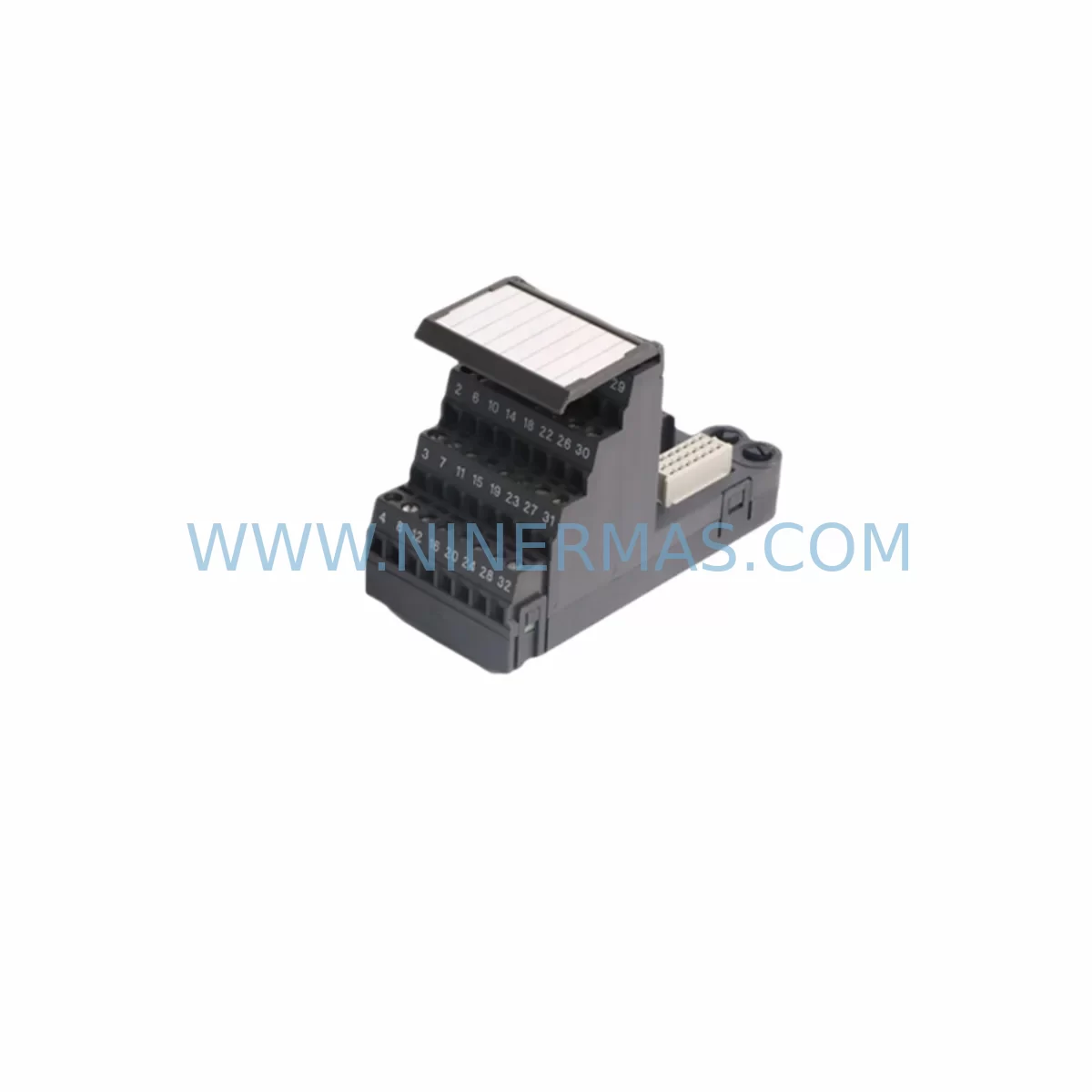

The EMERSON KJ4001X1-CJ1 (12P1902X042) is a service-ready DCS digital input module designed for the Emerson DeltaV distributed control system platform. For maintenance engineers managing continuous process operations — whether in oil & gas, chemical, power generation, or pharmaceutical environments — unplanned downtime caused by a failed I/O card can cascade into significant production losses within minutes. Stocking a verified replacement unit of the KJ4001X1-CJ1 is a fundamental risk-control measure for any facility running DeltaV S-series control cabinets.

This module serves as a direct field replacement for aging or fault-flagged KJ4001X1-CJ1 cards. It is compatible with the DeltaV S-series I/O subsystem and integrates with the DeltaV controller backplane without requiring system reconfiguration when the replacement unit carries the same firmware baseline. Procurement engineers sourcing this part should confirm the revision level and firmware compatibility with their site’s DeltaV version prior to ordering — a step that eliminates the most common cause of post-replacement commissioning delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ4001X1-CJ1 digital input card is flagged during a routine DeltaV cabinet inspection or triggers a diagnostic alarm, the replacement workflow extends beyond swapping the card itself. A thorough site assessment should include verification of the KJ4001 I/O carrier and terminal block assembly, as worn or corroded terminal connections are a frequent secondary cause of recurring input faults. The DeltaV S-series controller module (such as the MD or MD Plus controller) should be checked for active fault logs that may indicate whether the I/O card failure was isolated or symptomatic of a broader subsystem issue.

Field wiring integrity is equally critical. Maintenance teams should inspect the 24 VDC field power supply feeding the I/O subsystem — a degraded power supply can cause intermittent card faults that mimic hardware failure. The DeltaV CIOC (Controller I/O Card) and associated redundant power supply modules in the same cabinet should be tested for output stability before the new KJ4001X1-CJ1 is installed. Signal isolation between field devices and the I/O card should also be verified; in high-noise environments, adding or replacing signal isolators or surge protection modules on the input wiring can prevent premature failure of the replacement card.

For facilities operating legacy DeltaV configurations, the DeltaV CHARM I/O modules or older KJ3002X1 analog input cards in adjacent slots should be inspected during the same maintenance window to avoid repeat call-outs. The DeltaV workstation and operator interface (HMI) should be used to run a full I/O diagnostic scan post-replacement to confirm all channels are reporting correctly before returning the loop to automatic control. Procurement teams should also consider maintaining a parallel stock of the KJ4001X1-BA1 or KJ4002X1 variants to cover adjacent I/O types within the same cabinet family, reducing emergency sourcing lead times during unplanned outages.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the DeltaV Diagnostics tool to identify the specific channel or card generating the fault. Confirm whether the issue is a field wiring fault, a carrier fault, or a card-level hardware failure before pulling the KJ4001X1-CJ1.

Step 2 — Safe Removal: Place the affected I/O loop in manual mode at the DeltaV workstation. Disconnect field wiring at the terminal block. Remove the KJ4001X1-CJ1 from the I/O carrier by releasing the locking tab. Do not power down the entire I/O subsystem unless required — DeltaV S-series supports hot-swap of I/O cards under most configurations.

Step 3 — Replacement Verification: Confirm the replacement KJ4001X1-CJ1 (12P1902X042) matches the revision level of the removed card. Check firmware version compatibility with the site’s DeltaV system version. If a firmware update is required, coordinate with the DeltaV system administrator before installation.

Step 4 — Installation and Commissioning: Seat the replacement card firmly into the I/O carrier. Reconnect field wiring per the original loop drawing. Use the DeltaV Diagnostics tool to verify all channels are active and reading correctly. Return the loop to automatic control and document the replacement in the site maintenance log.

Step 5 — Post-Replacement Audit: Schedule a follow-up inspection of adjacent I/O cards and the cabinet power supply within 30 days to identify any latent issues that may have contributed to the original failure.

Spare Parts Support FAQ

Q1: Is the KJ4001X1-CJ1 (12P1902X042) compatible with all DeltaV S-series systems?
The KJ4001X1-CJ1 is designed for the Emerson DeltaV S-series I/O subsystem. Compatibility depends on the DeltaV system version and controller firmware. We recommend confirming the revision level and firmware baseline with your site’s DeltaV system documentation before installation. Our team can assist with compatibility verification prior to shipment.

Q2: What testing is performed before shipment?
Every KJ4001X1-CJ1 unit is functionally tested before dispatch. Testing covers power-on self-test, channel integrity verification, and communication with the DeltaV backplane interface. A test report is available upon request. All units are shipped with protective packaging to prevent ESD damage in transit.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority to minimize site downtime.

Q4: Can you support long-term or repeat supply of the KJ4001X1-CJ1?
Yes. NINERMAS maintains ongoing sourcing channels for Emerson DeltaV spare parts including the KJ4001X1-CJ1 and related I/O modules. We support blanket purchase orders and scheduled delivery arrangements for facilities that require predictable spare parts inventory management. Contact our team to discuss long-term supply agreements.
