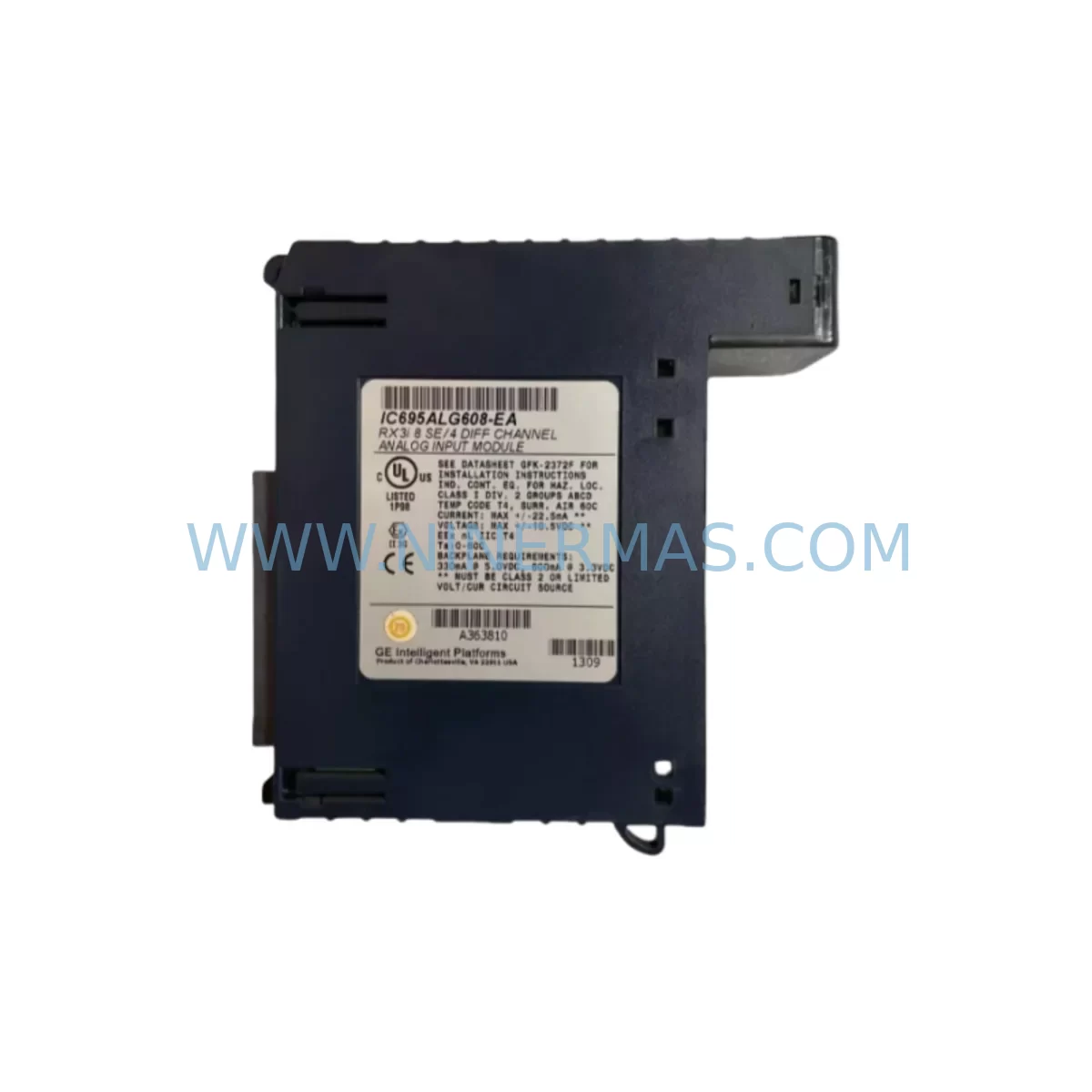

The GE IC695ALG608 is a high-density analog input module designed for the GE PACSystems RX3i platform — one of the most widely deployed programmable automation controller (PAC) architectures in process manufacturing, power generation, oil & gas, and discrete automation environments. As production lines age and OEM support windows close, maintaining a reliable inventory of service-ready spare parts like the IC695ALG608 becomes a critical pillar of any plant’s uptime strategy.

At NINERMAS, we supply the IC695ALG608 as a tested, original-specification spare part, backed by a 12-month warranty and full pre-shipment functional verification. Whether you are responding to an unplanned shutdown, building a preventive maintenance buffer, or executing a scheduled annual overhaul, this module ships ready for immediate rack installation in your RX3i backplane.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a field technician identifies a fault on the IC695ALG608 — whether through a channel-level diagnostic alarm in the PACSystems CPU, erratic PID loop behavior, or a complete loss of analog input data — the replacement workflow must be fast and systematic. Unplanned downtime on a process line can cost thousands of dollars per hour, making pre-positioned spare parts and a clear maintenance protocol essential.

Before or during replacement of the IC695ALG608, maintenance engineers should conduct a broader inspection of the surrounding control cabinet and electrical circuit. The IC695CPU320 or IC695CPE330 CPU module should be checked for active fault logs and memory integrity, as analog module faults are sometimes symptomatic of backplane communication issues rather than the module itself. The IC695PSD040 or IC695PSA040 power supply module should be verified for stable DC bus voltage output, since under-voltage conditions can cause intermittent analog channel errors that mimic module failure.

The IC695CHS012 or IC695CHS016 backplane chassis should be inspected for bent connector pins, corrosion, or mechanical damage at the module slot. A faulty backplane slot can damage a replacement module immediately upon installation. If the system uses redundant CPU configurations, the IC695RMX128 redundancy memory exchange module should also be verified to ensure seamless failover is maintained during the maintenance window.

On the field wiring side, all analog signal cables connected to the IC695ALG608’s terminal block should be inspected for insulation damage, loose terminations, and correct shielding grounding. Signal interference from adjacent VFD (variable frequency drive) power cables is a common cause of analog input noise and apparent module faults. If 4–20mA transmitters are connected, loop power supply integrity should be confirmed — a failing 24VDC field power supply or a corroded terminal block can produce symptoms identical to a failed analog input module.

For sites running mixed I/O architectures, the IC694MDL940 discrete output module and IC694ALG220 analog output module in the same cabinet should be inspected during the same maintenance visit, as they share the same backplane power bus and are subject to the same environmental stressors. If the plant uses IC695ETM001 Ethernet communication modules for SCADA connectivity, their link status and firmware version should be confirmed to avoid communication-layer false alarms after the analog module is replaced.

For facilities managing aging RX3i systems beyond their original design life, NINERMAS recommends maintaining a minimum buffer stock of one IC695ALG608 per production line, alongside critical companion modules, to support both emergency response and planned annual shutdowns without lead-time risk.

Site Replacement Workflow

Step 1 – Pre-Replacement Verification: Before removing the IC695ALG608, record all channel configuration parameters from the PACSystems Machine Edition (ME) programming software, including input range, scaling, filter settings, and alarm thresholds. Export the current project backup to a safe location.

Step 2 – Safe Isolation: Place the RX3i CPU in STOP mode. If the system supports hot-swap (the IC695ALG608 supports hot insertion and removal on RX3i universal backplanes), confirm the backplane firmware version supports this feature before proceeding without a full system power-down. For safety-critical loops, always follow your site’s lock-out/tag-out (LOTO) procedure.

Step 3 – Module Removal and Inspection: Remove the faulty IC695ALG608 by releasing the top and bottom latches. Inspect the backplane connector and slot for damage. Do not install the replacement module into a damaged slot.

Step 4 – Replacement Installation: Insert the new IC695ALG608 into the same backplane slot. The module is keyed and slot-independent on the RX3i universal backplane, so no jumper or DIP switch configuration is required. Secure the latches.

Step 5 – Configuration Restore and Verification: Download the saved project configuration to the CPU. Verify that all 8 analog channels report expected values within normal engineering unit ranges. Check the PACSystems diagnostic tables for any residual fault codes. Confirm PID loops and SCADA displays are reading correctly before returning the system to RUN mode.

Step 6 – Documentation: Record the replacement in the plant maintenance log, including the date, replaced module serial number, technician name, and post-replacement test results. Reorder a replacement spare to restore your buffer stock.

Spare Parts Support FAQ

Q1: Is the IC695ALG608 supplied by NINERMAS an original GE / Emerson part?
Yes. NINERMAS supplies original-specification IC695ALG608 modules sourced from authorized channels and verified against GE PACSystems hardware documentation. Each unit undergoes functional testing prior to shipment to confirm channel accuracy, backplane communication, and diagnostic reporting.

Q2: What warranty does NINERMAS provide for the IC695ALG608?
All IC695ALG608 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. If the module exhibits any functional defect under normal operating conditions within this period, NINERMAS will provide a replacement or full refund. Warranty claims are supported by our technical team at sale@ninermas.com.

Q3: Can the IC695ALG608 replace older GE Series 90-30 or Series 90-70 analog input modules?
The IC695ALG608 is designed specifically for the PACSystems RX3i backplane architecture and is not directly pin-compatible with GE Series 90-30 (IC693 series) or Series 90-70 (IC697 series) analog modules. However, GE PACSystems RX3i systems can be configured to replace legacy Series 90-30 systems using the IC695CHS392 expansion backplane with appropriate adapter hardware. NINERMAS technical support can advise on migration compatibility for your specific system configuration.

Q4: How quickly can NINERMAS ship the IC695ALG608 for an emergency breakdown?
NINERMAS maintains ready stock of high-demand PACSystems RX3i modules including the IC695ALG608. Emergency orders are prioritized for same-day or next-business-day dispatch depending on destination. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and expedited shipping options for your region.
