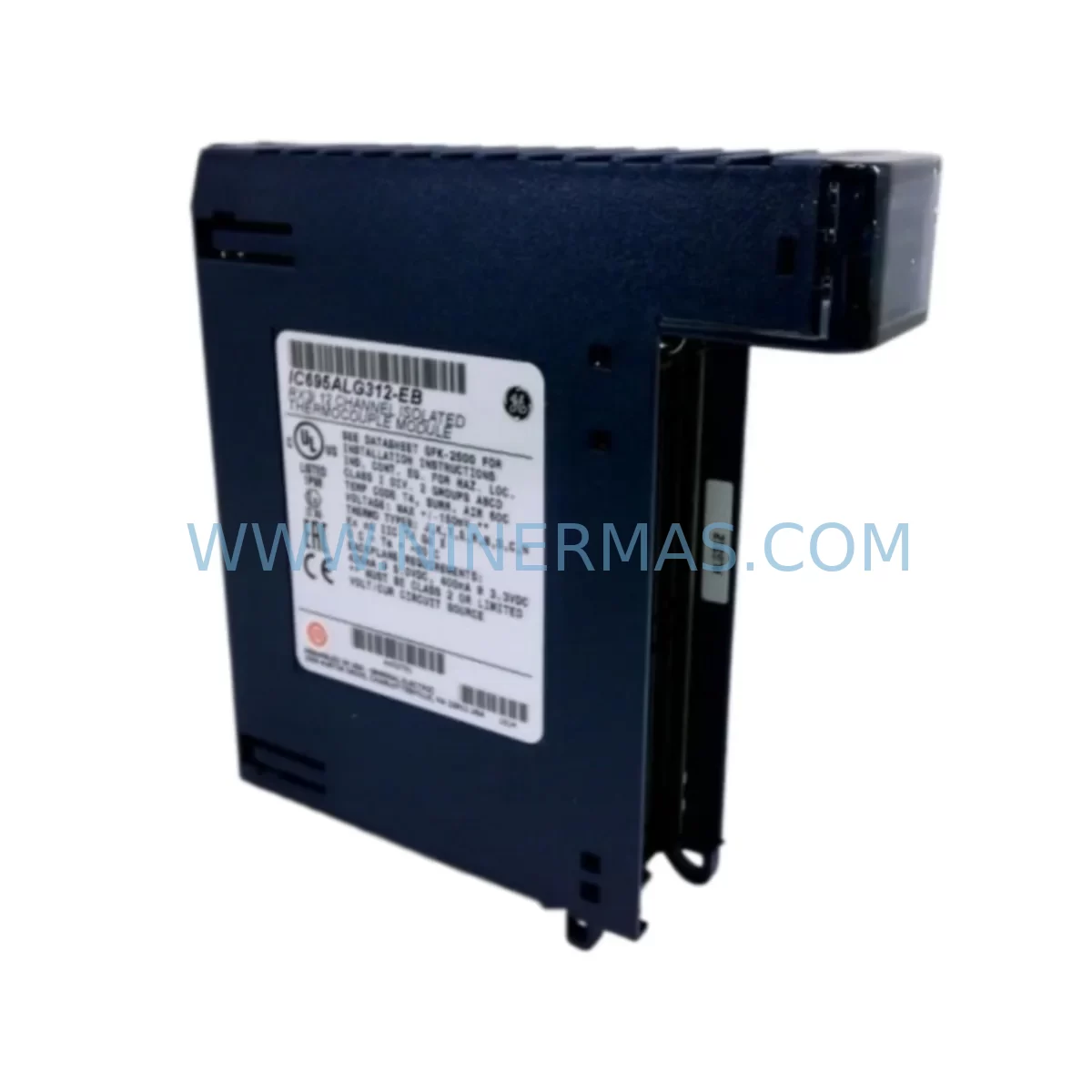

The GE IC695ALG312 is an original analog output module designed for the GE PACSystems RX3i platform — one of the most widely deployed PLC architectures in process control, discrete manufacturing, and utility automation. For maintenance engineers managing aging control systems, sourcing a verified, service-ready IC695ALG312 is critical to minimizing unplanned downtime and restoring production continuity without costly system redesigns.

At NINERMAS, every IC695ALG312 unit is sourced from authorized supply chains, inspected prior to dispatch, and shipped with a 12-month warranty. Whether you are responding to an emergency fault, building a preventive spare parts inventory, or executing a scheduled annual overhaul, this module is available for immediate fulfillment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a GE IC695ALG312 analog output module fails or is flagged during a control cabinet inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that analog signal degradation, output drift, or channel failure in an RX3i system often points to stress across adjacent components. A thorough site assessment should accompany any IC695ALG312 replacement.

Begin by verifying the IC695PSA040 or IC695PSD040 power supply module — unstable DC bus voltage is a leading cause of analog output anomalies and premature module failure. Next, inspect the IC695CHS012 or IC695CHS016 backplane for bent connector pins, oxidation, or thermal damage at the slot where the IC695ALG312 is seated. A compromised backplane slot can cause intermittent faults that are difficult to diagnose without physical inspection.

Check the active CPU — whether an IC695CPE302, IC695CPE305, or IC695CPE310 — for firmware version compatibility with the replacement module. Mismatched firmware can prevent proper channel initialization after hot-swap or cold-start. If the system uses redundant CPU configurations, verify that both CPUs recognize the new module identically.

On the field wiring side, inspect terminal blocks and field wiring harnesses connected to the IC695ALG312 output channels. Corroded terminals, loose ferrules, or undersized conductors can introduce resistance that distorts 4–20 mA loop signals. Signal isolators or loop-powered isolators installed between the module and field instruments should also be tested for drift — these components age alongside the PLC hardware and are frequently overlooked during spare part replacements.

If the RX3i rack includes communication modules such as the IC695ETM001 Ethernet module or IC695PBM300 PROFIBUS master, confirm that the network configuration remains intact after the module swap. Analog output channel mapping in the PLC program must be validated against the physical slot assignment to prevent process upsets at restart.

For facilities running HMI systems connected to the RX3i — such as GE’s QuickPanel+ operator interfaces or third-party SCADA platforms — verify that analog output tag addresses are correctly mapped and that the HMI reflects live process values after the replacement is complete. A functional loop test on each of the 12 output channels before returning the system to automatic mode is strongly recommended.

Procurement engineers building a strategic spare parts inventory for PACSystems RX3i installations should consider stocking the IC695ALG312 alongside complementary modules: the IC695ALG600 analog input module, IC695MDL654 discrete output module, and IC695MDL740 discrete input module cover the most common failure categories in a mixed I/O cabinet. Fuse holders and replacement fuses rated for the field circuit voltages in use should also be included in the spare parts kit.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s slot number in the RX3i backplane and document the current channel configuration, output ranges, and engineering unit scaling from the PLC programming software (Proficy Machine Edition). Export the hardware configuration file as a backup before any physical work begins.

Step 2 — Safe Isolation: Place the CPU in STOP mode and follow your site’s lockout/tagout (LOTO) procedure for the control cabinet. Do not remove the IC695ALG312 under power unless the system is confirmed hot-swap capable and the site procedure explicitly permits it.

Step 3 — Module Removal and Inspection: Remove the faulty IC695ALG312 and inspect the backplane slot connector for damage. Clean the slot with compressed air if contamination is present. Compare the replacement module’s catalog label and firmware revision against the removed unit.

Step 4 — Installation and Configuration: Seat the new IC695ALG312 firmly into the backplane slot. Reconnect field wiring to the terminal block, verifying wire assignments against the as-built wiring diagram. Power up the rack and confirm the CPU recognizes the module without fault codes.

Step 5 — Loop Test and Commissioning: Using Proficy Machine Edition or a handheld loop calibrator, force each of the 12 output channels to known values (0%, 50%, 100% of range) and verify the corresponding field instrument response. Document results and return the system to automatic operation only after all channels pass.

This structured workflow reduces mean time to repair (MTTR), eliminates configuration errors, and ensures the replacement IC695ALG312 performs identically to the original — protecting both the process and the maintenance team’s accountability records.

Spare Parts Support FAQ

Q1: Is the IC695ALG312 still in production, and can NINERMAS guarantee long-term supply?
The IC695ALG312 has reached end-of-active-production status under GE/Emerson’s product lifecycle policy, but NINERMAS maintains a dedicated inventory of original units sourced from authorized distributors and decommissioned systems. We support long-term supply commitments for customers managing extended PACSystems RX3i installations, with lead time transparency and advance reservation options available on request.

Q2: How is each IC695ALG312 tested before shipment?
Every unit undergoes a pre-shipment functional inspection covering physical condition, connector integrity, and where test equipment permits, power-on verification. Units are packed in anti-static ESD-safe packaging with desiccant to prevent moisture ingress during international transit. A test report is available upon request for critical infrastructure customers.

Q3: Can the IC695ALG312 replace older GE Series 90-30 analog output modules?
The IC695ALG312 is a PACSystems RX3i native module and is not directly backward-compatible with GE Series 90-30 (IC693 series) hardware at the backplane level. However, RX3i systems can be configured to emulate Series 90-30 I/O behavior through the CPU’s compatibility mode. Consult your Proficy Machine Edition hardware configuration and GE migration documentation before substituting across platform generations.

Q4: What does the 12-month warranty cover, and what is the claims process?
NINERMAS’s 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If an IC695ALG312 unit fails within the warranty period, contact our technical support team with the order reference and fault description. We will arrange priority replacement shipment to minimize your system downtime. Warranty claims are processed within 2 business days of fault confirmation.
