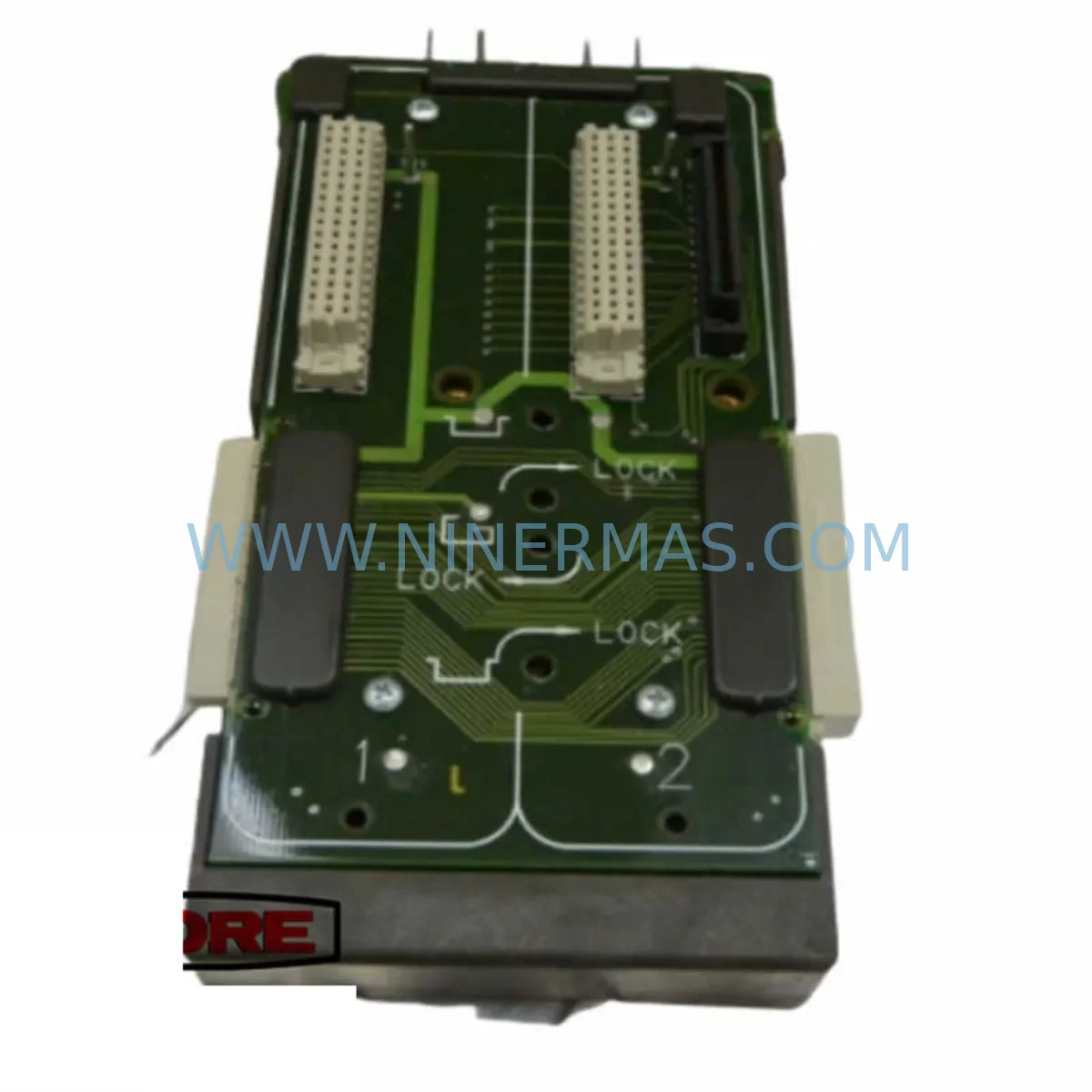

Emerson KJ4001X1-BA2 Retrofit-Compatible I/O Carrier for Legacy DeltaV

Emerson KJ4001X1-BA2 Retrofit-Compatible I/O Carrier for Legacy DeltaV Systems

The Emerson KJ4001X1-BA2 VE3051CO 12P1562X012 is a retrofit-compatible I/O carrier assembly designed for seamless integration into existing Emerson DeltaV S-series distributed control system architectures. As aging DeltaV installations approach end-of-life hardware cycles, this carrier assembly provides a verified drop-in replacement path that preserves existing wiring infrastructure, terminal assignments, and module addressing — minimising engineering rework and unplanned downtime during system modernisation projects.

Engineered for process industries including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing, the KJ4001X1-BA2 supports the full range of DeltaV S-series I/O modules. Its compatibility with the VE3051CO transmitter interface and 12P1562X012 sub-assembly ensures that field instruments — including Rosemount 3051 series pressure transmitters wired via HART protocol — continue to communicate without reconfiguration of the DeltaV controller or associated DeltaV Explorer module database entries.

Before committing to a retrofit using this carrier, engineering teams should verify several critical parameters: power supply capacity at the I/O subsystem level (the KJ4001X1-BA2 draws from the DeltaV PSIO power supply, typically a KJ4001X1-BA1 or equivalent), terminal block wiring continuity against the existing loop drawings, backplane slot addressing within the DeltaV S-series carrier rack, and module node address assignments in the DeltaV system database. Any mismatch in node addressing between the legacy carrier and the replacement unit will require a DeltaV Operate or DeltaV Diagnostics session to re-commission the affected I/O node.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the KJ4001X1-BA2 into an operating DeltaV environment begins well before the physical swap. The first step is a thorough audit of the existing I/O subsystem: identify which DeltaV S-series I/O modules — such as the KJ3002X1-BA1 analog input module or the KJ3222X1-BA1 digital output module — are seated in the carrier being replaced. Each module’s node address, channel assignments, and associated controller download must be documented before removal.

The VE3051CO sub-reference in this assembly’s part number indicates compatibility with Rosemount 3051C series pressure transmitters communicating over HART. During retrofit planning, verify that the HART multiplexer — if a Pepperl+Fuchs or Emerson HART Multiplexer is in use — remains correctly mapped to the new carrier’s terminal positions. HART device descriptors stored in the DeltaV system database do not need to be re-imported, but a HART pass-through test using DeltaV Diagnostics is recommended post-installation to confirm signal integrity on each loop.

Power budget verification is non-negotiable. The KJ4001X1-BA1 PSIO power supply module feeding the carrier rack must have sufficient headroom to support all installed I/O modules simultaneously. If the existing PSIO is operating near capacity — a common situation in legacy cabinets where modules have been added incrementally over years — consider installing a redundant PSIO pair before proceeding with the carrier swap. This is especially important in safety-instrumented loops where the DeltaV SIS logic solver or associated KJ4001X1-BA2 SIS carrier variants share the same power rail.

For sites running DeltaV v11 or earlier, confirm that the replacement carrier is recognised by the installed DeltaV software version. While the KJ4001X1-BA2 is backward-compatible across the S-series platform, older DeltaV versions may require a firmware alignment check via the DeltaV Operate Engineering workstation. The 12P1562X012 sub-assembly reference confirms this unit’s compatibility with the standard S-series mechanical and electrical interface specification.

Communication link continuity is another key concern. If the DeltaV controller — such as a KJ2003X1-BA1 MD Plus controller or a KJ2005X1-BA1 MD controller — communicates with the I/O subsystem over a redundant DeltaV bus, both primary and secondary bus connections at the carrier level must be verified after installation. A brief DeltaV Diagnostics scan will confirm that the controller re-establishes communication with all I/O nodes on the replaced carrier within the expected scan cycle.

Where the retrofit involves migrating from an older DeltaV M-series or RS3 legacy platform to the S-series architecture, additional planning is required for I/O marshalling. In these cases, a DeltaV CHARM I/O card (CIOC) or a DeltaV Electronic Marshalling solution may be evaluated as a longer-term upgrade path, though the KJ4001X1-BA2 remains the preferred like-for-like replacement for existing S-series installations where marshalling cabinets are already in place.

Downtime Control During System Migration

Minimising production downtime during a DeltaV I/O carrier replacement requires a structured change management approach. The recommended practice is to schedule the physical swap during a planned maintenance window, with a pre-agreed maximum outage duration — typically 2 to 4 hours for a single carrier replacement in a non-redundant I/O subsystem.

Before the maintenance window opens, prepare a DeltaV controller download package that captures the current I/O configuration, module assignments, and control module logic. Store this as a named revision in the DeltaV system database so that a rollback is possible if the replacement carrier does not initialise correctly. The existing DeltaV Operate HMI graphics and associated faceplates do not require modification — tag names and I/O channel references are preserved through the carrier swap, provided module node addresses are maintained.

During the swap, follow a structured sequence: power down the affected I/O subsystem at the PSIO level (not at the controller level, to keep the DeltaV controller and remaining I/O nodes online), remove the legacy carrier, seat the KJ4001X1-BA2 replacement, reconnect field wiring to the terminal block, and restore PSIO power. The DeltaV controller will automatically re-scan the I/O bus and re-establish communication with the replacement carrier within one to three scan cycles — typically under 30 seconds for a healthy DeltaV network.

Post-installation, run a full DeltaV Diagnostics check across all I/O channels on the replaced carrier. Verify that each analog input channel — particularly those connected to Rosemount 3051C transmitters via the VE3051CO interface — is returning a valid process value within the expected engineering unit range. Confirm that HART communication is active on all HART-enabled channels. Document the post-installation diagnostic results as part of the site’s change management record before returning the process unit to normal operation.

For sites where continuous operation is mandatory, a hot-standby I/O strategy using DeltaV redundant I/O carriers should be evaluated as a longer-term architecture upgrade. In the interim, the KJ4001X1-BA2 provides a reliable, tested replacement that supports the site’s spare parts lifecycle extension programme without requiring a full DeltaV system upgrade.

Retrofit Support FAQ

Q1: Is the KJ4001X1-BA2 a direct replacement for my existing DeltaV S-series I/O carrier?
Yes. The KJ4001X1-BA2 is a form-fit-function compatible replacement for DeltaV S-series I/O carriers of the same mechanical class. Existing field wiring, terminal assignments, and backplane connections are preserved. No re-engineering of the DeltaV system database is required, provided module node addresses are maintained during the swap.

Q2: Does this unit ship with a pre-shipment functional test?
Yes. Every KJ4001X1-BA2 unit supplied by NINERMAS undergoes a pre-shipment functional test to verify backplane connector integrity, terminal block continuity, and mechanical fit. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What should I verify regarding wiring and commissioning before installation?
Prior to installation, verify: (1) field wiring loop drawings against terminal block positions on the replacement carrier; (2) PSIO power budget at the subsystem level; (3) backplane slot address assignment in the DeltaV system database; (4) HART device descriptor mapping for any HART-enabled channels. Post-installation, run DeltaV Diagnostics to confirm I/O node communication and channel signal integrity before returning to service.

Q4: Can you supply this part for long-term spare parts programmes?
Yes. NINERMAS maintains inventory of the KJ4001X1-BA2 VE3051CO 12P1562X012 to support ongoing spare parts lifecycle programmes for DeltaV S-series installations. We can provide scheduled delivery agreements, multi-unit pricing, and documentation packages to support your site’s maintenance planning. Contact our team to discuss stock reservation and long-term supply arrangements.
