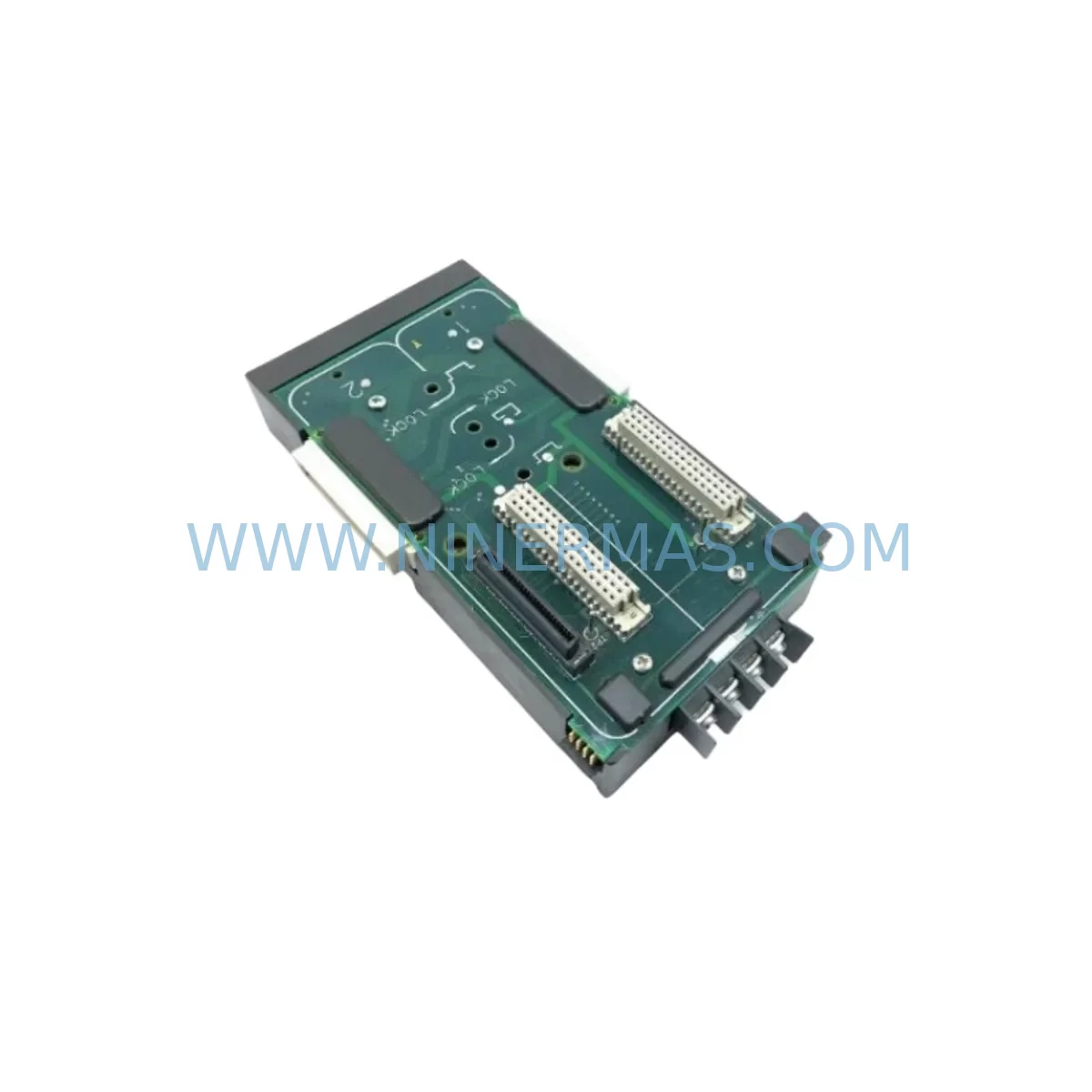

The Emerson KJ4001X1-BA3 (VE3051C0, 12P3378X012) is a ruggedized wide carrier base module designed for the Emerson DeltaV distributed control system (DCS). As a critical structural and electrical interface component within the DeltaV I/O subsystem, this carrier base module provides the physical mounting platform and backplane connectivity for DeltaV I/O cards, enabling reliable signal routing between field instruments and the DCS controller. It is engineered for continuous operation in demanding industrial environments including oil and gas processing, chemical plants, power generation, water treatment, and advanced manufacturing facilities.

For maintenance engineers managing aging DeltaV installations, the KJ4001X1-BA3 represents a high-priority spare part. Carrier base modules are subject to mechanical wear from repeated card insertion and extraction cycles, thermal cycling stress, and long-term connector fatigue. A degraded or failed carrier base can cause intermittent I/O communication faults, signal dropout on critical process loops, and in worst cases, unplanned process shutdowns. Maintaining at least one verified replacement unit in your site spare parts inventory is a recognized best practice for DeltaV system lifecycle management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DeltaV carrier base module such as the KJ4001X1-BA3 is identified for replacement during a scheduled outage or emergency fault response, experienced maintenance engineers treat the event as an opportunity to audit the surrounding I/O subsystem. The carrier base does not operate in isolation — it is the physical and electrical foundation for a cluster of DeltaV I/O modules, and its condition directly affects the reliability of every card seated within it.

During replacement, it is standard practice to inspect the DeltaV AI (Analog Input) cards such as the KJ3002X1-BA1 and KJ3001X1-BA1 seated in the carrier, verifying that connector pins are clean and undamaged. The DeltaV AO (Analog Output) modules sharing the same carrier should also be checked for signal drift or calibration deviation. If the carrier base failure was caused by power irregularities, the associated DeltaV power supply module (KJ4001X1-BC2 or equivalent) should be tested under load before reinstalling I/O cards.

Field wiring termination blocks connected to the carrier — including DeltaV CHARM I/O terminal blocks and marshalling cabinet terminal strips — should be inspected for loose connections, corrosion, or insulation degradation. In high-vibration environments such as compressor stations or offshore platforms, terminal block screws can loosen over time, causing intermittent signal faults that are often misdiagnosed as I/O card failures rather than wiring or carrier issues.

Communication integrity between the carrier base and the DeltaV controller should be verified after installation. If the site uses DeltaV FOUNDATION Fieldbus H1 interface cards or PROFIBUS DP communication modules mounted in adjacent carriers, their diagnostic status should be reviewed in DeltaV Diagnostics to confirm no cascading faults were introduced during the maintenance window. For sites running DeltaV SIS (Safety Instrumented System) logic solvers, any I/O carrier replacement in proximity to SIS loops must be followed by a partial stroke test or proof test as required by the site’s functional safety management plan.

Procurement engineers sourcing the KJ4001X1-BA3 should also consider stocking complementary components: DeltaV controller redundancy modules, Emerson Smart Wireless THUM adapters for field device diagnostics, and DeltaV workstation interface cards for operator station connectivity. Maintaining a balanced spare parts inventory across carrier bases, I/O modules, power supplies, and communication interfaces significantly reduces mean time to repair (MTTR) when unplanned faults occur.

Site Replacement Workflow

Replacing the KJ4001X1-BA3 carrier base module in an active DeltaV system requires careful sequencing to minimize process impact. The recommended workflow for maintenance teams is as follows:

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number and revision level match the installed base. The KJ4001X1-BA3 is compatible with DeltaV S-series and M-series controller architectures. Verify firmware compatibility with your DeltaV system version using the Emerson DeltaV compatibility matrix. Inspect the new carrier base for physical damage and confirm connector integrity before bringing it to the field.

Step 2 — Safe Isolation: Where process conditions allow, place affected I/O channels in manual mode at the DeltaV workstation before removing I/O cards from the carrier. For safety-critical loops, coordinate with the control room operator and follow the site’s Management of Change (MOC) procedure. Document the current I/O card slot assignments before extraction to ensure correct reinstallation sequence.

Step 3 — Carrier Removal and Installation: Remove I/O cards in sequence, label each card with its slot position, and disconnect field wiring termination blocks. Remove the failed carrier base from the DIN rail or panel mount. Install the KJ4001X1-BA3 replacement, ensuring secure mechanical seating and correct backplane alignment. Reconnect termination blocks and reinstall I/O cards in their original slot positions.

Step 4 — System Commissioning: Power up the carrier and verify that DeltaV Diagnostics shows all I/O modules online with no fault indicators. Confirm signal integrity on critical analog loops by comparing live readings against field instrument local indicators. Return I/O channels to automatic control mode and document the replacement in the site’s maintenance management system (CMMS).

This structured approach reduces replacement time, eliminates configuration errors, and ensures the DeltaV system returns to full operational status with minimal disruption to the production process. Sites that have pre-staged a verified KJ4001X1-BA3 spare unit consistently achieve faster recovery times compared to sites that source replacement parts reactively after a fault occurs.

Spare Parts Support FAQ

Q1: Is the KJ4001X1-BA3 compatible with all DeltaV controller generations?
The KJ4001X1-BA3 ruggedized wide carrier base module is designed for use within the Emerson DeltaV DCS platform, compatible with S-series and M-series controller architectures. Compatibility with specific DeltaV system versions should be confirmed against the Emerson hardware compatibility guide for your installed base revision. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What does the 12-month warranty cover?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify electrical integrity and mechanical condition before dispatch. Warranty claims are supported with replacement or repair at no additional cost within the warranty period.

Q3: How is long-term supply availability managed for discontinued or legacy DeltaV components?
NINERMAS maintains dedicated inventory of legacy and current-production Emerson DeltaV spare parts to support sites operating older system generations. For components such as the KJ4001X1-BA3 that may have limited OEM availability, we source from verified supply channels and maintain stock to support planned maintenance cycles and emergency replacement requirements. Contact our team to discuss long-term supply agreements for critical spare parts.

Q4: Can the KJ4001X1-BA3 be used as a direct drop-in replacement without system reconfiguration?
In most DeltaV installations, the KJ4001X1-BA3 functions as a direct mechanical and electrical replacement for the same carrier base type. No DeltaV software reconfiguration is typically required, as the carrier base itself does not carry module-specific configuration data — configuration resides in the I/O modules and the DeltaV controller database. However, sites should verify slot assignments and termination block wiring before returning the system to service, and perform a post-replacement I/O diagnostic check in DeltaV Diagnostics.
