ABB AO820 3BSE008546R1 Safety-Reliable Analog Output

ABB AO820 3BSE008546R1 Safety-Reliable Analog Output for Critical Control Sites

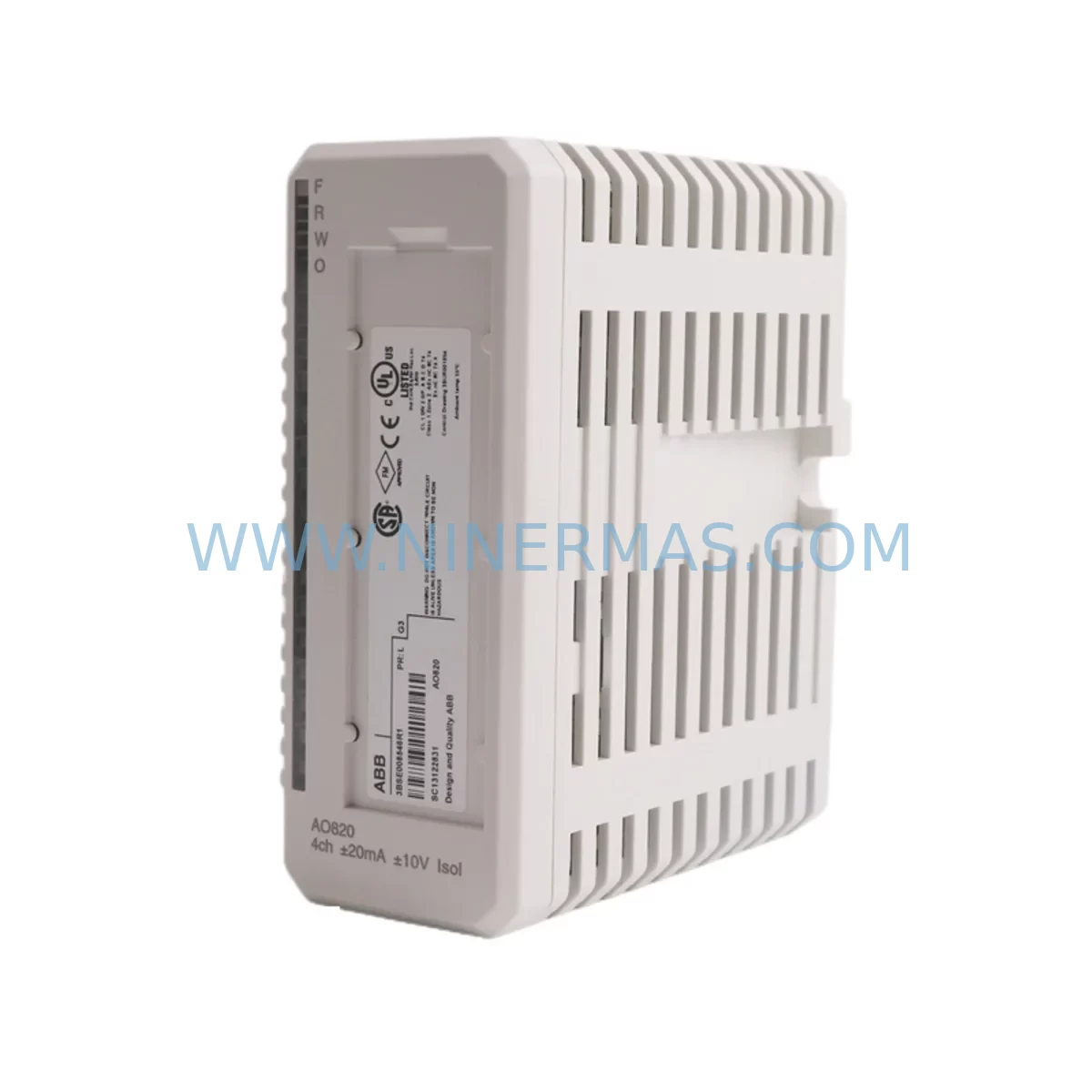

The ABB AO820 (3BSE008546R1) is a high-performance analog output module designed for the ABB S800 I/O system, widely deployed in critical industrial automation environments where signal integrity, control loop stability, and uninterrupted operation are non-negotiable. Engineered to meet the demanding requirements of continuous production facilities, hazardous area control cabinets, and safety-critical interlock systems, the AO820 delivers precise 4–20 mA analog output signals with exceptional resistance to electrical noise, voltage fluctuation, and environmental stress.

At NINERMAS, we supply the AO820 3BSE008546R1 as a verified original ABB component, fully tested prior to shipment and backed by a 12-month warranty. Our inventory is maintained to support urgent spare part replacement, planned maintenance shutdowns, and long-term procurement contracts across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and marine automation sectors.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In heavy industrial control cabinets — particularly those serving continuous process plants, critical interlock loops, and high-load motor control centers — the reliability of every analog output channel directly determines the safety margin of the entire control system. The ABB AO820 3BSE008546R1 is engineered to eliminate signal drift, output freeze, and channel failure under conditions of high electromagnetic interference, power supply fluctuation, and thermal cycling.

When integrated into an ABB AC800M controller-based DCS architecture, the AO820 works in close coordination with companion S800 I/O modules to form a robust, fault-tolerant control loop. For example, the ABB AI820 (3BSE008544R1) analog input module provides the upstream process variable feedback, while the AO820 closes the loop by driving final control elements such as control valves, variable frequency drives, and electro-pneumatic positioners. Together, they ensure that PID control loops remain stable even under load transients and bus communication disturbances.

To protect the AO820 and the broader S800 I/O rack from power-side risks, it is standard practice to pair the system with an ABB SD823 (3BSC610065R1) redundant power supply module, which provides seamless switchover in the event of primary power failure — a critical safeguard in 24/7 continuous production environments. Surge protection at the field wiring terminals, such as the ABB ICSSP-24 surge protection module, further shields analog output channels from lightning-induced transients and switching surges common in outdoor substations and long cable runs.

For applications requiring high-availability redundancy, the AO820 can be deployed alongside the ABB TB820V2 (3BSE013208R1) ModuleBus optical modem, which maintains communication integrity between the S800 I/O cluster and the AC800M controller even in environments with severe electrical noise from large motor starters, welding equipment, or high-frequency inverters. The optical bus architecture inherently eliminates ground loop interference — a common cause of analog signal corruption in steel mills, aluminum smelters, and cement plants.

In safety instrumented systems (SIS) and emergency shutdown (ESD) applications, the AO820 is often deployed in conjunction with ABB AI830A (3BSE040662R1) HART-enabled analog input modules and ABB DO820 (3BSE008510R1) digital output modules to form a complete safety loop capable of driving solenoid valves, alarm annunciators, and shutdown actuators. The ABB CI854A (3BSE030220R1) PROFIBUS DP communication interface module is frequently used in the same control cabinet to bridge the S800 I/O system with field devices such as intelligent motor controllers, remote I/O stations, and third-party safety PLCs.

For installations in dusty, humid, or chemically aggressive environments — such as water treatment plants, offshore platforms, and fertilizer production facilities — the control cabinet housing the AO820 is typically equipped with ABB cabinet climate control units and conformal-coated backplane assemblies to prevent condensation-induced short circuits and corrosion-related contact failures. Proper grounding of the S800 I/O rail, combined with shielded twisted-pair field wiring, is essential to maintain the AO820’s specified ±0.1% output accuracy over the full operating temperature range.

Critical Industrial Safety Applications

Petrochemical & Refinery: The AO820 3BSE008546R1 is widely used in crude distillation units, catalytic cracking columns, and compressor anti-surge control loops where precise analog output to control valves is essential for preventing runaway reactions, overpressure events, and unplanned flaring. Its high EMI immunity ensures stable operation in proximity to high-voltage switchgear and large rotating machinery.

Power Generation: In coal-fired, gas turbine, and hydroelectric power plants, the AO820 drives boiler feedwater control valves, turbine governor actuators, and excitation system references. Its ability to maintain output accuracy during grid disturbances and generator switching transients makes it a preferred choice for critical power control loops.

Mining & Mineral Processing: Conveyor speed control, flotation cell level regulation, and crusher load management in underground and open-pit mining operations rely on the AO820’s robust output channels to maintain throughput and prevent equipment damage from overload or process upset conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment plants use the AO820 to control dosing pumps, aeration blowers, and filtration backwash sequences. Its resistance to humidity and its stable operation in low-temperature pump houses and outdoor control kiosks make it suitable for year-round continuous operation.

Metallurgy & Steel Production: Electric arc furnace electrode regulation, continuous casting mold level control, and rolling mill tension control are among the most demanding analog output applications in industry. The AO820’s optical ModuleBus communication and high noise immunity allow it to function reliably in the extreme electromagnetic environment of steelmaking facilities.

Port Logistics & Marine Automation: Ship-to-shore crane drives, bulk material handling conveyors, and vessel ballast control systems benefit from the AO820’s compact form factor, wide operating temperature range, and compatibility with ABB’s marine-grade automation platforms.

Safety and Quality FAQ

Q1: Does the ABB AO820 3BSE008546R1 come with a warranty?
Yes. Every AO820 3BSE008546R1 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures, and premature component degradation under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and root cause analysis upon request.

Q2: What pre-shipment testing is performed on the AO820?
Each unit undergoes a multi-point functional test prior to shipment, including channel-by-channel output verification across the full 4–20 mA range, bus communication handshake testing, power consumption measurement, and visual inspection for physical damage or counterfeit indicators. Test records are available upon request for quality-critical procurement.

Q3: Is the AO820 3BSE008546R1 compatible with all ABB AC800M and AC800F controllers?
Yes. The AO820 is fully compatible with the ABB AC800M, AC800F, and AC800S controller families when used with the S800 I/O ModuleBus architecture. It is also backward-compatible with earlier ABB Advant OCS and Master systems via appropriate bus interface modules. NINERMAS technical staff can advise on specific compatibility requirements for your installed base.

Q4: Can NINERMAS support long-term supply and emergency replacement for the AO820?
Absolutely. NINERMAS maintains a dedicated inventory of ABB S800 I/O modules, including the AO820 3BSE008546R1, to support both planned maintenance schedules and emergency breakdown situations. We offer same-day quotation, rapid dispatch, and export documentation for international shipments. Our supply chain covers original new stock, factory-refurbished units, and tested surplus — all clearly identified and warranted.
