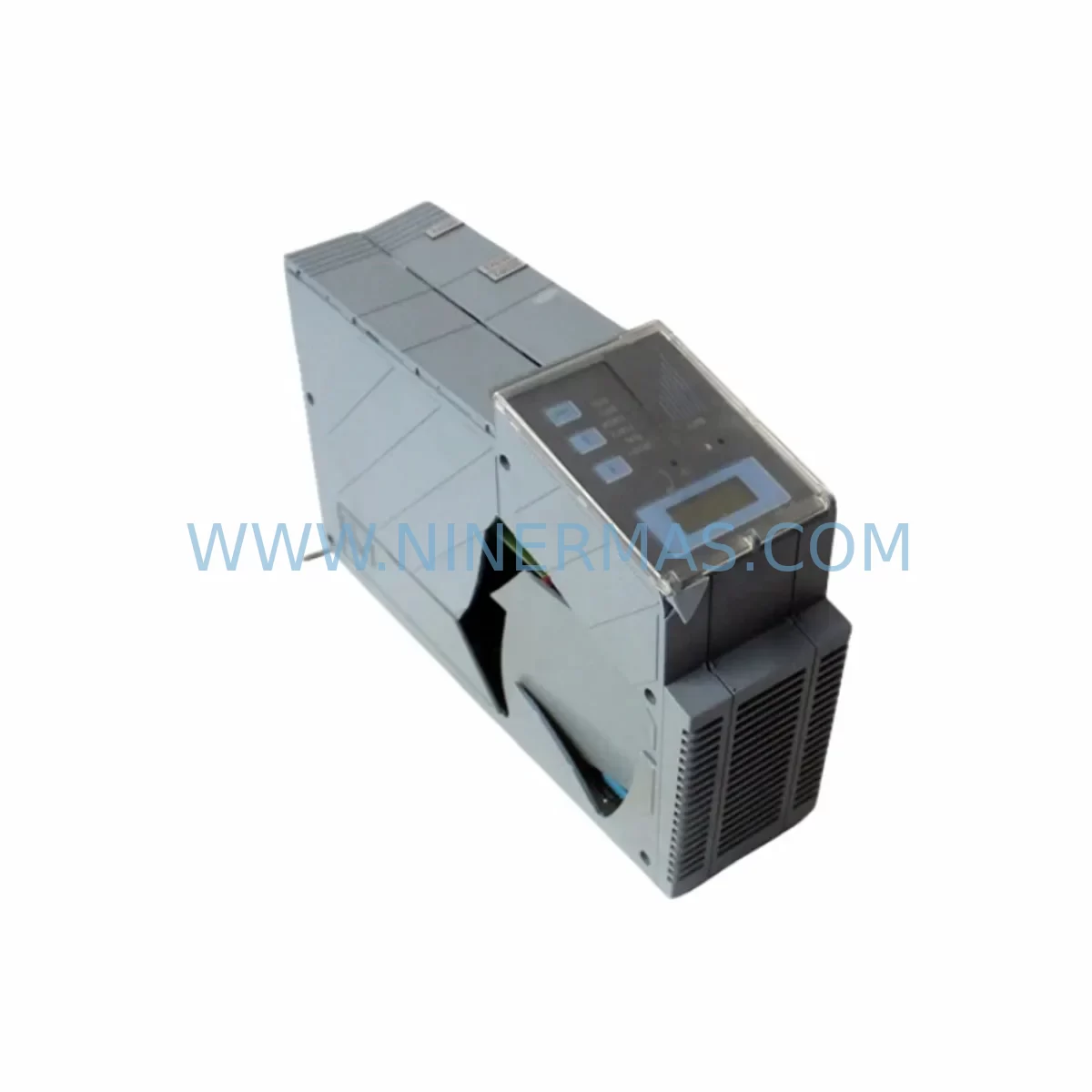

The B&R 2CP104.60-1 is a central processing unit module designed for the B&R 2CP Series programmable logic controller platform — a control architecture widely deployed across discrete manufacturing, packaging lines, material handling systems, and process automation installations throughout the 1990s and early 2000s. As B&R has progressively transitioned its portfolio toward the X20 System and Automation Runtime-based platforms, the 2CP104.60-1 has become a critical spare part for maintenance engineers responsible for sustaining legacy control infrastructure without committing to a full system overhaul.

NINERMAS maintains verified stock of the 2CP104.60-1 sourced from original B&R supply channels, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty. For plant operators managing aging 2CP Series control cabinets, this module represents the lowest-risk path to restoring system availability following CPU failure, memory corruption, or hardware degradation — without requiring immediate migration to a newer control platform.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 2CP104.60-1 in an operational plant environment requires a structured approach that accounts for the interdependencies between the CPU module and the surrounding control architecture. Before removing the failed unit, maintenance teams should capture a full program backup from the existing CPU using B&R Automation Studio or the legacy PG2000 programming tool, depending on the firmware generation in use. If the CPU is non-responsive, the program may need to be recovered from an EPROM module or a previously archived project file.

The 2CP Series backplane accommodates a range of I/O and communication modules that remain in service during a CPU swap. Commonly co-installed modules include digital input modules such as the 2DI365.6 and 2DI745.9, digital output modules such as the 2DO720.6, and analog I/O modules from the 2AI and 2AO sub-families. Each of these modules retains its configured I/O address during a CPU replacement, but the new CPU must be confirmed to recognize the same module address map — particularly if the replacement unit carries a different firmware revision than the original.

Communication links present another critical checkpoint. If the 2CP104.60-1 is operating as a PROFIBUS-DP master, the network configuration — including slave addresses, baud rate, and GSD file assignments — must be verified against the replacement CPU’s communication parameters. Where the system includes a 2CP Series communication module such as the 2CP360.60-1 for serial or fieldbus connectivity, the interface settings should be documented and re-validated after the CPU swap. RS-232 or RS-485 links to HMI panels, barcode readers, or weighing systems are particularly sensitive to baud rate and parity mismatches that can emerge when a CPU with a different firmware baseline is introduced.

Power supply capacity is a frequently overlooked factor in 2CP Series retrofit projects. The backplane power supply module — typically a unit in the 2PS Series — must be confirmed to provide sufficient current for the full module complement installed in the rack. Adding a replacement CPU with a marginally different power draw profile, or expanding the rack with additional I/O modules as part of a broader upgrade, can push the supply toward its rated limit. A current budget review against the 2PS module’s datasheet is recommended before finalizing the retrofit plan.

HMI screen mapping is another area requiring attention. If the plant operates a B&R 2PP Series operator panel or a third-party HMI connected via serial link, the variable tag addresses and screen navigation logic should be verified against the restored program. Tag address offsets can shift if the program is restored from a project file that was compiled under a different Automation Studio version than the one originally used to commission the system.

For installations where the 2CP104.60-1 controls motion axes via integrated pulse outputs or where it interfaces with a B&R 2AT Series axis controller, the axis parameterization — including encoder resolution, velocity limits, and homing sequences — must be re-confirmed after program restoration. Motion-related parameters are particularly sensitive to firmware differences between CPU revisions.

Signal isolation between the CPU’s I/O bus and field devices is worth reviewing during any retrofit. Where legacy wiring connects directly to 2CP Series I/O terminals without intermediate signal isolators, the retrofit window provides an opportunity to insert DIN-rail-mounted signal isolators for thermocouple, 4–20 mA, or RTD inputs — improving noise immunity and protecting the replacement module from field-side transients.

Downtime Control During System Migration

Minimizing unplanned downtime during a 2CP104.60-1 replacement begins with pre-staging the replacement module before the maintenance window opens. NINERMAS ships each unit with pre-shipment functional testing completed, which eliminates the risk of receiving a non-functional module and discovering the problem only after the original unit has been removed from the rack.

The recommended sequence for a controlled CPU swap is: (1) archive the current program and all parameter files to an external storage medium; (2) document the current I/O status and any active setpoints visible on the HMI; (3) execute a controlled shutdown of the process to a safe state; (4) remove the failed 2CP104.60-1 and install the replacement module; (5) restore the program from the archived backup; (6) verify I/O addressing, communication link status, and HMI tag connectivity before returning the system to automatic mode.

Where the process cannot tolerate a cold restart, a warm-swap strategy may be possible if the 2CP Series rack supports module hot-swap at the backplane level — this should be confirmed against the specific rack and firmware documentation before attempting. In most 2CP Series installations, a controlled cold restart with a pre-tested replacement module and a verified program backup can be completed within a two- to four-hour maintenance window, keeping production impact within acceptable limits.

Retaining the original program logic intact — rather than attempting to modify or optimize the program during the replacement window — is strongly recommended. Program changes introduced during a time-pressured retrofit are a leading cause of extended commissioning delays. Any optimization work should be scheduled as a separate activity after the system has been returned to stable production operation.

Retrofit Support FAQ

Q1: Is the 2CP104.60-1 a direct drop-in replacement for the existing module in my 2CP Series rack?
In most cases, yes — the 2CP104.60-1 is designed for the 2CP Series backplane and will physically seat in the same slot as the original module. However, firmware revision differences between the replacement unit and the original can affect program compatibility and communication parameter behavior. NINERMAS recommends confirming the firmware version of the replacement unit against your existing program’s compilation environment before installation.

Q2: What commissioning steps are required after installing the replacement CPU?
After physical installation, restore the program from your archived backup using B&R Automation Studio or PG2000. Verify I/O module addressing, confirm PROFIBUS or serial communication link status, check HMI tag connectivity, and run a supervised test cycle before returning the system to automatic production mode. For motion-controlled axes, re-confirm axis parameterization and homing sequences.

Q3: Does NINERMAS provide pre-shipment testing and warranty coverage?
Yes. Every 2CP104.60-1 unit shipped by NINERMAS undergoes functional pre-shipment testing to verify module operability before dispatch. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS provides replacement or repair support with priority handling to minimize your system downtime.

Q4: What if the 2CP104.60-1 is no longer available and I need to migrate to a newer B&R platform?
If direct replacement stock is exhausted, migration to the B&R X20 System is the recommended upgrade path. This involves replacing the 2CP Series CPU and backplane with an X20 base system, remapping I/O to X20 digital and analog modules, and migrating the application program to Automation Runtime under Automation Studio 4. NINERMAS can advise on migration planning and supply X20 Series components including X20CP1301 or X20CP3586 CPUs, X20 power supply modules, and X20 I/O modules to support a phased transition that minimizes production disruption.
