ABB CAO10-P 3BDH000723R1 Safety-Reliable Analog Output Module

ABB CAO10-P 3BDH000723R1 Safety-Reliable Analog Output Module for Critical Control Sites

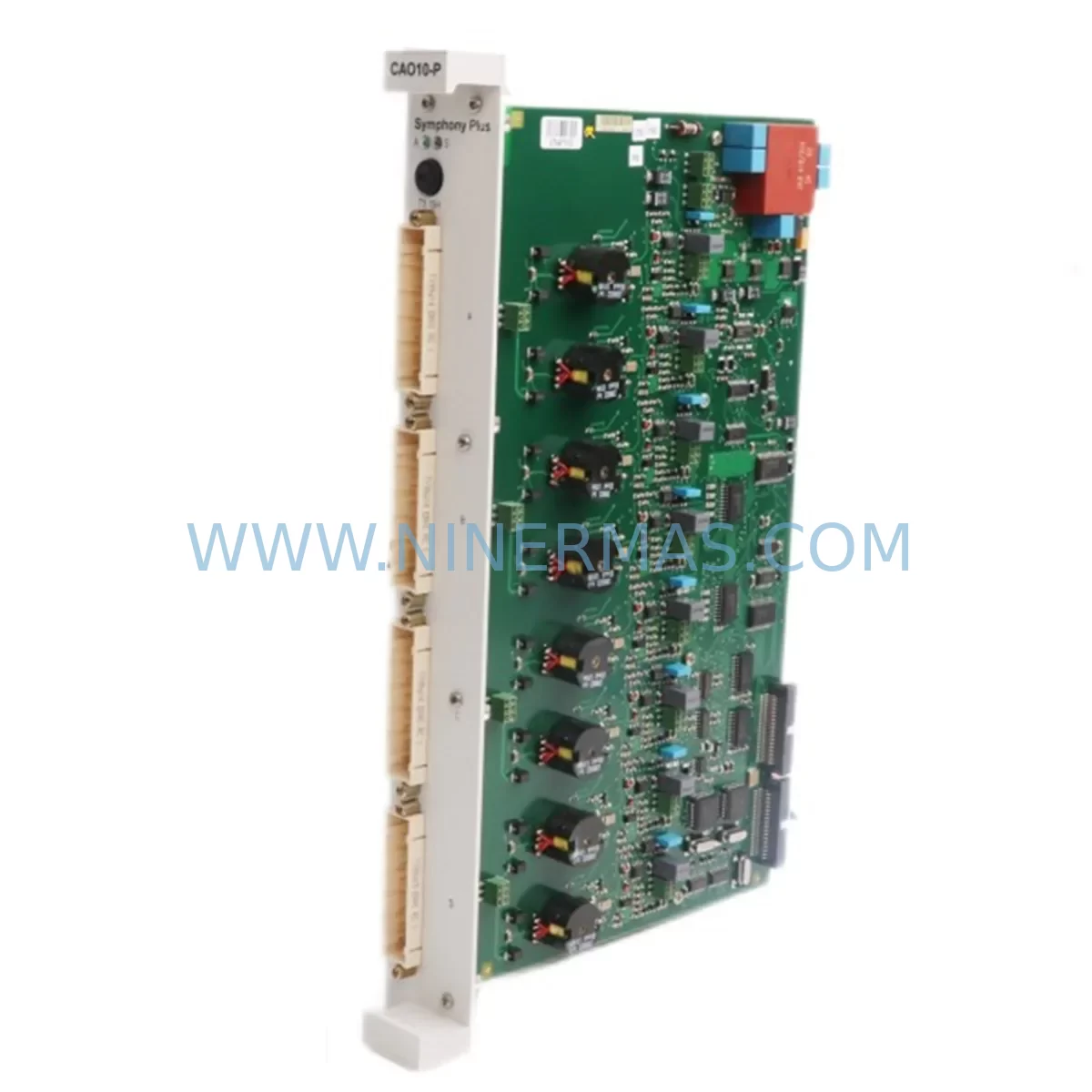

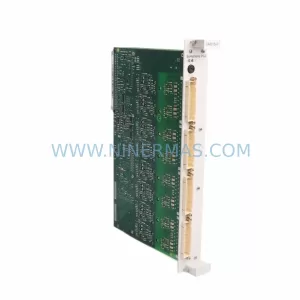

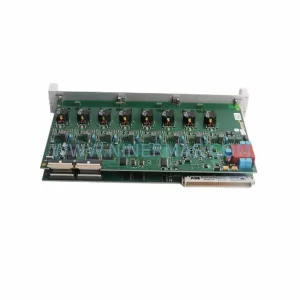

The ABB CAO10-P (Part No. 3BDH000723R1) is a ruggedized analog output module engineered for demanding industrial environments where signal integrity, control loop stability, and uninterrupted operation are non-negotiable. Designed for integration within ABB’s AC800M distributed control architecture, this module delivers precise 4–20 mA or 0–10 V analog output signals to field actuators, control valves, variable frequency drives, and positioners across continuous production facilities.

In critical control sites — including petrochemical plants, power generation stations, mineral processing facilities, water treatment infrastructure, and metallurgical operations — the CAO10-P 3BDH000723R1 plays a central role in maintaining stable process control. Its ruggedized design addresses the real-world challenges of high electromagnetic interference, ambient temperature fluctuations, mechanical vibration, dust ingress, and humidity exposure that routinely degrade standard analog output hardware.

Maintenance engineers and procurement teams sourcing replacement analog output modules for AC800M-based control systems will find the CAO10-P 3BDH000723R1 to be a direct, compatible replacement that restores full system functionality without requiring firmware reconfiguration or hardware adaptation. Each unit is tested prior to shipment to verify output accuracy, channel isolation, and communication handshake with the AC800M controller backplane.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the CAO10-P 3BDH000723R1 as part of a structured control cabinet maintenance strategy significantly reduces the risk of unplanned process shutdowns. In AC800M-based control cabinets, the analog output module works in close coordination with several other critical components. The PM866 or PM891 controller modules serve as the processing core, and any degradation in analog output performance directly impacts the controller’s ability to regulate field devices. Alongside the CAO10-P, the CI854 or CI858 communication interface modules manage PROFIBUS or FOUNDATION Fieldbus connectivity, and their health must be verified during any analog output replacement procedure.

Power integrity is equally critical. The SD821 or SD822 power supply modules provide the 24 VDC rail that feeds the S800 I/O station, and voltage ripple or transient spikes on this rail can cause analog output drift or channel faults. Installing surge protection devices and verifying terminal block torque values on the TB820 or TB825 I/O terminal units ensures that field wiring does not introduce ground loops or noise into the analog signal chain.

For sites with high electromagnetic interference — common in motor control centers, arc furnace environments, or variable frequency drive installations — signal isolators and shielded cable assemblies should be installed between the CAO10-P output terminals and field actuators. The AI810 or AI830A analog input modules on the same I/O station should also be inspected for signal drift, as interference that affects output modules frequently impacts input channels on the same bus segment. In safety-instrumented systems, verifying that the CAO10-P’s output channels are not shared with SIL-rated interlock loops is essential to maintaining functional safety integrity.

Critical Industrial Safety Applications

The ABB CAO10-P 3BDH000723R1 is deployed across a wide range of critical industrial sectors where process continuity and control accuracy directly affect safety outcomes. In petrochemical and refinery operations, the module controls flow control valves, pressure regulators, and temperature-modulating actuators in distillation columns, reactor feed systems, and heat exchanger bypass loops. A failed analog output in these environments can result in process excursions, safety system activation, or unplanned unit shutdown.

In power generation — including coal-fired, gas turbine, and hydroelectric facilities — the CAO10-P manages boiler feedwater control, turbine governor signals, and generator excitation trim outputs. The module’s channel isolation and EMC compliance make it suitable for installation in high-voltage switchgear rooms and generator control panels where induced interference is a persistent concern.

Mining and mineral processing operations rely on the CAO10-P for conveyor speed control, flotation cell reagent dosing, and crusher load management. The ruggedized construction tolerates the vibration and dust levels typical of underground and open-pit environments. Water and wastewater treatment plants use the module to control dosing pumps, aeration blowers, and sluice gate actuators, where precise analog output is essential for regulatory compliance and process efficiency. Port and maritime applications include cargo handling crane control and ballast water management systems, where the module’s reliability under salt-air and humidity conditions is a key selection criterion.

Safety and Quality FAQ

Q: Does the ABB CAO10-P 3BDH000723R1 come with a warranty?
A: Yes. Every CAO10-P 3BDH000723R1 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures, and output accuracy deviations under normal operating conditions.

Q: How is the module tested before shipment?
A: Each unit undergoes pre-shipment functional testing that verifies analog output accuracy across all channels, S800 I/O bus communication, channel isolation integrity, and power consumption within specification. Test records are available upon request.

Q: Is the CAO10-P 3BDH000723R1 compatible with my existing AC800M system?
A: The CAO10-P is designed for the ABB S800 I/O platform used with AC800M controllers. Compatibility depends on your specific I/O station configuration and firmware version. NINERMAS technical support can assist with compatibility verification based on your system’s hardware revision and software baseline.

Q: Can NINERMAS support long-term supply of this module?
A: Yes. NINERMAS maintains stock of the CAO10-P 3BDH000723R1 and can support scheduled procurement, emergency replacement orders, and annual maintenance contracts. Long-term supply agreements are available for customers with ongoing AC800M fleet maintenance requirements.
