Triconex DI 3301 Service-Ready Spare Part for Industrial Maintenance

Triconex DI 3301 Service-Ready Spare Part for Industrial Maintenance

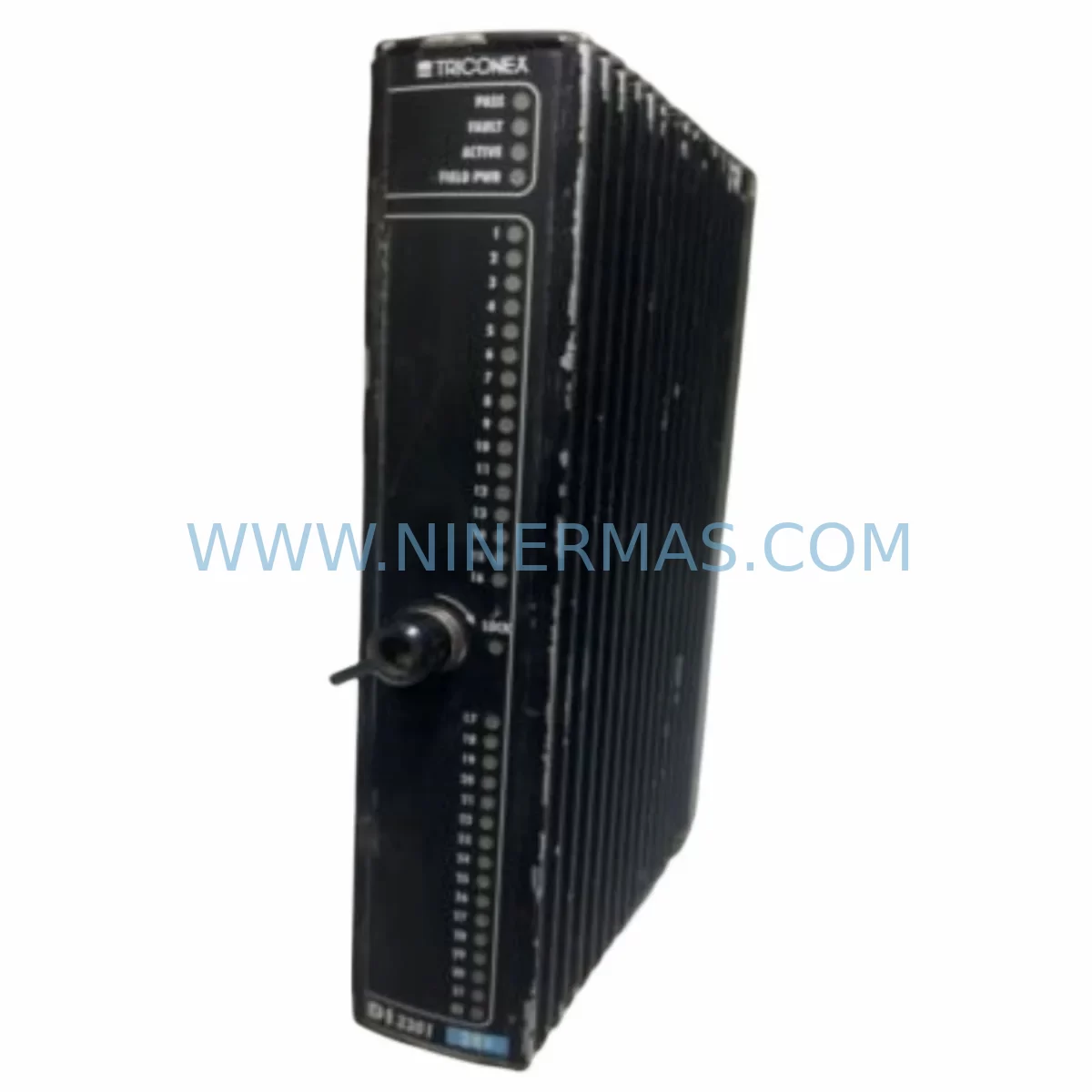

The Triconex DI 3301 is a digital input module engineered for use within the Tricon Triple Modular Redundant (TMR) Safety System — one of the most widely deployed Safety Instrumented Systems (SIS) in oil & gas, petrochemical, power generation, and chemical processing industries. When a DI 3301 module fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss, safety risk, and regulatory exposure. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring system integrity and resuming safe operations.

At NINERMAS, we supply the Triconex DI 3301 as an original-grade industrial spare part — pre-tested, fully inspected, and backed by a 12-month warranty. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a strategic spare parts inventory for your control room, the DI 3301 we supply is ready for immediate installation into your Tricon chassis.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a Triconex DI 3301 module is rarely an isolated task. In a Tricon TMR safety system, the digital input module sits at the front end of the safety logic chain — receiving field signals from process sensors, emergency shutdown (ESD) pushbuttons, and interlock devices. A thorough maintenance engineer will treat a DI 3301 replacement as an opportunity to audit the entire associated electrical circuit and control cabinet.

Before or during a DI 3301 swap, maintenance teams should inspect the Triconex DO 3401 digital output module in the same chassis, as output-side faults often correlate with input degradation caused by field wiring issues. The Triconex AI 3351 analog input module should also be checked if the process loop includes both digital and analog signal paths — a common configuration in ESD and fire & gas (F&G) systems.

Power integrity is critical in any TMR architecture. Verify the Triconex PM 3100 power module is supplying stable, within-spec DC voltage to the chassis. A marginal power module can cause intermittent input faults that mimic a failed DI 3301. Similarly, inspect the Triconex CM 3201 communication module to confirm that the Tricon controller is maintaining healthy communication with the DCS or SCADA host — a communication fault can mask or misreport input channel status.

Field wiring termination is another common failure point. Check the Triconex terminal panel (TP series) associated with the DI 3301 slot for loose terminals, corroded connections, or damaged field cables. In high-vibration environments such as compressor stations or offshore platforms, terminal loosening is a leading cause of spurious input faults. If the system uses signal isolators or signal conditioners between field devices and the Tricon input module, these should be tested for output accuracy and isolation integrity.

For systems with Triconex TCM (Tricon Communication Module) or Triconex ACM (Advanced Communication Module) installed, confirm that the module firmware is compatible with the chassis version after any hardware replacement. Older Tricon v9 chassis may require firmware alignment when mixing module generations.

Maintenance planners building annual spare parts kits for Tricon-based safety systems should also consider stocking the Triconex MP 3100 main processor module and Triconex chassis backplane assemblies for long-lifecycle systems where OEM support has been discontinued. Proactive spare parts inventory — including the DI 3301 — is the most cost-effective strategy for avoiding extended downtime on aging SIS installations.

Site Replacement Workflow

Replacing the Triconex DI 3301 on-site follows a structured procedure designed to minimize downtime and maintain TMR system integrity throughout the swap:

Step 1 – Pre-Replacement Verification: Confirm the fault is isolated to the DI 3301 module using the Triconex TriStation 1131 programming software diagnostic panel. Document the channel fault codes and verify that the TMR system is operating in degraded (duplex) mode before proceeding.

Step 2 – Safety Isolation: Coordinate with the control room operator to place the affected input channels in bypass or override mode per your site Management of Change (MOC) procedure. Do not remove the module while channels are in active SIS voting logic without bypass confirmation.

Step 3 – Hot-Swap Removal: The DI 3301 supports hot-swap replacement in a healthy Tricon chassis. Slide the module out of its slot carefully, avoiding contact with the backplane connector pins. Label the removed module with the fault date and channel information for RMA or failure analysis.

Step 4 – Replacement Installation: Insert the new DI 3301 into the same chassis slot. The Tricon TMR architecture will automatically synchronize the replacement module with the remaining two legs. Monitor the TriStation diagnostic display to confirm the module enters ACTIVE status within the expected initialization window (typically 30–90 seconds).

Step 5 – Channel Verification: After module initialization, verify all 32 input channels are reading correctly against known field device states. Remove any bypasses or overrides applied in Step 2 and confirm the SIS is restored to full TMR voting mode.

Step 6 – Documentation: Update the site maintenance log, spare parts inventory record, and SIS proof test documentation to reflect the replacement. Retain the NINERMAS test certificate and warranty documentation for audit purposes.

This workflow applies equally to planned annual maintenance replacements and emergency fault-response scenarios. The key advantage of sourcing a pre-tested DI 3301 from NINERMAS is that the module arrives ready for installation — no incoming inspection delay, no calibration required.

Spare Parts Support FAQ

Q1: Is the Triconex DI 3301 supplied by NINERMAS an original or compatible replacement?
We supply original-grade Triconex DI 3301 modules sourced from verified industrial channels. Each unit undergoes functional testing and inspection before shipment. A test certificate is included with every order. We do not supply uncertified clones or unverified surplus stock.

Q2: What is the warranty coverage and what does it include?
Every DI 3301 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your downtime exposure.

Q3: Can the DI 3301 be used as a direct replacement in older Tricon v9 and v10 chassis?
Yes. The DI 3301 is compatible with Tricon v9, v10, and v11 chassis configurations. However, we recommend confirming your chassis firmware version and slot assignment with your Triconex system documentation before installation. If you require compatibility verification support, our technical team can assist prior to order confirmation.

Q4: Does NINERMAS offer long-term supply for discontinued or end-of-life Triconex modules?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including discontinued and end-of-life Triconex modules. We maintain strategic inventory of high-demand Tricon components to support customers with aging SIS installations. Contact us to discuss a long-term supply agreement or consignment stock arrangement for your site.
