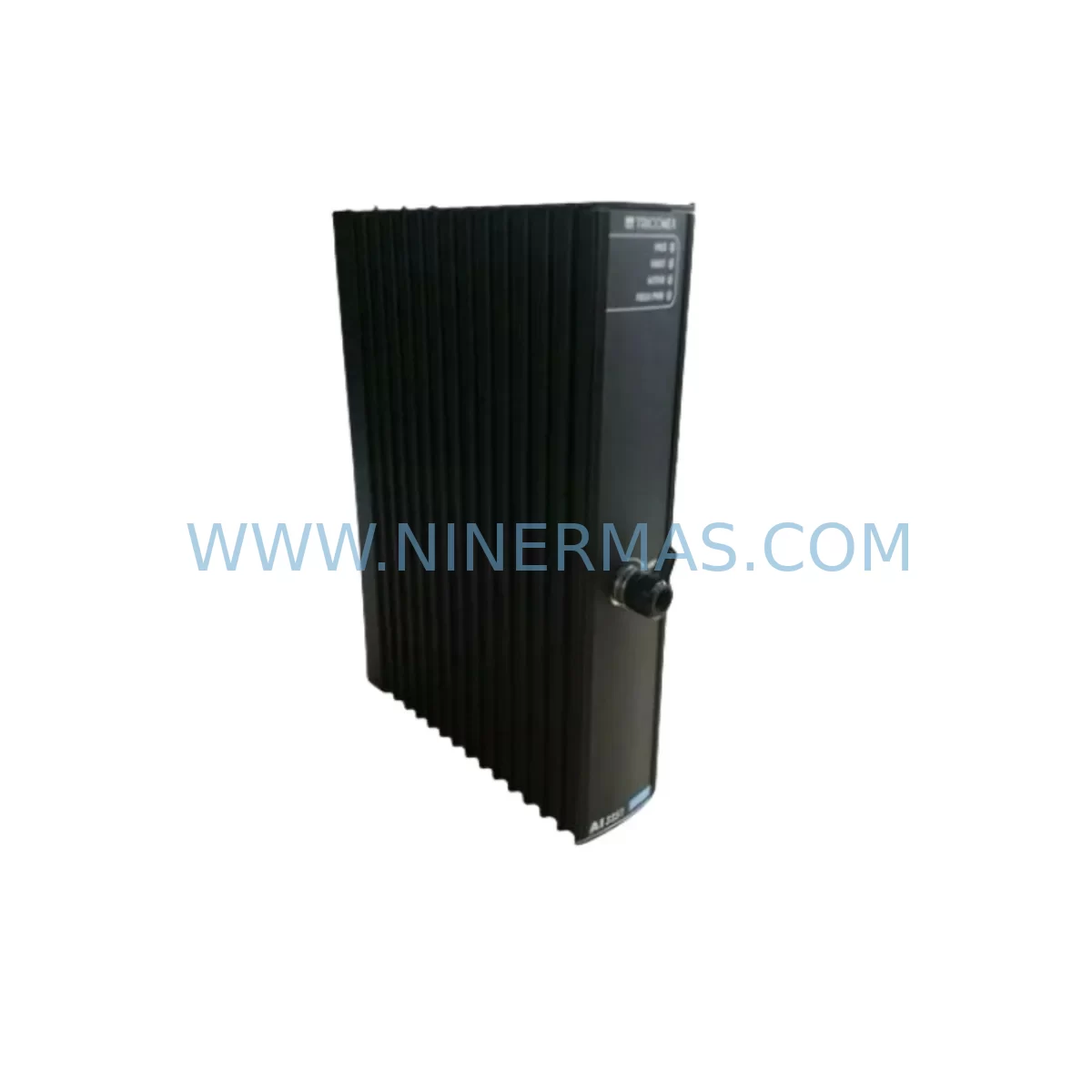

The Triconex AI3351 is a high-reliability analog input module designed for the Tricon Triple Modular Redundant (TMR) Safety System. As process plants and discrete manufacturing facilities face increasing pressure to extend the operational life of legacy safety instrumented systems (SIS), the AI3351 has become a critical spare part and retrofit component for engineers managing aging Tricon-based control architectures. Whether you are replacing a failed module in an active safety loop, upgrading a control cabinet, or executing a phased migration away from end-of-life hardware, the AI3351 provides a verified drop-in replacement path with minimal disruption to existing wiring, backplane connections, and program logic.

Each unit supplied by NINERMAS undergoes pre-shipment functional testing to confirm channel accuracy, signal conditioning performance, and TMR voting logic compatibility. Our inventory is sourced from controlled supply chains with full traceability, and every AI3351 ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AI3351 in an active Tricon-based safety system requires careful pre-planning to avoid unintended process trips or SIS bypass violations. Before scheduling the replacement window, engineers should retrieve the current TriStation 1131 project file and confirm the module’s slot address, channel tag assignments, and any active HART device descriptors linked to field instruments. If the existing chassis is a Tricon 3008 or 3006 main chassis, verify that the adjacent slots are not occupied by power modules such as the Triconex PM3100 or PM3200, as physical clearance during hot-swap procedures may be restricted.

For sites running a mixed Tricon and Trident architecture, the migration scope may also involve reviewing Triconex DI3301 digital input modules and Triconex DO3401 digital output modules that share the same chassis backplane. Ensuring that the backplane itself — typically a Triconex 3703E or 3721 chassis backplane assembly — is free of corrosion, bent connector pins, or cracked PCB traces is a prerequisite step that is frequently overlooked during urgent spare part replacements.

Communication continuity is another key consideration. If the Tricon system communicates upstream to a DCS or SCADA platform via a Triconex NCM3201 or NCM3204 network communication module using Modbus TCP or OPC, the AI3351 replacement does not interrupt this link — but the engineering team should confirm that the HMI faceplate tags bound to the affected analog channels are correctly mapped after the module swap. In facilities where the HMI is a legacy Wonderware InTouch or Emerson DeltaV interface, a brief tag refresh or forced read cycle may be required to re-establish live data display.

For plants executing a broader control system modernization — for example, migrating from a Tricon v9 platform to a Triconex Tricon CX or transitioning safety logic to a Triconex Model 3008 enhanced chassis — the AI3351 can serve as a bridging component during phased cutover. This approach allows one section of the process to remain on the legacy platform while adjacent loops are migrated, reducing the total shutdown window and limiting the blast radius of any commissioning issues. During this period, signal isolators such as the MTL5541 or P+F KFD2-STC4-Ex1 may be inserted between field instruments and the AI3351 to provide galvanic isolation and protect the module from ground loop interference introduced by new cable runs.

Inventory planning for AI3351 units should account for lead times associated with long-lifecycle industrial components. NINERMAS maintains committed stock programs for Triconex spare parts, enabling customers to reserve units against future maintenance windows without requiring immediate shipment. This is particularly valuable for offshore platforms, petrochemical complexes, and power generation facilities where procurement cycles are long and unplanned downtime costs are significant.

Downtime Control During System Migration

Minimizing downtime during an AI3351 replacement begins with a structured pre-outage checklist. At least 48 hours before the scheduled maintenance window, the responsible engineer should export the active TriStation 1131 project to a secure backup location and document the current module diagnostic status — including any latched faults, inhibited channels, or active bypass conditions. This baseline record is essential for post-replacement verification and for demonstrating SIS restoration to the site safety authority.

During the replacement itself, the Tricon TMR architecture provides a significant operational advantage: the system can tolerate a single-leg fault and continue operating in degraded (dual-redundant) mode while the faulty module is removed and the replacement AI3351 is inserted. This means that in many process applications, the replacement can be performed without a full process shutdown, provided that the site’s safety management system permits online module replacement and that the process hazard analysis (PHA) has been reviewed for the specific loop being serviced.

After insertion, the new AI3351 will undergo an automatic self-test sequence within the Tricon chassis. The TriStation 1131 diagnostic display should confirm that all three legs of the TMR system are voting correctly on each channel within approximately 60 seconds of module seating. If any channel shows a persistent fault or out-of-range reading, the field wiring continuity should be verified at the terminal block before assuming a module defect. In most cases, a loose termination or incorrect shield grounding is the root cause of post-replacement channel faults rather than a module hardware issue.

For sites where online replacement is not permitted, the recommended approach is to pre-configure the replacement AI3351 in a bench test environment using a spare Tricon chassis and a copy of the production TriStation 1131 project. This allows the engineering team to verify channel scaling, HART communication, and module addressing before the unit enters the plant, reducing the time the process loop spends in bypass during the actual replacement window.

Retrofit Support FAQ

Q1: Is the Triconex AI3351 a direct drop-in replacement for all Tricon analog input slots?
The AI3351 is designed for specific Tricon chassis configurations. Before ordering, confirm your chassis model (3006, 3007, or 3008) and the firmware version running on your Tricon main processors. NINERMAS technical support can assist with compatibility verification based on your system’s serial number and TriStation project revision.

Q2: What pre-shipment testing does NINERMAS perform on the AI3351?
Each AI3351 unit is functionally tested prior to shipment. Testing includes channel-by-channel signal injection across the 4–20 mA input range, verification of TMR voting logic response, and a power-on self-test (POST) confirmation. A test report is available upon request for quality-critical procurement processes.

Q3: Can the AI3351 be used during a phased migration from Tricon v9 to Tricon CX?
Yes. The AI3351 is compatible with Tricon v9.x environments and can serve as a bridging module during phased migrations. However, it is not natively compatible with the Tricon CX platform without chassis and backplane changes. NINERMAS recommends consulting your Triconex system integrator to map the full migration path before committing to a phased cutover schedule.

Q4: What does the 12-month warranty cover, and what is the RMA process?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate an RMA, contact NINERMAS at sale@ninermas.com with your order number, module serial number, and a description of the observed fault. Replacement units are typically dispatched within 3–5 business days of fault confirmation.
