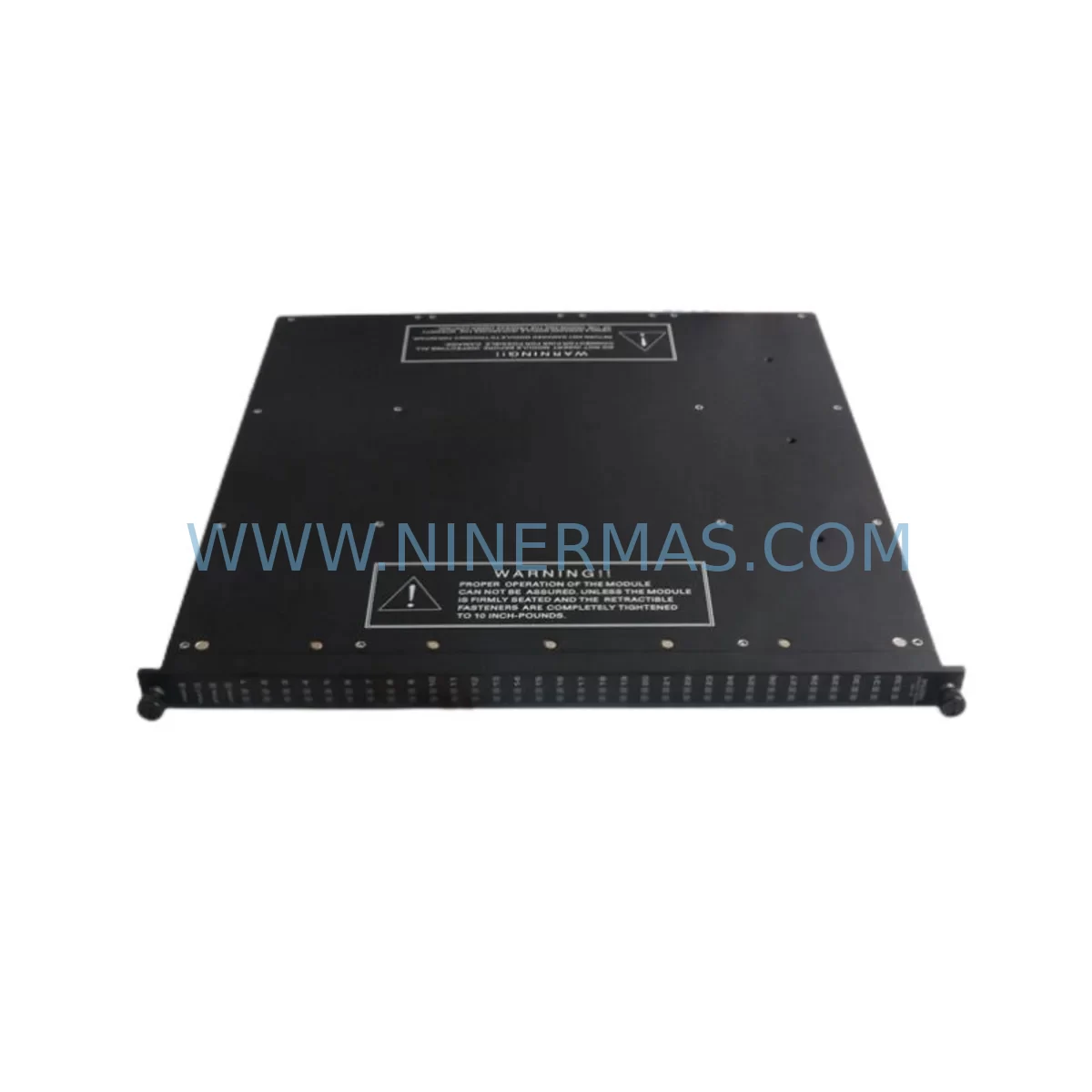

Triconex 9760-210 Retrofit-Compatible Power Supply for Legacy Systems

Triconex 9760-210 Retrofit-Compatible Power Supply for Legacy Systems

The Triconex 9760-210 is a retrofit-compatible power supply module engineered for seamless integration into existing TRICON Triple Modular Redundant (TMR) safety instrumented systems. As aging distributed control systems approach end-of-life and original spare parts become increasingly scarce, the 9760-210 provides a reliable, drop-in upgrade path that preserves your existing control architecture while extending operational lifespan. Whether you are managing a brownfield refinery, a legacy chemical plant, or an offshore platform running first-generation TRICON controllers, this module is designed to minimize engineering rework and reduce total retrofit cost.

NINERMAS maintains verified inventory of the Triconex 9760-210 with full pre-shipment functional testing, ensuring every unit leaves our facility ready for immediate installation. Each module is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Triconex 9760-210 into a legacy safety system requires careful pre-engineering. Begin by auditing the existing TRICON chassis configuration: identify the backplane revision, confirm the number of occupied I/O slots, and document the current power budget across all installed modules. The 9760-210 must be sized against the aggregate draw of all active modules — including any Triconex 3700A or 3721 digital input modules, 3805E analog output modules, and 3603 communication modules that may be present in the same rack.

Terminal wiring on the incoming AC supply side should be verified against the original panel drawings. In many legacy installations, the power feed was routed through a dedicated circuit breaker in the MCC or control cabinet — confirm that the breaker rating is compatible with the 9760-210’s inrush characteristics. If the cabinet also houses a Triconex 4351B main chassis or a 4119A expander chassis, ensure that the power distribution scheme accounts for both chassis loads simultaneously.

For systems that include a Triconex 3008 communication module handling Modbus or HART protocol traffic, no changes to the communication configuration are required when replacing only the power supply. However, if the retrofit scope extends to replacing the main processor — such as migrating from a legacy 3006 to a 3008 — the TriStation 1131 programming environment must be used to verify program compatibility and re-download the application logic after hardware swap.

HMI screens connected via OPC or DDE to the TRICON system should be reviewed to confirm that tag addresses remain valid after the retrofit. In cases where the chassis slot assignments change during the upgrade, I/O module addresses may shift, requiring updates to the HMI configuration database. Coordinate with the control room team to schedule a controlled HMI refresh during the planned outage window.

Physical installation space is another critical factor. The 9760-210 occupies a defined slot width within the TRICON chassis. If the existing cabinet has been retrofitted with additional marshalling terminals or signal isolators — such as inline MTL or P+F signal conditioners — verify that there is adequate clearance for module extraction and reinsertion without disturbing adjacent wiring. Cable management should be reviewed to ensure that power cables do not create excessive heat buildup around the new module.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any safety system retrofit. For the Triconex 9760-210 replacement, the recommended approach is a hot-standby swap procedure where the redundant power supply channel remains active while the failed or aging unit is replaced. TRICON’s TMR architecture is specifically designed to support this mode of operation, allowing one power supply to be removed and replaced without interrupting the safety function — provided the remaining channels are healthy and the chassis load is within single-supply limits.

Before initiating the swap, use the TRICON Diagnostic Software to confirm that all three logic solvers are in agreement and that no existing faults are present on the redundant power channels. Document the current system state, including any active alarms, inhibited points, or bypassed safety functions. This baseline record is essential for post-retrofit verification and for demonstrating to the safety authority that the system was returned to its pre-maintenance state.

Original program logic stored in the TriStation 1131 project file should be backed up to a secure location before any hardware work begins. Even in a power supply replacement — where no changes to the processor or I/O modules are made — it is good practice to have the project file available in case a processor reset occurs during the swap. Confirm that the backup file version matches the currently downloaded application by comparing the program checksum displayed in the TRICON Diagnostic Software.

Field control continuity is maintained throughout the swap by the TMR voting architecture. However, process engineers should be notified of the maintenance window so that any manual overrides or field operator actions can be coordinated. For critical loops — such as emergency shutdown (ESD) or fire and gas (F&G) functions — confirm with the process safety team whether a partial bypass is required during the swap interval, and ensure that all bypass authorizations are documented in the permit-to-work system.

Post-installation, perform a full power-up sequence verification: check output voltage levels, confirm redundancy status in the diagnostic software, and verify that all I/O modules return to their pre-maintenance states. Clear any maintenance-mode flags and restore any inhibited points before releasing the system back to automatic control.

Retrofit Support FAQ

Q1: Is the Triconex 9760-210 a direct drop-in replacement for other 9760-series power supplies?
The 9760-210 is designed for specific TRICON chassis configurations. Cross-reference with the 9760-110 and 9760-130 to confirm the correct power rating for your chassis generation. NINERMAS technical support can assist with cross-referencing based on your existing part number and chassis revision.

Q2: What commissioning steps are required after installation?
After physical installation, connect the TRICON Diagnostic Software to verify output voltage, confirm redundancy channel status, and check that all installed modules are communicating normally on the chassis bus. No re-download of application logic is required for a like-for-like power supply replacement. Document the post-installation voltage readings and redundancy status for your maintenance records.

Q3: How is the unit tested before shipment?
Every Triconex 9760-210 unit shipped by NINERMAS undergoes pre-shipment functional testing, including power-on verification, output voltage measurement, and visual inspection for physical damage. Units that do not pass testing are not shipped. A test report is available upon request.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. NINERMAS will replace or repair any unit that fails within the warranty period at no additional cost.
