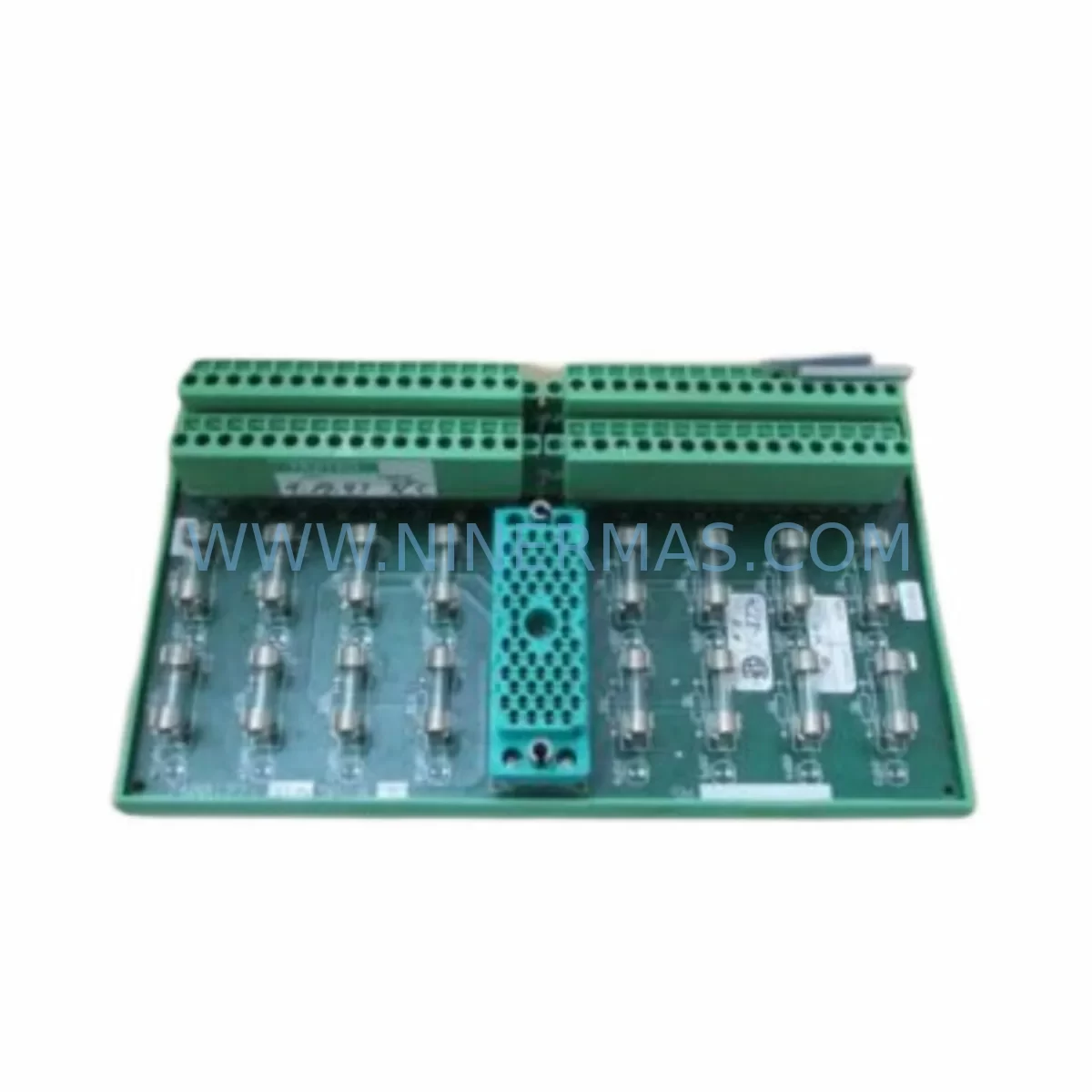

TRICONEX 9668-110 Retrofit-Compatible Termination Board

TRICONEX 9668-110 Retrofit-Compatible Termination Board for Legacy Systems

The TRICONEX 9668-110 is a field-proven termination board designed for use within the Tricon Safety System platform — one of the most widely deployed triple modular redundant (TMR) control architectures in process safety and critical infrastructure applications. As original Triconex hardware enters end-of-life cycles and spare parts become increasingly scarce, the 9668-110 serves as a critical retrofit component for facilities seeking to extend the operational life of their existing Tricon chassis without committing to a full system overhaul.

Whether you are managing a brownfield upgrade, replacing a failed termination board in an aging control cabinet, or executing a phased migration from legacy I/O infrastructure to a modernized safety instrumented system (SIS), the 9668-110 provides the electrical interface continuity your project demands. It is compatible with the standard Tricon backplane architecture and supports the field wiring termination requirements common across Tricon 3000 series installations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TRICONEX 9668-110 into a legacy control system requires careful pre-engineering. Before removing the failed or obsolete termination board, maintenance engineers should document the complete field wiring schedule — including signal type (AI, AO, DI, DO), wire gauge, shield grounding method, and terminal block numbering — to ensure accurate reconnection after the replacement board is installed.

The 9668-110 interfaces directly with Tricon I/O modules such as the Tricon 3703E Digital Input Module and the Tricon 3805E Analog Input Module, both of which remain in active use across many legacy installations. When planning the retrofit, confirm that the associated I/O module firmware version is compatible with the replacement termination board’s terminal mapping. In cases where the original Tricon 3000 Main Chassis or Tricon Expansion Chassis backplane connectors show signs of wear or oxidation, it is advisable to inspect and clean the backplane interface before seating the new board.

Power supply capacity is another critical checkpoint. The Tricon 8312 Power Supply Module must be verified to deliver adequate current headroom for the full I/O load after the termination board replacement. If the control cabinet also houses a Tricon 4351B Communication Module for Modbus or HART protocol bridging, confirm that the communication link remains uninterrupted during the board swap — particularly in live process environments where a communication dropout could trigger a spurious shutdown.

For facilities also managing HMI integration, the Triconex TriStation 1131 Programming Software should be used to verify that the I/O channel assignments and module addresses in the safety application program remain consistent with the physical wiring after the 9668-110 is installed. Any discrepancy between the program’s I/O map and the physical terminal connections must be resolved before returning the system to automatic mode. If the site uses a Tricon 3008 Main Processor Module, ensure the processor’s diagnostic scan confirms all I/O modules are healthy following the retrofit.

In multi-chassis configurations, also verify that the Tricon Enhanced Intelligent Communication Module (EICM) or equivalent peer-to-peer communication link is re-established after the termination board replacement, as physical disturbance to the chassis can occasionally affect backplane seating of adjacent modules. A Tricon 9662-110 or 9563-810 termination panel used elsewhere in the same cabinet should be cross-referenced to confirm consistent wiring conventions are maintained across all I/O termination points.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a termination board in a live safety system environment. For the TRICONEX 9668-110, the recommended approach is to perform the replacement during a scheduled maintenance window with the process unit in a safe, controlled shutdown state. Before beginning, take a full backup of the safety application using TriStation 1131 and document the current I/O diagnostic status from the Tricon Main Processor.

Where the process cannot be fully shut down, a partial bypass strategy may be applicable — isolating only the affected I/O channels while maintaining control continuity on unaffected loops. This requires close coordination between the control system engineer, the process safety engineer, and the operations team to ensure that bypassed channels are properly managed in the safety logic and that the bypass is formally authorized under the site’s Management of Change (MOC) procedure.

After the 9668-110 is physically installed and field wiring is reconnected, perform a point-by-point loop check on all termination channels before re-enabling the I/O module. Confirm that the Tricon processor’s diagnostic display shows no faults on the replaced module slot. Restore communication links and verify HMI signal values match field instrument readings before releasing the system back to automatic control. Total replacement time for a prepared maintenance team is typically two to four hours, depending on the number of field terminations and the complexity of the wiring schedule.

Retrofit Support FAQ

Q: Is the TRICONEX 9668-110 a direct replacement for the original unit?
A: Yes. The 9668-110 is designed as a direct drop-in replacement for the original Triconex termination board of the same part number. No modifications to the chassis, backplane, or field wiring are required, provided the existing installation conforms to the original Triconex wiring specification.

Q: What commissioning steps are required after installation?
A: After physical installation and field wiring reconnection, perform a full I/O loop check on all channels, verify module address assignments in TriStation 1131, confirm processor diagnostics show no faults, and validate HMI signal values against field readings before returning to automatic mode.

Q: Is pre-shipment testing performed on the 9668-110?
A: Yes. Each unit undergoes functional testing prior to shipment to verify electrical integrity and termination continuity. A test report is available upon request.

Q: What warranty and supply terms apply?
A: The TRICONEX 9668-110 is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch to support urgent retrofit and breakdown replacement requirements.
