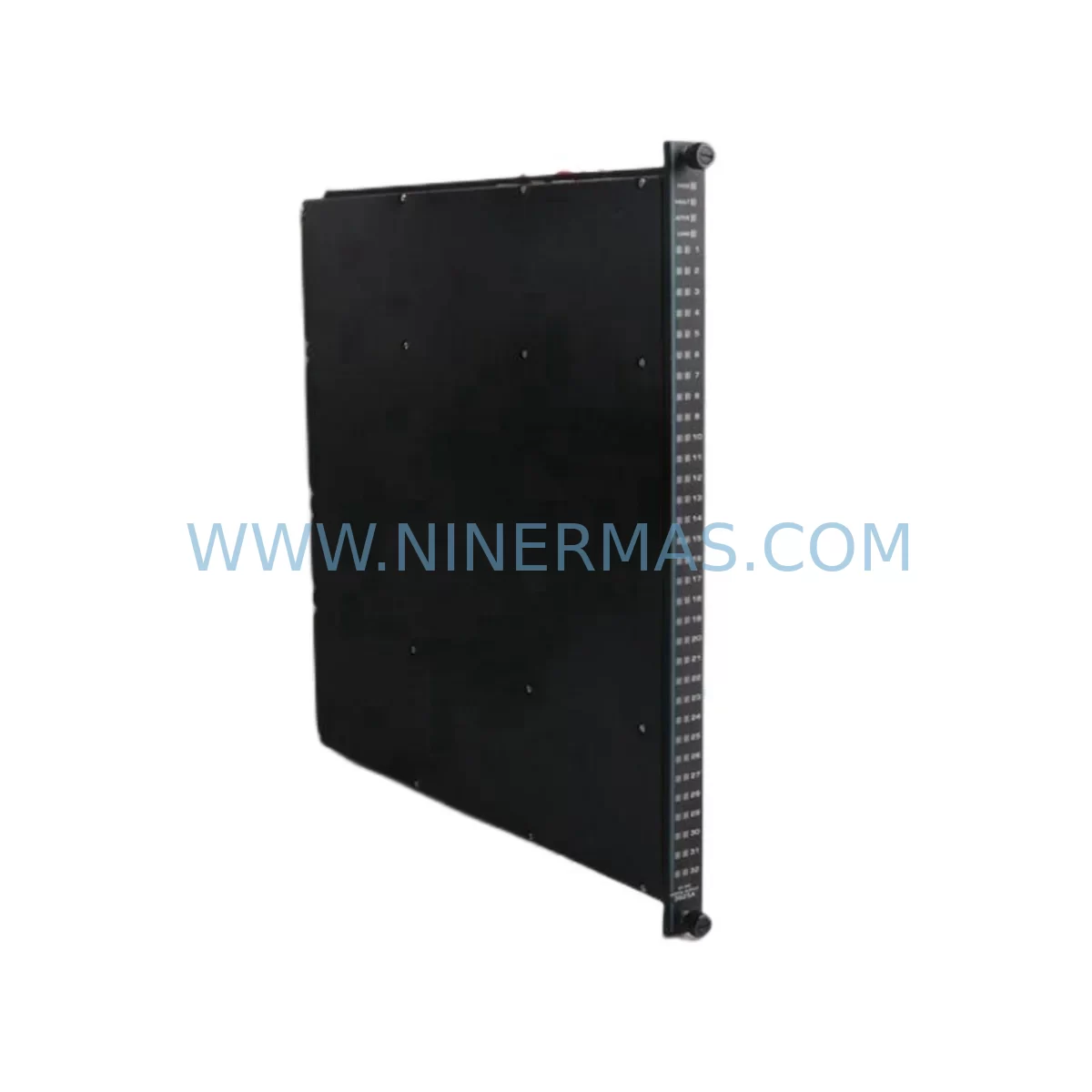

TRICONEX 3533E Retrofit-Compatible Digital Input Module

TRICONEX 3533E Retrofit-Compatible Digital Input Module: Legacy System Compatibility & Smooth Upgrade

The TRICONEX 3533E is a ruggedized digital input module engineered for seamless integration into existing Tricon safety and control system architectures. As industrial facilities face the growing challenge of maintaining aging distributed control systems, the 3533E stands out as a proven retrofit solution — enabling engineers to extend the operational life of legacy platforms without requiring a full system overhaul. Whether you are replacing a discontinued module, expanding I/O capacity in an existing control cabinet, or migrating from an older Triconex generation, the 3533E delivers the compatibility, reliability, and field-proven performance that critical process environments demand.

Designed to operate within the Tricon TMR (Triple Modular Redundancy) architecture, the 3533E accepts discrete digital input signals from field devices including limit switches, proximity sensors, push buttons, and relay contacts. Its ruggedized construction makes it particularly well-suited for harsh industrial environments — including oil and gas processing, petrochemical plants, power generation facilities, and offshore platforms — where temperature extremes, vibration, and electromagnetic interference are everyday realities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TRICONEX 3533E into a legacy control system requires careful pre-engineering to avoid unplanned downtime and configuration errors. Before beginning any retrofit, engineers should conduct a full audit of the existing Tricon chassis, including the Tricon Main Chassis, expansion chassis, and any remote I/O nodes connected via the Tricon Communication Module (TCM). Identifying the exact slot assignment of the module being replaced is critical, as the 3533E must be addressed correctly within the TriStation 1131 programming environment to ensure the controller recognizes the new module without triggering a safety shutdown.

Power budget verification is a frequently overlooked step. The Tricon Power Supply Module — typically a 8310 or 8311 series unit — must have sufficient headroom to support the 3533E alongside all other installed modules. Engineers should calculate the total current draw across the chassis before committing to the replacement, particularly in fully populated racks where power margins may be tight.

Terminal wiring is another key consideration. The 3533E uses a standard Tricon field termination assembly, and the existing field wiring should be mapped against the new module’s channel assignments before disconnecting any conductors. In many legacy installations, the Tricon Terminal Panel (TP) or a third-party marshalling cabinet serves as the interface between field cables and the module’s I/O connector. Confirming that the terminal panel pinout matches the 3533E’s input channel numbering will prevent miswiring errors during commissioning.

For facilities running older Tricon controllers such as the Tricon v9 or v10 platform, compatibility between the 3533E and the installed Main Processor (MP) module should be verified against Schneider Electric’s compatibility matrix. In some cases, a firmware update to the MP module — such as the 3008 or 3009 Main Processor — may be required before the new digital input module can be recognized. Similarly, if the facility uses a Tricon Communication Module for Modbus, HART, or OPC connectivity, the communication link should be tested after module replacement to confirm that data integrity is maintained across all connected SCADA or DCS interfaces.

Where I/O expansion is part of the retrofit scope, the 3533E can be deployed alongside complementary modules such as the TRICONEX 3603E analog input module or the 3703E digital output module to build out a complete I/O refresh within the existing chassis. This approach avoids the cost and complexity of migrating to an entirely new control platform while delivering meaningful improvements in channel density, diagnostics, and spare parts availability.

Downtime Control During System Migration

Minimizing production interruption is the primary concern for any retrofit involving safety-critical or process-critical control systems. When replacing the TRICONEX 3533E in a live Tricon TMR environment, the TMR architecture itself provides a significant advantage: in many configurations, a single module can be replaced while the other two legs of the triple-redundant system continue to maintain control. However, this capability depends on the specific system configuration, the health of the remaining modules, and the approval of the site’s safety management system. Engineers should always consult the site’s Management of Change (MOC) procedure before initiating any hot-swap activity.

Prior to the physical swap, a full backup of the TriStation 1131 project file should be created and stored offline. This backup preserves the existing ladder logic, function block diagrams, variable assignments, and I/O channel configurations. If the replacement module requires re-addressing or if any configuration parameters differ from the original, the TriStation project can be updated and downloaded to the controller during a planned maintenance window with minimal risk to the running process.

HMI screen validation is another step that is often underestimated. After module replacement, operators should verify that all digital input signals associated with the 3533E are correctly displayed on the facility’s HMI — whether it is a Wonderware InTouch system, a Rockwell FactoryTalk View installation, or a custom SCADA interface. Tag mapping between the Tricon controller and the HMI server should be confirmed to ensure that alarm states, interlock statuses, and process values are accurately reflected in real time.

For facilities where a cold replacement is necessary — requiring a full system shutdown — pre-staging the 3533E module, pre-configuring the TriStation project offline, and coordinating with operations to schedule the outage during a low-production period are all strategies that can compress the total downtime window. NINERMAS provides pre-shipment functional testing for all 3533E units, with a test certificate included, so that modules arrive on-site ready for immediate installation without requiring additional bench testing.

Retrofit Support FAQ

Q: Is the TRICONEX 3533E a direct drop-in replacement for the original 3533 module?
A: The 3533E is the enhanced ruggedized variant of the 3533 series and is designed to be compatible with the same Tricon chassis slots and terminal assemblies. However, engineers should verify the firmware revision of the installed Main Processor module against Schneider Electric’s compatibility documentation before installation, as some older MP revisions may require a firmware update to fully support the 3533E.

Q: What commissioning steps are required after installing the 3533E?
A: After physical installation, the module must be addressed within the TriStation 1131 project to match the chassis slot assignment. The updated project should then be downloaded to the Tricon controller. Following download, each input channel should be verified against the field device signal to confirm correct wiring and channel mapping. Communication links via any installed Tricon Communication Module should also be tested to confirm data integrity.

Q: Does NINERMAS provide pre-shipment testing for the 3533E?
A: Yes. All TRICONEX 3533E modules supplied by NINERMAS undergo functional testing prior to shipment. A test certificate is included with each unit. Modules are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the 3533E?
A: NINERMAS maintains inventory of the TRICONEX 3533E to support urgent retrofit and emergency replacement requirements. Standard orders are processed and shipped within 3–5 business days. For large-quantity orders or time-critical shutdowns, please contact our sales team directly to confirm current stock levels and expedited shipping options.
