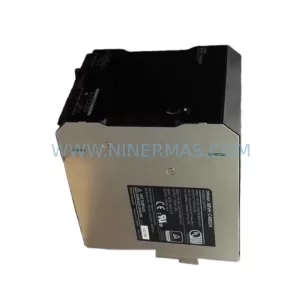

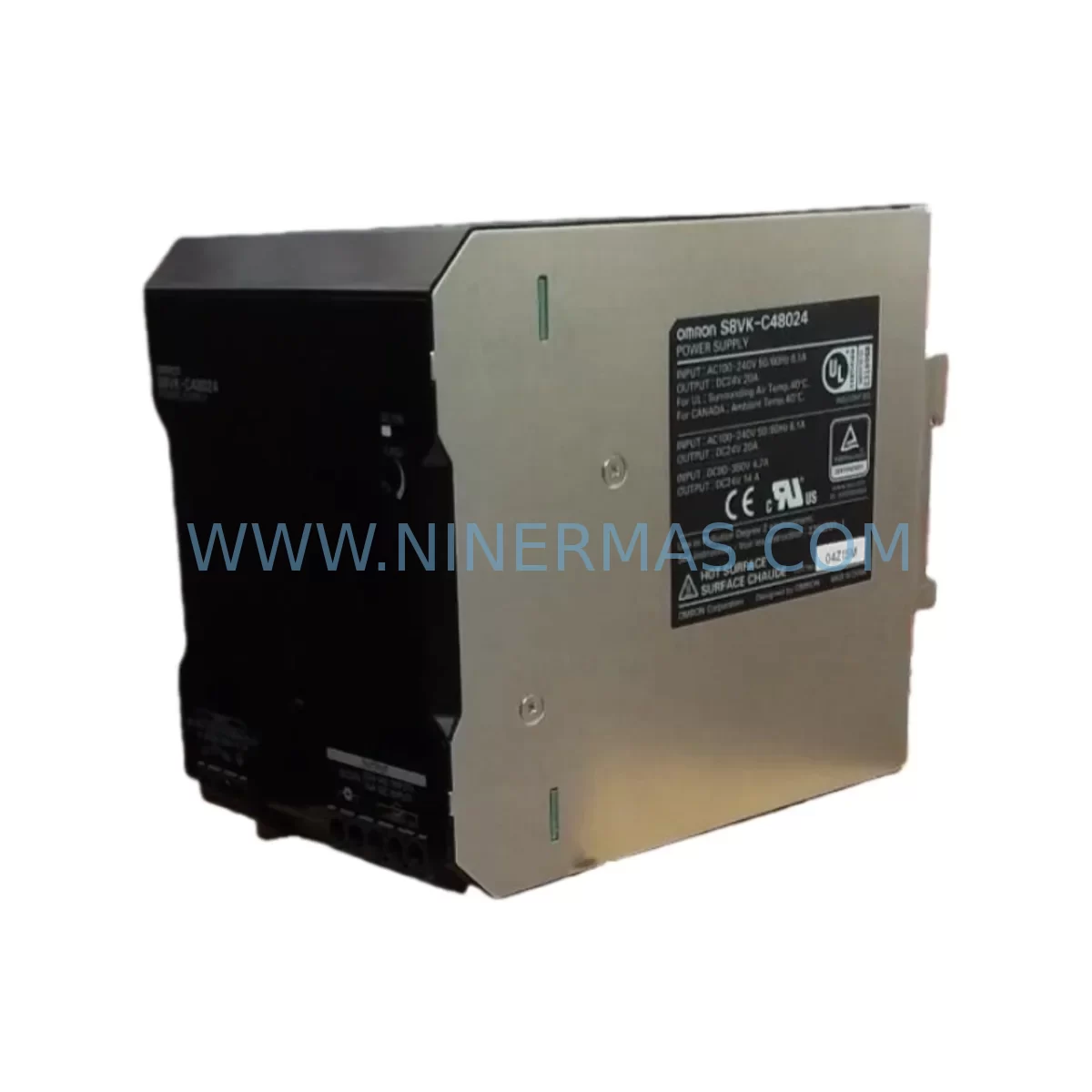

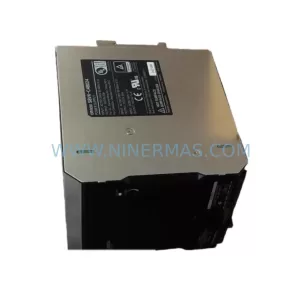

The Omron S8VK-C48024 is a 480W, 24 VDC switched-mode power supply (SMPS) from Omron’s S8VK-C series, designed for continuous-duty industrial environments. As a service-ready original replacement unit, it is stocked and dispatched to support rapid restoration of control panels, PLC enclosures, and distributed automation systems where unplanned downtime carries significant operational cost.

Maintenance engineers and procurement teams working with Omron S8VK-C series infrastructure rely on this unit as a primary spare across a wide range of applications — from automotive assembly lines and food processing conveyors to building management systems and water treatment SCADA panels. The S8VK-C48024 delivers a regulated 24 VDC output at up to 20A continuous, with wide-range AC input (100–240 VAC), making it compatible with both 110V and 230V facility supplies without manual switching.

When a control cabinet experiences a power fault, the S8VK-C48024 is frequently the first component to be isolated and replaced. Its DIN-rail form factor and screw-terminal wiring allow a trained technician to complete a swap in under 30 minutes, restoring I/O power to downstream devices including Omron CJ2M or CP1H PLCs, NX-series I/O modules, G7SA or G2R relay modules, and NS-series HMI panels — all of which depend on stable 24 VDC bus voltage for reliable operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for any S8VK-C48024 installation goes beyond replacing the power supply unit itself. When this unit is pulled from service — whether due to output voltage drift, overcurrent shutdown, or complete failure — a thorough site inspection should cover the entire 24 VDC distribution circuit to prevent repeat failures and reduce the risk of secondary damage to connected equipment.

Start with the AC input wiring and upstream circuit breaker: verify that the MCB (typically 6A–10A, curve C) has not weakened from repeated trips, and check terminal torque on the L, N, and PE connections. A loose neutral is a common cause of premature SMPS failure. Next, inspect the 24 VDC output bus bar and terminal blocks — Omron XW5T or Phoenix Contact PTFIX distribution blocks commonly used in the same cabinet should be checked for discoloration, oxidation, or loose ferrules.

Downstream, confirm that Omron NX-PA9001 or CJ1W-PA202 PLC power supply modules are receiving clean input voltage before re-energizing the rack. If the cabinet includes an Omron G9SX safety relay or G7SA force-guided relay modules, these should be functionally tested after power restoration, as voltage transients during a PSU failure can latch safety circuits into a fault state.

For cabinets with Omron NS8 or NS10 HMI panels, check the 24 VDC supply connector and backlight status — HMI displays are sensitive to undervoltage and may require a cold restart after a power event. Similarly, any Omron NX1P2 or CP1E PLC in the same enclosure should have its program memory and retentive data verified after restoration.

If the cabinet includes signal isolators or loop-powered transmitters (such as those from the Omron K3HB or E5CC series), confirm that 4–20mA loops are stable before returning the process to automatic mode. Fuse holders and blade fuses on individual 24 VDC branch circuits should also be inspected — a shorted I/O card or solenoid valve can blow a branch fuse without tripping the main PSU, leaving a partial outage that is difficult to diagnose remotely.

Finally, for sites running Omron DeviceNet or EtherCAT communication networks, verify that network termination resistors and media converters are powered and that node addresses have not been lost. Communication modules such as the Omron CJ1W-DRM21 DeviceNet master or NX-ECC203 EtherCAT coupler should be confirmed online before releasing the line to production.

Site Replacement Workflow

Step 1 — Isolation: De-energize the cabinet at the main isolator. Lock out / tag out (LOTO) per site procedure. Confirm zero voltage at the S8VK-C48024 input terminals with a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring layout, terminal labels, and DIN rail position before removal. Note the output voltage trim setting on the adjustment potentiometer.

Step 3 — Removal: Disconnect AC input (L, N, PE) and DC output (+V, -V, FG) terminals. Release the DIN rail locking tab and slide the unit free. Retain all terminal ferrules and labels for reuse.

Step 4 — Installation: Clip the replacement S8VK-C48024 onto the DIN rail. Reconnect terminals in reverse order — DC output first, then AC input. Torque all terminals to manufacturer specification (typically 0.5–0.6 Nm for M3 screws).

Step 5 — Pre-energization check: Verify input fuse continuity, confirm no short circuit on the 24 VDC bus, and ensure all downstream loads are disconnected or in a safe state.

Step 6 — Energize and verify: Apply AC power. Measure output voltage at the PSU terminals and at the far end of the 24 VDC distribution bus. Adjust the trim pot if necessary to achieve 24.0 VDC ±0.5%. Reconnect downstream loads progressively and confirm normal operation of PLC, I/O, HMI, and relay modules.

Step 7 — Documentation and stock replenishment: Record the replacement in the site maintenance log. Raise a purchase order to replenish the spare S8VK-C48024 in local stores — a minimum of one unit per cabinet type is recommended for sites with uptime SLAs.

Spare Parts Support FAQ

Q1: Is the S8VK-C48024 supplied as a new, original Omron unit?
Yes. NINERMAS supplies the S8VK-C48024 as a new, service-ready unit sourced from authorized distribution channels. Each unit undergoes output voltage and load regulation testing before dispatch. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions.

Q2: Can the S8VK-C48024 directly replace an older S8VS-48024 or S8JX-G480-24 in an existing cabinet?
In most cases, yes. The S8VK-C series was introduced as the successor to the S8VS and S8JX-G families, sharing the same DIN rail footprint and terminal layout in the 480W / 24V class. Minor differences in terminal labeling and mounting depth may apply — always verify physical dimensions and terminal positions against your cabinet drawings before installation. NINERMAS technical support can assist with compatibility confirmation prior to order.

Q3: What is the recommended spare holding strategy for S8VK-C48024 in a multi-line facility?
For facilities operating three or more production lines with Omron S8VK-C series power supplies, a minimum stock of two S8VK-C48024 units is recommended — one for immediate swap and one as a replenishment buffer. Sites with 24/7 operations or long lead-time procurement environments should consider a standing order or consignment stock arrangement. NINERMAS offers long-term supply agreements with fixed pricing and priority allocation for high-volume maintenance customers.

Q4: How is the unit tested and packaged before shipment?
Each S8VK-C48024 is bench-tested at rated load (20A / 24 VDC) for output voltage accuracy, ripple, and thermal stability before packaging. Units are shipped in anti-static, foam-lined cartons with individual serial number records retained for warranty traceability. Express courier options (DHL, FedEx) are available for urgent maintenance requirements, with same-day dispatch for in-stock orders placed before 14:00 CST.

—
