OMRON SDV-DH7/SDV-DH Retrofit Timer Relay for Legacy Systems

OMRON SDV-DH7/SDV-DH Retrofit-Compatible Timer Relay for Legacy Control Systems

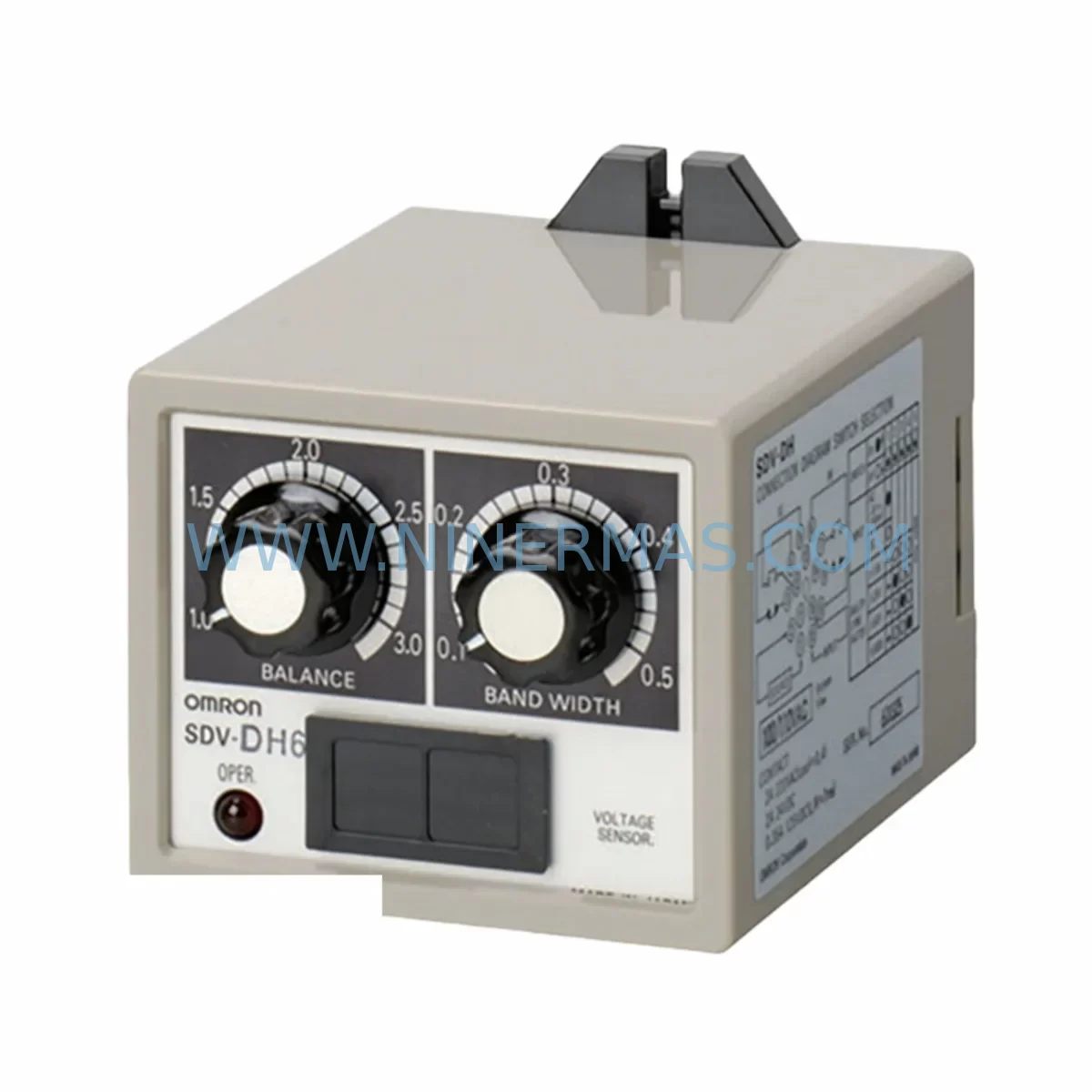

The OMRON SDV-DH7/SDV-DH is a solid-state timing relay from the SDV-DH series, widely deployed in legacy control panels, machine tool cabinets, and process automation systems across manufacturing, packaging, and utilities sectors. As OMRON has progressively phased out the SDV-DH series, sourcing verified replacement units has become a critical challenge for maintenance engineers managing aging infrastructure. This listing provides a retrofit-compatible SDV-DH7/SDV-DH unit — pre-shipment tested, fully verified against original OMRON specifications, and backed by a 12-month warranty.

Whether you are executing a like-for-like swap on a failed unit, building a spare parts buffer for a long-running production line, or planning a phased control cabinet upgrade, the SDV-DH7/SDV-DH is a proven, low-risk replacement that preserves your existing wiring, DIN rail footprint, and timing logic without requiring PLC program modifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

In most legacy control cabinet retrofits involving the SDV-DH7/SDV-DH, the timing relay does not operate in isolation. It is typically wired into a broader control circuit that may include an OMRON CP1E or CP1L series compact PLC handling the primary logic, with the SDV-DH7 providing auxiliary on-delay or off-delay timing for motor starters, solenoid valves, or alarm circuits. Before removing the failed unit, engineers should photograph the existing terminal wiring and record the current timing setpoint — the potentiometer position is not always documented in the original panel drawings.

Power supply integrity is a common oversight during timer relay replacement. The SDV-DH7/SDV-DH draws its operating power from the cabinet’s 24VDC or AC control rail, often shared with OMRON G2R or G3R relay modules, OMRON S8VS or S8VK series DIN rail power supplies, and signal conditioning components. Before installation, verify that the control power supply has sufficient residual capacity to support the replacement unit, particularly in cabinets where additional I/O modules or OMRON GX-series remote I/O terminals have been added since the original commissioning.

For systems where the SDV-DH7 interfaces with an OMRON CJ2M or CS1 series PLC via hardwired digital I/O, no program changes are typically required for a direct swap. However, if the retrofit is part of a broader migration — for example, moving from a legacy OMRON C200H rack system to a CJ2 platform — the timing function previously handled by the SDV-DH7 may need to be replicated in ladder logic using the PLC’s internal timer instructions, freeing the panel from discrete timer relay dependency altogether. In such cases, the SDV-DH7/SDV-DH serves as a reliable bridge component during the transition period, maintaining production continuity while the new PLC program is validated offline.

Installations involving OMRON NS-series or NB-series HMI panels should confirm that any HMI screen elements referencing the timer relay’s output status — such as run indicators or fault annunciators — remain correctly mapped after the swap. Since the SDV-DH7 output is hardwired rather than network-mapped, HMI screen logic is unaffected in most cases, but field verification during commissioning is recommended. Similarly, if the cabinet includes an OMRON CX-One programming environment connected via USB or RS-232 programming cable, no re-upload of the PLC program is required for a like-for-like timer relay replacement.

For facilities managing multiple control cabinets with identical or similar configurations — common in automotive body shops, food processing lines, and water treatment stations — stocking a small buffer of SDV-DH7/SDV-DH units alongside other high-turnover spares such as OMRON MY4 or LY4 relay sockets, OMRON H3CR series analog timers, and OMRON G7L contactor relays is a practical strategy for minimizing unplanned downtime. The SDV-DH series has a well-documented replacement history, and procurement teams familiar with OMRON’s product lifecycle roadmap will recognize the value of securing verified stock before availability tightens further.

Downtime Control During System Migration

Replacing a failed SDV-DH7/SDV-DH in a live production environment requires a structured approach to minimize exposure time and protect the integrity of the surrounding control circuit. The recommended procedure begins with a controlled shutdown of the affected machine or line segment — not a full facility shutdown — isolating only the cabinet section containing the timer relay. Before de-energizing, confirm that any interlock circuits dependent on the SDV-DH7 output are in a safe state, particularly if the relay controls a motor contactor or pneumatic valve that must remain in a defined position during the changeover.

Terminal labeling is critical. Even in well-maintained panels, wiring labels can fade or be absent on older installations. A quick continuity check and photographic record of the terminal block before removal takes less than five minutes and eliminates the most common source of commissioning errors. The SDV-DH7/SDV-DH uses a standard screw terminal arrangement consistent across the SDV-DH series, so experienced technicians familiar with OMRON relay wiring conventions will find the swap straightforward.

After installation, power up the control section and verify the timing output before resuming machine operation. The SDV-DH7’s timing setpoint should be confirmed against the original process requirement — not simply assumed to match the previous unit’s potentiometer position. A brief functional test cycle, running the controlled actuator or motor through one complete on/off sequence, confirms correct operation before returning the line to production. Total planned downtime for a prepared technician performing a direct swap is typically under 30 minutes, making the SDV-DH7/SDV-DH one of the lower-risk components to replace in a legacy control cabinet.

For planned maintenance windows involving multiple cabinet upgrades, the SDV-DH7/SDV-DH can be pre-staged with the timing setpoint pre-adjusted to the documented value, further reducing on-site commissioning time. Units shipped from this listing are pre-tested and arrive ready for installation, eliminating the incoming inspection step that adds time to unverified surplus or grey-market components.

Retrofit Support FAQ

Q: Is the SDV-DH7/SDV-DH a direct drop-in replacement for other SDV-DH series variants?
A: The SDV-DH7 is the primary variant in the SDV-DH series and shares the same terminal layout, DIN rail footprint, and wiring convention as other SDV-DH models. For cross-variant replacements, confirm supply voltage and timing range compatibility against the original unit’s nameplate before installation. In most cases, the physical swap is direct with only a timing setpoint re-verification required.

Q: Will replacing the SDV-DH7/SDV-DH require changes to the PLC program?
A: No. The SDV-DH7/SDV-DH is a hardwired discrete component. Its output connects to PLC digital input terminals or downstream relay circuits via physical wiring, not via a fieldbus or network protocol. A like-for-like replacement does not require any modification to the PLC program, HMI configuration, or communication settings.

Q: What pre-shipment testing is performed on this unit?
A: Each SDV-DH7/SDV-DH unit undergoes functional verification prior to shipment, including power-on test, timing output confirmation, and contact integrity check. Units that do not meet original OMRON performance specifications are not shipped. A 12-month warranty covers functional failure under normal operating conditions from the date of receipt.

Q: What is the lead time and stock availability?
A: Units are held in stock and available for immediate dispatch. For bulk orders or multi-cabinet retrofit projects requiring multiple units, contact us in advance to confirm allocation. Given the discontinued status of the SDV-DH series, stock levels are finite — early procurement is recommended for facilities with ongoing maintenance requirements.
