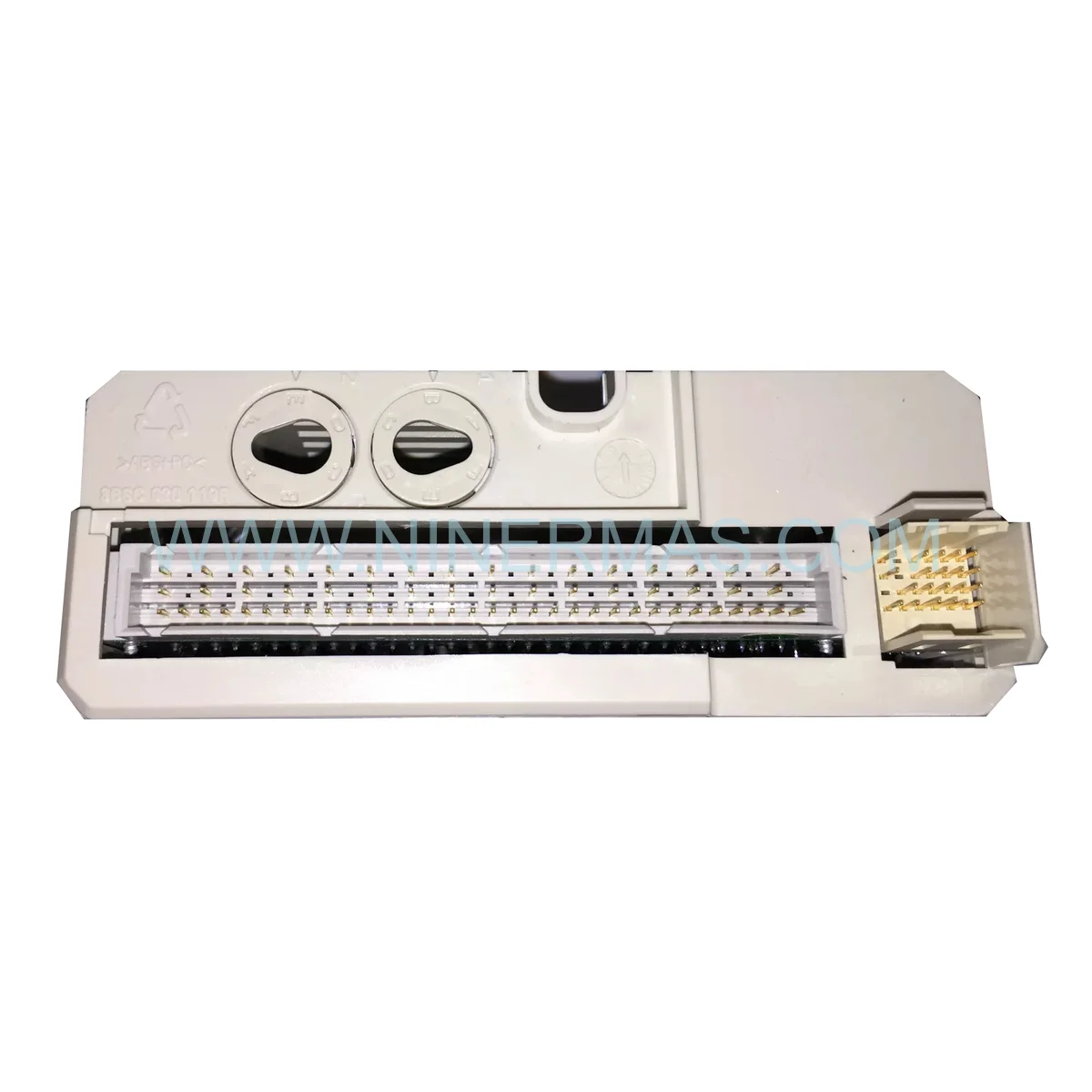

ABB DI814 Digital Input Module 3BUR001454R1 | 16-Ch 24VDC S800 I/O

ABB DI814 3BUR001454R1 | Reliable Automation Component for Mission-Critical I/O

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the ABB DI814 (Part No. 3BUR001454R1) is a cornerstone of system availability in distributed control architectures. Deployed across ABB 800xA DCS, Advant OCS, and Compact Product Suite environments, this 16-channel current-sourcing digital input module delivers deterministic signal acquisition that process optimization demands. Its dual-group galvanic isolation architecture eliminates ground loop interference — a leading cause of spurious trips in mission-critical automation systems — ensuring operational excellence even under high electrical noise conditions.

The 3BUR001454R1 is engineered for durability in demanding industrial environments. Its conformal-coated PCB resists humidity, corrosive atmospheres, and mechanical vibration, making it equally suited for offshore platforms, chemical processing units, and automotive assembly lines. Installation follows a tool-free hot-swap procedure: mount the compatible Termination Unit (TU810, TU812, TU814, TU830, TU833, or TU838) on DIN rail, connect field wiring, then seat the module until the locking tab engages — no system shutdown required, preserving uptime during maintenance windows.

For facilities managing aging S800 I/O infrastructure, maintaining a strategic reserve of the 3BUR001454R1 is a proven spare-parts strategy. As an end-of-life and legacy module specialist, we maintain global inventory to support brownfield upgrades and emergency replacements, eliminating the extended lead times that can paralyze production lines.

Key Operational Features

Dual-Group Galvanic Isolation: Two independent 8-channel groups suppress ground loops and cross-channel interference, supporting high availability in safety-instrumented systems.
Current-Sourcing (PNP) Inputs: Direct integration with PNP proximity sensors, photoelectric switches, and solid-state field devices — no external signal conditioning required.
Hot-Swap / Live Replacement: Seamless integration without process interruption; critical for redundancy architectures and zero-downtime maintenance strategies.
Per-Channel LED Diagnostics: Instant visual status for each of the 16 channels accelerates commissioning and fault isolation during corrective maintenance.
Broad Termination Unit Compatibility: Six supported TU variants (TU810 U838) provide flexible wiring configurations for diverse panel layouts.
RoHS & Industrial Standards Compliance: EU Directive 2011/65/EU compliant; Swiss-manufactured to ABB’s stringent quality benchmarks.

Maintenance & Performance Benchmarks

The 3BUR001454R1 is designed to scale across industrial network architectures — from compact skid-mounted systems with fewer than 50 I/O points to enterprise-scale DCS installations managing thousands of field signals. In 800xA environments, the module participates in online diagnostics via Control Builder, reporting channel health, communication status, and isolation group integrity in real time. This level of system integration reduces mean time to repair (MTTR) by enabling remote fault identification before a technician reaches the field.

Preventive maintenance is minimal: quarterly LED status checks, annual terminal re-torque to 0.5 Nm, and a triennial functional channel test using a calibrated signal source. Expected service life exceeds 15 years in controlled environments ( 40°C average ambient, <95% RH non-condensing). For process optimization, pairing the DI814 with ABB’s redundant power supply modules and fiber-optic communication backbones further enhances system integration resilience.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 3BUR001454R1 unit dispatched by our team ships in original ABB factory packaging — anti-static bag with protective foam insert and original documentation — preserving module integrity during international transit. For in-stock units, same-day dispatch is available on orders confirmed before 14:00 (GMT+8), with worldwide express logistics via DHL, FedEx, and UPS to minimize your plant’s exposure to unplanned downtime.

We specialize in global supply for EOL (End-of-Life) and legacy automation components. The 3BUR001454R1 is a sought-after module in brownfield upgrade projects where replacing an entire S800 I/O rack is cost-prohibitive. Our sourcing network spans certified distributors and OEM-authorized channels across Asia, Europe, and the Americas, ensuring authentic components with full traceability. Each unit undergoes pre-shipment inspection and functional verification before dispatch.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 3BUR001454R1 in a live 800xA system?
A: Mount the appropriate Termination Unit (e.g., TU810) on DIN rail first. Connect all field wiring to TU screw terminals (signal = +24V, common = 0V for PNP inputs). Then insert the 3BUR001454R1 module into the TU until the locking tab clicks. The green PWR LED should illuminate within 3 seconds. No system restart is required — the 800xA Control Builder will detect the module online automatically.

Q2: Which firmware versions of 800xA are compatible with the 3BUR001454R1?
A: The DI814 / 3BUR001454R1 is supported across 800xA versions 4.0, 4.1, 5.0, 5.1, and 6.0. No firmware upgrade is required on the module itself; compatibility is managed at the DCS software layer. Always verify your Control Builder version supports the S800 I/O library revision installed in your project.

Q3: Can the 3BUR001454R1 be used in SIL-rated safety loops?
A: The DI814 is a standard I/O module and is not independently SIL-certified. For safety instrumented systems (SIS), ABB’s S800 Safety I/O range (e.g., DI821S) should be used. However, the 3BUR001454R1 can coexist in the same rack as safety modules for non-safety signal acquisition.

Q4: How do I initiate a warranty claim for a defective 3BUR001454R1?
A: Contact our technical support team at sale@ninermas.com with your order number, module serial number, and a description of the fault symptom. We will issue a Return Merchandise Authorization (RMA) within 24 business hours. Defective units are replaced or repaired within 10 business days of receipt at our facility.

Q5: What are the signal filtering options available on the 3BUR001454R1?
A: Input signal filtering is configurable in software via 800xA Control Builder or Advant Station Configurator, with selectable filter times from 0 ms to 100 ms per channel group. This allows engineers to suppress contact bounce from mechanical switches without affecting response time for high-speed sensor inputs.

Q6: Is the 3BUR001454R1 interchangeable with the DI810 or DI801 modules?
A: Not directly. The DI810 (voltage-sensing) and DI801 (compact form factor) differ in input type and termination unit compatibility. The 3BUR001454R1 / DI814 is specifically designed for current-sourcing (PNP) field devices. Substitution requires re-engineering the I/O configuration in Control Builder and potentially rewiring field terminations.
