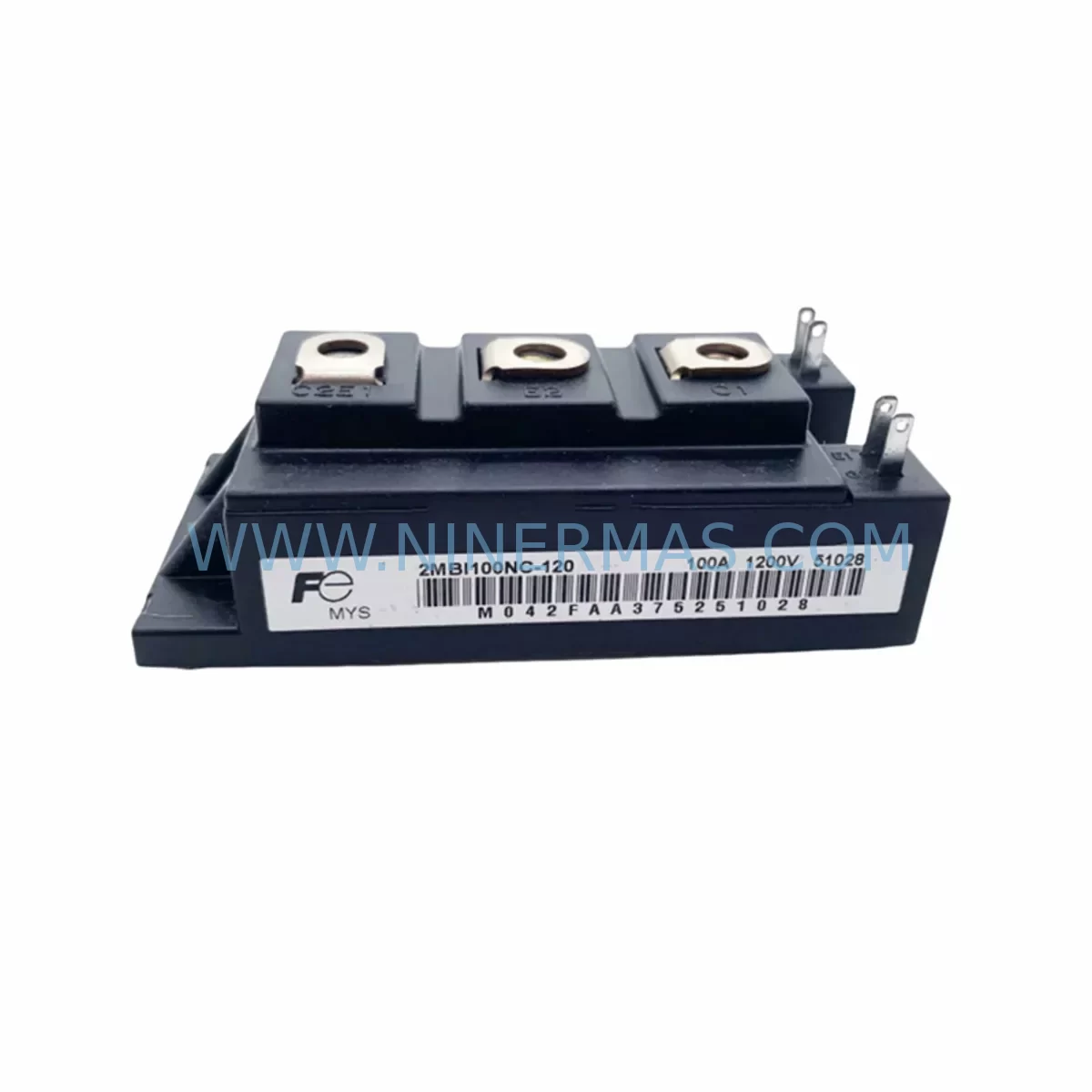

The FUJI 2MBI100NC-120 is a dual-in-line IGBT power module from FUJI Electric’s NPC (Neutral Point Clamped) series, rated at 1200V / 100A. Designed for demanding industrial inverter and drive applications, this module is a critical component in variable frequency drives (VFDs), servo amplifiers, UPS systems, and medium-voltage converter cabinets. When a 2MBI100NC-120 fails in service, the result is immediate drive shutdown, production line stoppage, and potential cascading damage to connected power electronics. Sourcing a verified, pre-tested replacement is the fastest path to restoring operation and minimizing unplanned downtime.

At NINERMAS, every 2MBI100NC-120 unit is inspected and functionally tested prior to shipment. Our stock is sourced from authorized distribution channels and long-term industrial surplus, ensuring that each module meets FUJI Electric’s original electrical and thermal specifications. With a 12-month warranty covering manufacturing defects and functional failure, maintenance engineers and procurement teams can plan spare parts inventory with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A 2MBI100NC-120 failure rarely occurs in isolation. In a typical FUJI FRENIC or NPC inverter cabinet, the IGBT module is one node in a tightly coupled power conversion chain. When planning a replacement, maintenance engineers should conduct a full cabinet inspection to prevent repeat failures and identify latent damage caused by the original fault event.

Begin with the gate driver board — the PCB that delivers switching signals to the IGBT gates. A shorted or degraded IGBT can back-feed voltage spikes into the gate driver, damaging optocouplers, gate resistors, and driver ICs. Inspect and test the gate driver before reinstalling a new module. Similarly, check the DC bus capacitor bank: electrolytic capacitors in the DC link absorb voltage ripple and protect the IGBT from overvoltage transients. Capacitors with elevated ESR or reduced capacitance accelerate IGBT wear and should be replaced as a preventive measure during the same maintenance window.

The snubber capacitors and bus bar assembly should be inspected for signs of arcing, discoloration, or mechanical stress. In NPC topologies, the clamping diodes — often integrated in companion modules such as the 2MBI100NC-120 paired NPC clamp module — must also be verified for forward voltage drop and reverse leakage. If the clamp diodes show degradation, replace them alongside the main IGBT module to restore full NPC switching symmetry.

On the control side, verify the FUJI OPC-G1-RY relay output card or equivalent I/O expansion module for fault signal integrity. Check terminal blocks and control wiring for loose connections that may have caused intermittent gate signals — a common root cause of IGBT thermal runaway. If the drive communicates over RS-485 or PROFIBUS, inspect the communication option card (e.g., FUJI OPC-G1-PDP or OPC-G1-RS) for damage from electrical noise generated during the fault event.

For drives with integrated braking resistor units or external dynamic braking modules, confirm that the braking chopper IGBT and its associated resistor are within specification — a failed braking circuit can cause DC bus overvoltage that destroys the main power module. Also inspect the input EMC filter and AC line reactor for signs of overheating or insulation breakdown, as these components protect the drive from upstream power quality issues.

Finally, review the heatsink and cooling fan assembly. Thermal compound degradation, blocked airflow, or a failing fan are among the most common contributors to IGBT overtemperature failure. Replace thermal interface material during every IGBT module swap, and verify fan rotation and airflow direction before returning the drive to service.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the drive, apply LOTO, and allow the DC bus to fully discharge (verify with a calibrated meter — typically wait 5–10 minutes after power-off for 1200V-class drives).

Step 2 — Fault documentation: Record the drive fault code, event log, and any visible damage (burn marks, cracked module housing, discolored bus bars). Photograph the cabinet interior before disassembly.

Step 3 — Module removal: Disconnect gate driver connectors and power terminals. Remove mounting screws in the sequence specified in the FUJI service manual. Lift the module straight up to avoid bending terminals.

Step 4 — Heatsink preparation: Clean the heatsink contact surface with isopropyl alcohol. Apply a thin, even layer of high-performance thermal compound (e.g., Shin-Etsu X-23 or equivalent). Do not use silicone grease not rated for power electronics.

Step 5 — New module installation: Position the 2MBI100NC-120 on the heatsink, align mounting holes, and torque screws to the value specified in the FUJI datasheet (typically 3–4 N·m for this module class). Reconnect gate driver and power terminals in reverse order of removal.

Step 6 — Pre-power verification: Perform insulation resistance test (megger) between power terminals and ground. Verify gate driver supply voltages with the drive powered but output disabled. Check for any fault codes before enabling the output.

Step 7 — Commissioning: Run the drive at reduced load for 15–30 minutes. Monitor heatsink temperature, output current balance, and DC bus voltage. Confirm no fault codes before returning to full production load.

This workflow applies directly to FUJI FRENIC series drives and is broadly compatible with other NPC inverter platforms using the 2MBI100NC-120 or equivalent 1200V/100A dual IGBT modules.

Spare Parts Support FAQ

Q1: Is the 2MBI100NC-120 still in production, and can I source it long-term?
The 2MBI100NC-120 is a mature FUJI Electric NPC module that may be at end-of-life or limited production status. NINERMAS maintains buffer stock specifically for legacy industrial systems where OEM support has been discontinued. We recommend purchasing 1–2 additional units as on-site spares to protect against future supply gaps, particularly for critical production lines where downtime cost is high.

Q2: How do I verify compatibility before installation?
Confirm the part number printed on the existing module matches 2MBI100NC-120. Cross-reference the drive model number against FUJI’s service documentation to verify the module’s position in the power stack. Key electrical parameters to match are Vces (1200V), Ic (100A), and NPC dual configuration. If you are substituting from a different manufacturer, verify pin-out, mounting footprint, and gate drive voltage requirements before proceeding.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events beyond rated Vces, gate drive circuit faults, or physical mishandling. All units are tested prior to shipment; if a unit fails on arrival or within the warranty period under normal use, NINERMAS will provide a replacement or full refund.

Q4: Can NINERMAS supply multiple units for a planned annual overhaul?
Yes. We support bulk procurement for annual maintenance programs, plant-wide VFD overhauls, and OEM service centers. Volume pricing is available for orders of 3 or more units. Contact our team with your maintenance schedule and required quantity to arrange a dedicated supply agreement with guaranteed lead times.
