OMRON CSK6-YKW Service-Ready Spare Part for Industrial Maintenance

OMRON CSK6-YKW Service-Ready Spare Part for Industrial Maintenance

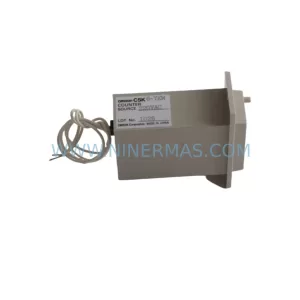

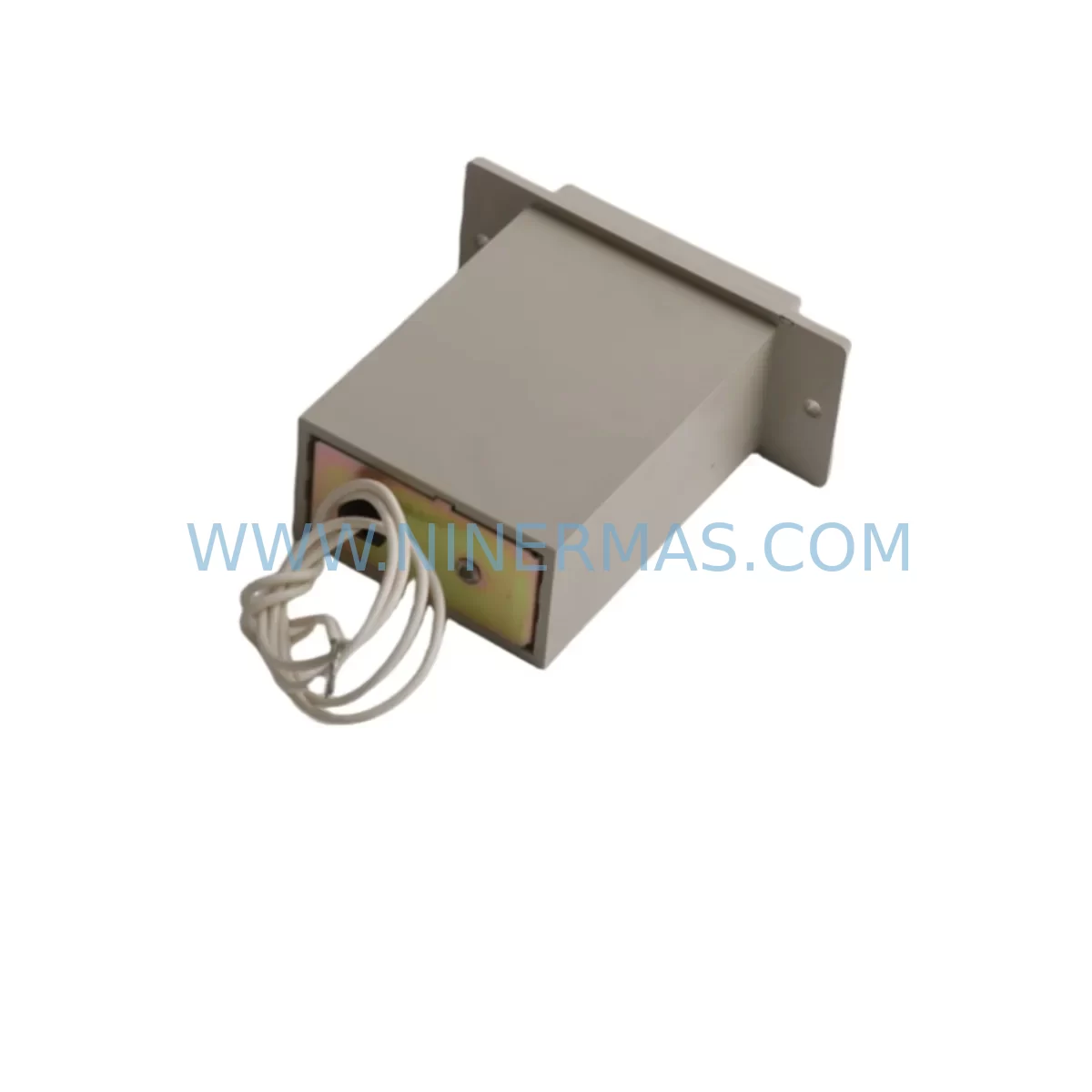

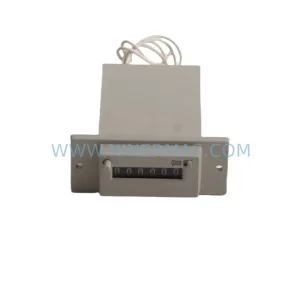

The OMRON CSK6-YKW is a 6-digit electromagnetic counter widely deployed in discrete manufacturing, packaging lines, press control panels, and process automation systems. As a critical counting and totalization component within OMRON’s CSK series, the CSK6-YKW is responsible for pulse accumulation, batch counting, and production monitoring in environments where digital reliability is non-negotiable. When this unit reaches end-of-life or fails unexpectedly, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path back to full operation.

At NINERMAS, we stock the OMRON CSK6-YKW as a tested, original-specification spare part, ready for immediate dispatch with a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm counting accuracy, reset mechanism integrity, and panel-mount compatibility before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CSK6-YKW in the field is rarely an isolated task. Maintenance engineers working on OMRON-based control panels should treat a counter replacement as an opportunity for a broader cabinet inspection. The CSK6-YKW typically receives its pulse signal from a proximity switch, photoelectric sensor, or relay contact output — all of which should be inspected for contact wear, signal integrity, and correct wiring polarity before the new counter is commissioned.

In panels where the CSK6-YKW operates alongside OMRON MY2N or MY4N relay modules, technicians should verify relay coil voltage and contact condition, as degraded relay contacts are a common source of false counts or missed pulses. If the counter is driven by a PLC output — such as an OMRON CP1E, CJ2M, or CS1 series controller — confirm that the output module’s sink/source configuration matches the counter’s coil polarity requirements.

Power supply stability is equally critical. The CSK6-YKW’s electromagnetic coil is sensitive to voltage dips; a failing OMRON S8VS or S8JX DIN-rail power supply can cause erratic counting behavior that mimics a faulty counter. Always measure supply voltage under load before condemning the counter itself. Terminal blocks — particularly OMRON XW5T or Phoenix Contact PTFIX series — should be inspected for loose connections and oxidation, as high-resistance joints introduce voltage drops that affect coil actuation reliability.

For systems with signal isolation requirements, inline signal isolators or OMRON G3PA solid-state relays may be present between the sensor and the counter input. These components should be tested for proper switching thresholds. In older installations, the wiring harness between the sensor and counter panel may have insulation degradation; a simple insulation resistance test can prevent nuisance faults after the new CSK6-YKW is installed.

Procurement engineers building annual maintenance kits for OMRON CSK-series panels should consider stocking the CSK6-YKW alongside compatible reset knob assemblies, coil replacement kits where available, and panel-mount gaskets to maintain IP rating integrity. Pairing the counter with a spare OMRON H7EC digital counter provides a modern electronic backup option for facilities planning a gradual technology refresh without full panel redesign.

Site Replacement Workflow

Step 1 — Isolation: De-energize the control panel and lock out / tag out (LOTO) per site safety procedures. Confirm zero voltage at the counter coil terminals using a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring, terminal labels, and counter reading before removal. Record the accumulated count if batch totals are required for production records.

Step 3 — Removal: Release the panel-mount retaining clips from the rear of the cutout. Disconnect coil wiring (terminals A1/A2) and any reset interlock wiring. Slide the unit forward out of the panel cutout.

Step 4 — Inspection: Inspect the cutout gasket and panel surface. Clean any dust or debris. Verify the replacement CSK6-YKW nameplate voltage matches the existing coil supply.

Step 5 — Installation: Insert the new CSK6-YKW into the cutout from the front. Secure retaining clips. Reconnect coil wiring per the original documentation, observing polarity. Reconnect any reset interlock circuits.

Step 6 — Commissioning: Re-energize the panel. Apply test pulses from the upstream sensor or PLC output and verify the counter advances correctly. Confirm manual reset function operates smoothly. Document the replacement in the equipment maintenance log.

This workflow is compatible with direct replacement of the older CSK5-YKW model in the same panel cutout, allowing legacy system life extension without panel modification. Facilities managing multiple lines can standardize on the CSK6-YKW as the preferred replacement unit across all compatible OMRON counter positions, simplifying spare parts inventory and reducing procurement lead time risk.

Spare Parts Support FAQ

Q1: Is the CSK6-YKW a direct replacement for the CSK5-YKW?
Yes. The CSK6-YKW shares the same panel cutout dimensions and coil voltage options as the CSK5-YKW, making it a direct mechanical and electrical replacement. Verify coil voltage on the nameplate before installation to ensure compatibility with your existing power supply circuit.

Q2: What is included in the 12-month warranty?
Each CSK6-YKW supplied by NINERMAS carries a 12-month warranty from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. Units are pre-tested before dispatch. In the event of a warranty claim, we provide replacement or refund based on fault verification.

Q3: How do you verify stock availability and lead time?
NINERMAS maintains buffer stock of high-demand OMRON CSK-series counters to support emergency replacement orders. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time stock confirmation and estimated dispatch time. For critical production facilities, we recommend establishing a standing order or consignment stock arrangement to eliminate lead time risk.

Q4: Can NINERMAS support long-term supply for discontinued or hard-to-source OMRON parts?
Yes. NINERMAS specializes in long-term supply continuity for industrial automation spare parts, including OMRON products that are in the mature or end-of-life phase. We source through authorized distribution channels and maintain traceability documentation. Customers managing aging OMRON CSK-series installations can rely on NINERMAS as a stable supply partner for multi-year maintenance programs.
