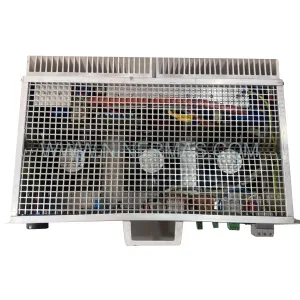

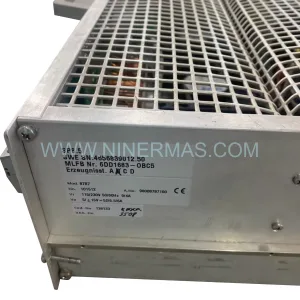

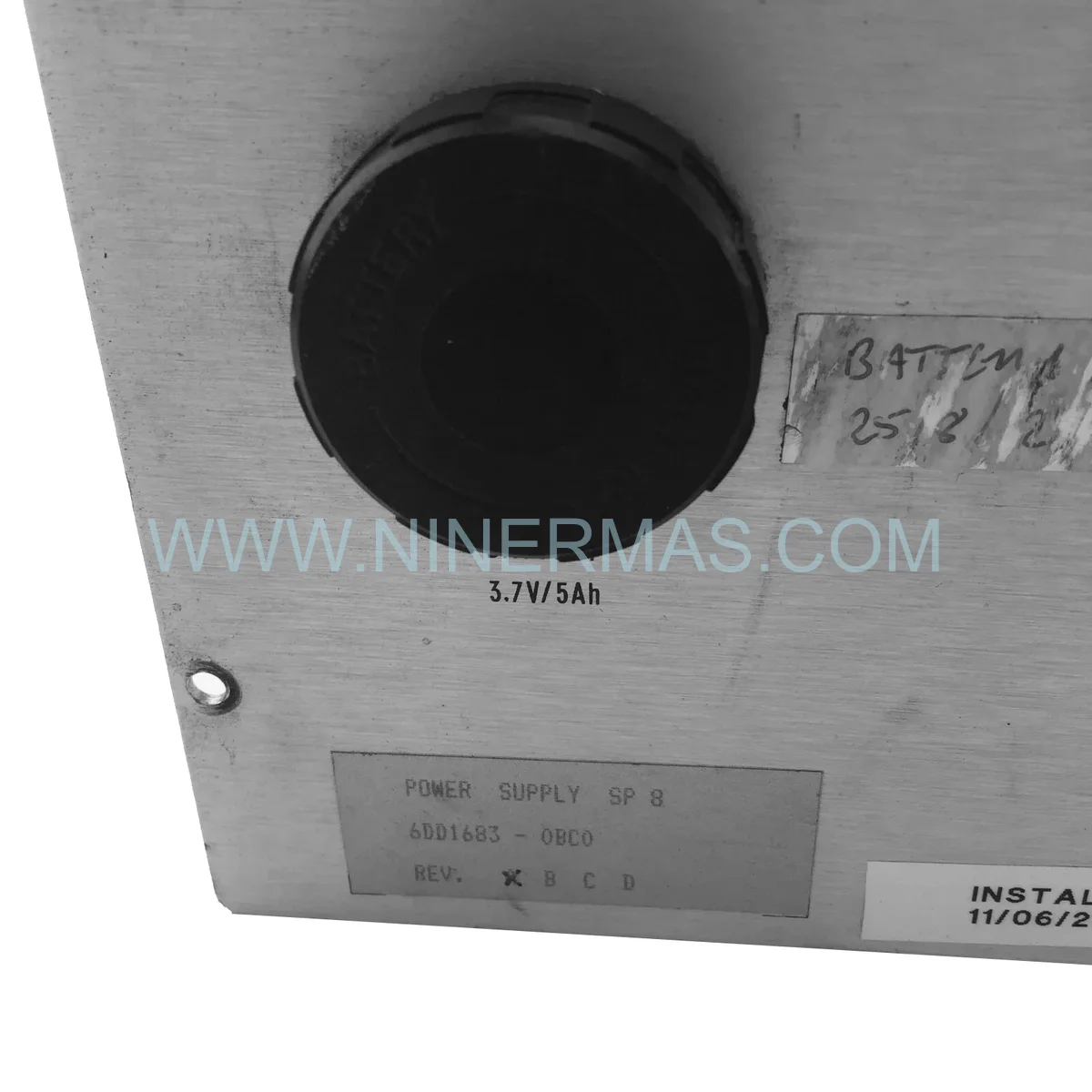

Siemens 6DD1683-0BC0 Power Supply Unit (SIMADYN D) – New & Original in Stock

Siemens 6DD1683-0BC0 SIMADYN D Power Supply Unit | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Siemens 6DD1683-0BC0 stands as a foundational element in sustaining system availability across SIMADYN D distributed control architectures. This power supply module delivers precisely regulated 5V DC at 52A alongside dual ±15V DC rails, ensuring that processor boards, I/O modules, and communication interfaces maintain uninterrupted operational continuity — a non-negotiable requirement in turbine control, drive management, and process optimization environments. Integrating the 6DD1683-0BC0 into your spare parts inventory directly reduces mean time to repair (MTTR) and shields production lines from costly unplanned downtime.

Engineered for resilience in harsh industrial conditions, the Siemens 6DD1683-0BC0 incorporates an integrated forced-air cooling fan with thermal monitoring, enabling stable operation across ambient temperatures from 0°C to +55°C. Its robust overvoltage, overcurrent, and short-circuit protection circuits guard downstream modules against transient electrical events common in heavy industrial environments. During installation, engineers should verify backplane connector alignment within the SIMADYN D SR12.1 subrack and confirm input voltage stability at 24V DC (±10%) before energizing the unit to prevent nuisance trips.

As legacy SIMADYN D platforms approach end-of-life status, sourcing a verified, original 6DD1683-0BC0 becomes increasingly strategic. Maintaining this module as a critical spare eliminates single points of failure in your power distribution architecture and ensures seamless integration without firmware or hardware re-engineering — a cornerstone of operational excellence in long-lifecycle industrial systems.

Key Operational Features

Dual-Rail Output Architecture: 5V DC / 52A primary output + ±15V DC auxiliary rails for analog signal conditioning — eliminates need for supplementary power sources.
High Availability Design: Supports redundant power configurations enabling hot-swap maintenance without system shutdown, maximizing uptime in mission-critical applications.
Seamless System Integration: Direct backplane compatibility with SIMADYN D SR12.1 subrack; plug-and-play replacement for existing installations with zero re-wiring.
Thermal-Managed Cooling: Demand-driven fan operation extends component service life while reducing acoustic output in control room environments.
Comprehensive Protection Suite: Overvoltage, overcurrent, and short-circuit protection circuits safeguard all connected automation components from electrical anomalies.
High Conversion Efficiency: >85% efficiency at full load minimizes heat generation and reduces energy overhead in densely populated control panels.

Maintenance & Performance Benchmarks

The 6DD1683-0BC0 is architected to serve as the power backbone across a wide spectrum of industrial network scales — from compact standalone SIMADYN D racks powering single-axis drive controllers to large-scale distributed control nodes managing multi-unit turbine farms or continuous process plants.

In small-to-medium installations, a single unit typically powers an entire SR12.1 subrack populated with processor, I/O, and communication modules. In larger architectures requiring N+1 redundancy, dual units operate in parallel load-sharing mode, with automatic failover ensuring zero-interruption power continuity during module replacement or fault isolation procedures.

Preventive maintenance benchmarks recommend annual inspection of fan bearing condition, output voltage verification under load (5V ±2%, ±15V ±3%), and input connector contact resistance checks. Units exhibiting fan speed degradation or output ripple exceeding 50mV peak-to-peak should be scheduled for replacement during the next planned maintenance window to prevent cascading failures in connected process optimization systems.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Siemens 6DD1683-0BC0 unit dispatched from our facility is supplied in original factory packaging, preserving ESD protection, mechanical integrity, and traceability documentation from point of manufacture to your receiving dock. For urgent plant recovery scenarios, same-day dispatch is available for in-stock units upon order confirmation before the daily cut-off time — minimizing production halt duration and protecting revenue continuity.

As SIMADYN D transitions into end-of-life (EOL) and legacy support phases, global sourcing of authentic replacement modules becomes increasingly complex. Our procurement network spans certified industrial surplus channels and authorized distribution partners across Europe, Asia, and the Americas, enabling reliable supply of the 6DD1683-0BC0 even when standard distribution channels are exhausted. All units are subject to pre-shipment functional verification and visual inspection, ensuring deployment-ready condition upon arrival.

Engineering Support & FAQ

Q1: What are the recommended installation steps for replacing a failed 6DD1683-0BC0 in a live SIMADYN D system?
A: De-energize the subrack input supply and allow capacitors to discharge (minimum 60 seconds). Disconnect the backplane connector, remove the failed unit, and insert the replacement 6DD1683-0BC0 ensuring full connector engagement. Restore input power and verify output voltages (5V ±2%, ±15V ±3%) before re-enabling connected modules. In redundant configurations, the swap can be performed hot — follow the system’s redundancy switchover procedure documented in the SIMADYN D engineering manual.

Q2: Which firmware versions and processor modules are compatible with this power supply?
A: The 6DD1683-0BC0 is a hardware power module with no embedded firmware. It is compatible with all SIMADYN D processor generations including PM5, PM6, and PM7 series boards, as well as all standard I/O and communication modules mounted in SR12.1 subracks. No firmware configuration is required on the power supply itself.

Q3: Can this unit operate in parallel with another 6DD1683-0BC0 for redundancy?
A: Yes. SIMADYN D supports N+1 redundant power configurations where two units share the load. In the event of a primary unit fault, the secondary assumes full load automatically. Ensure both units are from the same hardware revision for optimal load-balancing performance.

Q4: How is the warranty claim process handled for this module?
A: Units exhibiting failure within the 12-month warranty period should be reported to our technical support team with a fault description and photographic evidence. We initiate a replacement dispatch upon fault verification — typically within 2 business days. Return shipping of the defective unit is coordinated by our logistics team at no additional cost to the customer.

Q5: What diagnostic steps should be taken if the 6DD1683-0BC0 output voltage is out of specification?
A: First, verify input voltage stability at the 24V DC supply rail. Measure output voltages under load using a calibrated multimeter. Check for blocked airflow around the cooling fan and inspect for visible component damage. If output deviation exceeds ±5%, the unit should be removed from service and replaced to prevent downstream module damage.

Q6: Is this power supply suitable for use in safety-instrumented systems (SIS)?
A: The 6DD1683-0BC0 is designed for standard industrial control applications within the SIMADYN D platform. For safety-instrumented system integration, consult the applicable IEC 61511 / IEC 61508 safety documentation and verify SIL rating requirements with your system integrator before deployment.
