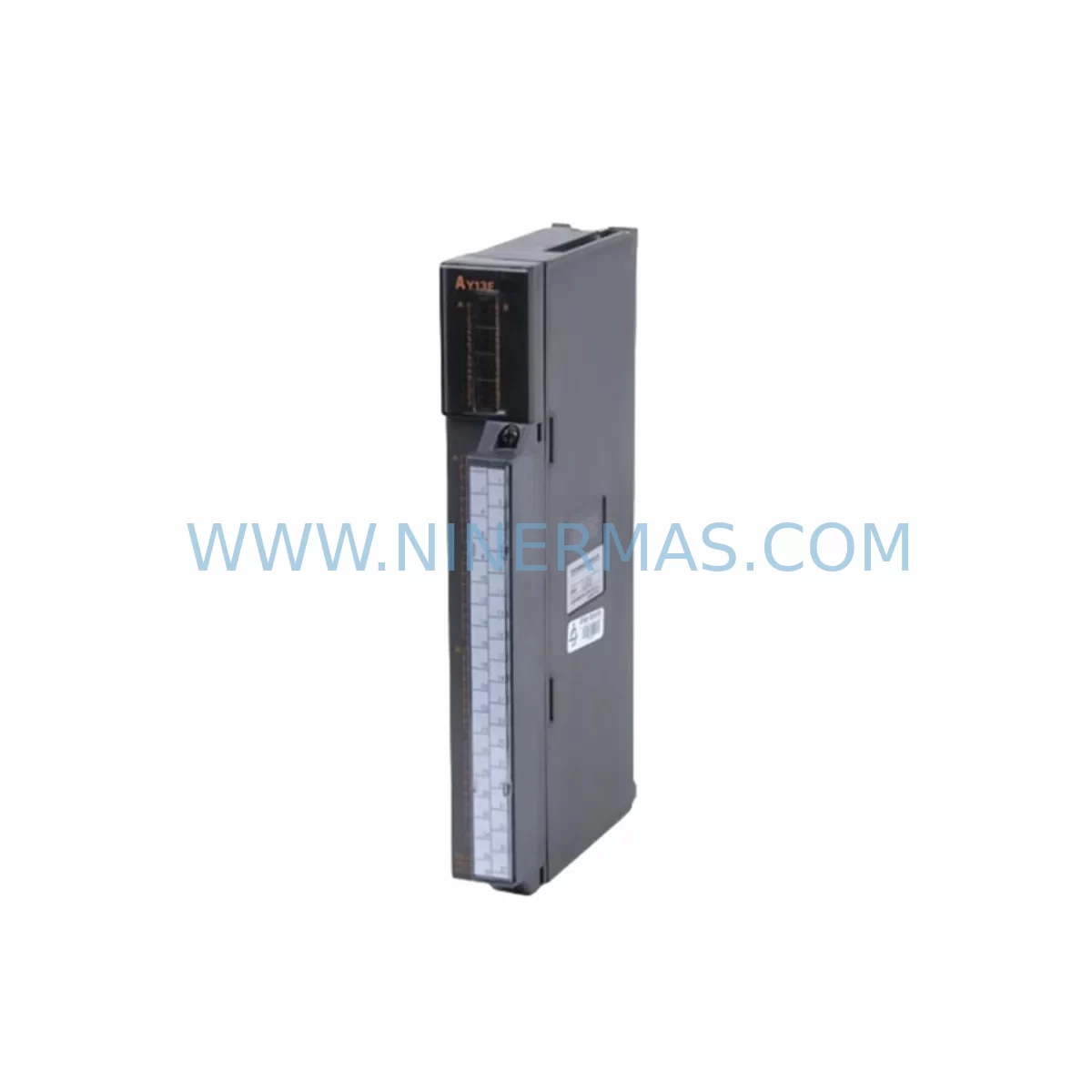

The Mitsubishi AY13E is a 16-point transistor output local unit designed for the MELSEC A-Series programmable controller platform. As legacy A-Series systems approach end-of-life and spare parts become increasingly scarce, the AY13E remains a critical component for engineers managing retrofit projects, production line upgrades, and control cabinet modernization programs. NINERMAS maintains verified stock of the AY13E to support customers requiring immediate replacement, planned lifecycle extension, or phased migration away from discontinued Mitsubishi hardware.

The AY13E operates as a local I/O unit within the A-Series base unit and backplane architecture. It provides 16 transistor sink output points rated at 12–24 VDC, with a maximum load current of 0.5 A per point and 8 A per common. The module connects directly to the A-Series main base unit (A38B, A33B, A32B) or extension base units (A68B, A65B) via the dedicated backplane bus. Engineers replacing a failed AY13E must confirm the base unit slot assignment, the I/O address mapping configured in the original GX Developer or GPP-W program, and the output wiring terminal layout before installation.

During retrofit planning, it is essential to verify that the replacement AY13E carries the same output type (transistor sink) as the original unit. Substituting a relay output module such as the AY22E or AY40 in place of the AY13E without program modification will result in timing mismatches and potential field device damage. Similarly, if the control system is being migrated from the A-Series to the Q-Series platform using a QA1S65B or QA1S68B extension base, the output module addressing must be remapped in GX Works2 to reflect the new I/O assignment structure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AY13E replacement begins with a thorough audit of the existing control cabinet. Engineers should document the current slot position of the failed module within the A-Series base unit, photograph the terminal wiring before disconnection, and record the I/O address range assigned to the AY13E in the active PLC program. This pre-work eliminates the most common sources of commissioning delay and ensures that the replacement module is configured identically to the original.

Power supply capacity is a frequent oversight in retrofit projects. The A-Series power supply module — typically an A61P, A62P, or A63P — must be verified to provide sufficient 5 VDC internal bus current for all installed modules including the replacement AY13E. If the existing power supply is already operating near its rated output, adding or replacing modules may require upgrading to a higher-capacity unit. Field engineers should also confirm that the 24 VDC external supply feeding the AY13E output commons is correctly fused and that the supply voltage is stable under full load conditions.

For systems incorporating communication modules such as the A1SJ71UC24-R2 serial communication unit or the A1SJ71E71-B2 Ethernet interface module, the retrofit plan must account for any changes to the communication link configuration. If the AY13E replacement is part of a broader migration from the A-Series to the iQ-R Series or Q-Series platform, a MELSECNET/H or CC-Link IE Field network module may be introduced to replace the legacy parallel bus architecture. In such cases, the output module addressing, network parameter settings, and HMI screen tag assignments in the GOT1000 or GOT2000 series graphic operator terminal must all be updated to reflect the new hardware configuration.

I/O expansion requirements should also be reviewed during the retrofit. If the existing A-Series base unit is fully populated, engineers may need to add an A68B or A65B extension base unit connected via the A1SC05NB or A1SC12NB extension cable. Signal isolation between the PLC output and field devices — particularly for long cable runs or electrically noisy environments — can be addressed by inserting a signal isolator or relay terminal block between the AY13E output terminals and the field wiring. Programming cable access for on-site program backup and verification typically requires a SC-09 or USB-SC09-FX adapter connected to the CPU module’s RS-422 port.

Before the replacement AY13E is installed, the unit should be bench-tested using a 24 VDC power supply and a continuity tester to verify that all 16 output transistors switch correctly. NINERMAS performs pre-shipment functional testing on all AY13E units and provides a test report upon request. Each unit is supplied with a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions.

Downtime Control During System Migration

Minimizing production downtime during an AY13E replacement requires careful pre-planning and a structured changeover procedure. The recommended approach is to perform a full program backup from the existing CPU module — typically an A2USCPU, A3UCPU, or A1SCPU — using GX Developer before any hardware is disturbed. The backup should be stored on both a local PC and a removable medium to protect against data loss during the changeover.

Where production schedules permit only a narrow maintenance window, engineers should pre-wire the replacement AY13E on a temporary terminal block outside the cabinet, verify the wiring against the original drawings, and prepare all tools and documentation before the planned shutdown. The actual module swap — removing the failed AY13E, inserting the replacement, and reconnecting the terminal wiring — can typically be completed in under 30 minutes for an experienced technician. Following installation, the PLC should be powered up in STOP mode, the program verified against the backup, and a forced output test performed on all 16 points before returning the system to RUN mode.

For systems where continuous operation is critical, a hot-standby configuration using a redundant CPU module such as the A3HCPU or a dual-system arrangement with an A1SHCPU may allow the output module to be replaced without a full system shutdown. Engineers should consult the original system design documentation to confirm whether the existing installation supports hot-swap or redundant operation before attempting a live replacement.

NINERMAS maintains ready stock of the AY13E to support emergency replacement requirements with short lead times. Customers with critical spare parts programs are encouraged to contact our team to discuss consignment stock arrangements, long-term supply agreements, and priority dispatch options that can reduce unplanned downtime risk across multiple production sites.

Retrofit Support FAQ

Q1: Is the AY13E a direct drop-in replacement for a failed unit in my A-Series system?
Yes, provided the replacement unit is the same AY13E model number. The module is slot-compatible with all standard A-Series base units including the A38B, A33B, A32B, A68B, and A65B. No program modification is required if the slot position and I/O address assignment remain unchanged. NINERMAS recommends verifying the output wiring terminal layout against the original drawings before installation.

Q2: Can the AY13E be used in a Q-Series or iQ-R Series base unit?
No. The AY13E uses the A-Series parallel backplane bus and is not electrically or mechanically compatible with Q-Series (QA1S65B adapter excepted) or iQ-R Series base units. Migration to the Q-Series platform requires replacement with a QY10 or QY18A transistor output module and corresponding program address remapping in GX Works2.

Q3: What commissioning steps are required after installing a replacement AY13E?
After installation, power the system in STOP mode and use GX Developer’s device monitor function to force each of the 16 output points ON and OFF individually, confirming correct switching at the field terminal. Verify that the external 24 VDC supply to the output commons is within specification and that all field devices respond correctly before switching the CPU to RUN mode. A full program comparison against the pre-maintenance backup is also recommended.

Q4: Does NINERMAS provide a warranty on the AY13E and what are the supply lead times?
All AY13E units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. In-stock units are available for same-day or next-business-day dispatch. For customers requiring guaranteed availability for planned maintenance or long-term spare parts programs, NINERMAS offers priority stock reservation and consignment arrangements. Contact sale@ninermas.com or call +0086 187 5021 5667 for availability confirmation and lead time quotation.
