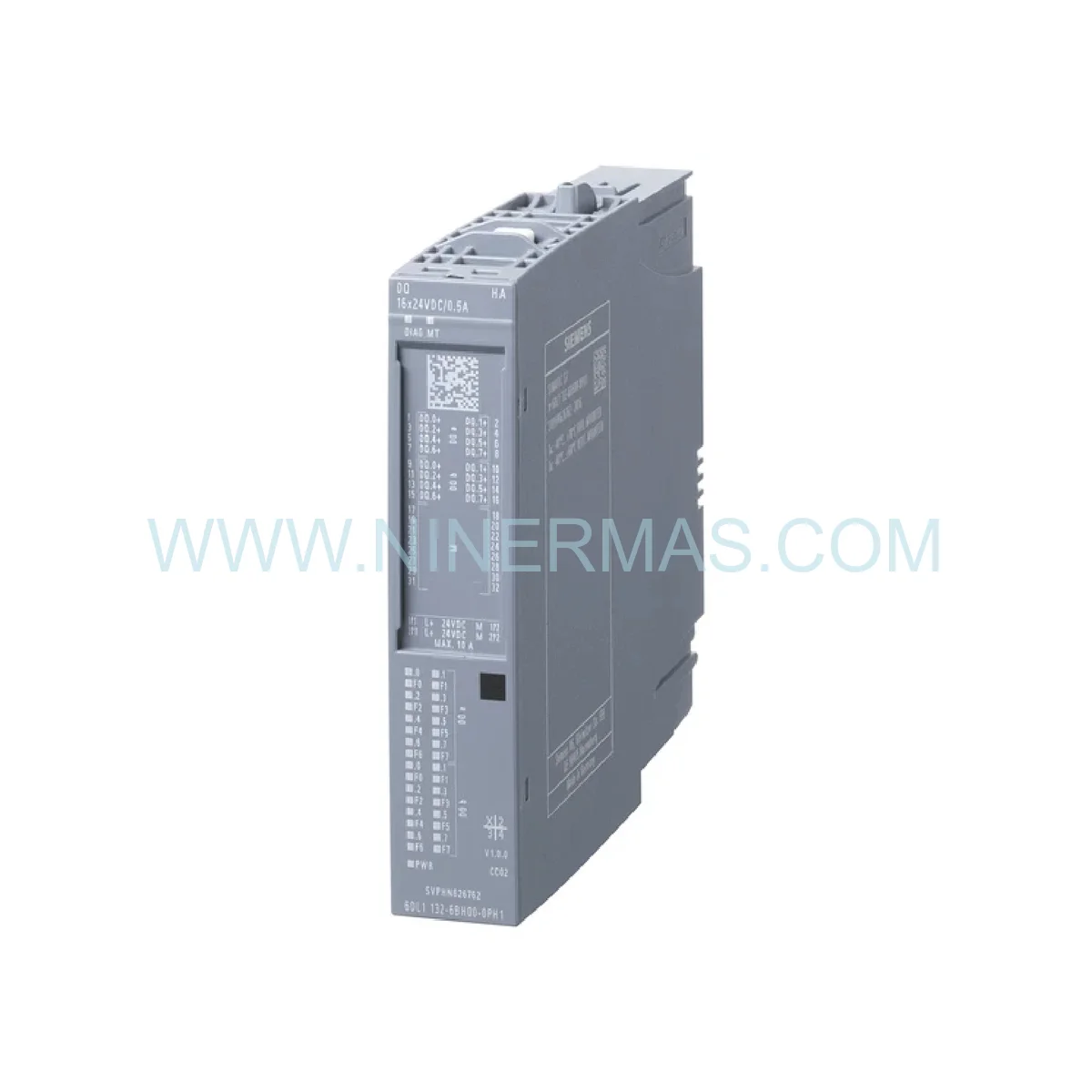

Siemens 6DL1132-6BH00-0PH1 ET 200SP HA Digital Output Module — New & Original

Siemens 6DL1132-6BH00-0PH1 ET 200SP HA Digital Output Module | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, sustaining system availability in continuous-process industries demands components that perform without compromise. The Siemens 6DL1132-6BH00-0PH1 — a 16-channel, 24VDC/0.5A digital output module within the SIMATIC ET 200SP HA platform — is purpose-built for exactly this requirement. Its redundant architecture eliminates single points of failure, enabling process optimization across pharmaceutical batch reactors, power generation switchgear, and chemical dosing systems where even a 30-second outage translates into significant financial and safety consequences.

Deploying the 6DL1132-6BH00-0PH1 in harsh industrial environments requires attention to a few critical installation parameters. The module’s extended operating range of -40°C to +70°C accommodates outdoor control cabinets and unheated substations, while its 500V channel-to-backplane isolation guards against ground-loop interference common in high-voltage switchyards. Ensure BaseUnit compatibility and verify PROFINET topology before commissioning to achieve seamless integration with existing S7-1500 HA controller pairs.

As production lines age and OEM support windows close, maintaining a certified stock of mission-critical I/O modules becomes a non-negotiable element of any reliability program. Sourcing a genuine, factory-sealed 6DL1132-6BH00-0PH1 as a strategic spare eliminates lead-time risk and protects operational excellence during unplanned corrective maintenance events.

Key Operational Features

16-Channel Digital Output: 24VDC rated, 0.5A per channel — drives solenoid valves, relay coils, and indicator arrays simultaneously
Redundant HA Architecture: Hot-standby partner module ensures <1ms failover with zero output-state loss
Per-Channel Diagnostics: Real-time wire-break, short-circuit, and overload detection with individual fault flags
Hot-Swap Capability: Module replacement under live system conditions — zero planned downtime for corrective maintenance
PROFIsafe Ready: Supports safety-rated applications up to SIL 3 when paired with F-CPU configurations
Isochronous Real-Time (IRT): Sub-100μs cycle synchronization for motion-control and turbine-protection loops
System Integration: Native TIA Portal V14+ engineering, compatible with SIMATIC S7-1500 HA controller pairs via PROFINET IRT

Maintenance & Performance Benchmarks

The 6DL1132-6BH00-0PH1 is engineered to slot into both small-scale distributed control nodes and large-scale multi-rack industrial network architectures without configuration overhead. In compact installations — such as a single ET 200SP HA station managing a skid-mounted compressor — the module’s 35mm DIN-rail footprint and push-in terminal technology reduce wiring time by up to 40% compared to screw-terminal predecessors.

For enterprise-scale deployments spanning multiple process units, the module participates in PROFINET ring topologies with Media Redundancy Protocol (MRP), sustaining network reconfiguration times under 200ms. Firmware updates are applied non-disruptively via TIA Portal’s online update function, preserving output states throughout the upgrade cycle — a critical capability for automation components embedded in continuous-run processes.

Benchmark data from field deployments indicates a Mean Time Between Failures (MTBF) exceeding 500,000 hours under nominal operating conditions, positioning this module as a cornerstone of any Operational Excellence initiative targeting OEE improvement above 95%.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6DL1132-6BH00-0PH1 dispatched from our facility ships in original factory packaging with intact tamper-evident seals, ensuring authenticity and protecting sensitive electronics during transit. For urgent corrective maintenance scenarios, same-day dispatch is available on confirmed in-stock units — reducing your mean time to repair (MTTR) to the absolute minimum.

We maintain a dedicated global supply channel for end-of-life (EOL) and legacy Siemens automation components, making us a reliable single-source partner for plant operators managing aging DCS/PLC infrastructure. Shipments are routed via DHL Express, FedEx Priority, and UPS Worldwide to reach facilities across Europe, the Americas, Southeast Asia, and the Middle East within 3-5 business days. All consignments include full commercial documentation — packing lists, certificates of origin, and test reports — to satisfy customs clearance requirements in regulated industries.

Engineering Support & FAQ

Q1: What BaseUnit is required to mount the 6DL1132-6BH00-0PH1?
A: This module requires an ET 200SP HA-compatible BaseUnit (BU-type for HA configurations). Verify the BaseUnit color-coding and slot assignment in TIA Portal hardware configuration before physical installation to prevent mismatch errors.

Q2: Which firmware version is needed for full HA functionality?
A: The paired S7-1500 HA CPU must run firmware V2.6 or higher. The 6DL1132-6BH00-0PH1 module firmware is managed automatically via TIA Portal during the hardware configuration download — no manual firmware flashing is required.

Q3: Can this module be used in a non-HA (standard) ET 200SP station?
A: No. The HA-series modules are exclusively designed for ET 200SP HA stations with redundant interface modules. Attempting to install in a standard ET 200SP rack will result in a hardware mismatch fault.

Q4: How is the warranty claim process handled?
A: Units covered under our 12-month warranty are eligible for advance replacement. Submit a fault report with photographic evidence and the module’s serial number to our technical team. A replacement unit is dispatched within 48 hours of claim approval, minimizing production impact.

Q5: Does the module support PROFIsafe for safety-rated output control?
A: Yes. When integrated with an F-capable S7-1500 HA CPU and configured in TIA Portal Safety Administration, the 6DL1132-6BH00-0PH1 supports PROFIsafe communication up to SIL 3 / PLe, suitable for emergency shutdown and safety instrumented system (SIS) applications.

Q6: What diagnostic data is accessible via PROFINET?
A: The module exposes per-channel status bits including: output active/inactive state, wire-break detection, short-circuit alarm, overload condition, and supply voltage monitoring. All diagnostic data is readable via standard PROFINET acyclic read services or TIA Portal online diagnostics view.
