Siemens 6AV6542-0CA10-0AX0 Safety-Reliable HMI for Critical Sites

Siemens 6AV6542-0CA10-0AX0 Safety-Reliable HMI for Critical Sites

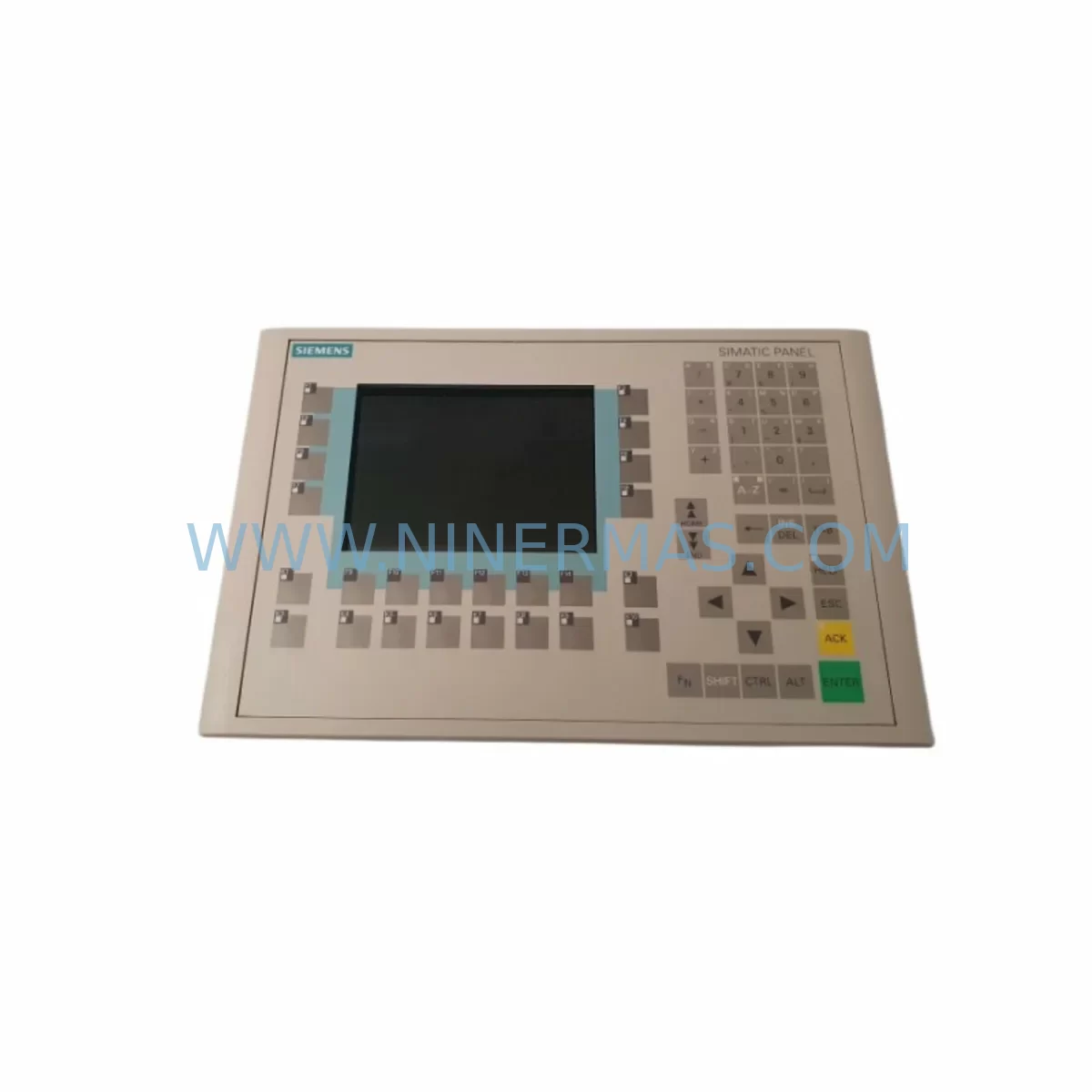

The Siemens 6AV6542-0CA10-0AX0 is a SIMATIC HMI OP270 10″ operator panel engineered for demanding industrial environments where control continuity, operator safety, and signal integrity are non-negotiable. Designed as a front-end visualization and control interface for SIMATIC S7-300 and S7-400 automation systems, this operator panel delivers robust, real-time process monitoring across continuous production lines, critical interlock circuits, and high-load control cabinets. Its proven architecture minimizes the risk of control interruption, operator error, signal drift, and unplanned downtime — making it a trusted choice for maintenance engineers and system integrators managing safety-critical automation assets.

At NINERMAS, every 6AV6542-0CA10-0AX0 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained specifically to support end-of-life and legacy system continuity, ensuring your critical control infrastructure remains operational without costly redesigns or extended lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet environments — such as those found in petrochemical interlock panels, power distribution switchgear rooms, and heavy-load motor control centers — the 6AV6542-0CA10-0AX0 serves as the operator’s primary window into the automation system. Its IP65-rated front panel provides reliable protection against dust ingress and moisture splash, which is critical in environments prone to condensation or airborne particulates.

To build a complete, safety-hardened control cabinet around this HMI, engineers typically pair it with the Siemens SITOP PSU100S 6EP1334-3BA10 regulated power supply, which delivers stable 24 V DC output with built-in surge and overload protection — directly reducing the risk of HMI brownout or unexpected reboot during voltage transients. For PLC backbone integration, the Siemens S7-300 CPU 315-2 PN/DP (6ES7315-2EH14-0AB0) provides the processing core, while the Siemens CP343-1 Ethernet module (6GK7343-1EX30-0XE0) enables high-speed PROFINET communication, reducing the risk of communication anomalies and data loss in time-critical control loops.

Digital I/O integrity is maintained through the Siemens SM321 Digital Input Module (6ES7321-1BL00-0AA0) and the Siemens SM322 Digital Output Module (6ES7322-1BL00-0AA0), both of which provide galvanic isolation to prevent signal cross-contamination from high-voltage switching transients. For PROFIBUS DP field bus connectivity — essential in distributed safety architectures — the Siemens PROFIBUS Connector 6ES7972-0BA52-0XA0 ensures low-impedance, noise-immune bus termination, minimizing the risk of communication frame errors under high electromagnetic interference conditions.

The Siemens PS307 Power Supply (6ES7307-1EA01-0AA0) is frequently deployed alongside the OP270 in legacy S7-300 racks to provide dedicated rail power, isolating the HMI supply from inductive load switching noise. For data retention and program backup, the Siemens MMC Memory Card (6ES7953-8LG31-0AA0) ensures that operator screen configurations and alarm setpoints are preserved through power cycling events. Mechanical integrity of the cabinet assembly is supported by the Siemens S7-300 DIN Rail (6ES7390-1AE80-0AA0), which provides a vibration-resistant mounting platform compliant with IEC 60068-2-6 shock and vibration standards.

Together, these components form a cohesive, safety-oriented control cabinet ecosystem that reduces the probability of unplanned shutdowns, operator interface failures, and interlock bypass events — all of which carry significant safety and financial consequences in continuous process industries.

Critical Industrial Safety Applications

The Siemens 6AV6542-0CA10-0AX0 has been deployed across a wide range of safety-critical industrial sectors where control reliability directly impacts personnel safety, environmental compliance, and production continuity.

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the OP270 is used to monitor and control critical process variables such as reactor temperature, pressure relief valve status, and emergency shutdown (ESD) system states. Its IP65 front protection and wide operating temperature range make it suitable for installation in Zone 2 classified areas when housed in appropriate Ex-rated enclosures.

Power Generation & Electrical Substations: Utility operators rely on the 6AV6542-0CA10-0AX0 for turbine control visualization, transformer protection relay status display, and switchgear interlock management. The panel’s EMC compliance ensures stable operation in environments with high electromagnetic field intensity from high-voltage bus bars and transformer switching.

Mining & Mineral Processing: In underground and surface mining operations, the OP270 provides real-time visualization of conveyor belt status, crusher load, and ventilation fan interlock states. Its resistance to vibration and dust ingress is particularly valued in environments where fine particulate matter and mechanical shock are constant operational factors.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the OP270 to manage pump sequencing, chemical dosing control, and alarm annunciation for overflow and contamination events. The panel’s long-term availability as a spare part is critical for facilities operating under strict regulatory uptime requirements.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the 6AV6542-0CA10-0AX0 withstands the high-temperature radiant heat, electromagnetic interference from large motor drives, and vibration from heavy mechanical equipment — environments where lesser HMI panels frequently fail prematurely.

Port & Marine Automation: Crane control systems, ship loading arms, and ballast water management systems in port and marine environments benefit from the OP270’s sealed front panel and wide humidity tolerance, ensuring reliable operator interface performance in salt-air and high-moisture conditions.

Safety and Quality FAQ

Q1: Does the 6AV6542-0CA10-0AX0 come with a warranty, and what does it cover?
Yes. Every unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects, functional failures, and component-level faults identified under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify display integrity, communication port operation, and power input performance before dispatch.

Q2: How is compatibility with existing SIMATIC S7-300 systems verified?
The 6AV6542-0CA10-0AX0 is factory-designed for native MPI and PROFIBUS DP integration with SIMATIC S7-300 and S7-400 controllers. Configuration is performed via ProTool or WinCC flexible 2008 software. NINERMAS technical support can assist with compatibility verification based on your existing PLC firmware version and communication configuration upon request.

Q3: Is long-term stock availability guaranteed for this end-of-life component?
NINERMAS maintains dedicated inventory reserves for legacy SIMATIC HMI components, including the 6AV6542-0CA10-0AX0, specifically to support customers operating end-of-life automation systems. We coordinate with procurement partners to ensure sustained availability and can provide lead time commitments for volume orders.

Q4: What safety precautions should be observed when replacing the OP270 in a live control cabinet?
Replacement should be performed by qualified automation engineers following applicable LOTO (Lockout/Tagout) procedures and local electrical safety regulations. The control system should be placed in a safe state, with all interlock and ESD functions verified before and after the panel swap. NINERMAS recommends retaining the original project file backup on the Siemens MMC Memory Card (6ES7953-8LG31-0AA0) to facilitate rapid configuration restoration.
